JMS系列(四)-oracle esb 发送JMS消息

最新推荐文章于 2025-05-24 15:39:15 发布
转载 最新推荐文章于 2025-05-24 15:39:15 发布 · 301 阅读 · 0 ·
CC 4.0 BY-SA版权
原文链接：https://segmentfault.com/a/1190000016814451
文章标签：

#数据库 #postman

本文详细介绍了如何使用Oracle ESB与JMS进行消息交互的过程，包括创建Business Service和Proxy Service，设置JMS消息头，以及使用Postman进行测试的方法。

摘要生成于 C知道 ，由 DeepSeek-R1 满血版支持， 前往体验 >

在实际项目上，一般是通过服务总线跟jms交互，oracle esb是oracle公司提供的服务总线产品简称osb，支持多种协议。

创建osb business service

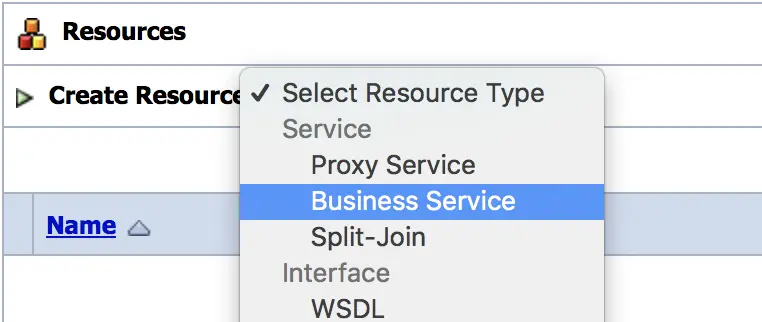

  1. 创建business service

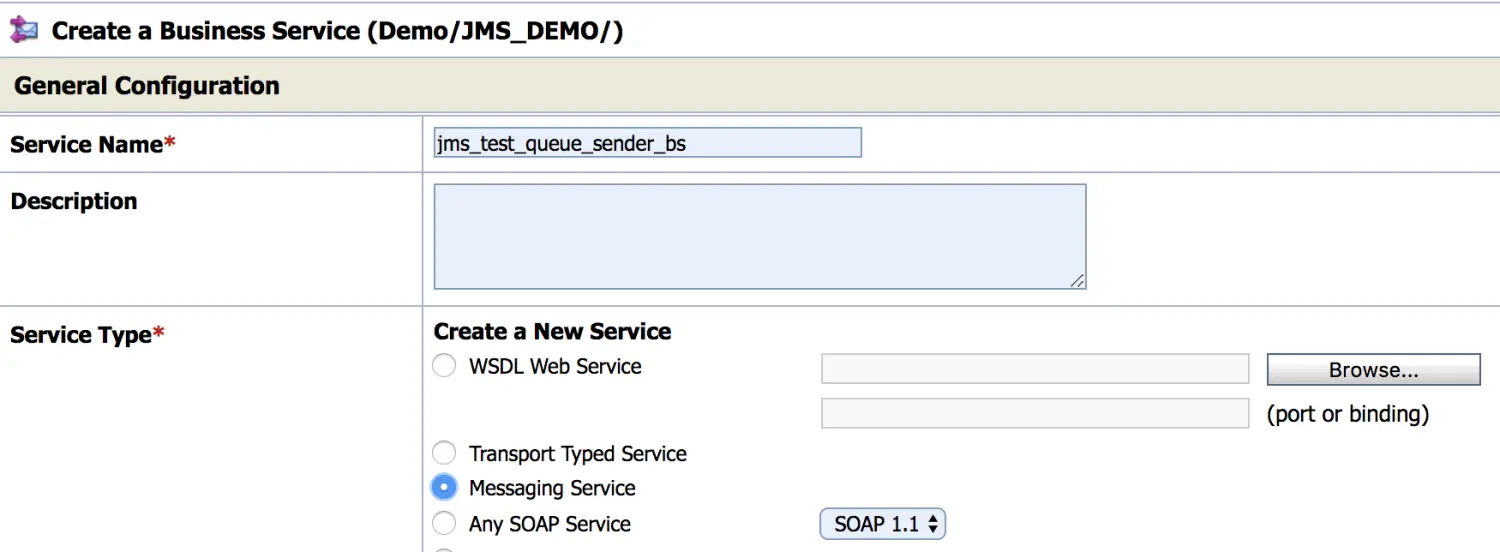

  1. 服务类型选择Messaging Service

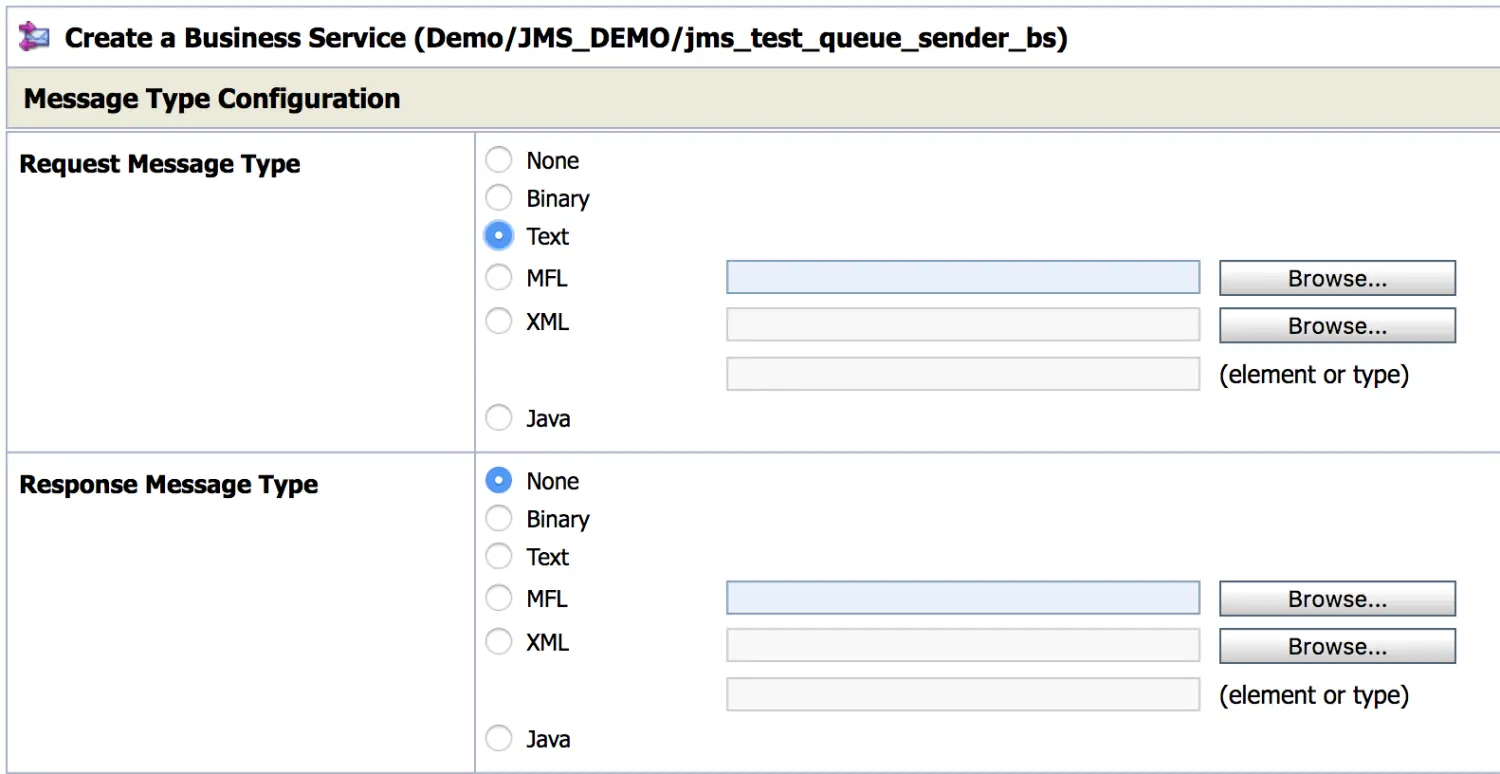

  1. 请求消息类型选择Text

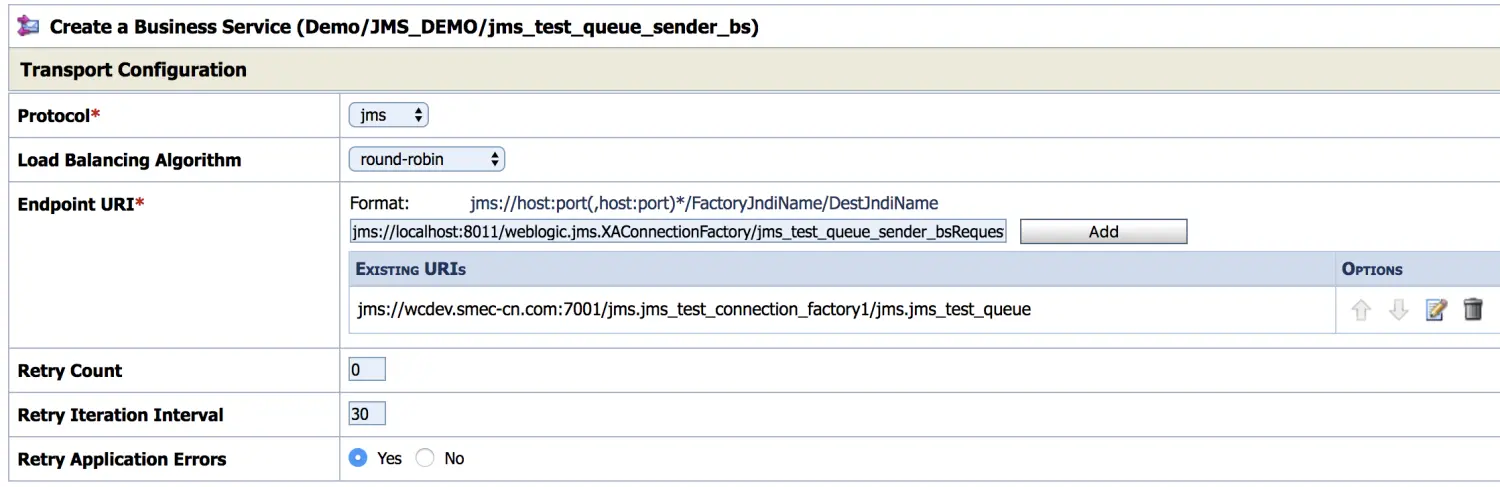

  1. 协议选择jms URI输入jms://host:port/jms.jms_test_connection_factory1/jms.jms_test_queue如果jndi名字中带有/需要将/替换为.如jms队列名称为jms/queue在URI中需要替换为jms.queue，输入完后点击add

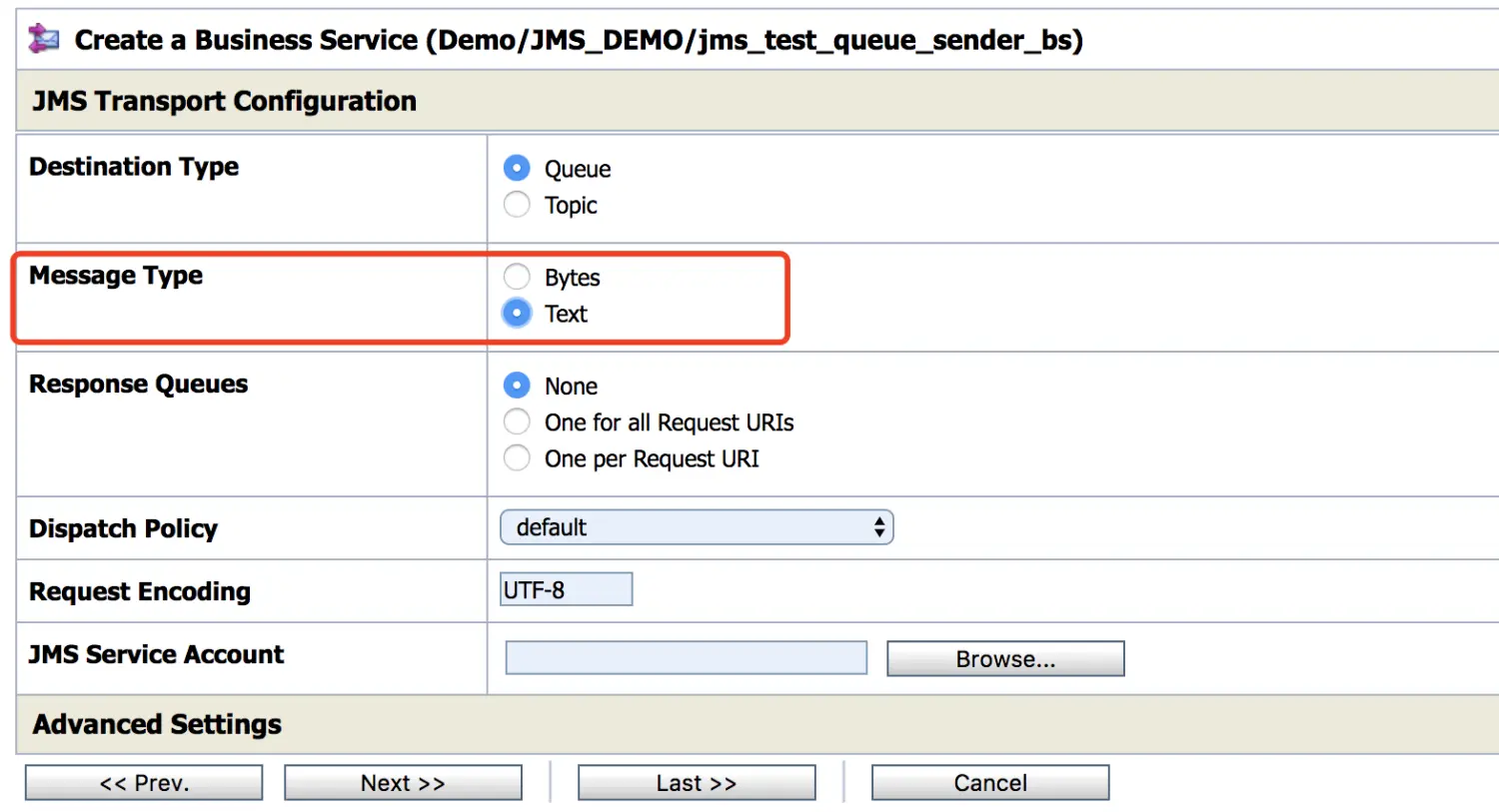

  1. 类型选择Queue如果要往jms主题中发送消息则选择Topic，消息类型选择Text

  1. 后面就全部默认到最后一步

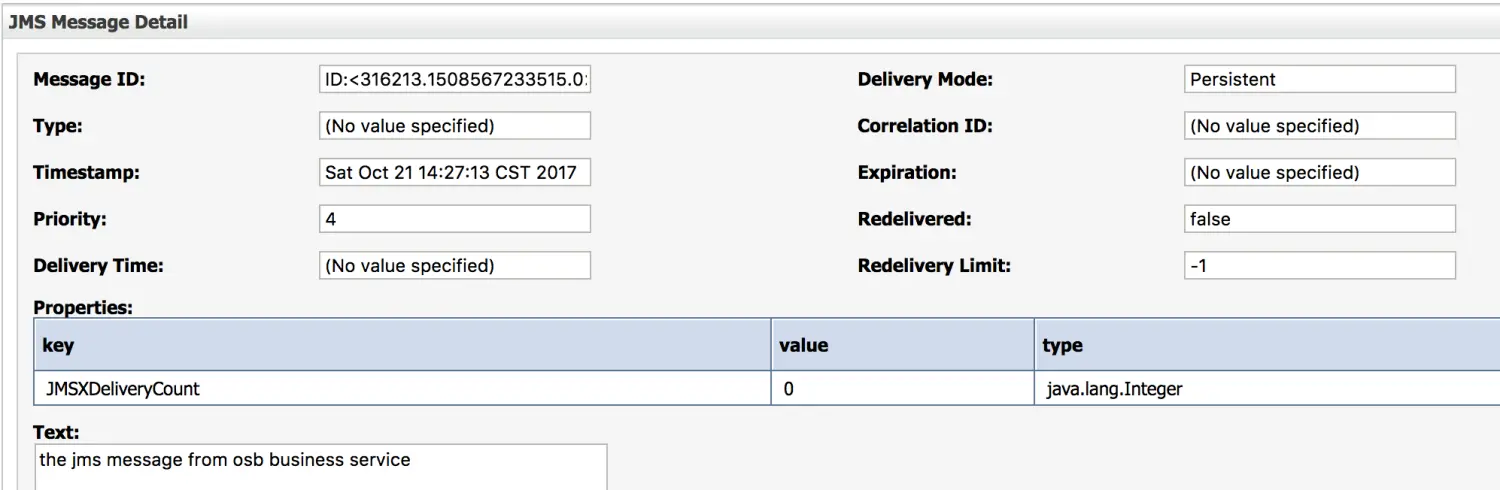

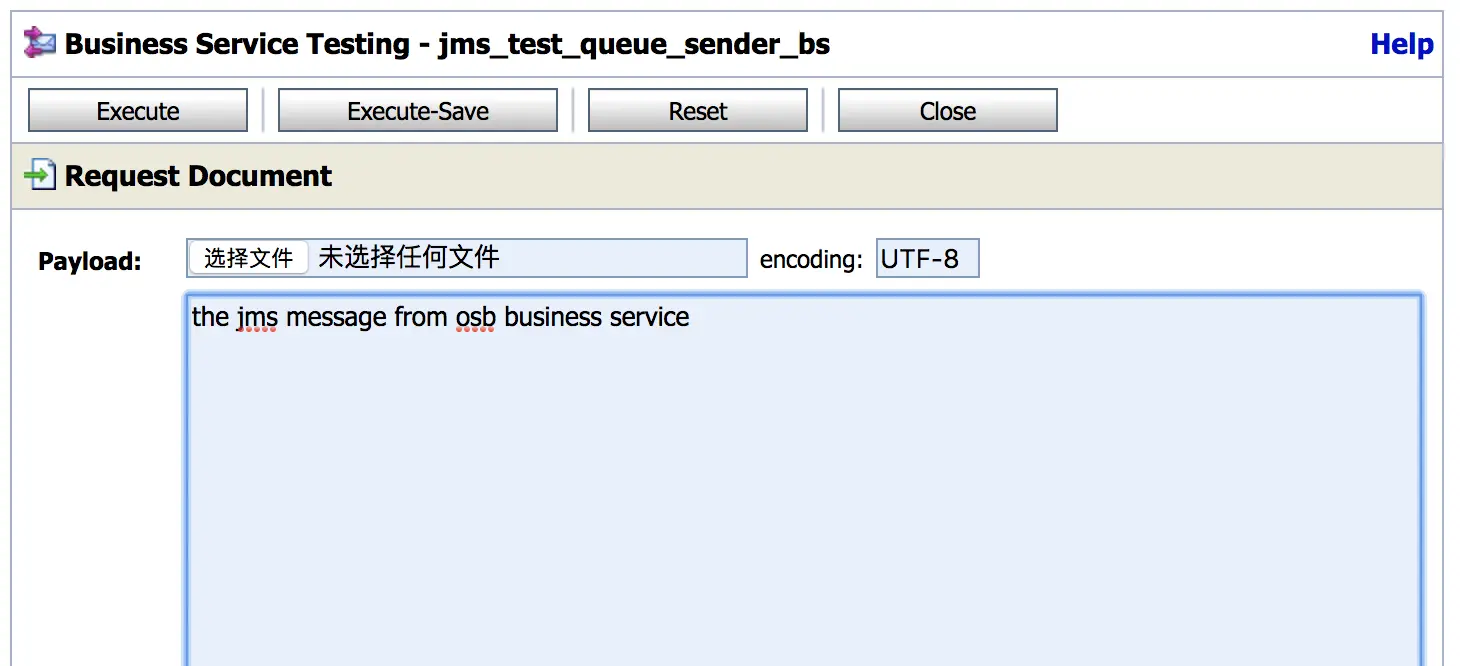

  2. Active后测试该服务


创建osb proxy service

business service是无法被第三方调用，要通过proxy service做代理才可被调用

  1. 创建 proxy service

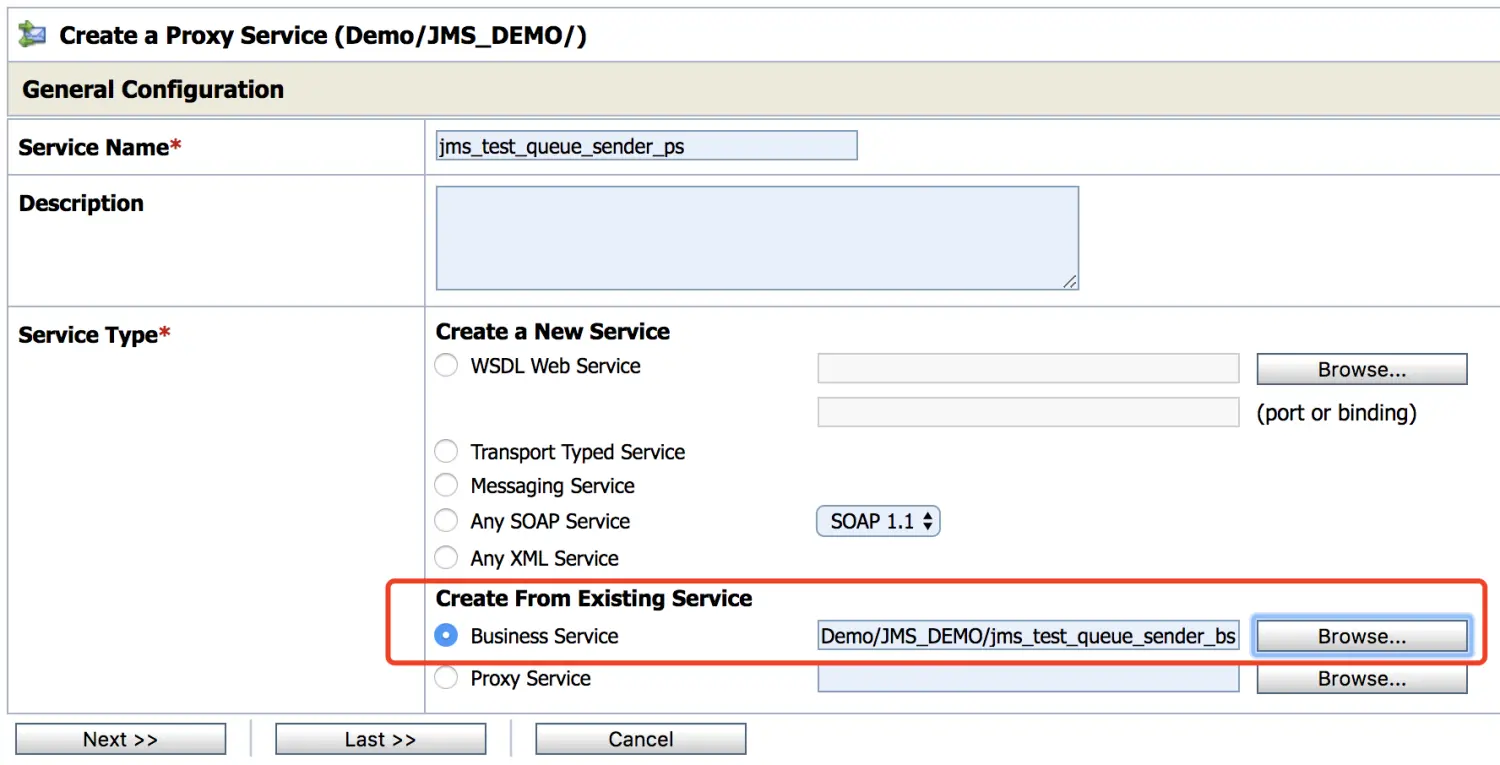

  1. 服务类型选择基于business service并将上面创建的business service选中

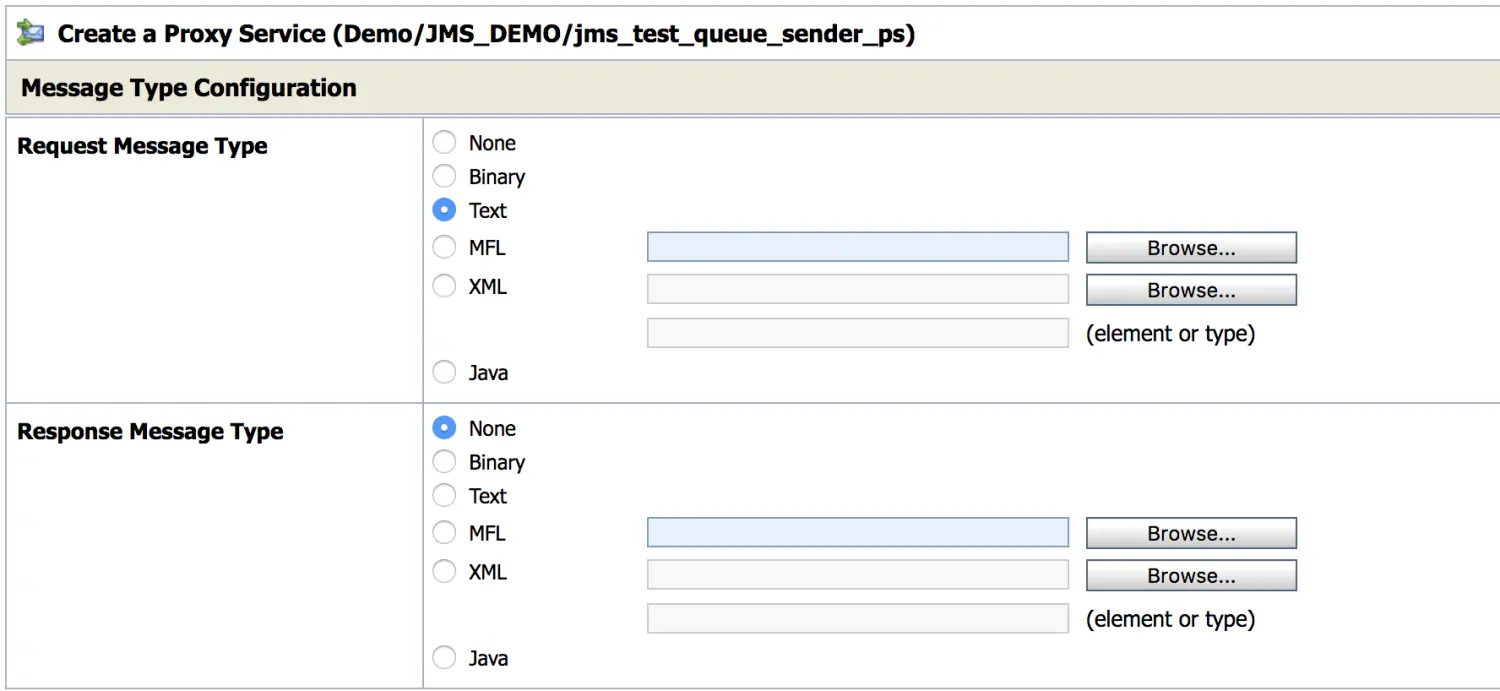

  1. 请求消息类型选择Text响应消息类型选择Nonejms都是异步服务不需要Response

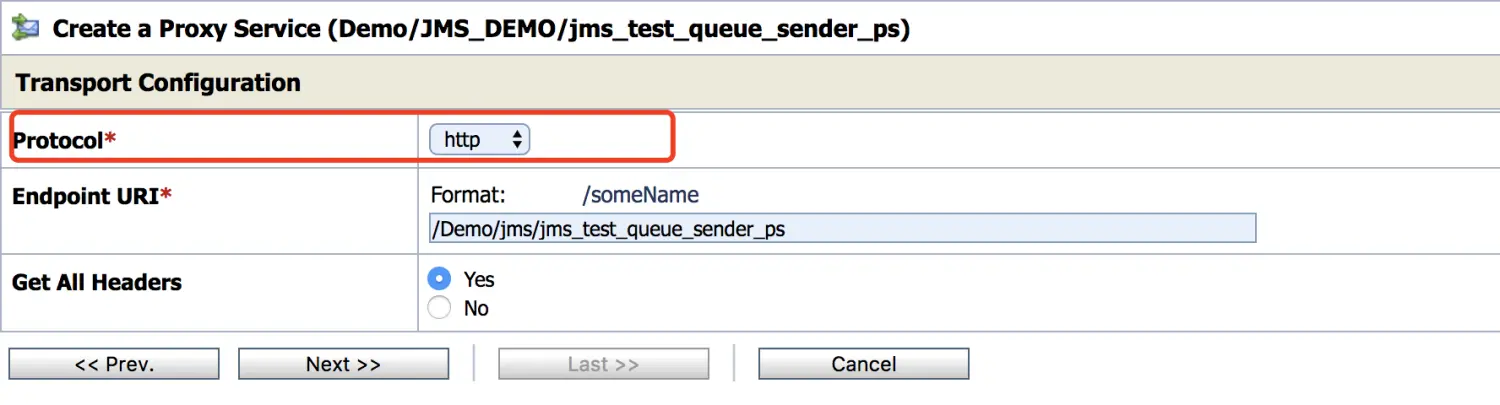

  1. 协议选择http,Endpoint URI是http调用的地址，Get All Headers选择Yes

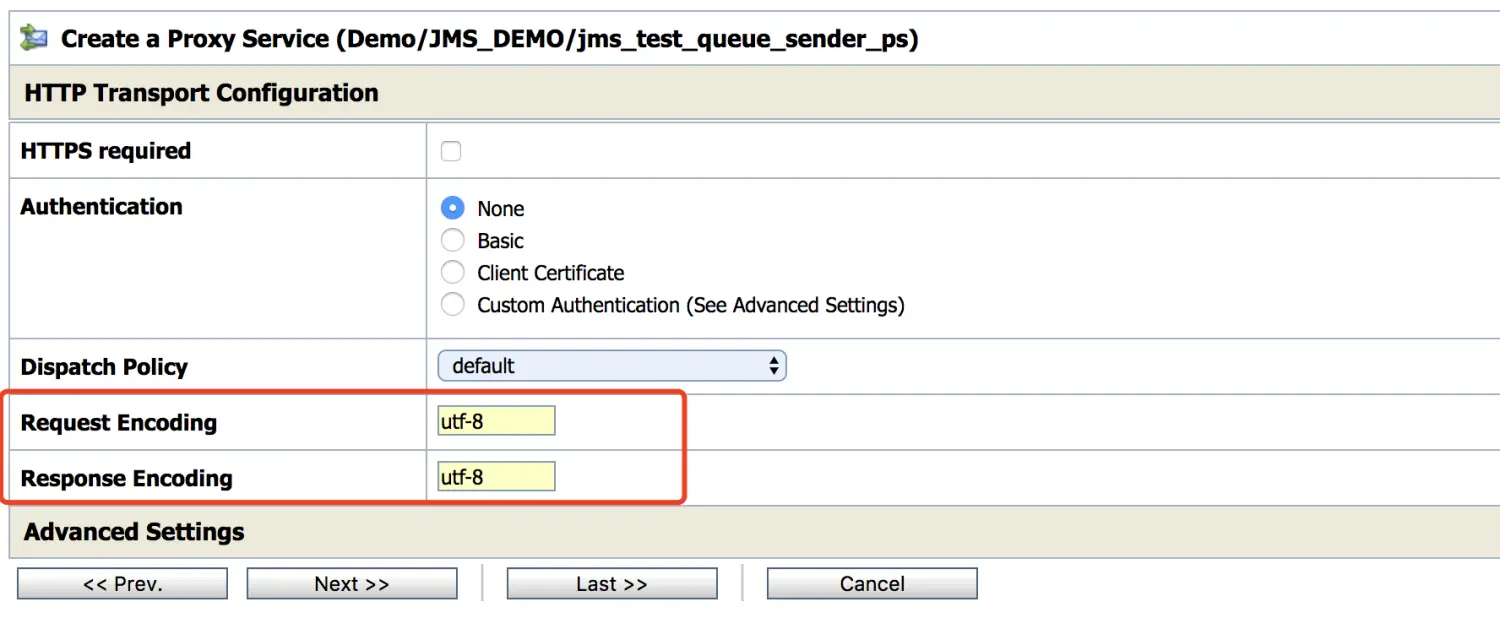

  1. 请求和响应都输入utf-8，后面一路默认到结束

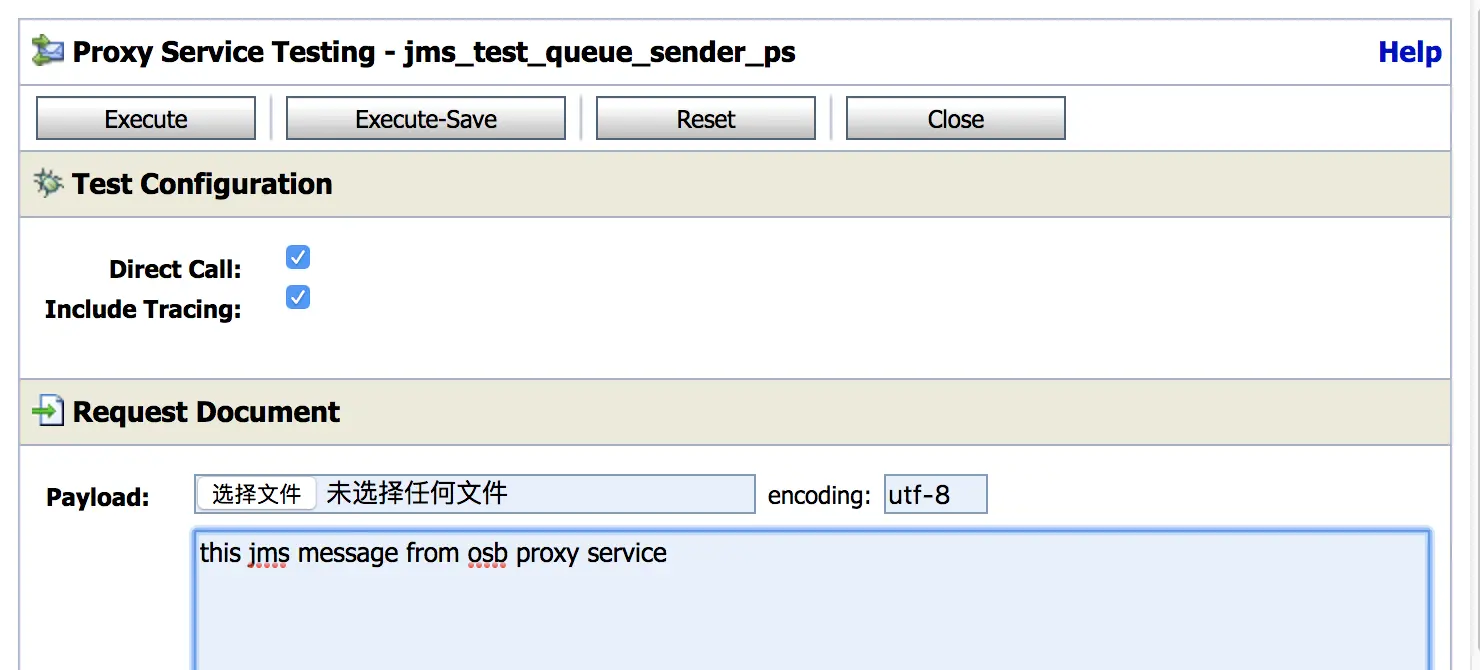

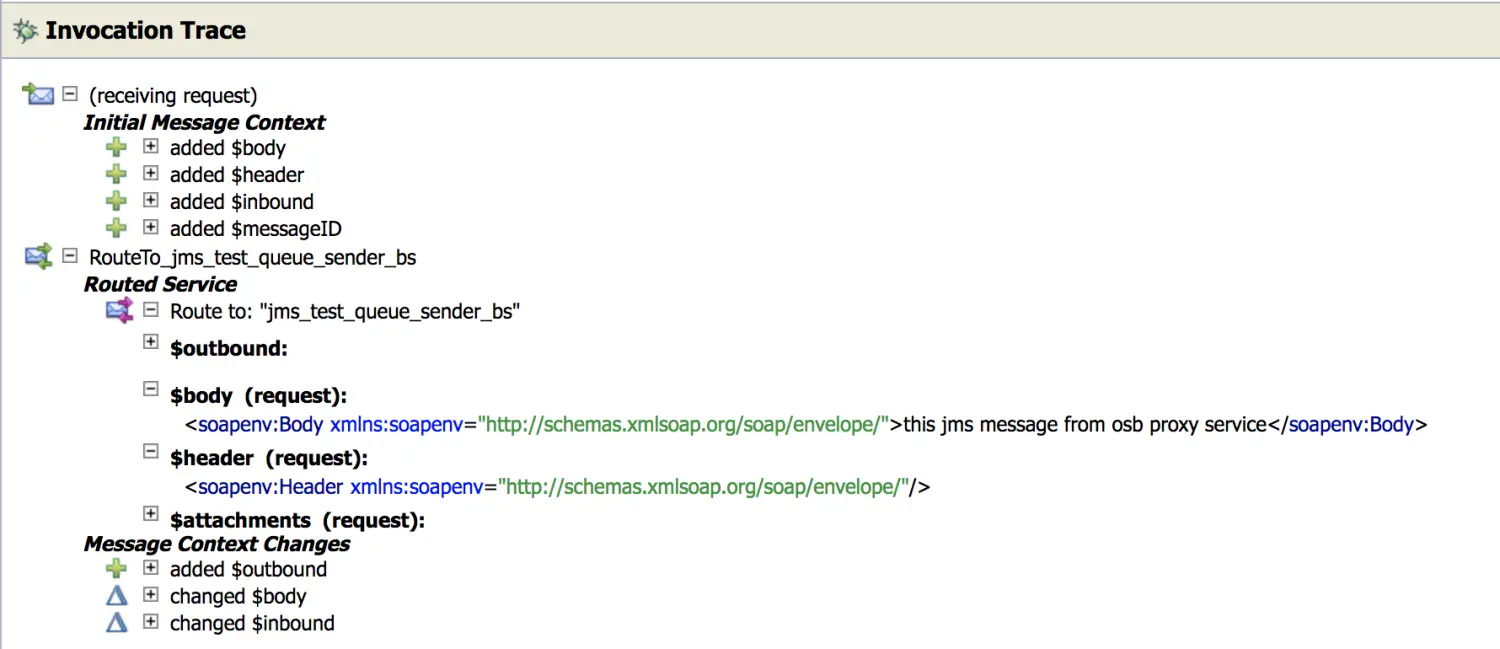

  1. 测试proxy service

设置jms消息头

如图在osb如何设置jms消息头信息

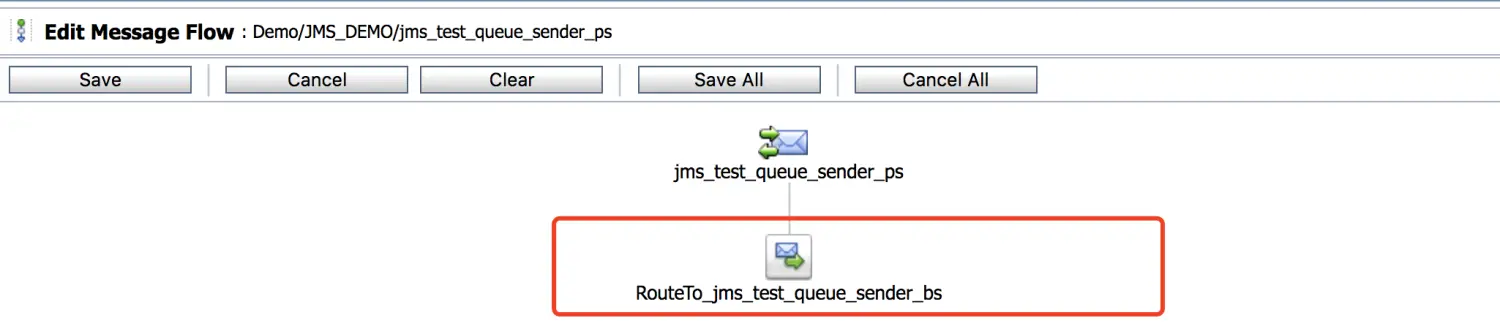

  1. 打开proxy service

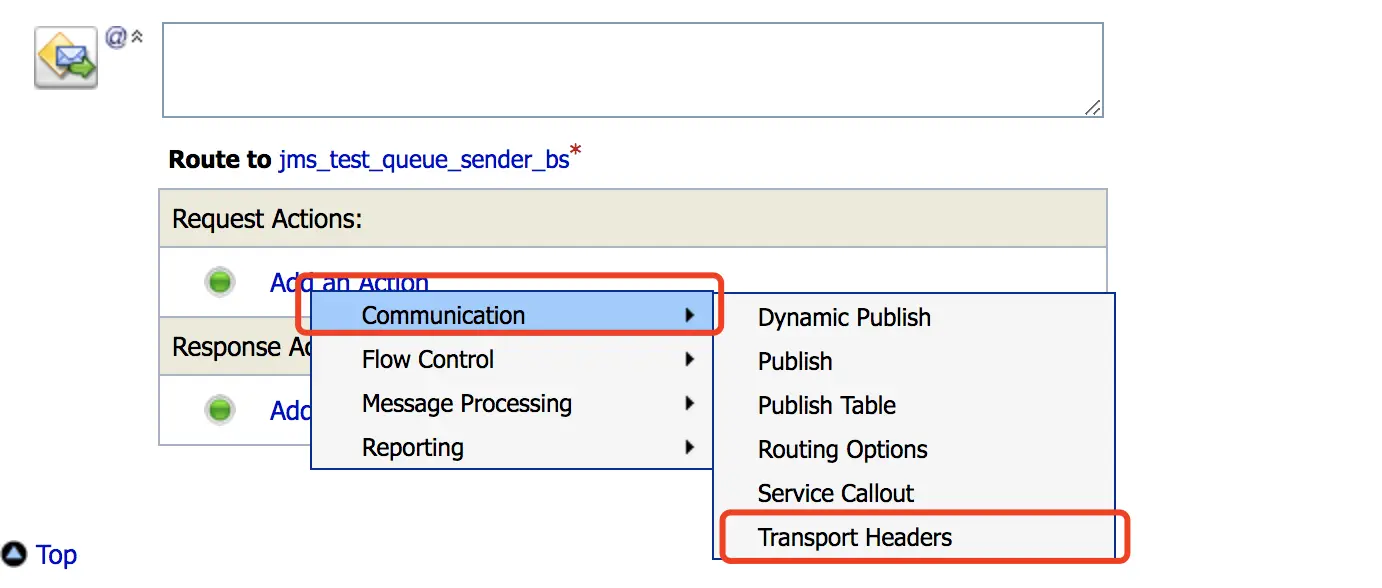

  1. 创建Transport Headers

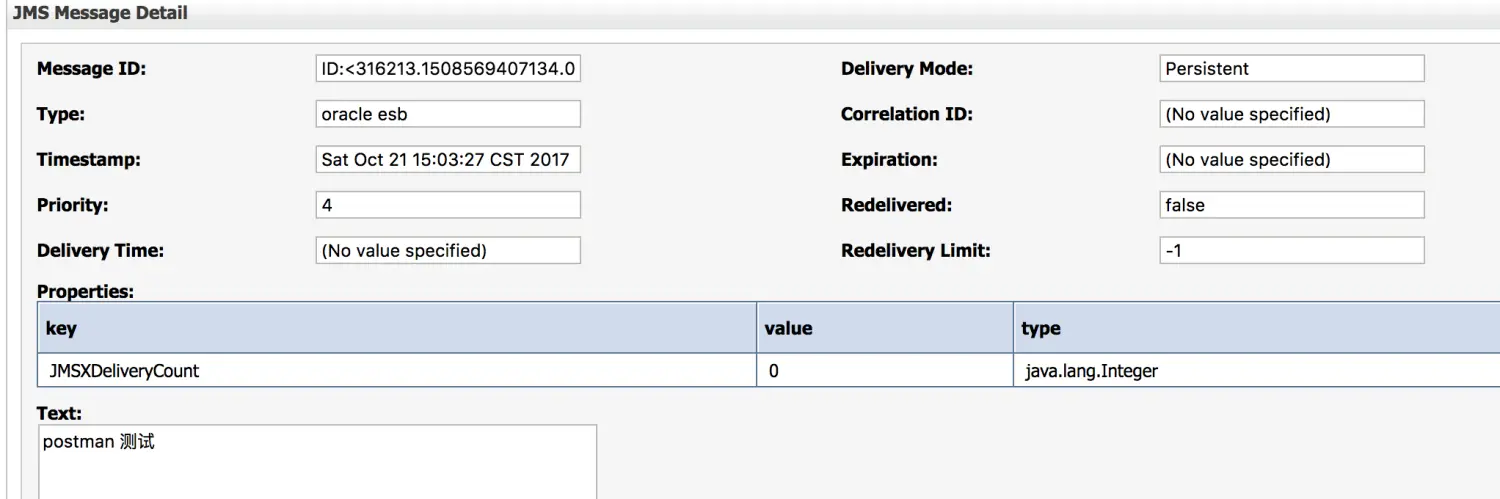

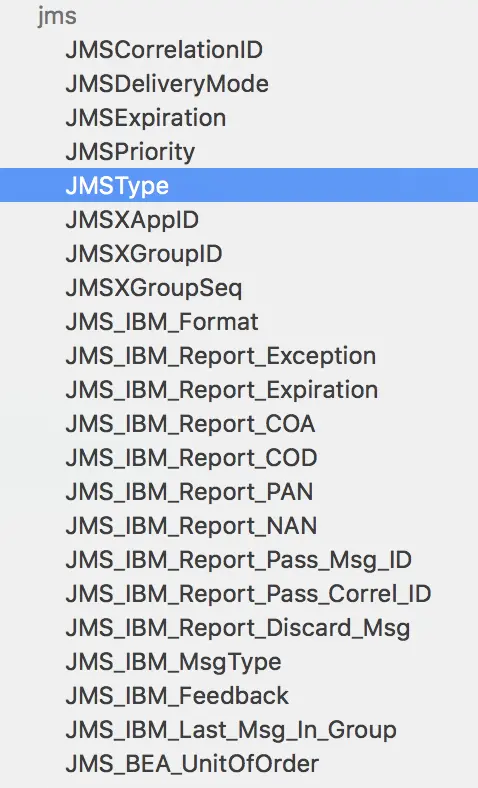

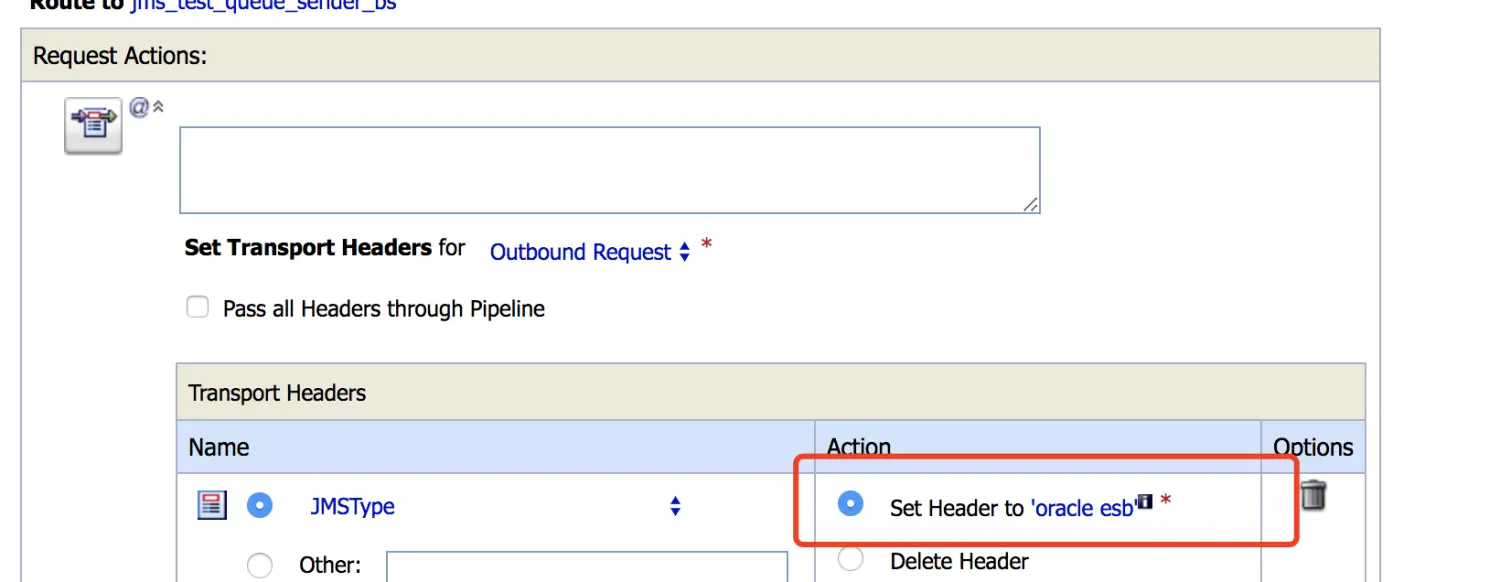

  1. Header名称选择JMSType这里以该字段为例其他字段类似，Set Header to输入'oracle osb'

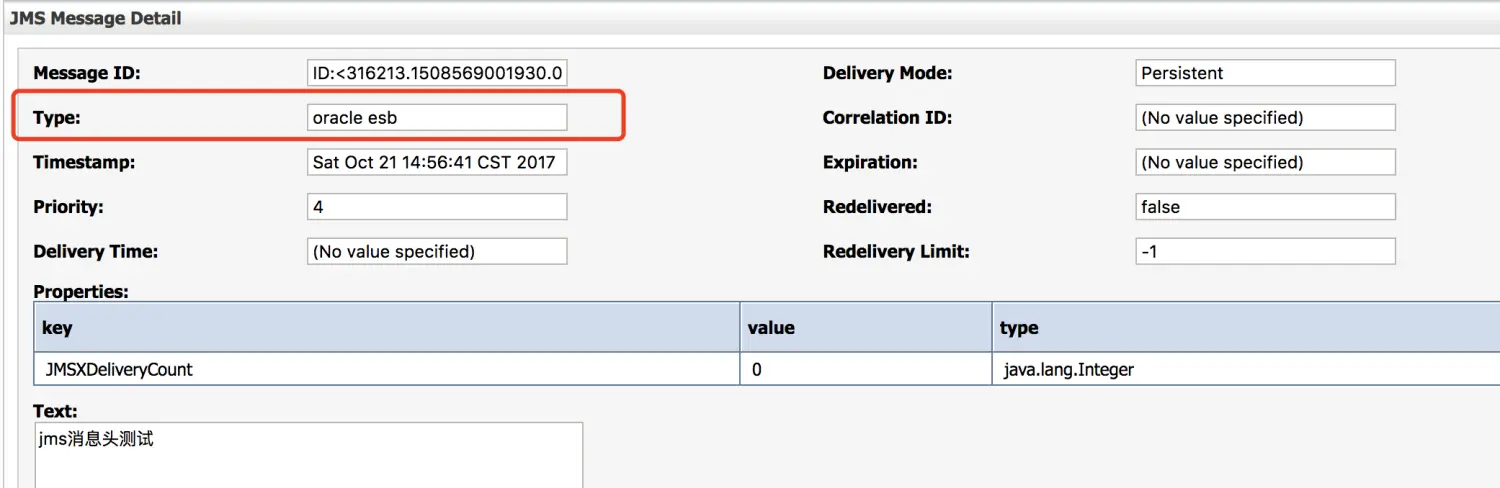

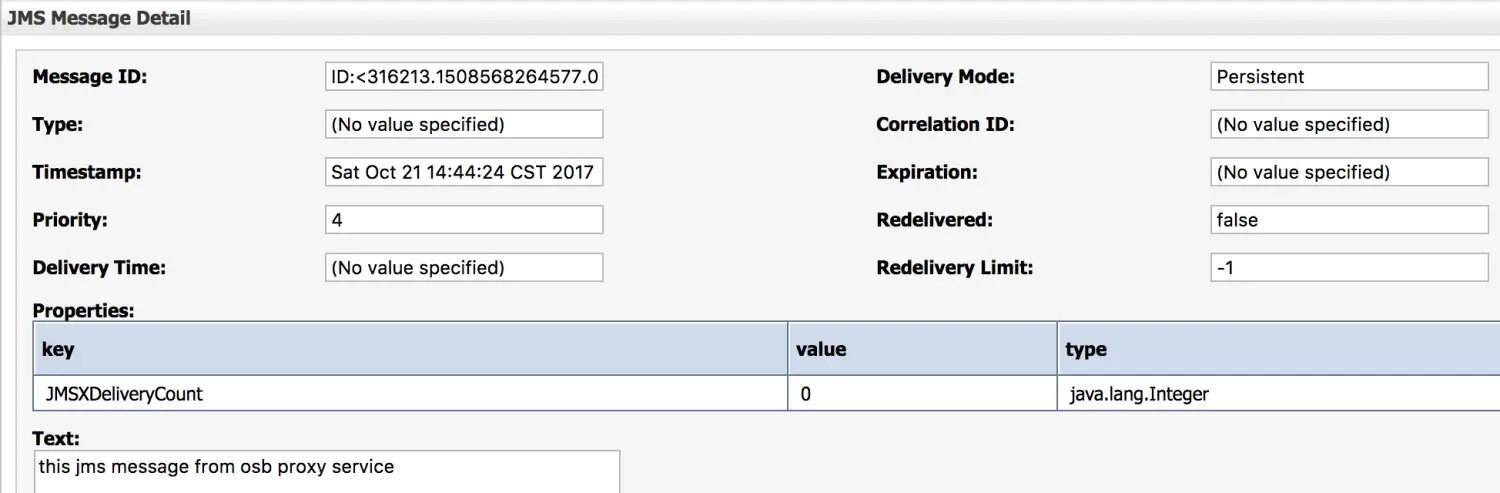

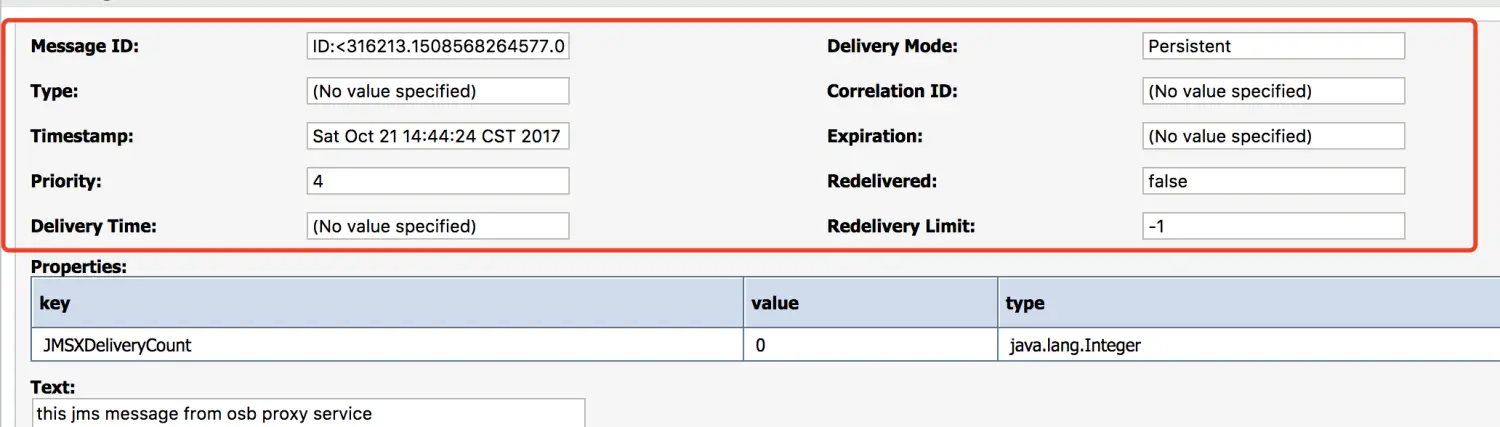

  1. 测试

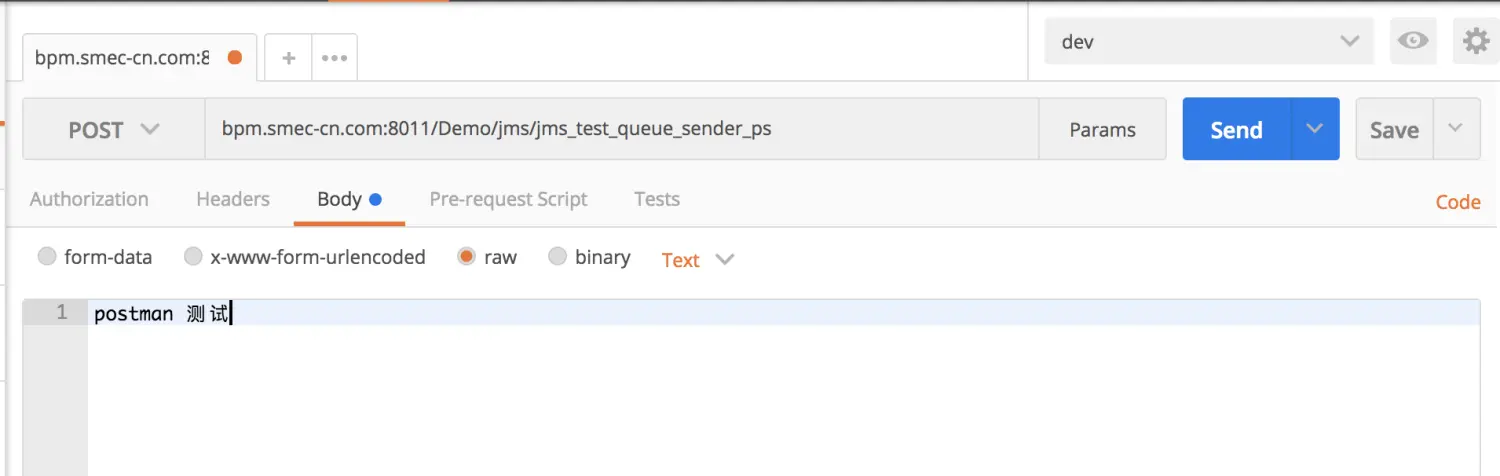

  1. postman测试
