#include <stdio.h>
#include <ctype.h>
#include <stdlib.h>
#include <unistd.h>
#include <string.h>
#include <sys/types.h>
#include <sys/ptrace.h>
#include <elf.h>
#include <sys/mman.h>
#include <errno.h>
#include <fcntl.h>
#include <sys/wait.h>
#include <sys/user.h>
#include <sys/stat.h>
#include <sys/reg.h>
#include <stdarg.h>
/*
* For our color coding output
*/
#define WHITE "\x1B[37m"
#define RED "\x1B[31m"
#define GREEN "\x1B[32m"
#define YELLOW "\x1B[33m"
#define DEFAULT_COLOR "\x1B[0m"
#define MAX_SYMS 8192 * 2
// On 32bit systems should be set:
//export FTRACE_ARCH=32
#define FTRACE_ENV "FTRACE_ARCH"
#define MAX_ADDR_SPACE 256
#define MAXSTR 512
#define TEXT_SPACE 0
#define DATA_SPACE 1
#define STACK_SPACE 2
#define HEAP_SPACE 3
#define CALLSTACK_DEPTH 0xf4240
//用与保存内存中的 opcode
struct branch_instr {
const char *mnemonic;
uint8_t opcode;
};
#define BRANCH_INSTR_LEN_MAX 5
//分支指令
struct branch_instr branch_table[64] = {
{"jo", 0x70},
{"jno", 0x71}, {"jb", 0x72}, {"jnae", 0x72}, {"jc", 0x72}, {"jnb", 0x73},
{"jae", 0x73}, {"jnc", 0x73}, {"jz", 0x74}, {"je", 0x74}, {"jnz", 0x75},
{"jne", 0x75}, {"jbe", 0x76}, {"jna", 0x76}, {"jnbe", 0x77}, {"ja", 0x77},
{"js", 0x78}, {"jns", 0x79}, {"jp", 0x7a}, {"jpe", 0x7a}, {"jnp", 0x7b},
{"jpo", 0x7b}, {"jl", 0x7c}, {"jnge", 0x7c}, {"jnl", 0x7d}, {"jge", 0x7d},
{"jle", 0x7e}, {"jng", 0x7e}, {"jnle", 0x7f}, {"jg", 0x7f}, {"jmp", 0xeb},
{"jmp", 0xe9}, {"jmpf", 0xea}, {NULL, 0}
};
struct elf_section_range {
char *sh_name;
unsigned long sh_addr;
unsigned int sh_size;
};
struct {
int stripped;
int callsite;
int showret;
int attach;
int verbose;
int elfinfo;
int typeinfo; //imm vs. ptr
int getstr;
int arch;
int cflow;
} opts;
//elf 64位 文件
struct elf64 {
//文件头
Elf64_Ehdr *ehdr;
//程序头基址
Elf64_Phdr *phdr;
//节表头头基址
Elf64_Shdr *shdr;
//符号表
Elf64_Sym *sym;
//动态段
Elf64_Dyn *dyn;
char *StringTable;
char *SymStringTable;
};
typedef struct
{
Elf32_Word sh_name; /* Section name (string tbl index) */
Elf32_Word sh_type; /* Section type */
Elf32_Xword sh_flags; /* Section flags */
Elf32_Addr sh_addr; /* Section virtual addr at execution */
Elf32_Off sh_offset; /* Section file offset */
Elf32_Xword sh_size; /* Section size in bytes */
Elf32_Word sh_link; /* Link to another section */
Elf32_Word sh_info; /* Additional section information */
Elf32_Xword sh_addralign; /* Section alignment */
Elf32_Xword sh_entsize; /* Entry size if section holds table */
} Elf32_Shdr;
//elf 32位 文件
struct elf32 {
Elf32_Ehdr *ehdr;
Elf32_Phdr *phdr;
Elf32_Shdr *shdr;
Elf32_Sym *sym;
Elf32_Dyn *dyn;
char *StringTable;
char *SymStringTable;
};
//堆栈 数据段等
struct address_space {
//起始地址
unsigned long svaddr;
//结束地址
unsigned long evaddr;
//大小
unsigned int size;
//数量
int count;
};
//符号条目
struct syms {
char *name;
unsigned long value;
};
//断点
typedef struct breakpoint {
unsigned long vaddr;
long orig_code;
} breakpoint_t;
//调用栈帧数据
typedef struct calldata {
char *symname;
char *string;
unsigned long vaddr;
unsigned long retaddr;
// unsigned int depth;
breakpoint_t breakpoint;
} calldata_t;
//调用栈
typedef struct callstack {
calldata_t *calldata;
unsigned int depth;
} callstack_t;
struct call_list {
char *callstring;
struct call_list *next;
};
#define MAX_SHDRS 256
//用户保存要用到的数据
struct handle {
char *path;
char **args;
uint8_t *map;
struct elf32 *elf32;
struct elf64 *elf64;
struct elf_section_range sh_range[MAX_SHDRS];
struct syms lsyms[MAX_SYMS]; //local syms
struct syms dsyms[MAX_SYMS]; //dynamic syms
char *libnames[256];
int lsc; //lsyms count
int dsc; // dsyms count
int lnc; //libnames count
int shdr_count;
int pid;
};
//全局 pid
int global_pid;
void load_elf_section_range(struct handle *);
void get_address_space(struct address_space *, int, char *);
void MapElf32(struct handle *);
void MapElf64(struct handle *);
void *HeapAlloc(unsigned int);
char *xstrdup(const char *);
char *get_section_by_range(struct handle *, unsigned long);
//下断点
void set_breakpoint(callstack_t *callstack)
{
int status;
long orig = ptrace(PTRACE_PEEKTEXT, global_pid, callstack->calldata[callstack->depth].retaddr);
long trap;
trap = (orig & ~0xff) | 0xcc;
if (opts.verbose)
printf("[+] Setting breakpoint on 0x%lx\n", callstack->calldata[callstack->depth].retaddr);
ptrace(PTRACE_POKETEXT, global_pid, callstack->calldata[callstack->depth].retaddr, trap);
callstack->calldata[callstack->depth].breakpoint.orig_code = orig;
callstack->calldata[callstack->depth].breakpoint.vaddr = callstack->calldata[callstack->depth].retaddr;
}
//移除断点
void remove_breakpoint(callstack_t *callstack)
{
int status;
if (opts.verbose)
printf("[+] Removing breakpoint from 0x%lx\n", callstack->calldata[callstack->depth].retaddr);
ptrace(PTRACE_POKETEXT, global_pid,
callstack->calldata[callstack->depth].retaddr, callstack->calldata[callstack->depth].breakpoint.orig_code);
}
// 函数深度和返回值跟踪的堆栈的简单数组实现
void callstack_init(callstack_t *callstack)
{
callstack->calldata = (calldata_t *)HeapAlloc(sizeof(calldata_t) * CALLSTACK_DEPTH);
callstack->depth = -1; // 0 is first element
}
//push调用栈
void callstack_push(callstack_t *callstack, calldata_t *calldata)
{
memcpy(&callstack->calldata[++callstack->depth], calldata, sizeof(calldata_t));
set_breakpoint(callstack);
}
//pop调用栈
calldata_t * callstack_pop(callstack_t *callstack)
{
if (callstack->depth == -1)
return NULL;
remove_breakpoint(callstack);
return (&callstack->calldata[callstack->depth--]);
}
//在不弹出的情况下查看堆栈顶部
calldata_t * callstack_peek(callstack_t *callstack)
{
if (callstack->depth == -1)
return NULL;
return &callstack->calldata[callstack->depth];
}
struct call_list * add_call_string(struct call_list **head, const char *string)
{
struct call_list *tmp = (struct call_list *)HeapAlloc(sizeof(struct call_list));
tmp->callstring = (char *)xstrdup(string);
tmp->next = *head;
*head = tmp;
return *head;
}
void clear_call_list(struct call_list **head)
{
struct call_list *tmp;
if (!head)
return;
while (*head != NULL) {
tmp = (*head)->next;
free (*head);
*head = tmp;
}
}
//在branch_table中搜索对应的opcode
struct branch_instr * search_branch_instr(uint8_t instr)
{
int i;
struct branch_instr *p, *ret;
for (i = 0, p = branch_table;
p->mnemonic != NULL;
p++, i++) {
if (instr == p->opcode)
return p;
}
return NULL;
}
void print_call_list(struct call_list **head)
{
if (!head)
return;
while (*head != NULL) {
fprintf(stdout, "%s", (*head)->callstring);
head = &(*head)->next;
}
}
//申请堆空间
void * HeapAlloc(unsigned int len)
{
uint8_t *mem = (uint8_t *)malloc(len);
if (!mem) {
perror("malloc");
exit(-1);
}
return mem;
}
//字符串拷贝
char * xstrdup(const char *s)
{
char *p = strdup(s);
if (p == NULL) {
perror("strdup");
exit(-1);
}
return p;
}
//格式化合并字符串
char * xfmtstrdup(const char *fmt, ...)
{
char *s, buf[512];
va_list va;
va_start (va, fmt);
//将可变参数格式化输出到一个字符数组
vsnprintf (buf, sizeof(buf), fmt, va);
s = xstrdup(buf);
return s;
}
//ptrace 读取地址(src)中的数据
int pid_read(int pid, void *dst, const void *src, size_t len)
{
int sz = len / sizeof(void *);
int rem = len % sizeof(void *);
unsigned char *s = (unsigned char *)src;
unsigned char *d = (unsigned char *)dst;
long word;
while (sz-- != 0) {
// long ptrace(enum __ptrace_request request, pid_t pid, void *addr, void *data);
// ptrace有四个参数:
// 1). enum __ptrace_request request：指示了ptrace要执行的命令。
// 2). pid_t pid: 指示ptrace要跟踪的进程。
// 3). void *addr: 指示要监控的内存地址。
// 4). void *data: 存放读取出的或者要写入的数据。
//PTRACE_PEEKTEXT 请求允许追踪进程读取被追踪进程镜像的虚拟内存地址
word = ptrace(PTRACE_PEEKTEXT, pid, s, NULL);
if (word == -1 && errno)
return -1;
*(long *)d = word;
s += sizeof(long);
d += sizeof(long);
}
return 0;
}
// 获取global/local dynamic symbol/function 信息.
int BuildSyms(struct handle *h)
{
unsigned int i, j, k;
//符号表
char *SymStrTable;
//ELF 头
Elf32_Ehdr *ehdr32;
//节表头
Elf32_Shdr *shdr32;
//符号表
Elf32_Sym *symtab32;
//ELF 头64位
Elf64_Ehdr *ehdr64;
//节表头64 位
Elf64_Shdr *shdr64;
//符号表64位
Elf64_Sym *symtab64;
int st_type;
h->lsc = 0;
h->dsc = 0;
//判断处理器架构
switch(opts.arch) {
case 32:
ehdr32 = h->elf32->ehdr;
shdr32 = h->elf32->shdr;
//循环遍历所有节
for (i = 0; i < ehdr32->e_shnum; i++) {
if (shdr32[i].sh_type == SHT_SYMTAB || shdr32[i].sh_type == SHT_DYNSYM) {
//在映射中找到对应的字符
SymStrTable = (char *)&h->map[shdr32[shdr32[i].sh_link].sh_offset];
symtab32 = (Elf32_Sym *)&h->map[shdr32[i].sh_offset];
//遍历所有字符条目
for (j = 0; j < shdr32[i].sh_size / sizeof(Elf32_Sym); j++, symtab32++) {
//字符相关信息
st_type = ELF32_ST_TYPE(symtab32->st_info);
if (st_type != STT_FUNC)
continue;
//判断类型是普通符号还是动态库中的符号
switch(shdr32[i].sh_type) { //名称 ，值
case SHT_SYMTAB:
h->lsyms[h->lsc].name = xstrdup(&SymStrTable[symtab32->st_name]);
h->lsyms[h->lsc].value = symtab32->st_value;
h->lsc++;
break;
case SHT_DYNSYM:
h->dsyms[h->dsc].name = xstrdup(&SymStrTable[symtab32->st_name]);
h->lsyms[h->lsc].value = symtab32->st_value;
h->dsc++;
break;
}
}
}
}
//保存重定位符号表
h->elf32->StringTable = (char *)&h->map[shdr32[ehdr32->e_shstrndx].sh_offset];
for (i = 0; i < ehdr32->e_shnum; i++) {
if (!strcmp(&h->elf32->StringTable[shdr32[i].sh_name], ".plt")) {
for (k = 0, j = 0; j < shdr32[i].sh_size; j += 16) {
if (j >= 16) {
h->dsyms[k++].value = shdr32[i].sh_addr + j;
}
}
break;
}
}
break;
case 64:
ehdr64 = h->elf64->ehdr;
shdr64 = h->elf64->shdr;
for (i = 0; i < ehdr64->e_shnum; i++) {
if (shdr64[i].sh_type == SHT_SYMTAB || shdr64[i].sh_type == SHT_DYNSYM) {
SymStrTable = (char *)&h->map[shdr64[shdr64[i].sh_link].sh_offset];
symtab64 = (Elf64_Sym *)&h->map[shdr64[i].sh_offset];
for (j = 0; j < shdr64[i].sh_size / sizeof(Elf64_Sym); j++, symtab64++) {
st_type = ELF64_ST_TYPE(symtab64->st_info);
if (st_type != STT_FUNC)
continue;
switch(shdr64[i].sh_type) {
case SHT_SYMTAB:
h->lsyms[h->lsc].name = xstrdup(&SymStrTable[symtab64->st_name]);
h->lsyms[h->lsc].value = symtab64->st_value;
h->lsc++;
break;
case SHT_DYNSYM:
h->dsyms[h->dsc].name = xstrdup(&SymStrTable[symtab64->st_name]);
h->dsyms[h->dsc].value = symtab64->st_value;
h->dsc++;
break;
}
}
}
}
h->elf64->StringTable = (char *)&h->map[shdr64[ehdr64->e_shstrndx].sh_offset];
for (i = 0; i < ehdr64->e_shnum; i++) {
if (!strcmp(&h->elf64->StringTable[shdr64[i].sh_name], ".plt")) {
for (k = 0, j = 0; j < shdr64[i].sh_size; j += 16) {
if (j >= 16) {
h->dsyms[k++].value = shdr64[i].sh_addr + j;
}
}
break;
}
}
break;
}
return 0;
}
//获取保存dynamic段
void locate_dynamic_segment(struct handle *h)
{
int i;
switch (opts.arch) {
case 32:
h->elf32->dyn = NULL;
for (i = 0; i < h->elf32->ehdr->e_phnum; i++) {
if (h->elf32->phdr[i].p_type == PT_DYNAMIC) {
h->elf32->dyn = (Elf32_Dyn *)&h->map[h->elf32->phdr[i].p_offset];
break;
}
}
break;
case 64:
h->elf64->dyn = NULL;
for (i = 0; i < h->elf64->ehdr->e_phnum; i++) {
if (h->elf64->phdr[i].p_type == PT_DYNAMIC) {
h->elf64->dyn = (Elf64_Dyn *)&h->map[h->elf64->phdr[i].p_offset];
break;
}
}
break;
}
}
//获取相关数据
uint8_t *get_section_data(struct handle *h, const char *section_name)
{
char *StringTable;
int i;
switch (opts.arch) {
case 32:
StringTable = h->elf32->StringTable;
for (i = 0; i < h->elf32->ehdr->e_shnum; i++) {
if (!strcmp(&StringTable[h->elf32->shdr[i].sh_name], section_name)) {
return &h->map[h->elf32->shdr[i].sh_offset];
}
}
break;
case 64:
StringTable = h->elf64->StringTable;
for (i = 0; i < h->elf64->ehdr->e_shnum; i++) {
if (!strcmp(&StringTable[h->elf64->shdr[i].sh_name], section_name)) {
return &h->map[h->elf64->shdr[i].sh_offset];
}
}
break;
}
return NULL;
}
//获取字符表名称
char *get_dt_strtab_name(struct handle *h, int xset)
{
static char *dyn_strtbl;
if (!dyn_strtbl && !(dyn_strtbl = (char *)get_section_data(h, ".dynstr")))
printf("[!] Could not locate .dynstr section\n");
return dyn_strtbl + xset;
}
//解析相关dynamic段的信息
void parse_dynamic_dt_needed(struct handle *h)
{
char *symstr;
int i, n_entries;
Elf32_Dyn *dyn32;
Elf64_Dyn *dyn64;
//获取保存dynamic段
locate_dynamic_segment(h);
h->lnc = 0;
switch(opts.arch) {
case 32:
dyn32 = h->elf32->dyn;
for (i = 0; dyn32[i].d_tag != DT_NULL; i++) {
if (dyn32[i].d_tag == DT_NEEDED) {
symstr = get_dt_strtab_name(h, dyn32[i].d_un.d_val);
h->libnames[h->lnc++] = (char *)xstrdup(symstr);
}
}
break;
case 64:
dyn64 = h->elf64->dyn;
for (i = 0; dyn64[i].d_tag != DT_NULL; i++) {
if (dyn64[i].d_tag == DT_NEEDED) {
symstr = get_dt_strtab_name(h, dyn64[i].d_un.d_val);
h->libnames[h->lnc++] = (char *)xstrdup(symstr);
}
}
break;
}
}
//此函数试图从指针位置获取ASCII字符串
#ifdef __x86_64__
char *getstr(unsigned long addr, int pid)
{
int i, j, c;
uint8_t buf[sizeof(long)];
char *string = (char *)HeapAlloc(256);
unsigned long vaddr;
string[0] = '"';
for (c = 1, i = 0; i < 256; i += sizeof(long)) {
vaddr = addr + i;
//读进程内存
if (pid_read(pid, buf, (void *)vaddr, sizeof(long)) == -1) {
fprintf(stderr, "pid_read() failed: %s <0x%lx>\n", strerror(errno), vaddr);
exit(-1);
}
for (j = 0; j < sizeof(long); j++) {
if (buf[j] == '\n') {
string[c++] = '\\';
string[c++] = 'n';
continue;
}
if (buf[j] == '\t') {
string[c++] = '\\';
string[c++] = 't';
continue;
}
if (buf[j] != '\0' && isascii(buf[j]))
string[c++] = buf[j];
else
goto out;
}
}
out:
string[c++] = '"';
string[c] = '\0';
return string;
}
#endif
#ifdef __x86_64__
//获取对应的参数的字符串
char *getargs(struct user_regs_struct *reg, int pid, struct address_space *addrspace)
{
unsigned char buf[12];
int i, c, in_ptr_range = 0, j;
char *args[256], *p;
char tmp[512], *s;
long val;
char *string = (char *)HeapAlloc(MAXSTR);
unsigned int maxstr = MAXSTR;
unsigned int b;
/* X86Y64只支持这一点，基本上在这里解析这个调用约定：
mov %rsp,%rbp
mov $0x6,%r9d
mov $0x5,%r8d
mov $0x4,%ecx
mov $0x3,%edx
mov $0x2,%esi
mov $0x1,%edi
callq 400144 <func>
*/
for (c = 0, in_ptr_range = 0, i = 0; i < 35; i += 5) {
val = reg->rip - i;
//读取当前 rip 中的数据长度为8
if (pid_read(pid, buf, (void *)val, 8) == -1) {
fprintf(stderr, "pid_read() failed [%d]: %s <0x%llx>\n", pid, strerror(errno), reg->rip);
exit(-1);
}
in_ptr_range = 0;
//判断 是否为mov %rsp, %rbp
if (buf[0] == 0x48 && buf[1] == 0x89 && buf[2] == 0xe5) // mov %rsp, %rbp
break;
//判断首个字节
switch((unsigned char)buf[0]) {
//mov edi xxxx
case 0xbf:
//判断
if (opts.typeinfo || opts.getstr) {
for (j = 0; j < 4; j++) {
//判断 rdi的范围
if (reg->rdi >= addrspace[j].svaddr && reg->rdi <= addrspace[j].evaddr) {
in_ptr_range++;
switch(j) {
//代码段
case TEXT_SPACE:
//判断是否有符号
if (opts.getstr) {
//指针位置获取ASCII字符串
s = getstr((unsigned long)reg->rdi, pid);
if (s) {
snprintf(tmp, sizeof(tmp), "%s", s);
//拷贝
args[c++] = xstrdup(tmp);
break;
}
}
//拼接
sprintf(tmp, "(text_ptr *)0x%llx", reg->rdi);
break;
//数据段
case DATA_SPACE:
if (opts.getstr) {
//指针位置获取ASCII字符串
s = getstr((unsigned long)reg->rdi, pid);
if (s) {
snprintf(tmp, sizeof(tmp), "%s", s);
args[c++] = xstrdup(tmp);
break;
}
}
sprintf(tmp, "(data_ptr *)0x%llx", reg->rdi);
break;
case HEAP_SPACE:
if (opts.getstr) {
//指针位置获取ASCII字符串
s = getstr((unsigned long)reg->rdi, pid);
if (s) {
snprintf(tmp, sizeof(tmp), "%s", s);
args[c++] = xstrdup(tmp);
break;
}
}
sprintf(tmp, "(heap_ptr *)0x%llx", reg->rdi);
break;
case STACK_SPACE:
if (opts.getstr) {
//指针位置获取ASCII字符串
s = getstr((unsigned long)reg->rdi, pid);
if (s) {
snprintf(tmp, sizeof(tmp), "%s", s);
args[c++] = xstrdup(tmp);
break;
}
}
sprintf(tmp, "(stack_ptr *)0x%llx", reg->rdi);
break;
}
}
}
if (!in_ptr_range) {
sprintf(tmp, "0x%llx",reg->rdi);
}
if (!s)
args[c++] = xstrdup(tmp);
break;
}
sprintf(tmp, "0x%llx", reg->rdi);
args[c++] = xstrdup(tmp);
break;
//mov esi xxxx
case 0xbe:
if (opts.typeinfo) {
for (j = 0; j < 4; j++) {
if (reg->rsi >= addrspace[j].svaddr && reg->rsi <= addrspace[j].evaddr) {
in_ptr_range++;
switch(j) {
case TEXT_SPACE:
if (opts.getstr) {
s = getstr((unsigned long)reg->rsi, pid);
if (s) {
snprintf(tmp, sizeof(tmp), "%s", s);
args[c++] = xstrdup(tmp);
break;
}
}
sprintf(tmp, "(text_ptr *)0x%llx", reg->rsi);
break;
case DATA_SPACE:
if (opts.getstr) {
s = getstr((unsigned long)reg->rsi, pid);
if (s) {
snprintf(tmp, sizeof(tmp), "%s", s);
args[c++] = xstrdup(tmp);
break;
}
}
sprintf(tmp, "(data_ptr *)0x%llx", reg->rsi);
break;
case HEAP_SPACE:
if (opts.getstr) {
s = getstr((unsigned long)reg->rsi, pid);
if (s) {
snprintf(tmp, sizeof(tmp), "%s", s);
args[c++] = xstrdup(tmp);
break;
}
}
sprintf(tmp, "(heap_ptr *)0x%llx", reg->rsi);
break;
case STACK_SPACE:
if (opts.getstr) {
s = getstr((unsigned long)reg->rsi, pid);
if (s) {
snprintf(tmp, sizeof(tmp), "%s", s);
args[c++] = xstrdup(tmp);
break;
}
}
sprintf(tmp, "(stack_ptr *)0x%llx", reg->rsi);
break;
}
}
}
if (!in_ptr_range) {
sprintf(tmp, "0x%llx", reg->rsi);
}
if (!s)
args[c++] = xstrdup(tmp);
break;
}
sprintf(tmp, "0x%llx", reg->rsi);
args[c++] = xstrdup(tmp);
break;
//mov edx xxxx
case 0xba:
if (opts.typeinfo) {
for (j = 0; j < 4; j++) {
if (reg->rdx >= addrspace[j].svaddr && reg->rdx <= addrspace[j].evaddr) {
in_ptr_range++;
switch(j) {
case TEXT_SPACE:
if (opts.getstr) {
s = getstr((unsigned long)reg->rdx, pid);
if (s) {
snprintf(tmp, sizeof(tmp), "%s", s);
args[c++] = xstrdup(tmp);
break;
}
}
sprintf(tmp, "(text_ptr *)0x%llx", reg->rdx);
break;
case DATA_SPACE:
if (opts.getstr) {
s = getstr((unsigned long)reg->rdx, pid);
if (s) {
snprintf(tmp, sizeof(tmp), "%s", s);
args[c++] = xstrdup(tmp);
break;
}
}
sprintf(tmp, "(data_ptr *)0x%llx", reg->rdx);
break;
case HEAP_SPACE:
if (opts.getstr) {
s = getstr((unsigned long)reg->rdx, pid);
if (s) {
snprintf(tmp, sizeof(tmp), "%s", s);
args[c++] = xstrdup(tmp);
break;
}
}
sprintf(tmp, "(heap_ptr *)0x%llx", reg->rdx);
break;
case STACK_SPACE:
if (opts.getstr) {
s = getstr((unsigned long)reg->rdx, pid);
if (s) {
snprintf(tmp, sizeof(tmp), "%s", s);
args[c++] = xstrdup(tmp);
break;
}
}
sprintf(tmp, "(stack_ptr *)0x%llx", reg->rdx);
break;
}
}
}
if (!in_ptr_range) {
sprintf(tmp, "0x%llx", reg->rdx);
}
if (!s)
args[c++] = xstrdup(tmp);
break;
}
sprintf(tmp, "0x%llx", reg->rdx);
args[c++] = xstrdup(tmp);
break;
// mov ecx xxxx
case 0xb9:
if (opts.typeinfo) {
for (j = 0; j < 4; j++) {
if (reg->rcx >= addrspace[j].svaddr && reg->rcx <= addrspace[j].evaddr) {
in_ptr_range++;
switch(j) {
case TEXT_SPACE:
if (opts.getstr) {
s = getstr((unsigned long)reg->rcx, pid);
if (s) {
snprintf(tmp, sizeof(tmp), "%s", s);
args[c++] = xstrdup(tmp);
break;
}
}
sprintf(tmp, "(text_ptr *)0x%llx", reg->rcx);
break;
case DATA_SPACE:
if (opts.getstr) {
s = getstr((unsigned long)reg->rcx, pid);
if (s) {
snprintf(tmp, sizeof(tmp), "%s", s);
args[c++] = xstrdup(tmp);
break;
}
}
sprintf(tmp, "(data_ptr *)0x%llx", reg->rcx);
break;
case HEAP_SPACE:
if (opts.getstr) {
s = getstr((unsigned long)reg->rcx, pid);
if (s) {
snprintf(tmp, sizeof(tmp), "%s", s);
args[c++] = xstrdup(tmp);
break;
}
}
sprintf(tmp, "(heap_ptr *)0x%llx", reg->rcx);
break;
case STACK_SPACE:
if (opts.getstr) {
s = getstr((unsigned long)reg->rcx, pid);
if (s) {
snprintf(tmp, sizeof(tmp), "%s", s);
args[c++] = xstrdup(tmp);
break;
}
}
sprintf(tmp, "(stack_ptr *)0x%llx", reg->rcx);
break;
}
}
}
if (!in_ptr_range) {
sprintf(tmp, "0x%llx", reg->rcx);
}
if (!s)
args[c++] = xstrdup(tmp);
break;
}
sprintf(tmp, "0x%llx", reg->rcx);
args[c++] = xstrdup(tmp);
break;
case 0x41:
switch((unsigned char)buf[1]) {
//mov eax xxxx
case 0xb8:
if (opts.typeinfo) {
for (j = 0; j < 4; j++) {
if (reg->r8 >= addrspace[j].svaddr && reg->r8 <= addrspace[j].evaddr) {
in_ptr_range++;
switch(j) {
case TEXT_SPACE:
if (opts.getstr) {
s = getstr((unsigned long)reg->r8, pid);
if (s) {
snprintf(tmp, sizeof(tmp), "%s", s);
args[c++] = xstrdup(tmp);
break;
}
}
sprintf(tmp, "(text_ptr *)0x%llx", reg->r8);
break;
case DATA_SPACE:
if (opts.getstr) {
s = getstr((unsigned long)reg->r8, pid);
if (s) {
snprintf(tmp, sizeof(tmp), "%s", s);
args[c++] = xstrdup(tmp);
break;
}
}
sprintf(tmp, "(data_ptr *)0x%llx", reg->r8);
break;
case HEAP_SPACE:
if (opts.getstr) {
s = getstr((unsigned long)reg->r8, pid);
if (s) {
snprintf(tmp, sizeof(tmp), "%s", s);
args[c++] = xstrdup(tmp);
break;
}
}
sprintf(tmp, "(heap_ptr *)0x%llx", reg->r8);
break;
case STACK_SPACE:
if (opts.getstr) {
s = getstr((unsigned long)reg->r8, pid);
if (s) {
snprintf(tmp, sizeof(tmp), "%s", s);
args[c++] = xstrdup(tmp);
break;
}
}
sprintf(tmp, "(stack_ptr *)0x%llx", reg->r8);
break;
}
}
}
if (!in_ptr_range) {
sprintf(tmp, "0x%llx", reg->r8);
}
if (!s)
args[c++] = xstrdup(tmp);
break;
}
sprintf(tmp, "0x%llx", reg->r8);
args[c++] = xstrdup(tmp);
break;
case 0xb9:
if (opts.typeinfo) {
for (j = 0; j < 4; j++) {
if (reg->r9 >= addrspace[j].svaddr && reg->r9 <= addrspace[j].evaddr) {
in_ptr_range++;
switch(j) {
case TEXT_SPACE:
if (opts.getstr) {
s = getstr((unsigned long)reg->r9, pid);
if (s) {
snprintf(tmp, sizeof(tmp), "%s", s);
args[c++] = xstrdup(tmp);
break;
}
}
sprintf(tmp, "(text_ptr *)0x%llx", reg->r9);
break;
case DATA_SPACE:
if (opts.getstr) {
s = getstr((unsigned long)reg->r9, pid);
if (s) {
snprintf(tmp, sizeof(tmp), "%s", s);
args[c++] = xstrdup(tmp);
break;
}
}
sprintf(tmp, "(data_ptr *)0x%llx", reg->r9);
break;
case HEAP_SPACE:
if (opts.getstr) {
s = getstr((unsigned long)reg->r9, pid);
if (s) {
snprintf(tmp, sizeof(tmp), "%s", s);
args[c++] = xstrdup(tmp);
break;
}
}
sprintf(tmp, "(heap_ptr *)0x%llx", reg->r9);
break;
case STACK_SPACE:
if (opts.getstr) {
s = getstr((unsigned long)reg->r9, pid);
if (s) {
snprintf(tmp, sizeof(tmp), "%s", s);
args[c++] = xstrdup(tmp);
break;
}
}
sprintf(tmp, "(stack_ptr *)0x%llx", reg->r9);
break;
}
}
}
if (!in_ptr_range) {
sprintf(tmp, "0x%llx", reg->r9);
}
if (!s)
args[c++] = xstrdup(tmp);
break;
}
sprintf(tmp, "0x%llx", reg->r9);
args[c++] = xstrdup(tmp);
break;
}
}
}
//用超长函数名测试的XXPY／STRCAX预分配
if (c == 0)
return NULL;
for (b = 0, i = 0; i < c; i++)
b += strlen(args[i]) + 1; // len + ','
if (b > maxstr + 2) { // maxstr + 2 braces
string = (char*)realloc((char *)string, maxstr + (b - (maxstr + 2)) + 1);
maxstr += (b - maxstr) + 3;
}
string[0] = '(';
strcpy((char *)&string[1], args[0]);
strcat(string, ",");
for (i = 1; i < c; i++) {
strcat(string, args[i]);
strcat(string, ",");
}
if ((p = strrchr(string, ',')))
*p = '\0';
strcat(string, ")");
return string;
}
#endif
//求距离
int distance(unsigned long a, unsigned long b)
{
return ((a > b) ? (a - b) : (b - a));
}
//解析ELF信息读取指令，并打印函数调用和堆栈ARG
void examine_process(struct handle *h)
{
int symmatch = 0, cflow_change = 0;
int i, count, status, in_routine = 0;
//相关寄存器
struct user_regs_struct pt_reg;
long esp, eax, ebx, edx, ecx, esi, edi, eip;
uint8_t buf[8];
unsigned long vaddr;
unsigned int offset;
char *argstr = NULL, subname[255], output[512], *sh_src, *sh_dst;
long ret = 0, event;
unsigned long retaddr, cip, current_ip;
struct call_list *call_list = NULL;
struct branch_instr *branch;
struct address_space *addrspace = (struct address_space *)HeapAlloc(sizeof(struct address_space) * MAX_ADDR_SPACE);
callstack_t callstack;
calldata_t calldata;
calldata_t *calldp;
//设置 pid
global_pid = h->pid;
//通过不同架构分配空间
switch(opts.arch) {
case 32:
h->elf32 = (elf32*)HeapAlloc(sizeof(struct elf32));
h->elf64 = NULL;
//映射文件(h.path）同时保存相关信息(节，段等）
MapElf32(h);
break;
case 64:
h->elf64 = (elf64*)HeapAlloc(sizeof(struct elf64));
h->elf32 = NULL;
//映射文件(h.path）同时保存相关信息(节，段等）
MapElf64(h);
break;
}
//获取并保存相关信息 节，重定位等
BuildSyms(h);
//获取堆栈等相关信息
get_address_space((struct address_space *)addrspace, h->pid, h->path);
//打开符号信息
if (opts.elfinfo) {
printf("[+] Printing Symbol Information:\n\n");
for (i = 0; i < h->lsc; i++) {
if (h->lsyms[i].name == NULL)
printf("UNKNOWN: 0x%lx\n", h->lsyms[i].value);
else
printf("%s 0x%lx\n", h->lsyms[i].name, h->lsyms[i].value);
}
for (i = 0; i < h->dsc; i++) {
if (h->lsyms[i].name == NULL)
printf("UNKNOWN: 0x%lx\n", h->lsyms[i].value);
else
printf("%s 0x%lx\n", h->dsyms[i].name, h->dsyms[i].value);
}
printf("\n[+] Printing shared library dependencies:\n\n");
//先解析动态库中的符号同时保存
parse_dynamic_dt_needed(h);
//再打印出来
for (i = 0; i < h->lnc; i++) {
printf("[%d]\t%s\n", i + 1, h->libnames[i]);
}
}
//版本信息
if (opts.verbose ) {
printf("[+] Printing the address space layout\n");
printf("0x%lx-0x%lx %s [text]\n", addrspace[TEXT_SPACE].svaddr, addrspace[TEXT_SPACE].evaddr, h->path);
printf("0x%lx-0x%lx %s [data]\n", addrspace[DATA_SPACE].svaddr, addrspace[DATA_SPACE].evaddr, h->path);
printf("0x%lx-0x%lx %s [heap]\n", addrspace[HEAP_SPACE].svaddr, addrspace[HEAP_SPACE].evaddr, h->path);
printf("0x%lx-0x%lx %s [stack]\n",addrspace[STACK_SPACE].svaddr, addrspace[STACK_SPACE].evaddr, h->path);
}
/*
* Initiate our call frame stack
*/
callstack_init(&callstack);

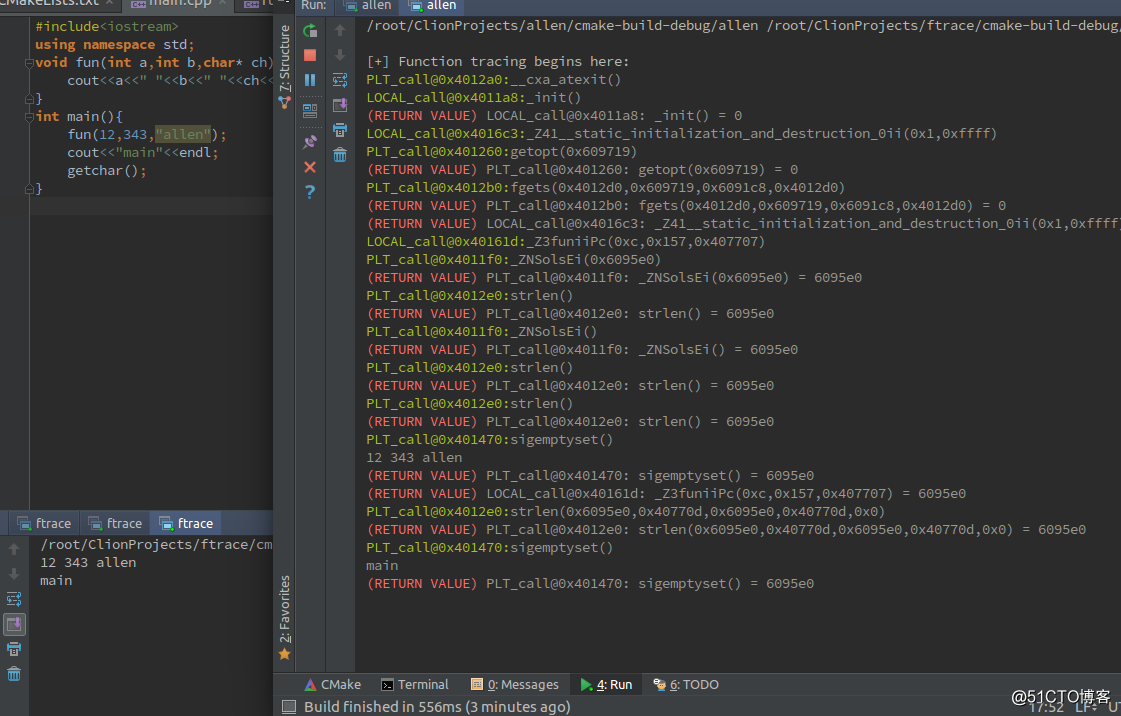

printf("\n[+] Function tracing begins here:\n");
for (;;) {
//单步
ptrace (PTRACE_SINGLESTEP, h->pid, NULL, NULL);
wait (&status);
count++;
// ptrace(PTRACE_GETREGS, h->pid, NULL, &pt_reg);
if (WIFEXITED (status))
break;
//获取寄存器值
ptrace (PTRACE_GETREGS, h->pid, NULL, &pt_reg);
#ifdef __x86_64__
esp = pt_reg.rsp;
eip = pt_reg.rip;
eax = pt_reg.rax;
ebx = pt_reg.rbx;
ecx = pt_reg.rcx;
edx = pt_reg.rdx;
esi = pt_reg.rsi;
edi = pt_reg.rdi;
#else
esp = pt_reg.esp;
eip = pt_reg.eip;
eax = pt_reg.eax;
ebx = pt_reg.ebx;
ecx = pt_reg.ecx;
edx = pt_reg.edx;
esi = pt_reg.esi;
edi = pt_reg.edi;
#endif
//读
if (pid_read(h->pid, buf, (void *)eip, 8) < 0) {
fprintf(stderr, "pid_read() failed: %s <0x%lx>\n", strerror(errno), eip);
exit(-1);
}
//
if (opts.cflow) {
//如果EIP不在我们的二进制文件中，在一个共享对象中，那么我们不看控制流
if (eip < addrspace[TEXT_SPACE].svaddr || eip > addrspace[TEXT_SPACE].evaddr)
continue;
//在branch_table中搜索对应的opcode 也就是先判断是否为 je jne等相关指令
if (branch = search_branch_instr(buf[0])) {
//设置单步
ptrace(PTRACE_SINGLESTEP, h->pid, NULL, NULL);
wait(&status);
//获取寄存器
ptrace(PTRACE_GETREGS, h->pid, NULL, &pt_reg);
//设置指令指针
#ifdef __x86_64__
current_ip = pt_reg.rip;
#else
current_ip = pt_reg.eip;
#endif
//偏移
if (distance(current_ip, eip) > BRANCH_INSTR_LEN_MAX) {
//设置为以处理
cflow_change = 1;
//获取地址所在节的节名
sh_src = get_section_by_range(h, eip);
//获取地址所在节的节名
sh_dst = get_section_by_range(h, current_ip);
//输出信息
printf("%s(CONTROL FLOW CHANGE [%s]):%s Jump from %s 0x%lx into %s 0x%lx\n", YELLOW, branch->mnemonic, WHITE,
!sh_src?"<unknown section>":sh_src, eip,
!sh_dst?"<unknown section>":sh_src, current_ip);
}
//重置
if (cflow_change) {
cflow_change = 0;
continue;
}
}
}
//是否遇到了断点（返回地址？）如果是这样，那么检查EAX以获得返回值，
// 并从堆栈中弹出调用数据，这也将删除断点。
if (buf[0] == 0xcc) {
//在不弹出的情况下查看堆栈顶部
calldp = callstack_peek(&callstack);
if (calldp != NULL) {
if (calldp->retaddr == eip) {
snprintf(output, sizeof(output), "%s(RETURN VALUE) %s%s = %lx\n", RED, WHITE, calldp->string, eax);
//POP调用堆栈并在其返回地址处删除断点。
fprintf(stdout, "%s", output);
calldp = callstack_pop(&callstack);
free(calldp->string);
free(calldp->symname);
}
}
}
//当我们捕获每个即时调用指令时，我们使用CaltStaskPuthor（）将调用数据推送到堆栈上，
// 并在函数调用的返回地址处设置断点，以便我们可以用上面的代码获得返回值
if (buf[0] == 0xe8) {
offset = buf[1] + (buf[2] << 8) + (buf[3] << 16) + (buf[4] << 24);
vaddr = eip + offset + 5;
vaddr &= 0xffffffff;
for (i = 0; i < h->lsc; i++) {
if (vaddr == h->lsyms[i].value) {
#ifdef __x86_64__
argstr = getargs(&pt_reg, h->pid, addrspace);
#endif
if (argstr == NULL)
printf("%sLOCAL_call@0x%lx:%s%s()\n", GREEN, h->lsyms[i].value, WHITE, !h->lsyms[i].name?"<unknown>":h->lsyms[i].name);
else
printf("%sLOCAL_call@0x%lx:%s%s%s\n", GREEN, h->lsyms[i].value, WHITE, h->lsyms[i].name, argstr);
//拷贝字符串
calldata.symname = xstrdup(h->lsyms[i].name);
calldata.vaddr = h->lsyms[i].value;
calldata.retaddr = eip + 5;
if (argstr == NULL)
//拼接字符串
calldata.string = xfmtstrdup("LOCAL_call@0x%lx: %s()", h->lsyms[i].value, !h->lsyms[i].name?"<unknown>":h->lsyms[i].name);
else
//拼接字符串
calldata.string = xfmtstrdup("LOCAL_call@0x%lx: %s%s", h->lsyms[i].value, h->lsyms[i].name, argstr);
if (opts.verbose)
printf("Return address for %s: 0x%lx\n", calldata.symname, calldata.retaddr);
callstack_push(&callstack, &calldata);
symmatch = 1;
}
}
for (i = 0; i < h->dsc; i++) {
if (vaddr == h->dsyms[i].value) {
#ifdef __x86_64__
argstr = getargs(&pt_reg, h->pid, addrspace);
#endif
if (argstr == NULL)
printf("%sPLT_call@0x%lx:%s%s()\n", GREEN, h->dsyms[i].value, WHITE, !h->dsyms[i].name?"<unknown>":h->dsyms[i].name);
else
printf("%sPLT_call@0x%lx:%s%s%s\n", GREEN, h->dsyms[i].value, WHITE, h->dsyms[i].name, argstr);
//拼接字符串
calldata.symname = xstrdup(h->dsyms[i].name);
calldata.vaddr = h->dsyms[i].value;
calldata.retaddr = eip + 5;
if (argstr == NULL)
//拼接字符串
calldata.string = xfmtstrdup("PLT_call@0x%lx: %s()", h->dsyms[i].value, !h->dsyms[i].name?"<unknown>":h->dsyms[i].name);
else
//拼接字符串
calldata.string = xfmtstrdup("PLT_call@0x%lx: %s%s", h->dsyms[i].value, h->dsyms[i].name, argstr);
if (opts.verbose)
printf("Return address for %s: 0x%lx\n", calldata.symname, calldata.retaddr);
callstack_push(&callstack, &calldata);
symmatch = 1;
}
}

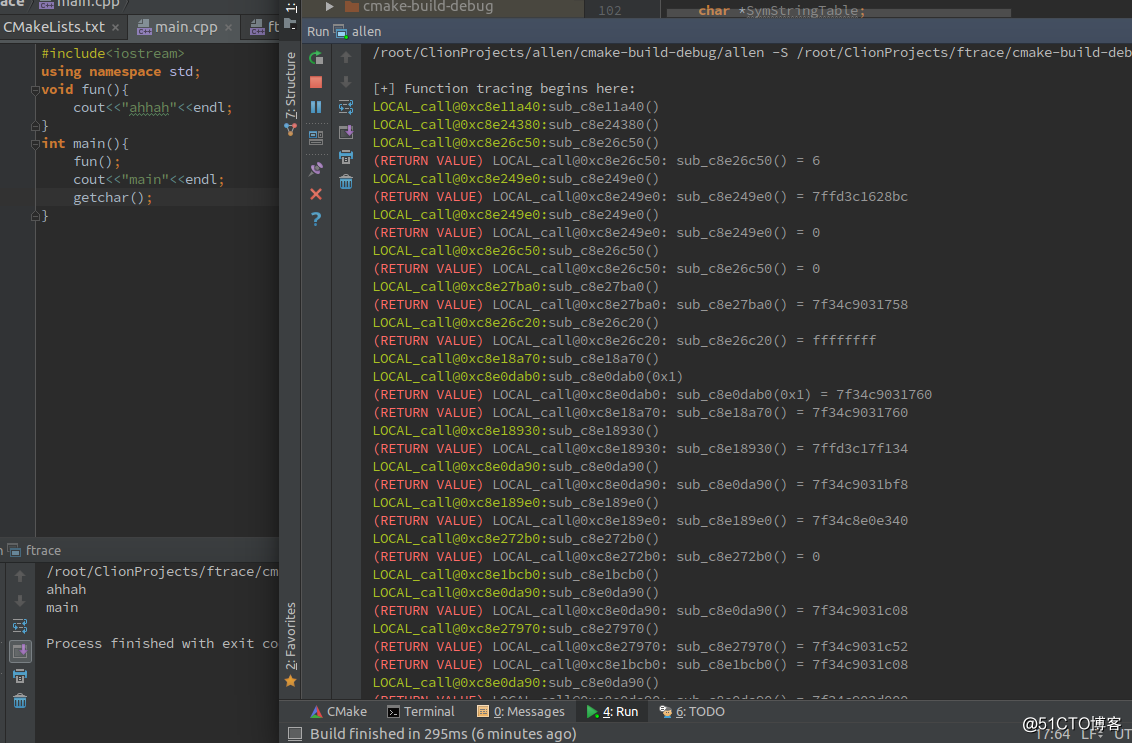

if (opts.stripped) {
if (symmatch) {
symmatch = 0;
} else {
#ifdef __x86_64__
argstr = getargs(&pt_reg, h->pid, addrspace);
#endif
if (argstr == NULL)
printf("%sLOCAL_call@0x%lx:%ssub_%lx()\n", GREEN, vaddr, WHITE, vaddr);
else
printf("%sLOCAL_call@0x%lx:%ssub_%lx%s\n", GREEN, vaddr, WHITE, vaddr, argstr);
//拼接字符串
snprintf(subname, sizeof(subname) - 1, "sub_%lx%s", vaddr, argstr == NULL ? "()" : argstr);
//拼接字符串
calldata.symname = xstrdup(subname);
calldata.vaddr = vaddr;
calldata.retaddr = eip + 5;
if (argstr == NULL)
//拼接字符串
calldata.string = xfmtstrdup("LOCAL_call@0x%lx: sub_%lx()", vaddr, vaddr);
else
//拼接字符串
calldata.string = xfmtstrdup("LOCAL_call@0x%lx: sub_%lx%s", vaddr, vaddr, argstr);
callstack_push(&callstack, &calldata);
symmatch = 1;
}
}
if (argstr) {
free(argstr);
argstr = NULL;
}
}
}
}
//映射文件(h.path）同时保存相关信息(节，段等）
void MapElf32(struct handle *h)
{
int fd;
struct stat st;
if ((fd = open(h->path, O_RDONLY)) < 0) {
fprintf(stderr, "Unable to open %s: %s\n", h->path, strerror(errno));
exit(-1);
}
if (fstat(fd, &st) < 0) {
perror("fstat");
exit(-1);
}
h->map = (uint8_t *)mmap(NULL, st.st_size, PROT_READ, MAP_PRIVATE, fd, 0);
if (h->map == MAP_FAILED) {
perror("mmap");
exit(-1);
}
//elf文件头
h->elf32->ehdr = (Elf32_Ehdr *)h->map;
//节表头基址
h->elf32->shdr = (Elf32_Shdr *)(h->map + h->elf32->ehdr->e_shoff);
//程序头基址
h->elf32->phdr = (Elf32_Phdr *)(h->map + h->elf32->ehdr->e_phoff);
//字符串表基址
h->elf32->StringTable = (char *)&h->map[h->elf32->shdr[h->elf32->ehdr->e_shstrndx].sh_offset];
//加载所有节
if (h->elf32->ehdr->e_shnum > 0 && h->elf32->ehdr->e_shstrndx != SHN_UNDEF)
读所有节信息并保存到一个节数组里sh_range[i]
load_elf_section_range(h);
}
//解析进程空间中的代码，数据 堆 栈
void get_address_space(struct address_space *addrspace, int pid, char *path)
{
char tmp[64], buf[256];
char *p, addrstr[32];
FILE *fd;
int i, lc;
//拼接字符串
snprintf(tmp, 64, "/proc/%d/maps", pid);
//打开文件
if ((fd = fopen(tmp, "r")) == NULL) {
fprintf(stderr, "Unable to open %s: %s\n", tmp, strerror(errno));
exit(-1);
}
for (lc = 0, p = buf;
//循环读取一行信息
fgets(buf, sizeof(buf), fd) != NULL;
lc++) {
/*
* Get executable text and data
* segment addresses.
*/
//获取 执行文件的代码 数据，节的地址
if ((char *)strchr(buf, '/') && lc == 0) {
for (i = 0; *p != '-'; i++, p++)
addrstr[i] = *p;
addrstr[i] = '\0';
//将参数nptr字符串根据参数base来转换成无符号的长整型数
addrspace[TEXT_SPACE].svaddr = strtoul(addrstr, NULL, 16);
for (p = p + 1, i = 0; *p != 0x20; i++, p++)
addrstr[i] = *p;
addrstr[i] = '\0';
//将参数nptr字符串根据参数base来转换成无符号的长整型数
addrspace[TEXT_SPACE].evaddr = strtoul(addrstr, NULL, 16);
addrspace[TEXT_SPACE].size = addrspace[TEXT_SPACE].evaddr - addrspace[TEXT_SPACE].svaddr;
}
if ((char *)strchr(buf, '/') && strstr(buf, path) && strstr(buf, "rw-p")) {
for (i = 0, p = buf; *p != '-'; i++, p++)
addrstr[i] = *p;
addrstr[i] = '\0';
//将参数nptr字符串根据参数base来转换成无符号的长整型数
addrspace[DATA_SPACE].svaddr = strtoul(addrstr, NULL, 16);
for (p = p + 1, i = 0; *p != 0x20; i++, p++)
addrstr[i] = *p;
addrstr[i] = '\0';
//将参数nptr字符串根据参数base来转换成无符号的长整型数
addrspace[DATA_SPACE].evaddr = strtoul(addrstr, NULL, 16);
addrspace[DATA_SPACE].size = addrspace[DATA_SPACE].evaddr - addrspace[DATA_SPACE].svaddr;
}
/*
* Get the heap segment address layout
*/
//获取堆的地址
if (strstr(buf, "[heap]")) {
for (i = 0, p = buf; *p != '-'; i++, p++)
addrstr[i] = *p;
addrstr[i] = '\0';
//将参数nptr字符串根据参数base来转换成无符号的长整型数
addrspace[HEAP_SPACE].svaddr = strtoul(addrstr, NULL, 16);
for (p = p + 1, i = 0; *p != 0x20; i++, p++)
addrstr[i] = *p;
addrstr[i] = '\0';
//将参数nptr字符串根据参数base来转换成无符号的长整型数
addrspace[HEAP_SPACE].evaddr = strtoul(addrstr, NULL, 16);
addrspace[HEAP_SPACE].size = addrspace[HEAP_SPACE].evaddr - addrspace[DATA_SPACE].svaddr;
}
/*
* Get the stack segment layout
*/
//获取栈的地址
if (strstr(buf, "[stack]")) {
for (i = 0, p = buf; *p != '-'; i++, p++)
addrstr[i] = *p;
addrstr[i] = '\0';
//将参数nptr字符串根据参数base来转换成无符号的长整型数
addrspace[STACK_SPACE].svaddr = strtoul(addrstr, NULL, 16);
for (p = p + 1, i = 0; *p != 0x20; i++, p++)
addrstr[i] = *p;
addrstr[i] = '\0';
//将参数nptr字符串根据参数base来转换成无符号的长整型数
addrspace[STACK_SPACE].evaddr = strtoul(addrstr, NULL, 16);
addrspace[STACK_SPACE].size = addrspace[STACK_SPACE].evaddr - addrspace[STACK_SPACE].svaddr;
}
}
}
//通过pid获取进程路径
char * get_path(int pid)
{
char tmp[64], buf[256];
char path[256], *ret, *p;
FILE *fd;
int i;
//Proc/pid/maps显示进程映射了的内存区域和访问权限
//将格式化拼接
snprintf(tmp, 64, "/proc/%d/maps", pid);
if ((fd = fopen(tmp, "r")) == NULL) {
//打印到终端
fprintf(stderr, "Unable to open %s: %s\n", tmp, strerror(errno));
exit(-1);
}
//读取一行
if (fgets(buf, sizeof(buf), fd) == NULL)
return NULL;
//查找/首次出现的位置
//该文件有6列，分别为：
//地址：库在进程里地址范围
//权限：虚拟内存的权限，r=读，w=写,x=,s=共享,p=私有；
//偏移量：库在进程里地址范围
//设备：映像文件的主设备号和次设备号；
//节点：映像文件的节点号；
//路径: 映像文件的路径
//每项都与一个vm_area_struct结构成员对应
p = strchr(buf, '/');
if (!p)
return NULL;
for ( i = 0;
*p != '\n' && *p != '\0';
p++, i++
)
path[i] = *p;
path[i] = '\0';
//申请返回值的堆空间
ret = (char *)HeapAlloc(i + 1);
//拷贝完整路径
strcpy(ret, path);
//判断最后为.so文件
if (strstr(ret, ".so")) {
fprintf(stderr, "Process ID: %d appears to be a shared library; file must be an executable. (path: %s)\n",pid, ret);
exit(-1);
}
return ret;
}
//检查elf文件
int validate_em_type(char *path)
{
int fd;
uint8_t *mem, *p;
unsigned int value;
Elf64_Ehdr *ehdr64;
Elf32_Ehdr *ehdr32;
if ((fd = open(path, O_RDONLY)) < 0) {
fprintf(stderr, "Could not open %s: %s\n", path, strerror(errno));
exit(-1);
}
// 原型: void *mmap(void *addr, size_t length, int prot, int flags, int fd, off_t offsize);
//返回值: 成功则返回映射区起始地址, 失败则返回MAP_FAILED(-1).
//参数:
// addr: 指定映射的起始地址, 通常设为NULL, 由系统指定.
// length: 将文件的多大长度映射到内存.
// prot: 映射区的保护方式, 可以是:
// PROT_EXEC: 映射区可被执行.
// PROT_READ: 映射区可被读取.
// PROT_WRITE: 映射区可被写入.
// PROT_NONE: 映射区不能存取.
// flags: 映射区的特性, 可以是:
// MAP_SHARED: 对映射区域的写入数据会复制回文件, 且允许其他映射该文件的进程共享.
// MAP_PRIVATE: 对映射区域的写入操作会产生一个映射的复制(copy-on-write), 对此区域所做的修改不会写回原文件.
// 此外还有其他几个flags不很常用, 具体查看linux C函数说明.
// fd: 由open返回的文件描述符, 代表要映射的文件.
// offset: 以文件开始处的偏移量, 必须是分页大小的整数倍, 通常为0, 表示从文件头开始映射.
//创建内存映射
mem = (uint8_t*)mmap(NULL, 4096, PROT_READ, MAP_PRIVATE, fd, 0);
if (mem == MAP_FAILED) {
perror("mmap");
exit(-1);
}
//判断处理器架构
switch (opts.arch) {
case 32:
ehdr32 = (Elf32_Ehdr *)mem;
if (ehdr32->e_machine != EM_386)
return 0;
break;
case 64:
ehdr64 = (Elf64_Ehdr *)mem;
if (ehdr64->e_machine != EM_X86_64 && ehdr64->e_machine != EM_IA_64)
return 0;
break;
}
return 1;
}
//读所有节信息并保存到一个节数组里sh_range[i]
void load_elf_section_range(struct handle *h)
{
Elf32_Ehdr *ehdr32;
Elf32_Shdr *shdr32;
Elf64_Ehdr *ehdr64;
Elf64_Shdr *shdr64;
char *StringTable;
int i;
h->shdr_count = 0;
switch(opts.arch) {
case 32:
StringTable = h->elf32->StringTable;
ehdr32 = h->elf32->ehdr;
shdr32 = h->elf32->shdr;
for (i = 0; i < ehdr32->e_shnum; i++) {
h->sh_range[i].sh_name = xstrdup(&StringTable[shdr32[i].sh_name]);
h->sh_range[i].sh_addr = shdr32[i].sh_addr;
h->sh_range[i].sh_size = shdr32[i].sh_size;
if (h->shdr_count == MAX_SHDRS)
break;
h->shdr_count++;
}
break;
case 64:
StringTable = h->elf64->StringTable;
ehdr64 = h->elf64->ehdr;
shdr64 = h->elf64->shdr;
for (i = 0; i < ehdr64->e_shnum; i++) {
h->sh_range[i].sh_name = xstrdup(&StringTable[shdr64[i].sh_name]);
h->sh_range[i].sh_addr = shdr64[i].sh_addr;
h->sh_range[i].sh_size = shdr64[i].sh_size;
if (h->shdr_count == MAX_SHDRS)
break;
h->shdr_count++;
}
break;
}
}
//获取地址所在节的节名
char * get_section_by_range(struct handle *h, unsigned long vaddr)
{
int i;
for (i = 0; i < h->shdr_count; i++) {
if (vaddr >= h->sh_range[i].sh_addr && vaddr <= h->sh_range[i].sh_addr + h->sh_range[i].sh_size)
return h->sh_range[i].sh_name;
}
return NULL;
}
//映射文件(h.path）同时保存相关信息(节，段等）
void MapElf64(struct handle *h)
{
int fd;
struct stat st;
if ((fd = open(h->path, O_RDONLY)) < 0) {
fprintf(stderr, "Unable to open %s: %s\n", h->path, strerror(errno));
exit(-1);
}
if (fstat(fd, &st) < 0) {
perror("fstat");
exit(-1);
}
h->map = (uint8_t *)mmap(NULL, st.st_size, PROT_READ, MAP_PRIVATE, fd, 0);
if (h->map == MAP_FAILED) {
perror("mmap");
exit(-1);
}
h->elf64->ehdr = (Elf64_Ehdr *)h->map;
h->elf64->shdr = (Elf64_Shdr *)(h->map + h->elf64->ehdr->e_shoff);
h->elf64->phdr = (Elf64_Phdr *)(h->map + h->elf64->ehdr->e_phoff);
h->elf64->StringTable = (char *)&h->map[h->elf64->shdr[h->elf64->ehdr->e_shstrndx].sh_offset];
if (h->elf64->ehdr->e_shnum > 0 && h->elf64->ehdr->e_shstrndx != SHN_UNDEF)
load_elf_section_range(h);
}
void sighandle(int sig)
{
fprintf(stdout, "Caught signal ctrl-C, detaching...\n");
ptrace(PTRACE_DETACH, global_pid, NULL, NULL);
exit(0);
}
//下面是信号函数集：
//1、int sigemptyset(sigset_t *set);
//该函数的作用是将信号集初始化为空。
//
//2、int sigfillset(sigset_t *set);
//该函数的作用是把信号集初始化包含所有已定义的信号。
//
//3、int sigaddset(sigset_t *set, int signo);
//该函数的作用是把信号signo添加到信号集set中，成功时返回0，失败时返回-1。
//
//4、int sigdelset(sigset_t *set, int signo);
//该函数的作用是把信号signo从信号集set中删除，成功时返回0，失败时返回-1.
//
//5、int sigismember(sigset_t *set, int signo);
//该函数的作用是判断给定的信号signo是否是信号集中的一个成员，如果是返回1，如果不是，返回0，
//如果给定的信号无效，返回-1；
//
//6、int sigpromask(int how, const sigset_t *set, sigset_t *oset);
//该函数可以根据参数指定的方法修改进程的信号屏蔽字。新的信号屏蔽字由参数set（非空）指定，
//而原先的信号屏蔽字将保存在oset（非空）中。如果set为空，则how没有意义，
//但此时调用该函数，如果oset不为空，则把当前信号屏蔽字保存到oset中。
//argc 参数个数 argv参数数组 envp环境变量
int main(int argc, char **argv, char **envp)
{
int opt, i, pid, status, skip_getopt = 0;
struct handle handle;
char **p, *arch;
struct sigaction act;
sigset_t set;
act.sa_handler = sighandle;
//将参数set信号集初始化并清空
sigemptyset (&act.sa_mask);
act.sa_flags = 0;
// int sigaction(int signum, const struct sigaction *act, struct sigaction *oldact)
//
// 这个系统调用的作用是改变进程接收到的指定信号的行动。
//
// 使用这个函数需要包含头文件 #include <signal.h>
//
// 函数参数说明如下：
//
// signum : 说明具体信号，它可以是除了SIGKILL和SIGSTOP之外的任何有效信号值。
//
// act : 将要安装的signum定义信号的新行动。
//
// oldact: 用来保存signum定义信号的过去的行动。
sigaction (SIGINT, &act, NULL);
sigemptyset (&set);
sigaddset (&set, SIGINT);
if (argc < 2) {
usage:
printf("Usage: %s [-p <pid>] [-Sstve] <prog>\n", argv[0]);
printf("[-p] 根据 pid 追踪\n");
printf("[-t] 检测函数参数的类型\n");
printf("[-s] 打印字符串值\n");
//printf("[-r] 显示详细的输出\n");
printf("[-v] 显示详细的输出\n");
printf("[-e] 显示各种 elf信息（符号 依赖）\n");
printf("[-S] 显示缺失了符号的函数调用\n");
printf("[-C] 完成控制流分析\n");
exit(0);
}
if (argc == 2 && argv[1][0] == '-')
goto usage;
//初始化
memset(&opts, 0, sizeof(opts));
//默认设置为64位
opts.arch = 64; // default
//获取环境变量
arch = getenv(FTRACE_ENV);
if (arch != NULL) {
//字符串转换成整型数
// On 32bit systems should be set:
//export FTRACE_ARCH=32
switch(atoi(arch)) {
case 32:
opts.arch = 32;
break;
case 64:
opts.arch = 64;
break;
default:
fprintf(stderr, "Unknown architecture: %s\n", arch);
break;
}
}
//判断参数
if (argv[1][0] != '-') {
//第二个参数
handle.path = xstrdup(argv[1]);
//申请空间
handle.args = (char **)HeapAlloc(sizeof(char *) * argc - 1);
for (i = 0, p = &argv[1];
i != argc - 1;
p++, i++
) {
//保存参数
*(handle.args + i) = xstrdup(*p);
}
//最后一个为空
*(handle.args + i) = NULL;
//表示合法
skip_getopt = 1;
} else {
handle.path = xstrdup(argv[2]);
handle.args = (char **)HeapAlloc(sizeof(char *) * argc - 1);
for (i = 0, p = &argv[2]; i != argc - 2; p++, i++) {
*(handle.args + i) = xstrdup(*p);
}
*(handle.args + i) = NULL;
}
//判断合法性
if (skip_getopt)
goto begin;
//选项CSrhtvep 必须有一个参数 s 不要参数 :-C xxx -S xxx -r xxx -h xxx -t xxx -v xxx -e xxx -p xxx -s
while ((opt = getopt(argc, argv, "CSrhtvep:s")) != -1) {
//判断返回值 ：注意他是一个个遍历的遍历到最后就返回-1
switch(opt) {
case 'S':
opts.stripped++;
break;
case 'r':
opts.showret++;
break;
case 'v':
opts.verbose++;
break;
case 'e':
opts.elfinfo++;
break;
case 't':
opts.typeinfo++;
break;
case 'p':
opts.attach++;
//pid转成×××
handle.pid = atoi(optarg);
break;
case 's':
opts.getstr++;
break;
case 'C':
opts.cflow++;
break;
case 'h':
goto usage;
default:
printf("Unknown option\n");
exit(0);
}
}
begin:
//判断版本
if (opts.verbose) {
switch(opts.arch) {
case 32:
//32模式启用
printf("[+] 32bit ELF mode enabled!\n");
break;
case 64:
//64位模式启用
printf("[+] 64bit ELF mode enabled!\n");
break;
}
//类型
if (opts.typeinfo)
printf("[+] Pointer type prediction enabled\n");
}
//判断兼容性
if (opts.arch == 32 && opts.typeinfo) {
//选项-t不可用于32位可执行文件
printf("[!] Option -t may not be used on 32bit executables\n");
exit(0);
}
if (opts.arch == 32 && opts.getstr) {
//选项-s不可用于32位可执行文件
printf("[!] Option -s may not be used on 32bit executables\n");
exit(0);
}
//选项-t -s不可用于32位可执行文件
if (opts.getstr && opts.typeinfo) {
printf("[!] Options -t and -s may not be used together\n");
exit(0);
}
//判断是附加还是直接执行
if (!opts.attach) {
//检查elf文件
if (!validate_em_type(handle.path)) {
printf("[!] ELF Architecture is set to %d, the target %s is not the same architecture\n", opts.arch, handle.path);
exit(-1);
}
//直接创建一个子进程
if ((pid = fork()) < 0) {
perror("fork");
exit(-1);
}
// long ptrace(enum __ptrace_request request, pid_t pid, void *addr, void *data);
// ptrace有四个参数:
// 1). enum __ptrace_request request：指示了ptrace要执行的命令。
// 2). pid_t pid: 指示ptrace要跟踪的进程。
// 3). void *addr: 指示要监控的内存地址。
// 4). void *data: 存放读取出的或者要写入的数据。
//子进程
if (pid == 0) {
//PTRACE_TRACEME表示该进程会被父进程追踪
if (ptrace(PTRACE_TRACEME, 0, NULL, NULL) == -1) {
perror("PTRACE_TRACEME");
exit(-1);
}
//在使用PTRACE_TRACEME参数时，跟踪多线程程序需要使用PTRACE_SETOPTIONS来设置ptrace相关属性。
//PTRACE_SETOPTIONS 是将父进程内由data指向的值设定为ptrace 选项，data作为掩码来解释，由下面的标志来指定：
//
//(1) PTRACE_O_EXITKILL:当跟踪进程退出时，向所有被跟踪进程发送SIGKILL信号将其退出，这个参数可以防止被跟踪进程脱离跟踪进程的控制。
//
//(2) PTRACE_O_TRACECLONE:被跟踪进程在下一次调用clone()时将其停止，并自动跟踪新产生的进程，新产生的进程刚开始收到SIGSTOP信号。其新产生的进程的pid可以
//
//通过PTRACE_GETEVENTMSG得到。
//
//(3) PTRACE_O_TRACEEXEC:被跟踪进程在下一次调用exec()函数时使其停止。
//
//(4) PTRACE_O_TRACEEXIT:被跟踪进程在退出是停止其执行，被跟踪进程的退出状态可通过PTRACE_GETEVENTMSG获得。
//
//(5) PTRACE_O_TRACEFORK:被跟踪进程在下次调用fork()时停止执行，并自动跟踪新产生的进程，新产生的进程刚开始收到SIGSTOP信号。其新产生的进程的pid可以
//
//通过PTRACE_GETEVENTMSG得到。
//
//(6) PTRACE_O_TRACEVFORK:被跟踪进程在下次调用vfork()时停止执行，并自动跟踪新产生的进程，新产生的进程刚开始收到SIGSTOP信号。其新产生的进程的pid可以
//
//通过PTRACE_GETEVENTMSG得到。
//
//PTRACE_GETEVENTMSG:获取刚刚发生的ptrace事件消息，并存放在跟踪进程由data指向的位置，addr参数被忽略。对于
//
//PTRACE_EVENT_FORK,PTRACE_EVENT_VFORK,PTRACE_EVENT_VFORKDOWN和PTRACE_EVENT_CLONE,data是新进程的pid.
//从数据中设置ptrace选项
ptrace(PTRACE_SETOPTIONS, 0, 0, PTRACE_O_TRACEEXIT);
//启动进程
execve(handle.path, handle.args, envp);
//从原来拷贝的父进程退出
exit(0);
}
//pid_t waitpid(pid_t pid,int *status,int options)
//
//从本质上讲，系统调用waitpid和wait的作用是完全相同的，但waitpid多出了两个可由用户控制的参数pid和options，从而为我们编程提供了另一种更灵活的方式。
//
//参数status用来保存被收集进程退出时的一些状态，它是一个指向int类型的指针。
//
//pid:从参数的名字pid和类型pid_t中就可以看出，这里需要的是一个进程ID。但当pid取不同的值时，在这里有不同的意义。
//pid>0时，只等待进程ID等于pid的子进程，不管其它已经有多少子进程运行结束退出了，只要指定的子进程还没有结束,waitpid就会一直等下去。
//
//pid=-1时，等待任何一个子进程退出，没有任何限制，此时waitpid和wait的作用一模一样。
//
//pid=0时，等待同一个进程组中的任何子进程，如果子进程已经加入了别的进程组，waitpid不会对它做任何理睬。
//
//pid<-1时，等待一个指定进程组中的任何子进程，这个进程组的ID等于pid的绝对值。
//
//options: options提供了一些额外的选项来控制waitpid，目前在Linux中只支持WNOHANG和WUNTRACED两个选项，这是两个常数，可以用"|"运算符把它们连接起来使用
//父进程
waitpid(0, &status, WNOHANG);
//保存
handle.pid = pid;
//同时设置为全局
global_pid = pid;
//解析ELF信息读取指令，并打印函数调用和堆栈ARG
examine_process(&handle);
goto done;
}
//这里就是附加一个进程
if (ptrace(PTRACE_ATTACH, handle.pid, NULL, NULL) == -1) {
perror("PTRACE_ATTACH");
exit(-1);
}
//通过pid获取进程路径
handle.path = get_path(handle.pid);
//判断
if (!validate_em_type(handle.path)) {
printf("[!] ELF Architecture is set to %d, the target %s is not the same architecture\n", opts.arch, handle.path);
exit(-1);
}
waitpid(handle.pid, &status, WUNTRACED);
global_pid = handle.pid;
//解析ELF信息读取指令，并打印函数调用和堆栈ARG
examine_process(&handle);
done:
printf("%s\n", WHITE);
//重启被追踪的进程，并解除追踪
ptrace(PTRACE_DETACH, handle.pid, NULL, NULL);
exit(0);
}
转载于:https://blog.51cto.com/haidragon/2134709
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
