SpringCloud 使用 zuul 搭建接口网关并设置拦截参数

2019独角兽企业重金招聘Python工程师标准>>>

1、新建maven项目

2、引入依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>com.example</groupId>
	<artifactId>service-zuul</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>jar</packaging>

	<name>service-zuul</name>
	<description>Demo project for Spring Boot</description>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.0.3.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>1.8</java.version>
		<spring-cloud.version>Finchley.RELEASE</spring-cloud.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-zuul</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

	<dependencyManagement>
		<dependencies>
			<dependency>
				<groupId>org.springframework.cloud</groupId>
				<artifactId>spring-cloud-dependencies</artifactId>
				<version>${spring-cloud.version}</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
		</dependencies>
	</dependencyManagement>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>


</project>

3、新建application.yml文件

eureka:
  client:
    service-url:
      defaultZone: http://localhost:8888/eureka/
server:
  port: 8769
spring:
  application:
    name: service-zuul
zuul:
  routes:
    api-a:
      path: /api-member/**
      service-id: service-member
    api-b:
      path: /api-order/**
      service-id: service-consumer

前四行还是把服务注册到注册中心。端口8769

api-a和api-b 分别设置路径和对应的服务id

4、启动类添加注解  @EnableEurekaClient   @EnableZuulProxy

package com.example.servicezuul;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.cloud.netflix.zuul.EnableZuulProxy;

@SpringBootApplication
@EnableEurekaClient
@EnableZuulProxy
public class ServiceZuulApplication {

	public static void main(String[] args) {
		SpringApplication.run(ServiceZuulApplication.class, args);
	}
}

5、依此启动 eureka注册中心   member服务  consumer消费者   zuul网关服务

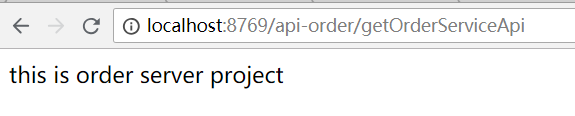

6、访问

http://localhost:8769/api-member/getMemberServiceApi

http://localhost:8769/api-order/getOrderServiceApi

通过以上操作就可以搭起zuul接口网关了，接下来示例设置拦截参数

7、在网关服务中添加拦截类，获取URL中的参数，判断token是否为空

package com.example.servicezuul;

import com.netflix.zuul.ZuulFilter;
import com.netflix.zuul.context.RequestContext;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Component;

import javax.servlet.http.HttpServletRequest;

@Component
public class MyFilter extends ZuulFilter{

    private static Logger log = LoggerFactory.getLogger(MyFilter.class);

    @Override
    public String filterType() {
        return "pre";
    }

    @Override
    public int filterOrder() {
        return 0;
    }

    public boolean shouldFilter(){
        return true;
    }

    public Object run(){
        RequestContext ctx = RequestContext.getCurrentContext();
        HttpServletRequest request = ctx.getRequest();
        log.info(request.getMethod()+ " >>> "  +request.getRequestURI().toString());
        Object accessToken = request.getParameter("token");
        if(accessToken!=null) {
            return null;
        }
        log.warn("token is empty");
        ctx.setSendZuulResponse(false);
        ctx.setResponseStatusCode(401);
        try{
            ctx.getResponse().getWriter().write("token is empty");
        }catch (Exception e ) {

        }
        return null;
    }

}

效果：
