Dubbo集群容错模式之Failover实现

本文详细解析了Dubbo框架中的FailoverClusterInvoker类的工作原理,介绍了如何在服务调用失败时重试其他服务器,并深入分析了核心代码的执行流程。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

注: Dubbo版本是2.6.2

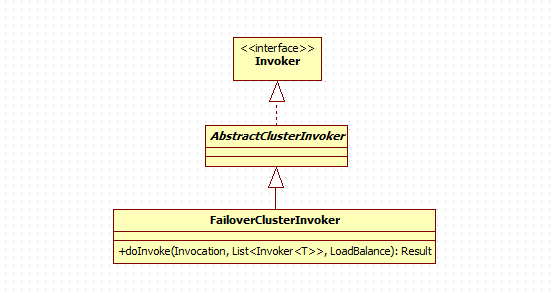

                                                     图1 Dubbo的FailoverClusterInvoker类继承图

1.Failover的含义

    Failover可以理解为当出现失败,重试其它服务器。

2.Failover的实现

    核心代码在FailoverClusterInvoker的doInvoke(Invocation,List<Invoker<T>>,LoadBalance)中,源码如下。

@Override
@SuppressWarnings({"unchecked", "rawtypes"})
public Result doInvoke(Invocation invocation, final List<Invoker<T>> invokers, LoadBalance loadbalance) throws RpcException {
    List<Invoker<T>> copyinvokers = invokers;
    checkInvokers(copyinvokers, invocation);
    int len = getUrl().getMethodParameter(invocation.getMethodName(), Constants.RETRIES_KEY, Constants.DEFAULT_RETRIES) + 1;
    if (len <= 0) {
        len = 1;
    }
    // retry loop.
    RpcException le = null; // last exception.
    List<Invoker<T>> invoked = new ArrayList<Invoker<T>>(copyinvokers.size()); // invoked invokers.
    Set<String> providers = new HashSet<String>(len);
    for (int i = 0; i < len; i++) {
        //Reselect before retry to avoid a change of candidate `invokers`.
        //NOTE: if `invokers` changed, then `invoked` also lose accuracy.
        if (i > 0) {
            checkWhetherDestroyed();
            copyinvokers = list(invocation);
            // check again
            checkInvokers(copyinvokers, invocation);
        }
        Invoker<T> invoker = select(loadbalance, invocation, copyinvokers, invoked);
        invoked.add(invoker);
        RpcContext.getContext().setInvokers((List) invoked);
        try {
            Result result = invoker.invoke(invocation);
            if (le != null && logger.isWarnEnabled()) {
                logger.warn("Although retry the method " + invocation.getMethodName()
                        + " in the service " + getInterface().getName()
                        + " was successful by the provider " + invoker.getUrl().getAddress()
                        + ", but there have been failed providers " + providers
                        + " (" + providers.size() + "/" + copyinvokers.size()
                        + ") from the registry " + directory.getUrl().getAddress()
                        + " on the consumer " + NetUtils.getLocalHost()
                        + " using the dubbo version " + Version.getVersion() + ". Last error is: "
                        + le.getMessage(), le);
            }
            return result;
        } catch (RpcException e) {
            if (e.isBiz()) { // biz exception.
                throw e;
            }
            le = e;
        } catch (Throwable e) {
            le = new RpcException(e.getMessage(), e);
        } finally {
            providers.add(invoker.getUrl().getAddress());
        }
    }
    throw new RpcException(le != null ? le.getCode() : 0, "Failed to invoke the method "
            + invocation.getMethodName() + " in the service " + getInterface().getName()
            + ". Tried " + len + " times of the providers " + providers
            + " (" + providers.size() + "/" + copyinvokers.size()
            + ") from the registry " + directory.getUrl().getAddress()
            + " on the consumer " + NetUtils.getLocalHost() + " using the dubbo version "
            + Version.getVersion() + ". Last error is: "
            + (le != null ? le.getMessage() : ""), le != null && le.getCause() != null ? le.getCause() : le);
}
  • 首先得到尝试次数len。
  • 根据loadbalance从候选服务提供者当中选取一个服务提供者,而后调用。如果第一次就成功,则直接返回调用结果;如果调用不成功,且异常是Biz异常,则直接抛出该异常;多次调用之后才成功,则在warn级别允许的情况下会将多次调用的信息记录到日志,之后返回调用成功的结果;如果尝试的次数超过了len,还是没有成功过,则抛出异常。

    由代码可以看出,抛出异常的情况分俩中,一种是服务端返回的是业务异常;另一种是尝试次数超过了设置的阀值。

转载于:https://my.oschina.net/u/2518341/blog/1814883
