关于graphite的几个function

为什么80%的码农都做不了架构师？>>>

##scale 相当于乘法.比如15,scale(10)之后是150,sacle(10)之后是-150

Takes one metric or a wildcard seriesList followed by a constant, and multiplies the datapoint by the constant provided at each point.

##scaleToSeconds 比如9,scaleToSeconds(60)=54(比如默认是10s采样一次)

Takes one metric or a wildcard seriesList and returns “value per seconds” where seconds is a last argument to this functions.Useful in conjunction with derivative or integral function if you want to normalize its result to a known resolution for arbitrary retentions

##derivative “导数”的概念，求变化值，不根据时间规范化，比如原来是56，后来是9，那么变化就是-47

This is the opposite of the integral function. This is useful for taking a running total metric and calculating the delta between subsequent data points.This function does not normalize for periods of time, as a true derivative would.

##nonNegativeDerivative 非负求导数，比如原来是56，后来是9，那么差值为-47，为负数会被忽略掉。但是可以给nonNegativeDerivative传参数，比如nonNegativeDerivative(100)就相当于-47+100+1=54

Same as the derivative function above, but ignores datapoints that trend down. Useful for counters that increase for a long time, then wrap or reset. (Such as if a network interface is destroyed and recreated by unloading and re-loading a kernel module, common with USB / WiFi cards.)

##integral “积分”的概念，相当于不断累加值

This will show the sum over time, sort of like a continuous addition function. Useful for finding totals or trends in metrics that are collected per minute.

##persecond 相当于scaleToSeconds(nonNegativeDerivative(metric),1)

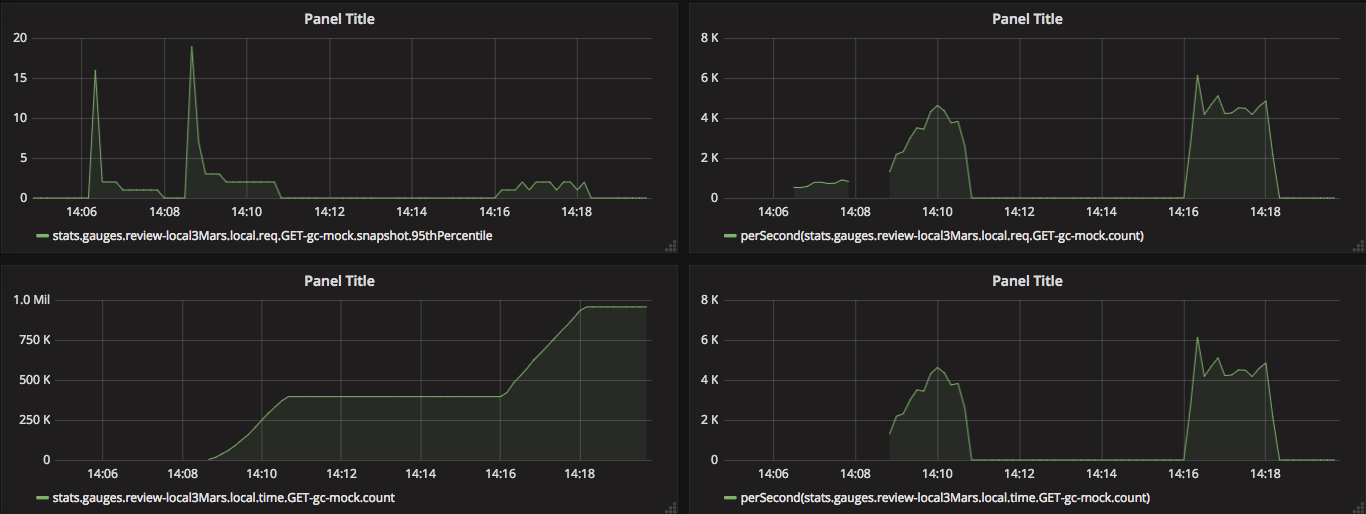

NonNegativeDerivative adjusted for the series time interval This is useful for taking a running total metric and showing how many requests per second were handled. 该操作对于累积的counter metric非常有用，可以算出每秒的变动值，比如

加上persecond之后就可以把累积的count值转换为变化的曲线

##doc

• functions
• What does integrate() do? Or, what's the inverse of deriv()?
• How to do Graphite Derivatives correctly
