Kafka.net使用编程入门(三)

这个世界既不是有钱人的世界，也不是有权人的世界，它是有心人的世界。

---

一些有用的命令

1.列出主题：kafka-topics.bat --list --zookeeper localhost:2181

---

2.描述主题：kafka-topics.bat --describe --zookeeper localhost:2181 --topic [Topic Name]

---

3.从头读取消息：kafka-console-consumer.bat --zookeeper localhost:2181 --topic [Topic Name] --from-beginning

---

4.删除主题：E:\WorkSoftWare\kafka2.11\bin\windows>kafka-run-class.bat kafka.admin.TopicCommand --delete --topic test2016 --zookeeper localhost:2181

---

实体类:

KafkaProducerMessage.cs代码:

  [Table("KafkaProducerMessage")]
    public partial class KafkaProducerMessage
    {
        public int KafkaProducerMessageID { get; set; } [Required] [StringLength(1000)] public string Topic { get; set; } [Required] public string MessageContent { get; set; } public DateTime CreatedAt { get; set; } }

---

KafkaConsumerMessage.cs代码:

    [Table("KafkaConsumerMessage")]
    public partial class KafkaConsumerMessage
    {
        public int KafkaConsumerMessageID { get; set; } [Required] [StringLength(1000)] public string Topic { get; set; } public int Partition { get; set; } public long Offset { get; set; } [Required] public string MessageContent { get; set; } public DateTime CreatedAt { get; set; } }

---

KafkaProducerMessageArchive.cs代码:

    [Table("KafkaProducerMessageArchive")]
    public partial class KafkaProducerMessageArchive
    {
        public int KafkaProducerMessageArchiveID { get; set; } public int KafkaProducerMessageID { get; set; } [Required] [StringLength(1000)] public string Topic { get; set; } [Required] public string MessageContent { get; set; } public DateTime CreatedAt { get; set; } public DateTime ArchivedAt { get; set; } }

vwMaxOffsetByPartitionAndTopic.cs代码:

    [Table("vwMaxOffsetByPartitionAndTopic")]
    public partial class vwMaxOffsetByPartitionAndTopic
    {
        [Key]
        [Column(Order = 0)] [StringLength(1000)] public string Topic { get; set; } [Key] [Column(Order = 1)] [DatabaseGenerated(DatabaseGeneratedOption.None)] public int Partition { get; set; } public long? MaxOffset { get; set; } }

---

KafkaConsumerRepository.cs代码:

    public class KafkaConsumerRepository
    {
        private KafkaModel context;

        public KafkaConsumerRepository () { this.context = new KafkaModel(); } public List<KafkaConsumerMessage> GetKafkaConsumerMessages() { return context.KafkaConsumerMessage.ToList(); } public KafkaConsumerMessage GetKafkaConsumerMessageByID(int MessageID) { return context.KafkaConsumerMessage.Find(MessageID); } public List<KafkaConsumerMessage> GetKafkaConsumerMessageByTopic(string TopicName) { return context.KafkaConsumerMessage .Where(a => a.Topic == TopicName) .ToList(); } public List<vwMaxOffsetByPartitionAndTopic> GetOffsetPositionByTopic(string TopicName) { return context.vwMaxOffsetByPartitionAndTopic .Where(a => a.Topic == TopicName) .ToList(); } public void InsertKafkaConsumerMessage(KafkaConsumerMessage Message) { Console.WriteLine(String.Format("Insert {0}: {1}", Message.KafkaConsumerMessageID.ToString(), Message.MessageContent)); context.KafkaConsumerMessage.Add(Message); context.SaveChanges(); Console.WriteLine(String.Format("Saved {0}: {1}", Message.KafkaConsumerMessageID.ToString(), Message.MessageContent)); } public void Save() { context.SaveChanges(); } public void Dispose() { context.Dispose(); } }

---

KafkaProducerRepository.cs代码:

  public class KafkaProducerRepository
    {
        private KafkaModel context;
        public KafkaProducerRepository() { this.context = new KafkaModel(); } public List<KafkaProducerMessage> GetKafkaProducerMessages() { return context.KafkaProducerMessage.ToList(); } public List<string> GetDistinctTopics() { return context.KafkaProducerMessage.Select(a => a.Topic) .Distinct() .ToList(); } public KafkaProducerMessage GetKafkaProducerMessageByMessageID(int MessageID) { return context.KafkaProducerMessage.Find(MessageID); } public List<KafkaProducerMessage> GetKafkaProducerMessageByTopic(string TopicName) { return context.KafkaProducerMessage .Where(a => a.Topic == TopicName) .OrderBy(a => a.KafkaProducerMessageID) .ToList<KafkaProducerMessage>(); } public void InsertKafkaProducerMessage(KafkaProducerMessage Message) { context.KafkaProducerMessage.Add(Message); context.SaveChanges(); } public void ArchiveKafkaProducerMessage(int MessageID) { KafkaProducerMessage m = context.KafkaProducerMessage.Find(MessageID); KafkaProducerMessageArchive archivedMessage = KafkaProducerMessageToKafkaProducerMessageArchive(m); using (var dbContextTransaction = context.Database.BeginTransaction()) { try { context.KafkaProducerMessageArchive.Add(archivedMessage); context.KafkaProducerMessage.Remove(m); dbContextTransaction.Commit(); context.SaveChanges(); } catch (Exception) { dbContextTransaction.Rollback(); context.SaveChanges(); } } } public void ArchiveKafkaProducerMessageList(List<KafkaProducerMessage> Messages) { foreach (KafkaProducerMessage Message in Messages) { ArchiveKafkaProducerMessage(Message.KafkaProducerMessageID); } } public static KafkaProducerMessageArchive KafkaProducerMessageToKafkaProducerMessageArchive(KafkaProducerMessage Message) { return new KafkaProducerMessageArchive { KafkaProducerMessageID = Message.KafkaProducerMessageID, MessageContent = Message.MessageContent, Topic = Message.Topic, CreatedAt = Message.CreatedAt, ArchivedAt = DateTime.UtcNow }; } public void Save() { context.SaveChanges(); } public void Dispose() { context.Dispose(); } }

---

数据库上下文KafkaModel.cs代码:

   public partial class KafkaModel : DbContext { public KafkaModel() : base("name=KafkaModel") { } public virtual DbSet<KafkaConsumerMessage> KafkaConsumerMessage { get; set; } public virtual DbSet<KafkaProducerMessage> KafkaProducerMessage { get; set; } public virtual DbSet<KafkaProducerMessageArchive> KafkaProducerMessageArchive { get; set; } public virtual DbSet<vwMaxOffsetByPartitionAndTopic> vwMaxOffsetByPartitionAndTopic { get; set; } protected override void OnModelCreating(DbModelBuilder modelBuilder) { modelBuilder.Entity<KafkaConsumerMessage>() .Property(e => e.Topic) .IsUnicode(false); modelBuilder.Entity<KafkaProducerMessage>() .Property(e => e.Topic) .IsUnicode(false); modelBuilder.Entity<KafkaProducerMessageArchive>() .Property(e => e.Topic) .IsUnicode(false); modelBuilder.Entity<vwMaxOffsetByPartitionAndTopic>() .Property(e => e.Topic) .IsUnicode(false); } }

---

Program.cs代码:

class Program
    {
        private static string Topic;
        static void Main(string[] args) { string invalidArgErrorMessage = "有效的args是：produce或consume"; if (args.Length < 1) { throw (new Exception(invalidArgErrorMessage)); } string intent = args[1]; Topic = ConfigurationManager.AppSettings["Topic"]; if (String.Equals(intent, "consume", StringComparison.OrdinalIgnoreCase)) { Console.WriteLine("开始消费者服务"); Consume(); } else if (String.Equals(intent, "produce", StringComparison.OrdinalIgnoreCase)) { Console.WriteLine("开始生产者服务"); Produce(); } else { throw (new Exception(invalidArgErrorMessage)); } } private static BrokerRouter InitDefaultConfig() { List<Uri> ZKURIList = new List<Uri>(); foreach (string s in ConfigurationManager.AppSettings["BrokerList"].Split(',')) { ZKURIList.Add(new Uri(s)); } var Options = new KafkaOptions(ZKURIList.ToArray()); var Router = new BrokerRouter(Options); return Router; } private static void Consume() { KafkaConsumerRepository KafkaRepo = new KafkaConsumerRepository(); bool FromBeginning = Boolean.Parse(ConfigurationManager.AppSettings["FromBeginning"]); var Router = InitDefaultConfig(); var Consumer = new Consumer(new ConsumerOptions(Topic, Router)); //如果我们不想从头开始，使用最新偏移量。 if (!FromBeginning) { var MaxOffsetByPartition = KafkaRepo.GetOffsetPositionByTopic(Topic); //如果我们得到一个结果使用它，否则默认 if (MaxOffsetByPartition.Count != 0) { List<OffsetPosition> offsets = new List<OffsetPosition>(); foreach (var m in MaxOffsetByPartition) { OffsetPosition o = new OffsetPosition(m.Partition, (long)m.MaxOffset + 1); offsets.Add(o); } Consumer.SetOffsetPosition(offsets.ToArray()); } else { Consumer.SetOffsetPosition(new OffsetPosition()); } } //消耗返回一个阻塞IEnumerable（ie：从没有结束流） foreach (var message in Consumer.Consume()) { string MessageContent = Encoding.UTF8.GetString(message.Value); Console.WriteLine(String.Format("处理带有内容的消息: {0}", MessageContent)); KafkaRepo = new KafkaConsumerRepository(); KafkaConsumerMessage ConsumerMessage = new KafkaConsumerMessage() { Topic = Topic, Offset = (int)message.Meta.Offset, Partition = message.Meta.PartitionId, MessageContent = MessageContent, CreatedAt = DateTime.UtcNow }; KafkaRepo.InsertKafkaConsumerMessage(ConsumerMessage); KafkaRepo.Dispose(); } } private static void Produce() { KafkaProducerRepository KafkaRepo = new KafkaProducerRepository(); var Router = InitDefaultConfig(); var Client = new Producer(Router); List<Message> Messages = new List<Message>(); foreach (KafkaProducerMessage message in KafkaRepo.GetKafkaProducerMessageByTopic(Topic)) { Messages.Add(new Message(message.MessageContent)); KafkaRepo.ArchiveKafkaProducerMessage(message.KafkaProducerMessageID); } Client.SendMessageAsync(Topic, Messages).Wait(); KafkaRepo.Dispose(); } }



App.config内容:

<?xml version="1.0" encoding="utf-8"?>
<configuration>
  <configSections> <section name="entityFramework" type="System.Data.Entity.Internal.ConfigFile.EntityFrameworkSection, EntityFramework, Version=6.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" requirePermission="false"/> </configSections> <startup> <supportedRuntime version="v4.0" sku=".NETFramework,Version=v4.5"/> </startup> <appSettings> <add key="BrokerList" value="http://localhost:9092"/> <add key="Topic" value="test2017"/> <add key="FromBeginning" value="true"/> </appSettings> <entityFramework> <defaultConnectionFactory type="System.Data.Entity.Infrastructure.LocalDbConnectionFactory, EntityFramework"> <parameters> <parameter value="mssqllocaldb"/> </parameters> </defaultConnectionFactory> <providers> <provider invariantName="System.Data.SqlClient" type="System.Data.Entity.SqlServer.SqlProviderServices, EntityFramework.SqlServer"/> </providers> </entityFramework> <connectionStrings> <add name="KafkaModel" connectionString="Data Source=.;Initial Catalog=KafkaDemo;User ID=sa;Password=wu199010;multipleactiveresultsets=True;application name=EntityFramework" providerName="System.Data.SqlClient"/> </connectionStrings> <system.web> <membership defaultProvider="ClientAuthenticationMembershipProvider"> <providers> <add name="ClientAuthenticationMembershipProvider" type="System.Web.ClientServices.Providers.ClientFormsAuthenticationMembershipProvider, System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" serviceUri=""/> </providers> </membership> <roleManager defaultProvider="ClientRoleProvider" enabled="true"> <providers> <add name="ClientRoleProvider" type="System.Web.ClientServices.Providers.ClientRoleProvider, System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" serviceUri="" cacheTimeout="86400"/> </providers> </roleManager> </system.web> </configuration>

sql脚本:

IF NOT EXISTS(SELECT 1 FROM sys.tables WHERE name = 'KafkaConsumerMessage') BEGIN CREATE TABLE [dbo].[KafkaConsumerMessage]( [KafkaConsumerMessageID] [int] IDENTITY(1,1) NOT NULL, [Topic] [varchar](1000) NOT NULL, [Partition] [int] NOT NULL, [Offset] [bigint] NOT NULL, [MessageContent] [nvarchar](max) NOT NULL, [CreatedAt] [datetime] NOT NULL, CONSTRAINT [PK_Kafka_Consumer_Message_KafkaConsumerMessageID] PRIMARY KEY CLUSTERED ([KafkaConsumerMessageID]) ) END GO IF NOT EXISTS(SELECT 1 FROM sys.tables WHERE name = 'KafkaProducerMessage') BEGIN CREATE TABLE [dbo].[KafkaProducerMessage]( [KafkaProducerMessageID] [int] IDENTITY(1,1) NOT NULL, [Topic] [varchar](1000) NOT NULL, [MessageContent] [nvarchar](max) NOT NULL, [CreatedAt] [datetime] NOT NULL, CONSTRAINT [PK_KafkaProducerMessage_KafkaProducerMessageID] PRIMARY KEY CLUSTERED ([KafkaProducerMessageID]) ) END GO IF NOT EXISTS(SELECT 1 FROM sys.tables WHERE name = 'KafkaProducerMessageArchive') BEGIN CREATE TABLE [dbo].[KafkaProducerMessageArchive]( [KafkaProducerMessageArchiveID] [int] IDENTITY(1,1) NOT NULL, [KafkaProducerMessageID] [int] NOT NULL, [Topic] [varchar](1000) NOT NULL, [MessageContent] [nvarchar](max) NOT NULL, [CreatedAt] [datetime] NOT NULL, [ArchivedAt] [datetime] NOT NULL, CONSTRAINT [PK_KafkaProducerMessageArchive_KafkaProducerMessageArchiveID] PRIMARY KEY CLUSTERED ([KafkaProducerMessageArchiveID]) ) END GO

---

引用.net kafka 组件：

---

启动zookeeper服务器，kafka服务器

打开一个DOS环境窗口

zkServer

• 1

打开第二个DOS窗口

kafka-server-start D:xxxxxxxxx\config\server.properties

• 1

---

结果如图:

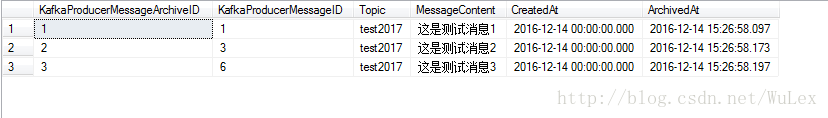

手动添加生产者表三条记录:



---

---

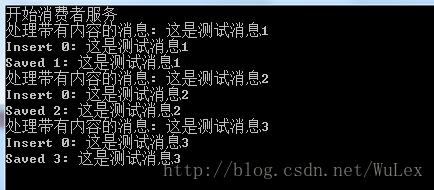

消费者表

---
