离线地图解决方案(二)：地图基本控制

最新推荐文章于 2024-03-16 16:09:52 发布

转载最新推荐文章于 2024-03-16 16:09:52 发布 · 199 阅读

0 ·

CC 4.0 BY-SA版权

原文链接：http://www.cnblogs.com/cdguiyiGIS/p/6714029.html

文章标签：

#xhtml #javascript #ViewUI

本文提供了一个关于地图控件的应用实例，包括如何添加和移除全屏、版权、鹰眼、比例尺等功能，并展示了如何通过代码实现地图的放大、缩小、设置中心点及层级等操作。

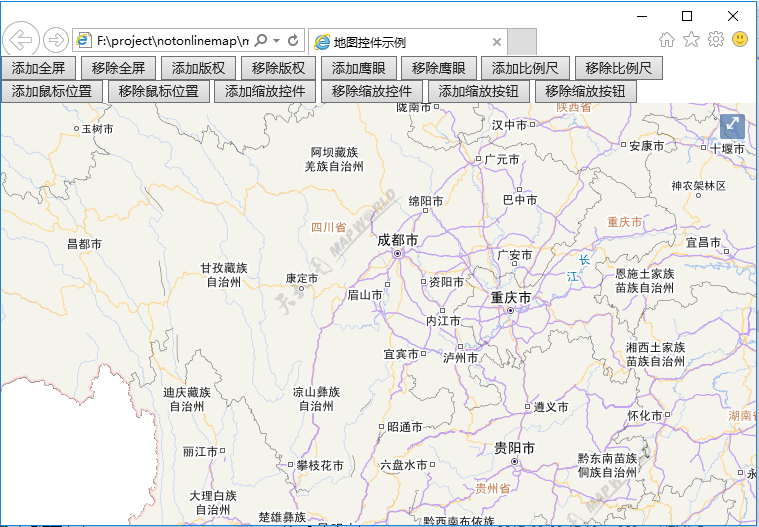

地图鹰眼，比例尺，地图缩放控件应用，地图放大、缩小、设置中心点，设置瓦片显示层级等。功能没什么好说的，直接上图：

<!DOCTYPE HTML PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
    <meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
    <meta name="viewport" content="initial-scale=1.0, user-scalable=no" />
    <title>地图控件示例</title>
    <link rel="stylesheet" href="plugin/ol3/css/ol.css" type="text/css" />
    <style>
                html, body, #div_gis {
                    width: 100%;
                    height: 100%;
                    overflow: hidden;
                    margin: 0;
                    font-family: "微软雅黑";
                }
    </style>

    <script type="text/javascript" src="plugin/ol3/build/ol-debug.js"></script>
    <script type="text/javascript" src="js/Config.js"></script>
    <script type="text/javascript" src="js/PrivateFunction.js"></script>
</head>

<body>
    <input type="button" value="添加全屏" onclick="OpenlayerAddFullScreen()" />
    <input type="button" value="移除全屏" onclick="OpenlayerRemoveFullScreen()" />
    <input type="button" value="添加版权" onclick="OpenlayerAddAttribution()" />
    <input type="button" value="移除版权" onclick="OpenlayerRemoveAttribution()" />
    <input type="button" value="添加鹰眼" onclick="OpenlayerAddFullScreen()" />
    <input type="button" value="移除鹰眼" onclick="OpenlayerRemoveFullScreen()" />
    <input type="button" value="添加比例尺" onclick="OpenlayerAddScaleLine()" />
    <input type="button" value="移除比例尺" onclick="OpenlayerRemoveScaleLine()" />
    <input type="button" value="添加鼠标位置" onclick="OpenlayerAddMousePosition()" />
    <input type="button" value="移除鼠标位置" onclick="OpenlayerRemoveMousePosition()" />
    <input type="button" value="添加缩放控件" onclick="OpenlayerAddZoomSlider()" />
    <input type="button" value="移除缩放控件" onclick="OpenlayerRemoveZoomSlider()" />
    <input type="button" value="添加缩放按钮" onclick="OpenlayerAddZoom()" />
    <input type="button" value="移除缩放按钮" onclick="OpenlayerRemoveZoom()" />
    <div id="div_gis">
    </div>
</body>

</html>
<script type="text/javascript">
    LoadTiandituTileMap(0, 'div_gis', 1, 11, 8, 103.964571, 30.245677);
</script>

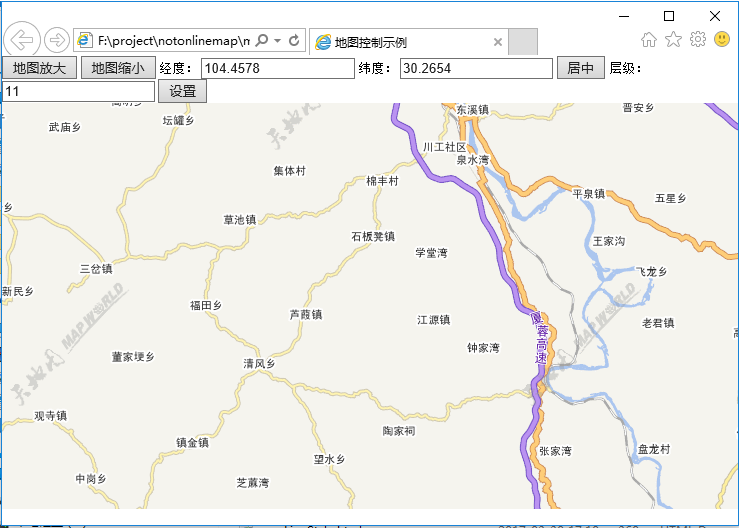

　　地图基本控制：

代码：

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8"/>
    <title>地图控制示例</title>
    <link rel="stylesheet" href="plugin/ol3/css/ol.css" type="text/css" />
    <style type="text/css">
        body, #mainMap {
            border: 0px;
            margin: 0px;
            padding: 0px;
            width: 100%;
            height: 100%;
            font-size: 13px;
        }
    </style>
    <script type="text/javascript" src="plugin/ol3/build/ol-debug.js"></script>
    <script type="text/javascript" src="js/Config.js"></script>
    <script type="text/javascript" src="js/PrivateFunction.js"></script>
</head>
<body>
    <input type="button" value="地图放大" onclick="OpenlayerZoomIn();" />
    <input type="button" value="地图缩小" onclick="OpenlayerZoomOut();" />
    <label>经度：</label>
    <input type="text" id="txtCentX" />
    <label>纬度：</label>
    <input type="text" id="txtCentY" />
    <input type="button" value="居中" onclick="OpenlayerSetCenter(parseFloat(txtCentX.value), parseFloat(txtCentY.value));" />
    <label>层级：</label>
    <input type="text" id="txtZoom" />
    <input type="button" value="设置" onclick="OpenlayerSetZoom(txtZoom.value);" />

    <div id="div_gis">

    </div>

</body>
</html>
<script type="text/javascript">
    LoadTiandituTileMap(0, 'div_gis', 1, 11, 8, 103.964571, 30.245677);
</script>
