swagger 可以用来生成接口文档,同时提供测试使用

官网:https://swagger.io/
项目地址: https://github.com/springfox/springfox
文档地址: http://springfox.github.io/springfox/docs/current/

Spring MVC 下使用 swagger:

pom.xm 文件

		<dependency>
			<groupId>com.fasterxml.jackson.core</groupId>
			<artifactId>jackson-core</artifactId>
		</dependency>
		<dependency>
			<groupId>com.fasterxml.jackson.core</groupId>
			<artifactId>jackson-databind</artifactId>
		</dependency>
		<dependency>
			<groupId>com.fasterxml.jackson.core</groupId>
			<artifactId>jackson-annotations</artifactId>
		</dependency>
		<dependency>
			<groupId>io.springfox</groupId>
			<artifactId>springfox-swagger2</artifactId>
			<version>2.7.0</version>
		</dependency>
		<dependency>
			<groupId>io.springfox</groupId>
			<artifactId>springfox-swagger-ui</artifactId>
			<version>2.7.0</version>
		</dependency>

这里因为继承了 org.springframework.boot 的原因有些包没有版本号,需要的话自己加

2.Spring 配置

<context:annotation-config/>
<!-- 扫描 controller -->
<context:component-scan base-package="com.ymt.controller"/>
<bean id="swagger2Config" class="springfox.documentation.swagger2.configuration.Swagger2DocumentationConfiguration"/>
<mvc:resources mapping="/swagger-ui.html" location="classpath:/META-INF/resources/"/>

3.接口说明配置

@Api(value = "用户信息", description = "用户信息")
@Controller
public class UserController {
    @ApiOperation("登录")
    @RequestMapping(value = "/login")
    public String login(@ApiParam(value = "用户名") @RequestParam String username,
            @ApiParam(value = "密码") @RequestParam String password) {
        return "welcome";
    }
}

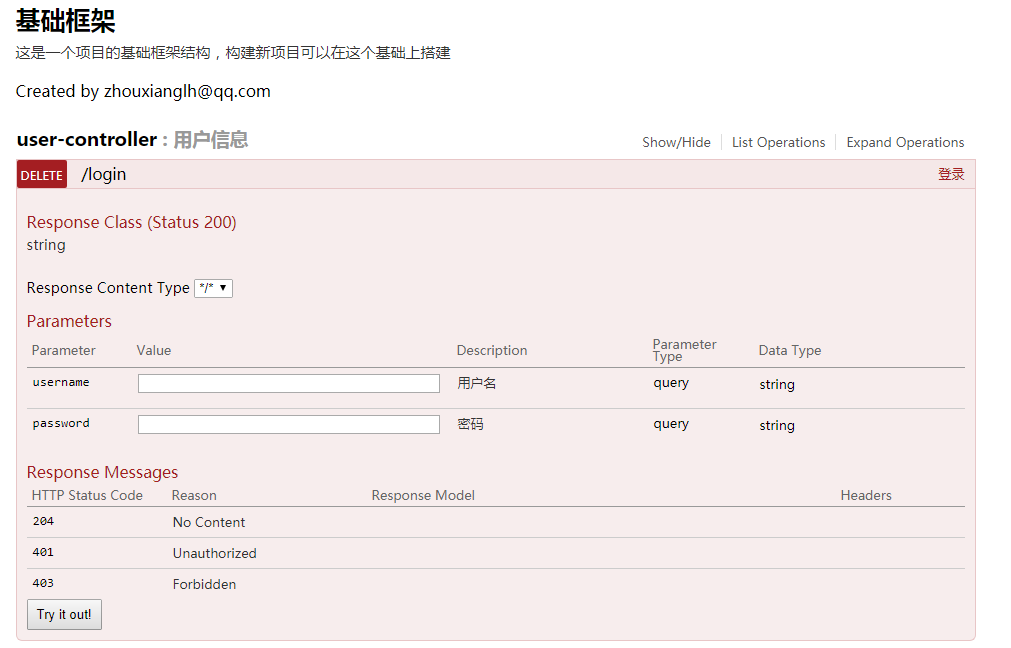

到此为止就完成了,访问 http://localhost:8080/{项目名称}/swagger-ui.html 就可以看到API了输入图片说明

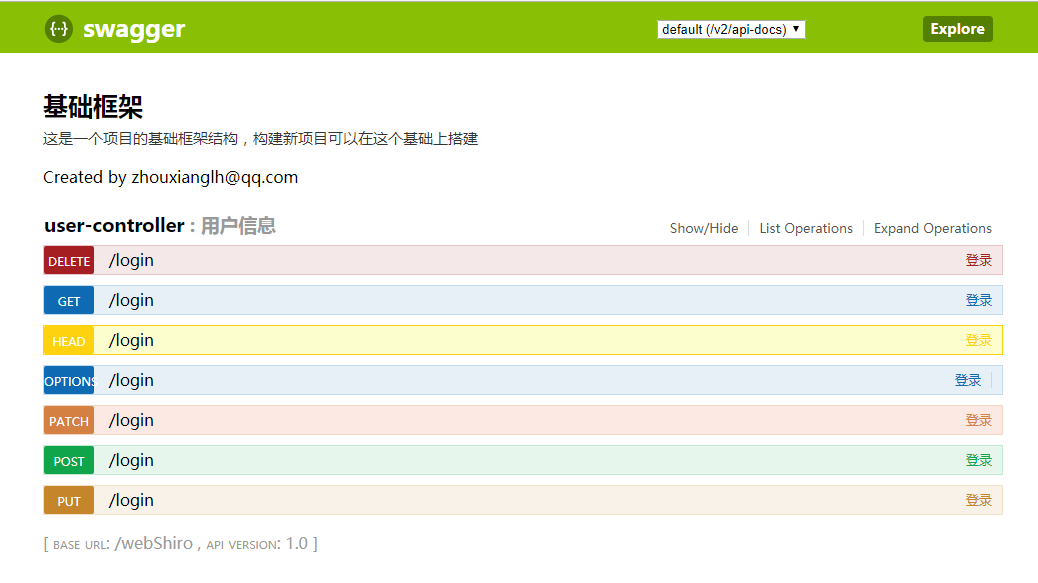

swagger 默认会扫描所有接口,实现Spring 配置文件中的 springfox.documentation.swagger2.configuration.Swagger2DocumentationConfiguration 类,控制只显示实现了ApiOperation 接口的API

@Configuration
@Import({ SpringfoxWebMvcConfiguration.class, SwaggerCommonConfiguration.class })
@ComponentScan(basePackages = { "springfox.documentation.swagger2.readers.parameter",
        "springfox.documentation.swagger2.mappers" })
public class ApplicationSwaggerConfig extends Swagger2DocumentationConfiguration {
    @SuppressWarnings("deprecation")
    @Bean
    public Docket myDocket() {
        Docket docket = new Docket(DocumentationType.SWAGGER_2);
        ApiInfo apiInfo = new ApiInfo("基础框架", "这是一个项目的基础框架结构，构建新项目可以在这个基础上搭建", "1.0", "apiDocs", "zhouxianglh@qq.com",
                "", "");
        docket.apiInfo(apiInfo);
        docket.select().apis(RequestHandlerSelectors.withMethodAnnotation(ApiOperation.class)).build();
        return docket;
    }
}

参考:
http://www.jianshu.com/p/12f4394462d5
http://www.jianshu.com/p/5cfbe62a1569
http://git.oschina.net/shuzheng/zheng
