eclipse创建maven模块工程

创建maven模块项目，可以使用eclipse工具来完成。

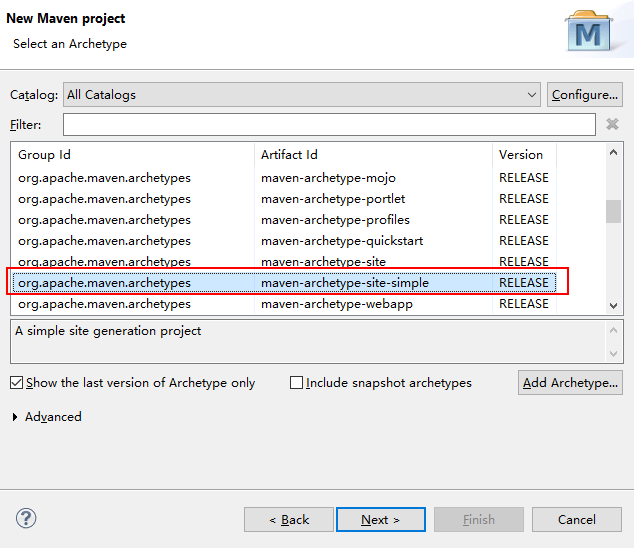

1、创建父工程，注意，要选择maven-archetype-site-simple

new --》 maven project

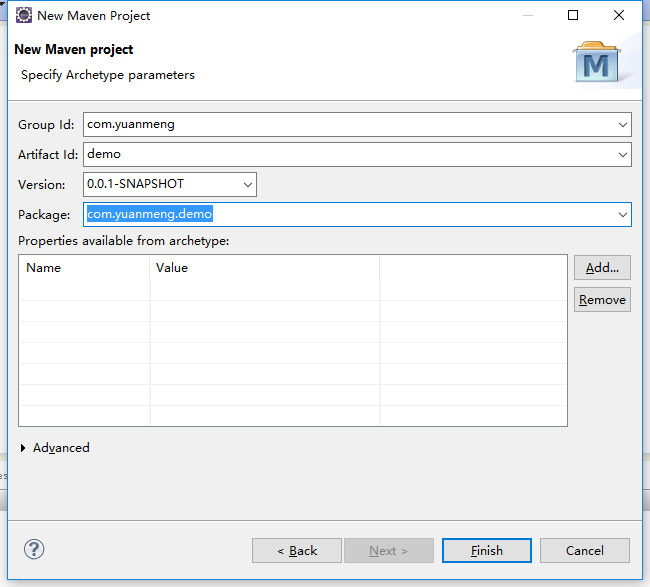

填写项目名、包名信息

此时父工程的pom文件内容，packaging有jar、war、pom等多种，而父工程则为pom

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.yuanmeng</groupId>
  <artifactId>demo</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <packaging>pom</packaging>

  <distributionManagement>
    <site>
      <id>website</id>
      <url>scp://webhost.company.com/www/website</url>
    </site>
  </distributionManagement>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
  </properties>
</project>

2、创建java子模块工程

选中上面创建过的父工程demo，然后右击 new --》maven module

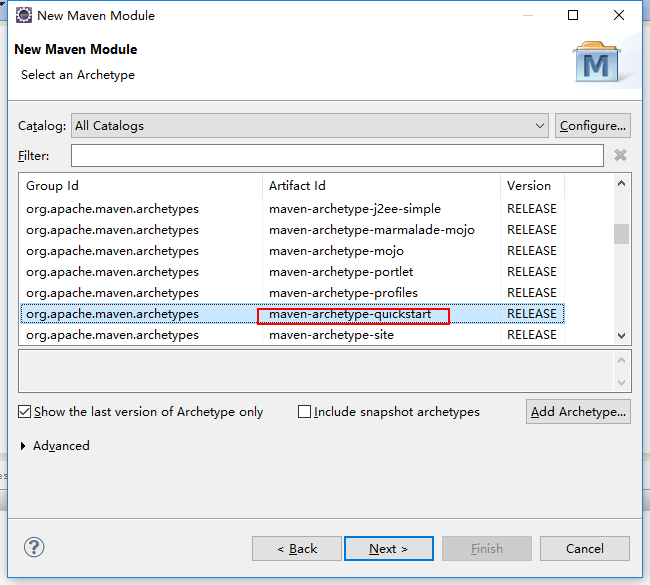

注意 ：这是创建创建java工程，所以选择了maven-archetype-quickstart

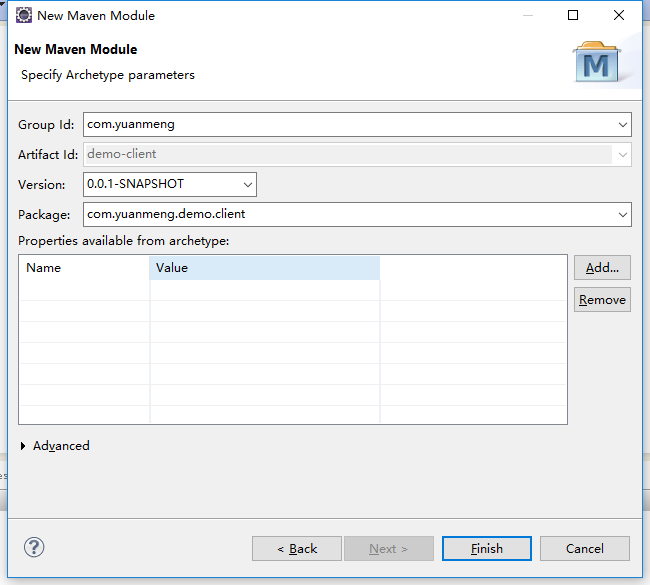

填写项目名、包名信息

创建完子工程demo-client后，java子模块pom

<?xml version="1.0"?>
<project xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd" xmlns="http://maven.apache.org/POM/4.0.0"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
  <modelVersion>4.0.0</modelVersion>
  <parent>
    <groupId>com.yuanmeng</groupId>
    <artifactId>demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
  </parent>
  <artifactId>demo-client</artifactId>
  <packaging>jar</packaging>
  <name>demo-client</name>
  <url>http://maven.apache.org</url>
  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
  </properties>
  <dependencies>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>3.8.1</version>
      <scope>test</scope>
    </dependency>
  </dependencies>
</project>

View Code

父工程demo的pom文件多了如下配置

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.yuanmeng</groupId>
  <artifactId>demo</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <packaging>pom</packaging>

  <distributionManagement>
    <site>
      <id>website</id>
      <url>scp://webhost.company.com/www/website</url>
    </site>
  </distributionManagement>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
  </properties>
  <modules>
    <module>demo-client</module>
  </modules>
</project>

3、创建web子模块工程

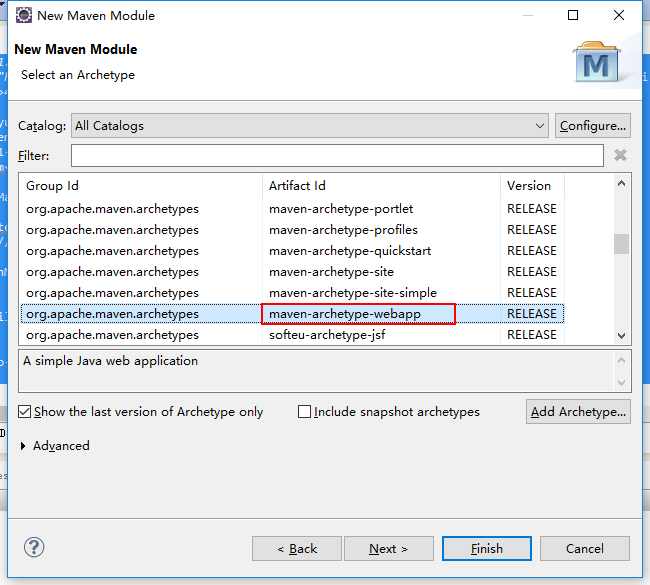

步骤与2雷同，唯一不同的是，创建web工程，要选择maven-archetype-webapp

web子模块pom.xml

<?xml version="1.0"?>
<project xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd" xmlns="http://maven.apache.org/POM/4.0.0"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
  <modelVersion>4.0.0</modelVersion>
  <parent>
    <groupId>com.yuanmeng</groupId>
    <artifactId>demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
  </parent>
  <artifactId>demo-service</artifactId>
  <packaging>war</packaging>
  <name>demo-service Maven Webapp</name>
  <url>http://maven.apache.org</url>
  <dependencies>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>3.8.1</version>
      <scope>test</scope>
    </dependency>
  </dependencies>
  <build>
    <finalName>demo-service</finalName>
  </build>
</project>

View Code

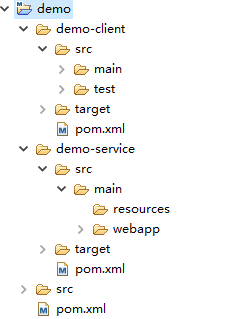

4、总的工程结构如下
