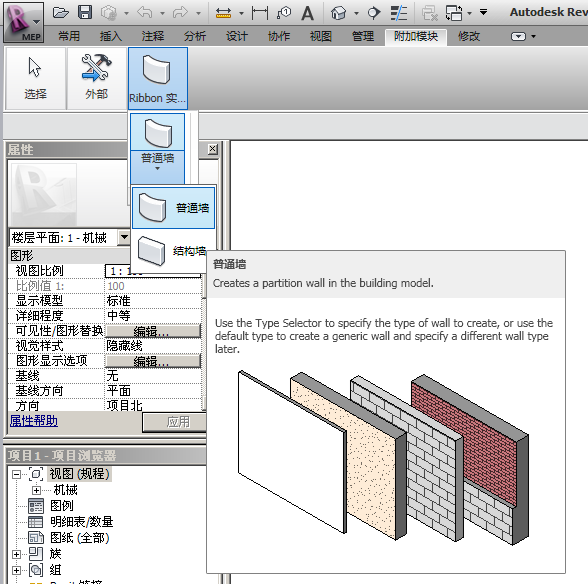

Revit 2011之后取消了菜单和工具条，全部使用Ribbon即按钮组，如图

步骤一：
新建类库项目Ribbon
修改命名空间为HY
修改Class1.cs为Ribbon.cs用来控制按钮显示
添加一个类AddInCommand.cs用来响应命令

步骤二：
引入类库
RevitAPI.dll
RevitAPIUI.dll
System.Windows.Forms;
PresentationCore
WindowBase

Ribbon.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;

using System.IO;
using System.Windows.Forms;
using System.Windows.Media.Imaging;

using Autodesk.Revit.UI;
using Autodesk.Revit.Attributes;

namespace HY
{
    [Transaction(TransactionMode.Automatic)]
    [Regeneration(RegenerationOption.Manual)]
    [Journaling(JournalingMode.NoCommandData)]
     public class Ribbon : IExternalApplication
    {
         // 程序集路径
         static string AddInPath = typeof (Ribbon).Assembly.Location;
         // 按钮图标目录
         static string ButtonIconsFolder = Path.GetDirectoryName(AddInPath);
         // uiApplication
         // static UIApplication uiApplication = null;

         #region IExternalApplication Members

         public Autodesk.Revit.UI.Result OnStartup(UIControlledApplication application)
        {
             try
            {
                CreateRibbonSamplePanel(application);

                 return Autodesk.Revit.UI.Result.Succeeded;
            }
             catch (Exception ex)
            {
                MessageBox.Show(ex.ToString(), " Ribbon Sample " );

                 return Autodesk.Revit.UI.Result.Failed;
            }
        }

         public Autodesk.Revit.UI.Result OnShutdown(UIControlledApplication application)
        {
             return Autodesk.Revit.UI.Result.Succeeded;
        }

         #endregion

         private void CreateRibbonSamplePanel(UIControlledApplication application)
        {
             // RibbonPanel显示一个大按钮，图标为第一个按钮的图标
             string firstPanelName = " Ribbon 实例 " ; // 面板底部文字提示
            RibbonPanel ribbonSamplePanel = application.CreateRibbonPanel(firstPanelName);

             #region 创建墙和结构墙

             // RibbonPanel(面板)->SplitButton(按钮组)->PushButton(按钮)
            SplitButtonData splitButtonData = new SplitButtonData( " NewWallSplit " , " 创建墙 " ); // 按钮数据，按钮组显示的文字为第一个按钮的文字
            SplitButton splitButton = ribbonSamplePanel.AddItem(splitButtonData) as SplitButton; // 添加到面板

             // PushButton pushButton = splitButton.AddPushButton(new PushButtonData("WallPush", "普通墙", AddInPath, "Revit.SDK.Samples.Ribbon.CS.CreateWall"));
             // 最后一个参数是执行按钮事件的响应类名
            PushButtonData pushButtonDataWall = new PushButtonData( " WallPush " , " 普通墙 " , AddInPath, " HY.CreateWall " );
            PushButton pushButton = splitButton.AddPushButton(pushButtonDataWall);
             // 大图标，小图标
            pushButton.LargeImage = new BitmapImage( new Uri(Path.Combine(ButtonIconsFolder, " CreateWall.png " ), UriKind.Absolute));
            pushButton.Image = new BitmapImage( new Uri(Path.Combine(ButtonIconsFolder, " CreateWall-S.png " ), UriKind.Absolute));
             // 提示文字，提示图片
            pushButton.ToolTip = " Creates a partition wall in the building model. " ;
            pushButton.ToolTipImage = new BitmapImage( new Uri(Path.Combine(ButtonIconsFolder, " CreateWallTooltip.bmp " ), UriKind.Absolute));

             // 按钮组里第二个按钮
            pushButton = splitButton.AddPushButton( new PushButtonData( " StrWallPush " , " 结构墙 " , AddInPath, " HY.CreateStructureWall " ));
            pushButton.LargeImage = new BitmapImage( new Uri(Path.Combine(ButtonIconsFolder, " StrcturalWall.png " ), UriKind.Absolute));
            pushButton.Image = new BitmapImage( new Uri(Path.Combine(ButtonIconsFolder, " StrcturalWall-S.png " ), UriKind.Absolute));

             #endregion

            ribbonSamplePanel.AddSeparator();
        }
    }
}

AddInCommand.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;

using System.Windows.Forms;

using Autodesk.Revit.UI;
using Autodesk.Revit.DB;
using Autodesk.Revit.Attributes;

namespace HY
{
    [Transaction(TransactionMode.Automatic)]
    [Regeneration(RegenerationOption.Manual)]
    [Journaling(JournalingMode.NoCommandData)]
     public class CreateWall : IExternalCommand
    {
         public Result Execute(ExternalCommandData revit, ref string message,ElementSet elements)
        {
            MessageBox.Show( " 创建墙 " );

             return Autodesk.Revit.UI.Result.Succeeded;
        }
    }

    [Transaction(TransactionMode.Automatic)]
    [Regeneration(RegenerationOption.Manual)]
     public class CreateStructureWall : CreateWall
    {
    }
}

Ribbon.addin

<? xml version="1.0" encoding="utf-8" ?>
< RevitAddIns >
   < AddIn Type ="Application" >
     < Name > External Tool </ Name >
     < Assembly > F:\Ribbon\Ribbon\bin\Debug\Ribbon.dll </ Assembly >
     < ClientId > cb5c768a-dc2f-4289-a803-58ee5afc5708 </ ClientId >
     < FullClassName > HY.Ribbon </ FullClassName >
   </ AddIn >
</ RevitAddIns >

参考上篇： http://www.cnblogs.com/greatverve/archive/2011/03/08/revit-api-begin.html
源码： http://files.cnblogs.com/greatverve/Ribbon.rar
