路由器静态地址

借用第三方软件esnp配置
<br/>
``

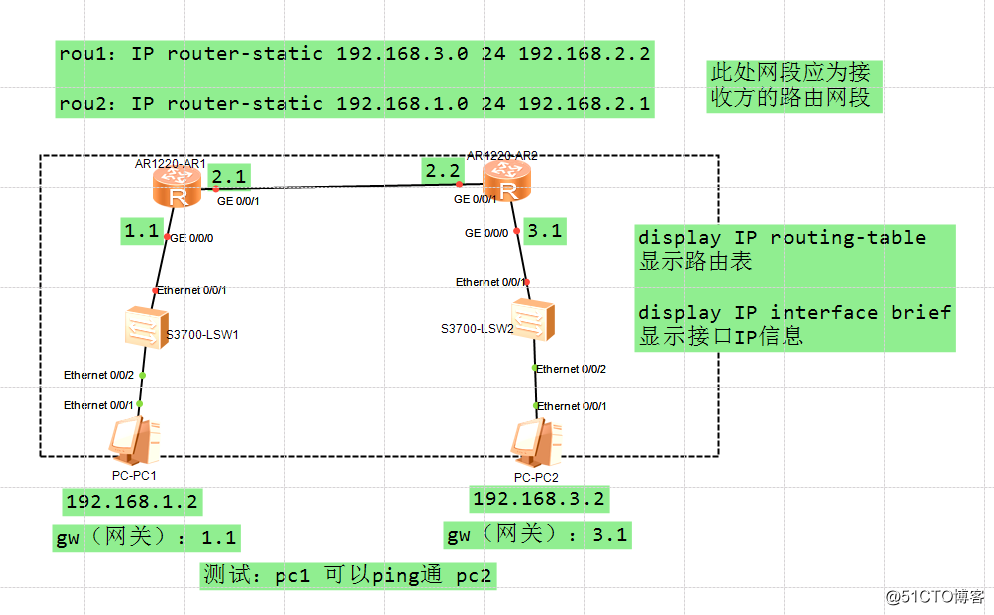

最好是图与命令相互配合好理解
··

步骤一：配置R1的接口地址`

<Huawei>system-view 进入系统试图
·
[Huawei]sysname R1 ······· 更改名为 R1
·
[R1]interface GigabitEthernet 0/0/0 ······· 进入接口 ·、0/0/0
·
[R1-GigabitEthernet0/0/0]ip address 192.168.2.1 255.255.255.0 ······· 设置ip地址
·
[R1]interface GigabitEthernet 0/0/1 ·········· 进入接口···0/0/1
`
[R1-GigabitEthernet0/0/1]ip address 192.168.1.254 255.255.255.0 ······· 设置ip地址
··
··
··R2 与R3 同 R1命令
·
步骤二：配置R2的接口地址
··
<Huawei>system-view
·
[Huawei]sysname R2
·
[R2]interface GigabitEthernet 0/0/0
·
[R2-GigabitEthernet0/0/0]ip address 192.168.4.254 255.255.255.0
·
[R2]interface GigabitEthernet 0/0/1
·
[R2-GigabitEthernet0/0/1]ip address 192.168.2.2 255.255.255.0·
··
··
··
步骤三：配置静态路由

1. [R1]ip route-static 192.168.4.0 255.255.255.0 192.168.2.2
   ·
   [R2]ip route-static 192.168.1.0 255.255.255.0 192.168.2.1
   ··
   ··
   ··

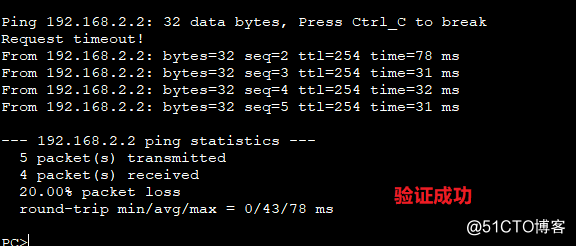

   步骤四：使用ping 检测网络是否连通

·
·
*
