本文介绍了NHibernate中单向和双向关联映射的概念及应用，包括代码示例、映射文件配置、数据插入和查询过程，展示了如何解决外键约束等问题。

　　内容摘要

　　　　单向关联映射

　　　　双向关联映射

　　一、单向关联映射

　　1.1 单向关联映射的描述

　　让我们回顾一下之前讲的《多对一关联映射》，如图1.1.1所示，其实“一对多”关联映射就是“多对一”关联映射相反的映射。

图1.1.1

　　至于“一对多”单向关联映射的代码如下：

     public class Student
    {
         public virtual int ? ID { get ; set ; }

         public virtual string Name { get ; set ; }
    }

     public class Class
    {
         public virtual int ? ID { get ; set ; }

         public virtual string Name { get ; set ; }

         public virtual IList < Student > Students { get ; set ; }
    }

　　映射文件如下：

< hibernate-mapping xmlns ="urn:nhibernate-mapping-2.2" assembly ="Domain" namespace ="Domain" >
   < class name ="Student" table ="T_Student" lazy ="true" >
     < id name ="ID" type ="int" column ="StudentID" >
       < generator class ="native" />
     </ id >

     < property name ="Name" type ="string" >
       < column name ="Name" length ="50" />
     </ property >

   </ class >
</ hibernate-mapping >

< hibernate-mapping xmlns ="urn:nhibernate-mapping-2.2" assembly ="Domain" namespace ="Domain" >
   < class name ="Class" table ="T_Class" lazy ="true" >
     < id name ="ID" type ="int" column ="ClassID" >
       < generator class ="native" />
     </ id >

     < property name ="Name" type ="string" >
       < column name ="Name" length ="50" />
     </ property >

     < bag name ="Students" >
       < key column ="ClassID" />
       < one-to-many class ="Student" />
     </ bag >

   </ class >
</ hibernate-mapping >

　　我们看到“Class”类中，有名为“Students” 的属性，其类型是IList<Student>。在映射文件中，我们使用<bag>和<one-to-many>标签来描述“一对多”关联映射。

　　1.2 单向关联映射的数据插入

　　单元测试类的代码如下：

    [TestFixture]
     public class OneToManyTest
    {
         private ISessionFactory sessionFactory;

         public OneToManyTest()
        {
            log4net.Config.XmlConfigurator.Configure();
        }

        [SetUp]
         public void Init()
        {
            var cfg = new NHibernate.Cfg.Configuration().Configure( " Config/hibernate.cfg.xml " );
            sessionFactory = cfg.BuildSessionFactory();
        }

        [Test]
         public void SaveTest()
        {
             using (ISession session = this .sessionFactory.OpenSession())
            {
                var liu = new Student { Name = " 刘冬 " };
                var zhang = new Student { Name = " 张三 " };

                var cls = new Class { Name = " 1班 " };
                cls.Students = new List < Student > { liu, zhang };

                ITransaction tran = session.BeginTransaction();
                 try
                {
                    session.Save(liu);
                    session.Save(zhang);

                    session.Save(cls);

                    tran.Commit();
                }
                 catch (Exception ex)
                {
                    tran.Rollback();
                     throw ex;
                }
            }
        }
}

　　我们配置log4net输出SQL语句：

<? xml version="1.0" ?>
< configuration >
   < configSections >

     < section name ="log4net" type ="log4net.Config.Log4NetConfigurationSectionHandler, log4net" />
   </ configSections >


   < log4net debug ="true" >
     < appender name ="EventLogAppender" type ="log4net.Appender.EventLogAppender" >
       < layout type ="log4net.Layout.PatternLayout" >
         < param name ="ConversionPattern" value ="%d [%t] %-5p %c [%x] - %m%n" />
       </ layout >
     </ appender >
     < root >
       < level value ="ALL" />
       < appender-ref ref ="RollingLogFileAppender" />
     </ root >
   </ log4net >

   < startup >
     < supportedRuntime version ="v4.0" sku =".NETFramework,Version=v4.0" />
   </ startup >
</ configuration >

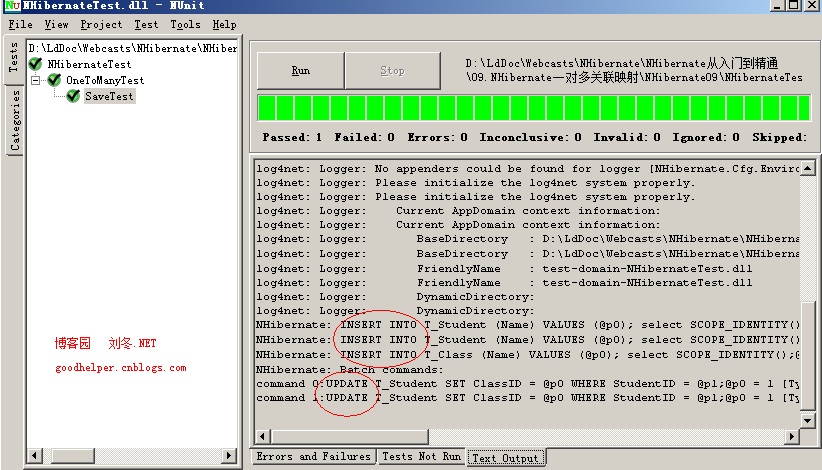

　　运行效果如图1.2.1所示，先成“insert into”语句，然后生成“update”语句修改外键。

图1.2.1

　　从图1.2.1中，我们能够观察到，如果“一对多”的外键不允许空，就有可能插入不成功。

　　我们将映射文件稍作修改：

< hibernate-mapping xmlns ="urn:nhibernate-mapping-2.2" assembly ="Domain" namespace ="Domain" >
   < class name ="Class" table ="T_Class" lazy ="true" >
     < id name ="ID" type ="int" column ="ClassID" >
       < generator class ="native" />
     </ id >

     < property name ="Name" type ="string" >
       < column name ="Name" length ="50" />
     </ property >


     < bag name ="Students" >
       < key column ="ClassID" not-null ="true" />
       < one-to-many class ="Student" />
     </ bag >

   </ class >
</ hibernate-mapping >

　　运行效果如图1.2.2所示，抛出“ClassID”不允许插入NULL的异常。

图1.2.2

　　二、双向关联映射

　　2.1 双向关联映射的描述

　　我们修改一下代码，来实现“一对多”双向关联映射：

     public class Student
    {
         public virtual int ? ID { get ; set ; }

         public virtual string Name { get ; set ; }

         public virtual Class Class { get ; set ; }
    }

　　“一对多”双向关联映射指的是：在“一”的这端（“Class”类这端）包含“多”的属性（“Students”）；在“多”的这端包含“一”的属性（“Class”属性）。这样两个类构成的循环引用就是双向关联映射。

　　2.2 双向关联映射的数据插入

　　插入数据的代码如下：

        [Test]
         public void SaveTest()
        {
             using (ISession session = this .sessionFactory.OpenSession())
            {
                var liu = new Student { Name = " 刘冬 " };
                var zhang = new Student { Name = " 张三 " };

                var cls = new Class { Name = " 1班 " };
                cls.Students = new List < Student > { liu, zhang };

                ITransaction tran = session.BeginTransaction();
                 try
                {
                    session.Save(cls);
                    session.Save(liu);
                    session.Save(zhang);

                    tran.Commit();
                }
                 catch (Exception ex)
                {
                    tran.Rollback();
                     throw ex;
                }
            }
        }

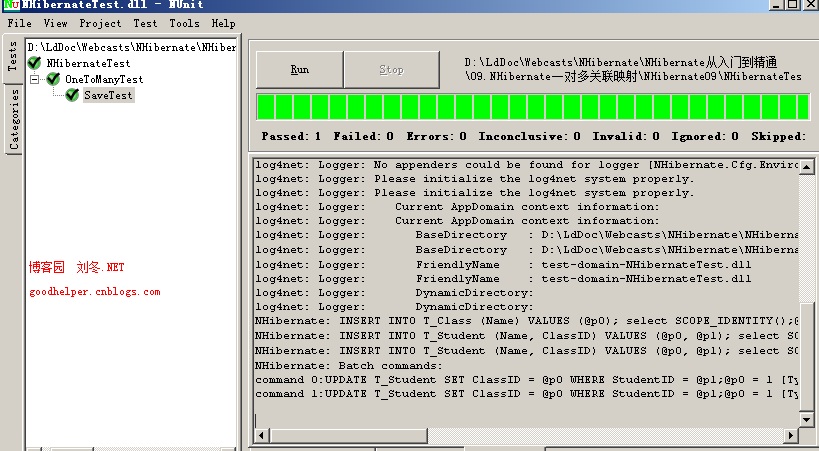

　　运行效果如图2.2.1所示，运行成功。

图2.2.1

　　修改“Student”的映射文件，将“Class”属性修改为不允许空：

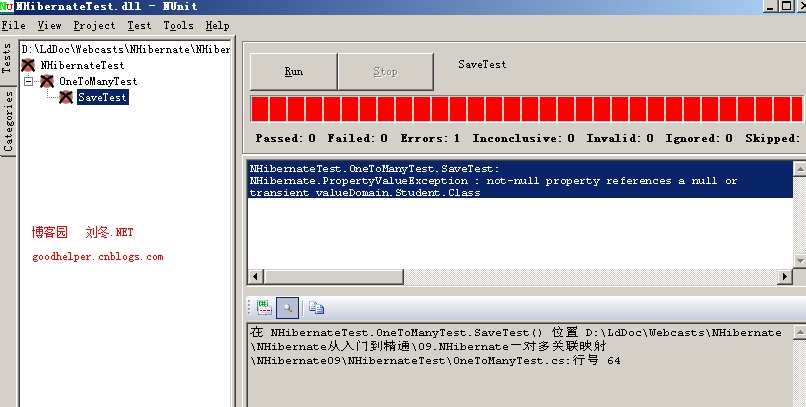

　　运行效果如图2.2.1所示，抛出“not-null property references a null or transient value”的异常。

图2.2.1

　　我修改单元测试代码：

        [Test]
         public void SaveTest()
        {
             using (ISession session = this .sessionFactory.OpenSession())
            {
                var liu = new Student { Name = " 刘冬 " };
                var zhang = new Student { Name = " 张三 " };

                var cls = new Class { Name = " 1班 " };
                cls.Students = new List < Student > { liu, zhang };

                liu.Class = cls;
                zhang.Class = cls;

                ITransaction tran = session.BeginTransaction();
                 try
                {
                     // 先保存班级
                    session.Save(cls);

                     // 后保存学生
                    session.Save(liu);
                    session.Save(zhang);

                    tran.Commit();
                }
                 catch (Exception ex)
                {
                    tran.Rollback();
                     throw ex;
                }
            }
        }

　　运行效果图2.2.2所示，运行成功。

图2.2.2

　　我们修改保存“Student”和“Class”实例的先后顺序：

        [Test]
         public void SaveTest()
        {
             using (ISession session = this .sessionFactory.OpenSession())
            {
                var liu = new Student { Name = " 刘冬 " };
                var zhang = new Student { Name = " 张三 " };

                var cls = new Class { Name = " 1班 " };
                cls.Students = new List < Student > { liu, zhang };

                liu.Class = cls;
                zhang.Class = cls;

                ITransaction tran = session.BeginTransaction();
                 try
                {
                     // 先保存学生
                    session.Save(liu);
                    session.Save(zhang);

                     // 后保存班级
                    session.Save(cls);

                    tran.Commit();
                }
                 catch (Exception ex)
                {
                    tran.Rollback();
                     throw ex;
                }
            }
        }

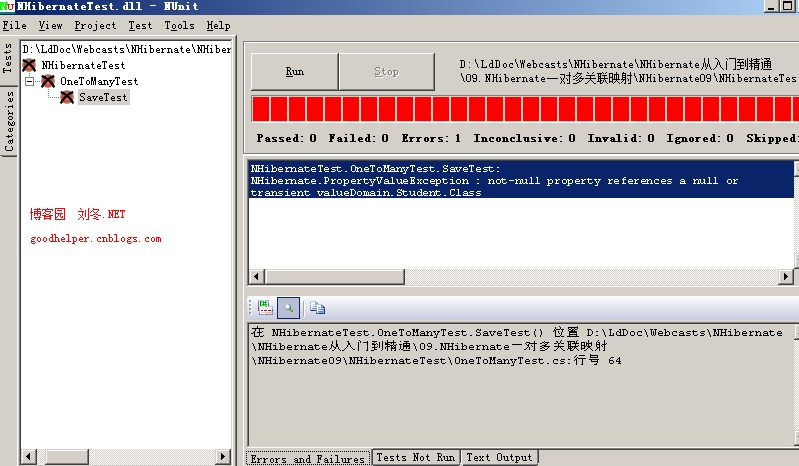

　　运行效果图2.2.3所示，同样抛出“not-null property references a null or transient value”的异常。

图2.2.3

　　我们修改一下“Class”的映射文件：

< hibernate-mapping xmlns ="urn:nhibernate-mapping-2.2" assembly ="Domain" namespace ="Domain" >
   < class name ="Class" table ="T_Class" lazy ="true" >
     < id name ="ID" type ="int" column ="ClassID" >
       < generator class ="native" />
     </ id >

     < property name ="Name" type ="string" >
       < column name ="Name" length ="50" />
     </ property >


     < bag name ="Students" inverse ="true" cascade ="all" >
       < key column ="ClassID" not-null ="true" />
       < one-to-many class ="Student" />
     </ bag >

   </ class >
</ hibernate-mapping >

　　然后修改单元测试的代码：

        [Test]
         public void SaveTest()
        {
             using (ISession session = this .sessionFactory.OpenSession())
            {
                var liu = new Student { Name = " 刘冬 " };
                var zhang = new Student { Name = " 张三 " };

                var cls = new Class { Name = " 1班 " };
                cls.Students = new List < Student > { liu, zhang };

                liu.Class = cls;
                zhang.Class = cls;

                ITransaction tran = session.BeginTransaction();
                 try
                {
                     // 只保存班级
                    session.Save(cls);

                    tran.Commit();
                }
                 catch (Exception ex)
                {
                    tran.Rollback();
                     throw ex;
                }
            }
        }

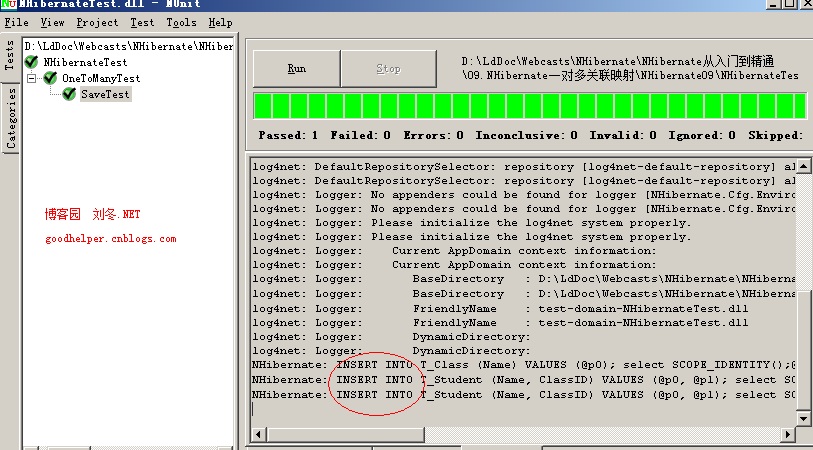

　　运行效果如图2.2.4所示，运行成功，并且没有生成“update”语句，只生成“insert into”语句。

图2.2.4

　　这样，保存“一”的这端(“Class”实例)，就能够将“一”得那端（“Student”）连带保存。其中映射文件中的“inverse”的属性是反转的意思，就是将操作交给双向关联关系中的另一端。

　　我们细观察到生成的SQL语句，只生成了“insert into”语句，这样，执行效率就变的高了。

　　2.3 双向关联映射的数据查询

　　编写单元测试的代码：

        [Test]
         public void SelectTest()
        {
             using (ISession session = this .sessionFactory.OpenSession())
            {
                var cls = session.Get < Class > ( 1 );

                 foreach (var item in cls.Students)
                {
                    Console.WriteLine( " 学生名为：{0} " , item.Name);
                    Console.WriteLine( " 班级名为：{0} " , item.Class.Name);
                }
            }
        }

　　运行效果如图2.3.1所示，比较以往使用SQL语句编程的代码后，发现调用“一对多”关联映射的集合变得如此方便。
