[C# Control] 仿RAR式进度条 (RarProgressBar)

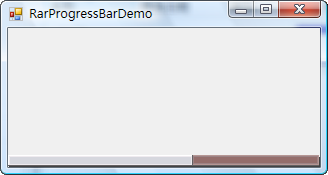

Download Source & Demo



System.Windows.Forms.ProgressBar的样式实在是太普通了, RarProgressBar让你多一种选择.
我并没有实现双进度显示, 因为我想不出除了文件压缩外还有什么地方能够用到双进度显示

/**/ ///////////////////////////////////////////////////////////////////////////////
//   RarProgressBar.cs
//   仿RAR式进度条
//
//   @version 1.00
//   @remarks For study purpose
//   @author Icebird @date 2006-07-03
/**/ ///////////////////////////////////////////////////////////////////////////////
using  System;
using  System.Windows.Forms;
using  System.ComponentModel;
using  System.Collections;
using  System.Diagnostics;
using  System.Drawing;

namespace  ControlsEx
{
    /**//// <summary>
    /// RarProgressBar
    /// </summary>
    [DefaultProperty("Value")]
    public class RarProgressBar : System.Windows.Forms.Control
    {
        private Pen whitePen, whitePen2;
        private Pen blackPen;
        private Pen blackPen2;
        private Pen lightGrayPen;
        private Pen lightGrayPen2;
        private Brush foreBrush;

        private int maximum;
        private int minimum;
        private int step;
        private int value;

        /**//// <summary>
        /// Constructor
        /// </summary>
        public RarProgressBar()
        {
            SetStyle(ControlStyles.Selectable, false);
            SetStyle(ControlStyles.SupportsTransparentBackColor | ControlStyles.ResizeRedraw | ControlStyles.DoubleBuffer |
                ControlStyles.AllPaintingInWmPaint | ControlStyles.UserPaint, true);
            this.minimum = 0;
            this.maximum = 100;
            this.step = 10;
            this.value = 0;
            this.BackColor = ColorTranslator.FromHtml("#946D6B");
            this.ForeColor = ColorTranslator.FromHtml("#D6D7DE");
            this.Height = 12;

            whitePen = new Pen(Color.White);
            whitePen2 = new Pen(ColorTranslator.FromHtml("#EFEBEF"));
            blackPen = new Pen(ColorTranslator.FromHtml("#636163"));
            blackPen2 = new Pen(ColorTranslator.FromHtml("#424142"));
            lightGrayPen = new Pen(ColorTranslator.FromHtml("#B59694"));
            lightGrayPen2 = new Pen(ColorTranslator.FromHtml("#9C8284"));
            foreBrush = new SolidBrush(ForeColor);
        }

        protected override void Dispose( bool disposing )
        {
            if( disposing )
            {
                whitePen.Dispose();
                whitePen2.Dispose();
                blackPen.Dispose();
                blackPen2.Dispose();
                lightGrayPen.Dispose();
                lightGrayPen2.Dispose();
                foreBrush.Dispose();
            }
            base.Dispose( disposing );
        }

        /**//// <summary>
        /// 当前值增加指定增量
        /// </summary>
        /// <param name="value"> 增量</param>
        public void Increment(int value)
        {
            this.value += value;
            if (this.value < this.minimum)
            {
                this.value = this.minimum;
            }
            if (this.value > this.maximum)
            {
                this.value = this.maximum;
            }
            this.UpdatePos();
        }

        /**//// <summary>
        /// 当前值增加固定增量(Step)
        /// </summary>
        public void PerformStep()
        {
            this.Increment(this.step);
        }

        /**//// <summary>
        /// 输出字符串
        /// </summary>
        public override string ToString()
        {
            string s = base.ToString();
            return (s + ", Minimum: " + this.Minimum.ToString() + ", Maximum: " + this.Maximum.ToString() + ", Value: " + this.Value.ToString());
        }

        private void UpdatePos()
        {
            Invalidate();
        }

        [Browsable(false), EditorBrowsable(EditorBrowsableState.Never)]
        public override bool AllowDrop
        {
            get
            {
                return base.AllowDrop;
            }
            set
            {
                base.AllowDrop = value;
            }
        }

        [EditorBrowsable(EditorBrowsableState.Never), Browsable(false)]
        public override Color BackColor
        {
            get
            {
                return base.BackColor;
            }
            set
            {
                base.BackColor = value;
            }
        }

        [Browsable(false), EditorBrowsable(EditorBrowsableState.Never)]
        public override Image BackgroundImage
        {
            get
            {
                return base.BackgroundImage;
            }
            set
            {
                base.BackgroundImage = value;
            }
        }

        protected override System.Windows.Forms.ImeMode DefaultImeMode
        {
            get
            {
                return System.Windows.Forms.ImeMode.Disable;
            }
        }

        protected override Size DefaultSize
        {
            get
            {
                return new Size(100, 12);
            }
        }

        [EditorBrowsable(EditorBrowsableState.Never), Browsable(false)]
        public override System.Drawing.Font Font
        {
            get
            {
                return base.Font;
            }
            set
            {
                base.Font = value;
            }
        }

        [Browsable(false), EditorBrowsable(EditorBrowsableState.Never)]
        public override Color ForeColor
        {
            get
            {
                return base.ForeColor;
            }
            set
            {
                base.ForeColor = value;
            }
        }

        [DescriptionAttribute("此 ProgressBar 正使用的范围的上限"),RefreshProperties(RefreshProperties.Repaint), DefaultValue(100), CategoryAttribute("行为")]
        public int Maximum
        {
            get
            {
                return this.maximum;
            }
            set
            {
                if (this.maximum != value)
                {
                    if (value < 0)
                    {
                        throw new ArgumentException(String.Format("'{1}'不是'{0}'的有效值。'{0}'必须大于或等于 {2}。", new object[] { "maximum", value.ToString(), "0" }));
                    }
                    if (this.minimum > value)
                    {
                        this.minimum = value;
                    }
                    this.maximum = value;
                    if (this.value > this.maximum)
                    {
                        this.value = this.maximum;
                    }
                    this.UpdatePos();
                }
            }
        }

        [RefreshProperties(RefreshProperties.Repaint), DescriptionAttribute("此 ProgressBar 正使用的范围的下限"), CategoryAttribute("行为"), DefaultValue(0)]
        public int Minimum
        {
            get
            {
                return this.minimum;
            }
            set
            {
                if (this.minimum != value)
                {
                    if (value < 0)
                    {
                        throw new ArgumentException(String.Format("'{1}'不是'{0}'的有效值。'{0}'必须大于或等于 {2}。", new object[] { "minimum", value.ToString(), "0" }));
                    }
                    if (this.maximum < value)
                    {
                        this.maximum = value;
                    }
                    this.minimum = value;
                    if (this.value < this.minimum)
                    {
                        this.value = this.minimum;
                    }
                    this.UpdatePos();
                }
            }
        }

        [Browsable(false), EditorBrowsable(EditorBrowsableState.Never)]
        public override System.Windows.Forms.RightToLeft RightToLeft
        {
            get
            {
                return base.RightToLeft;
            }
            set
            {
                base.RightToLeft = value;
            }
        }

        [DescriptionAttribute("当调用 Step() 方法时，控件当前值的增量。"), DefaultValue(10), CategoryAttribute("行为")]
        public int Step
        {
            get
            {
                return this.step;
            }
            set
            {
                this.step = value;
            }
        }

        [Bindable(false), Browsable(false), EditorBrowsable(EditorBrowsableState.Never)]
        public override string Text
        {
            get
            {
                return base.Text;
            }
            set
            {
                base.Text = value;
            }
        }

        [DefaultValue(0), DescriptionAttribute("ProgressBar 的当前值，在由最小和最大属性指定的范围之内。"), Bindable(true), CategoryAttribute("行为")]
        public int Value
        {
            get
            {
                return this.value;
            }
            set
            {
                if (this.value != value)
                {
                    if ((value < this.minimum) || (value > this.maximum))
                    {
                        throw new ArgumentException(String.Format("'{1}'不是'{0}'的有效值。'{0}'应介于 '{2}' 和 '{3}' 之间。", new object[] { "value", value.ToString(), "'minimum'", "'maximum'" }));
                    }
                    this.value = value;
                    this.UpdatePos();
                }
            }
        }

        protected override void OnMouseEnter(EventArgs e)
        {
            base.OnMouseEnter (e);
        }

        private int ProgressWidth
        {
            get
            {
                return Convert.ToInt32(Math.Floor(1.0 * ClientSize.Width / Maximum * Value));
            }
        }

        protected override void OnPaint(PaintEventArgs e)
        {
            Graphics g = e.Graphics;

            int pWidth = ProgressWidth;
            Pen pen;
            if (Parent != null)
                pen = new Pen(Parent.BackColor);
            else
                pen = new Pen(ColorTranslator.FromHtml("#EFEBE7"));
            g.DrawRectangle(pen, 0, 0, ClientSize.Width - 1, ClientSize.Height - 1);
            pen.Dispose();

            g.FillRectangle(foreBrush, 0, 0, pWidth, ClientSize.Height - 3 );
            g.DrawRectangle(whitePen, 0, 0, pWidth, ClientSize.Height - 2);
            g.DrawRectangle(whitePen2, 1, 1, pWidth - 2, ClientSize.Height - 4);

            //drawing right progress
            if (Value < Maximum)
            {
                g.DrawRectangle(lightGrayPen, pWidth, 0, ClientSize.Width - pWidth - 2, ClientSize.Height - 3);
                g.DrawRectangle(lightGrayPen2, pWidth + 1, 1, ClientSize.Width - pWidth - 4, ClientSize.Height - 5);
            }

            //drawing separator
            g.DrawLine(blackPen, pWidth, 0, pWidth,  ClientSize.Height - 3);

            //drawing right & bottom borders
            g.DrawLine(blackPen,  0, ClientSize.Height - 2,  ClientSize.Width - 1,  ClientSize.Height - 2);
            g.DrawLine(blackPen2,  1, ClientSize.Height - 1,  ClientSize.Width,  ClientSize.Height - 1);
            g.DrawLine(blackPen2,  ClientSize.Width - 1,  ClientSize.Height - 1,  ClientSize.Width - 1,  2);
        }
    }
}
