jmeter java请求 动态参数,JAVA 代码调用Jmeter (动态配置请求参数)

一、Jmeter如何进行动态设置请求参数

Jmeter使用占位符的方式进行动态替换请求参数内容。

HTTPSamplerProxy httpSamplerProxy = new HTTPSamplerProxy();

httpSamplerProxy.addArgument("data", "${data}");

那么替换占位符的数据是存放在哪里呢？答案就是替换的数据存放在每个线程的Context中。

当Jmeter创建每个Thread的时候都会创建一个Context，而Thread的Context我们可以通过JMeterContextService的getContext方法获取当前的线程的Context.

二、实现动态配置请求参数方式

CSV

Jmeter在图形化界面提供了CSV的方式进行动态配置请求参数。在Java代码中也可以通过CSV方式来进行实现，但是这种方式存在弊端，因为使用CSV是假设数据全部确定的情况下使用，如果我们所需要的请求参数的数据是不确定况下，我们就不可以使用CSV的方式进行处理。

Monitor

我们可以通过JMeterThread.java类发现,每个Sample都会调用SampleMonitor进行监视每个Sample,那么我们可以通过SampleMonitor来进行动态设置请求的参数。

JMeterThread.java

if (running) {

Sampler sampler = pack.getSampler();

sampler.setThreadContext(threadContext);

// TODO should this set the thread names for all the subsamples?

// might be more efficient than fetching the name elsewhere

sampler.setThreadName(threadName);

TestBeanHelper.prepare(sampler);

// Perform the actual sample

currentSampler = sampler;

if (!sampleMonitors.isEmpty()) {

for (SampleMonitor sampleMonitor : sampleMonitors) {

sampleMonitor.sampleStarting(sampler);

}

}

try {

result = sampler.sample(null);

} finally {

if (!sampleMonitors.isEmpty()) {

for (SampleMonitor sampleMonitor : sampleMonitors) {

sampleMonitor.sampleEnded(sampler);

}

}

}

currentSampler = null;

}

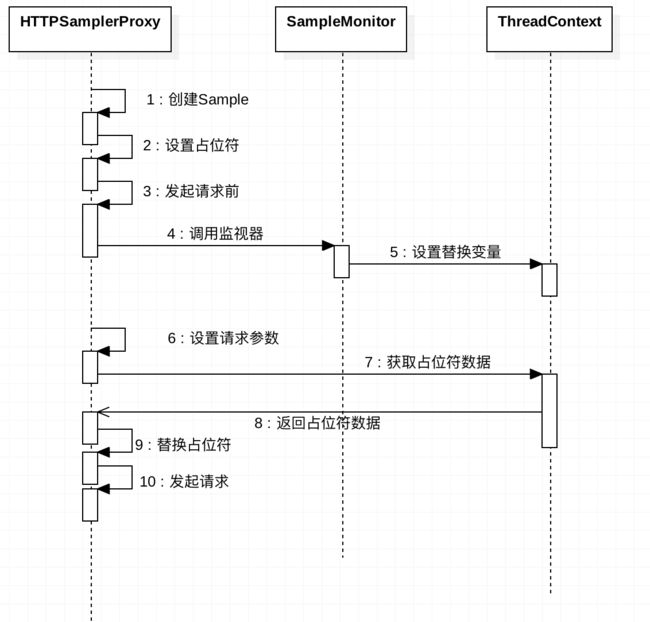

三、时序图


三、代码实现

1. TestPlanLauncher.java

public class TestPlanLauncher {

public static void main(String[] args) {

// jemter 引擎

StandardJMeterEngine standardJMeterEngine = new StandardJMeterEngine();

// 设置不适用gui的方式调用jmeter

System.setProperty(JMeter.JMETER_NON_GUI, "true");

// 设置jmeter.properties文件，我们将jmeter文件存放在resources中，通过classload

String path = TestPlanLauncher.class.getClassLoader().getResource("jmeter.properties").getPath();

File jmeterPropertiesFile = new File(path);

if (jmeterPropertiesFile.exists()) {

JMeterUtils.loadJMeterProperties(jmeterPropertiesFile.getPath());

HashTree testPlanTree = new HashTree();

// 创建测试计划

TestPlan testPlan = new TestPlan("Create JMeter Script From Java Code");

String variableNames = "data";

// 创建http请求收集器

HTTPSamplerProxy examplecomSampler = createHTTPSamplerProxy(variableNames);

// 创建循环控制器

LoopController loopController = createLoopController();

// 创建线程组

ThreadGroup threadGroup = createThreadGroup();

// 线程组设置循环控制

threadGroup.setSamplerController(loopController);

// 将测试计划添加到测试配置树种

HashTree threadGroupHashTree = testPlanTree.add(testPlan, threadGroup);

// 将http请求采样器添加到线程组下

threadGroupHashTree.add(examplecomSampler);

//增加监视器

threadGroupHashTree.add(createHttpSampleMonitor(variableNames));

//增加结果收集

Summariser summer = null;

String summariserName = JMeterUtils.getPropDefault("summariser.name", "summary");

if (summariserName.length() > 0) {

summer = new Summariser(summariserName);

}

ResultCollector logger = new ResultCollector(summer);

testPlanTree.add(testPlanTree.getArray(), logger);

// 配置jmeter

standardJMeterEngine.configure(testPlanTree);

// 运行

standardJMeterEngine.run();

}

}

/**

* 创建线程组

*

* @return

*/

public static ThreadGroup createThreadGroup() {

ThreadGroup threadGroup = new ThreadGroup();

threadGroup.setName("Example Thread Group");

threadGroup.setNumThreads(1);

threadGroup.setRampUp(0);

threadGroup.setProperty(TestElement.TEST_CLASS, ThreadGroup.class.getName());

threadGroup.setScheduler(true);

threadGroup.setDuration(60);

threadGroup.setDelay(0);

return threadGroup;

}

/**

* 创建循环控制器

*

* @return

*/

public static LoopController createLoopController() {

// Loop Controller

LoopController loopController = new LoopController();

loopController.setLoops(-1);

loopController.setContinueForever(true);

loopController.setProperty(TestElement.TEST_CLASS, LoopController.class.getName());

loopController.initialize();

return loopController;

}

/**

* 增加监视器

* @param variableNames

* @return

*/

public static HttpSampleMonitor createHttpSampleMonitor(String variableNames){

HttpSampleMonitor httpSampleMonitor = new HttpSampleMonitor();

if (StringUtils.isNoneBlank(variableNames)) {

httpSampleMonitor.setProperty("variableNames",variableNames);

}

return httpSampleMonitor;

}

/**

* 创建http采样器

*

* @return

*/

public static HTTPSamplerProxy createHTTPSamplerProxy(String variableNames) {

HTTPSamplerProxy httpSamplerProxy = new HTTPSamplerProxy();

httpSamplerProxy.addArgument(variableNames, "${"+variableNames+"}");

httpSamplerProxy.setDomain("www.baidu.com");

httpSamplerProxy.setPort(80);

httpSamplerProxy.setPath("/");

httpSamplerProxy.setMethod("GET");

httpSamplerProxy.setConnectTimeout("5000");

httpSamplerProxy.setUseKeepAlive(true);

httpSamplerProxy.setProperty(TestElement.TEST_CLASS, HTTPSamplerProxy.class.getName());

return httpSamplerProxy;

}

}

2.HttpSampleMonitor

public class HttpSampleMonitor extends ConfigTestElement implements SampleMonitor {

private static final Logger log = LoggerFactory.getLogger(HttpSampleMonitor.class);

private static final long serialVersionUID = 23221L;

// 请求变量名以逗号分隔

private String variableNames;

// 分隔后的变量名

private String[] vars;

@Override

public void sampleStarting(Sampler sampler) {

final JMeterContext context = getThreadContext();

JMeterVariables threadVars = context.getVariables();

if (StringUtils.isNoneEmpty(getVariableNames())) {

vars = JOrphanUtils.split(getVariableNames(), ",");

trimVarNames(vars);

for (int i = 0; i < vars.length; i++) {

threadVars.put(vars[i], i + "");

}

}

}

@Override

public void sampleEnded(Sampler sampler) {

}

/**

* trim content of array varNames

*

* @param varsNames

*/

private void trimVarNames(String[] varsNames) {

for (int i = 0; i < varsNames.length; i++) {

varsNames[i] = varsNames[i].trim();

}

}

public String getVariableNames() {

this.variableNames = this.getPropertyAsString("variableNames");

return variableNames;

}

}

3.特别说明

在HTTPSamplerProxy中的addArgument方法设置的占位符需要使用${}的形式。并且要与HttpSampleMonitor中threadVars对象put的name保持一致。

HttpSampleMonitor：我们的HttpSampleMonitor是为每一个线程增加一个HttpSampleMonitor，所以Jmeter需要对HttpSampleMonitor进行对象的clone和对clone的对象设置Property. 我们可以通过继承ConfigTestElement来获取对象拷贝和Property设置的能力。

Reference：

https://jmeter.apache.org/api/index.html
