namesrv作为rocketmq的服务注册管理中心,承担着重要的统一管理,链接着broker,producer,consumer之间的关系。

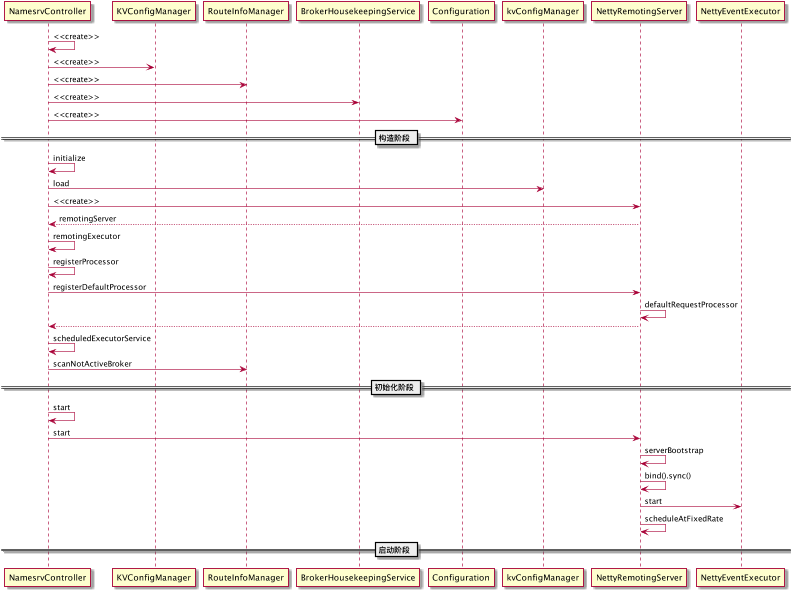

namesrv的启动主要有三个阶段:构造阶段 -》加载初始化 -》启动

核心代码实现在 org.apache.rocketmq.namesrv.NamesrvController中

一,构造阶段

NamesrvController构造函数
    KVConfigManager初始化,接受并执行kv接口的操作
    RouteInfoManager初始化,接受并执行route接口的操作
    BrokerHousekeepingService初始化,主要是在netty的网络通信中,涉及到网络的事件处理,关联的处理对应的服务管理
    Configuration初始化,接受配置的管理

详见源码:

public class NamesrvController {
    private static final InternalLogger log = InternalLoggerFactory.getLogger(LoggerName.NAMESRV_LOGGER_NAME);

    //nameSrv的配置
    private final NamesrvConfig namesrvConfig;
    //netty的配置
    private final NettyServerConfig nettyServerConfig;

    //执行单线程的任务调度,自定义编程名称
    private final ScheduledExecutorService scheduledExecutorService = Executors.newSingleThreadScheduledExecutor(new ThreadFactoryImpl(
        "NSScheduledThread"));

    //kv的配置管理
    private final KVConfigManager kvConfigManager;

    //路由管理器,有broker的ip和队列信息,producer发送的queue信息,consumer的pull的queue信息
    private final RouteInfoManager routeInfoManager;

    //namesrv的netty的服务端实现
    private RemotingServer remotingServer;

    //处理接受到请求事件的回调监听服务,主要处理netty的事件
    private BrokerHousekeepingService brokerHousekeepingService;

    private ExecutorService remotingExecutor;

    private Configuration configuration;
    private FileWatchService fileWatchService;

    public NamesrvController(NamesrvConfig namesrvConfig, NettyServerConfig nettyServerConfig) {
        this.namesrvConfig = namesrvConfig;
        this.nettyServerConfig = nettyServerConfig;
        //构造kv配置的管理
        this.kvConfigManager = new KVConfigManager(this);
        //构造路由信息管理
        this.routeInfoManager = new RouteInfoManager();
        //构造网络连接事件管理
        this.brokerHousekeepingService = new BrokerHousekeepingService(this);
        //配置
        this.configuration = new Configuration(
            log,
            this.namesrvConfig, this.nettyServerConfig
        );
        this.configuration.setStorePathFromConfig(this.namesrvConfig, "configStorePath");
    }

二,加载初始化阶段

NamesrvController的预处理加载
    kvConfigManager加载,将上次保存的内容重新加载到当前的内存中
    remotingServer初始化,使用netty作为服务端的初始化,下一节中单独介绍rocketmq的netty
    remotingExecutor初始化,线程池的隔离很明显,不同的事件用不同的线程池,不同的线程池不同的配置,最优
    registerProcessor注册事件处理,内部通信都是基于请求编码,根据编码找到对应的事件处理,得到对应的结果
    scheduledExecutorService调度线程池执行,主要扫描不可用的broker,并删除,有一个时间差
    scheduledExecutorService调度线程池执行,主要扫描kv的配置,同时打印到指定的日志中
    fileWatchService初始化,如果是安全模式,则执行加载tls的配置,同时将加载的内容设置到netty中的ssl

详见源码:

public boolean initialize() {
    //加载kv配置信息的当前服务内存中
    this.kvConfigManager.load();

    //本地的namesrv的netty服务
    this.remotingServer = new NettyRemotingServer(this.nettyServerConfig, this.brokerHousekeepingService);

    //处理远程服务请求的线程池
    this.remotingExecutor =
        Executors.newFixedThreadPool(nettyServerConfig.getServerWorkerThreads(), new ThreadFactoryImpl("RemotingExecutorThread_"));

    //注册可以处理的业务处理器,默认的处理
    this.registerProcessor();

    //定时扫描不可用的broker,同时删除不可用的broker,同时打印相关日志
    this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {

        @Override
        public void run() {
            NamesrvController.this.routeInfoManager.scanNotActiveBroker();
        }
    }, 5, 10, TimeUnit.SECONDS);

    //定时将kv的配置信息输出到info日志中
    this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {

        @Override
        public void run() {
            NamesrvController.this.kvConfigManager.printAllPeriodically();
        }
    }, 1, 10, TimeUnit.MINUTES);

    if (TlsSystemConfig.tlsMode != TlsMode.DISABLED) {
        // Register a listener to reload SslContext
        try {
            fileWatchService = new FileWatchService(
                new String[] {
                    TlsSystemConfig.tlsServerCertPath,
                    TlsSystemConfig.tlsServerKeyPath,
                    TlsSystemConfig.tlsServerTrustCertPath
                },
                new FileWatchService.Listener() {
                    boolean certChanged, keyChanged = false;
                    @Override
                    public void onChanged(String path) {
                        if (path.equals(TlsSystemConfig.tlsServerTrustCertPath)) {
                            log.info("The trust certificate changed, reload the ssl context");
                            reloadServerSslContext();
                        }
                        if (path.equals(TlsSystemConfig.tlsServerCertPath)) {
                            certChanged = true;
                        }
                        if (path.equals(TlsSystemConfig.tlsServerKeyPath)) {
                            keyChanged = true;
                        }
                        if (certChanged && keyChanged) {
                            log.info("The certificate and private key changed, reload the ssl context");
                            certChanged = keyChanged = false;
                            reloadServerSslContext();
                        }
                    }
                    private void reloadServerSslContext() {
                        ((NettyRemotingServer) remotingServer).loadSslContext();
                    }
                });
        } catch (Exception e) {
            log.warn("FileWatchService created error, can't load the certificate dynamically");
        }
    }

    return true;
}

三,启动阶段

NamesrvController的启动
    remotingServer的启动,netty服务端的启动,接收外部请求并处理对应的事件
    fileWatchService的启动,监听tls的配置变化

详见源码:

public void start() throws Exception {
    this.remotingServer.start();

    if (this.fileWatchService != null) {
        this.fileWatchService.start();
    }
}

核心关键点:

1,在构造器初始化时

this.brokerHousekeepingService = new BrokerHousekeepingService(this);

将当前controller的对象传递给网络事件处理服务,源码很清晰看清楚功能实现,如果有异常则清楚路由管理的对应信息

public class BrokerHousekeepingService implements ChannelEventListener {
    private static final InternalLogger log = InternalLoggerFactory.getLogger(LoggerName.NAMESRV_LOGGER_NAME);
    private final NamesrvController namesrvController;

    public BrokerHousekeepingService(NamesrvController namesrvController) {
        this.namesrvController = namesrvController;
    }

    @Override
    public void onChannelConnect(String remoteAddr, Channel channel) {
    }

    //如果netty的channel关闭掉,则删除对应的路由信息
    @Override
    public void onChannelClose(String remoteAddr, Channel channel) {
        this.namesrvController.getRouteInfoManager().onChannelDestroy(remoteAddr, channel);
    }

    //如果netty的channel异常,则删除对应的路由信息
    @Override
    public void onChannelException(String remoteAddr, Channel channel) {
        this.namesrvController.getRouteInfoManager().onChannelDestroy(remoteAddr, channel);
    }

    //如果netty的channel出现idle,则删除对应的路由信息
    @Override
    public void onChannelIdle(String remoteAddr, Channel channel) {
        this.namesrvController.getRouteInfoManager().onChannelDestroy(remoteAddr, channel);
    }
}

2,在加载初始化阶段,执行的注册事件处理

this.registerProcessor();

主要是怎么处理netty客户端请求的事件,每个事件都有独立的处理逻辑

private void registerProcessor() {
    if (namesrvConfig.isClusterTest()) {
        //集群测试配置的处理器
        this.remotingServer.registerDefaultProcessor(new ClusterTestRequestProcessor(this, namesrvConfig.getProductEnvName()),
            this.remotingExecutor);
    } else {
        //正常模式的处理器
        this.remotingServer.registerDefaultProcessor(new DefaultRequestProcessor(this), this.remotingExecutor);
    }
}

只是将线程池和事件处理设置到netty的服务端上,供netty的服务端接受处理

@Override
public void registerDefaultProcessor(NettyRequestProcessor processor, ExecutorService executor) {
    this.defaultRequestProcessor = new Pair<NettyRequestProcessor, ExecutorService>(processor, executor);
}

该数据结构在用pair对的形式存储,如果获得对应的事件处理,会用特有的线程池来执行特有的事件,完全隔离

整个事件的处理在netty的handler中执行,本章只是简单说明,下一章会详细的说明netty相关事宜

3,启动阶段

this.remotingServer.start();

netty服务的启动,核心网络通信

@Override
public void start() {
    //默认的事件处理进程组初始化
    this.defaultEventExecutorGroup = new DefaultEventExecutorGroup(
        nettyServerConfig.getServerWorkerThreads(),
        new ThreadFactory() {

            private AtomicInteger threadIndex = new AtomicInteger(0);

            @Override
            public Thread newThread(Runnable r) {
                return new Thread(r, "NettyServerCodecThread_" + this.threadIndex.incrementAndGet());
            }
        });

    //netty的服务端启动配置
    ServerBootstrap childHandler =
        this.serverBootstrap.group(this.eventLoopGroupBoss, this.eventLoopGroupSelector)
            .channel(useEpoll() ? EpollServerSocketChannel.class : NioServerSocketChannel.class)
            .option(ChannelOption.SO_BACKLOG, 1024)
            .option(ChannelOption.SO_REUSEADDR, true)
            .option(ChannelOption.SO_KEEPALIVE, false)
            .childOption(ChannelOption.TCP_NODELAY, true)

            .childOption(ChannelOption.SO_SNDBUF, nettyServerConfig.getServerSocketSndBufSize())
            .childOption(ChannelOption.SO_RCVBUF, nettyServerConfig.getServerSocketRcvBufSize())

            .localAddress(new InetSocketAddress(this.nettyServerConfig.getListenPort()))
            .childHandler(new ChannelInitializer<SocketChannel>() {
                @Override
                public void initChannel(SocketChannel ch) throws Exception {
                    ch.pipeline()
                        .addLast(defaultEventExecutorGroup, HANDSHAKE_HANDLER_NAME,
                            new HandshakeHandler(TlsSystemConfig.tlsMode))
                        .addLast(defaultEventExecutorGroup,
                            new NettyEncoder(),
                            new NettyDecoder(),
                            new IdleStateHandler(0, 0, nettyServerConfig.getServerChannelMaxIdleTimeSeconds()),
                            new NettyConnectManageHandler(),
                            new NettyServerHandler()
                        );
                }
            });

    if (nettyServerConfig.isServerPooledByteBufAllocatorEnable()) {
        childHandler.childOption(ChannelOption.ALLOCATOR, PooledByteBufAllocator.DEFAULT);
    }

    try {
        ChannelFuture sync = this.serverBootstrap.bind().sync();
        InetSocketAddress addr = (InetSocketAddress) sync.channel().localAddress();
        this.port = addr.getPort();
    } catch (InterruptedException e1) {
        throw new RuntimeException("this.serverBootstrap.bind().sync() InterruptedException", e1);
    }

    //namesrv端的事件回调处理机制,会调用channelEventListener的事件处理
    if (this.channelEventListener != null) {
        this.nettyEventExecutor.start();
    }

    //执行响应数据的处理
    this.timer.scheduleAtFixedRate(new TimerTask() {

        @Override
        public void run() {
            try {
                NettyRemotingServer.this.scanResponseTable();
            } catch (Throwable e) {
                log.error("scanResponseTable exception", e);
            }
        }
    }, 1000 * 3, 1000);
}

我们主要看接受网络请求的处理,NettyServerHandler

class NettyServerHandler extends SimpleChannelInboundHandler<RemotingCommand> {

    //读取网络请求
    @Override
    protected void channelRead0(ChannelHandlerContext ctx, RemotingCommand msg) throws Exception {
        processMessageReceived(ctx, msg);
    }
}
public void processMessageReceived(ChannelHandlerContext ctx, RemotingCommand msg) throws Exception {
    final RemotingCommand cmd = msg;
    if (cmd != null) {
        switch (cmd.getType()) {
            case REQUEST_COMMAND:
                //处理请求类的操作
                processRequestCommand(ctx, cmd);
                break;
            case RESPONSE_COMMAND:
                //处理响应类的操作
                processResponseCommand(ctx, cmd);
                break;
            default:
                break;
        }
    }
}

核心在处理request的处理

public void processRequestCommand(final ChannelHandlerContext ctx, final RemotingCommand cmd) {
    final Pair<NettyRequestProcessor, ExecutorService> matched = this.processorTable.get(cmd.getCode());
    final Pair<NettyRequestProcessor, ExecutorService> pair = null == matched ? this.defaultRequestProcessor : matched;
    final int opaque = cmd.getOpaque();

    if (pair != null) {
        //构建异步线程操作
        Runnable run = new Runnable() {
            @Override
            public void run() {
                try {
                    doBeforeRpcHooks(RemotingHelper.parseChannelRemoteAddr(ctx.channel()), cmd);
                    final RemotingCommand response = pair.getObject1().processRequest(ctx, cmd);
                    doAfterRpcHooks(RemotingHelper.parseChannelRemoteAddr(ctx.channel()), cmd, response);

                    //如果不是单发需要返回对应的请求唯一标识和数据
                    if (!cmd.isOnewayRPC()) {
                        if (response != null) {
                            response.setOpaque(opaque);
                            response.markResponseType();
                            try {
                                ctx.writeAndFlush(response);
                            } catch (Throwable e) {
                                log.error("process request over, but response failed", e);
                                log.error(cmd.toString());
                                log.error(response.toString());
                            }
                        } else {

                        }
                    }
                } catch (Throwable e) {
                    log.error("process request exception", e);
                    log.error(cmd.toString());

                    if (!cmd.isOnewayRPC()) {
                        final RemotingCommand response = RemotingCommand.createResponseCommand(RemotingSysResponseCode.SYSTEM_ERROR,
                            RemotingHelper.exceptionSimpleDesc(e));
                        response.setOpaque(opaque);
                        ctx.writeAndFlush(response);
                    }
                }
            }
        };

        if (pair.getObject1().rejectRequest()) {
            final RemotingCommand response = RemotingCommand.createResponseCommand(RemotingSysResponseCode.SYSTEM_BUSY,
                "[REJECTREQUEST]system busy, start flow control for a while");
            response.setOpaque(opaque);
            ctx.writeAndFlush(response);
            return;
        }

        try {
            final RequestTask requestTask = new RequestTask(run, ctx.channel(), cmd);
            pair.getObject2().submit(requestTask);
        } catch (RejectedExecutionException e) {
            if ((System.currentTimeMillis() % 10000) == 0) {
                log.warn(RemotingHelper.parseChannelRemoteAddr(ctx.channel())
                    + ", too many requests and system thread pool busy, RejectedExecutionException "
                    + pair.getObject2().toString()
                    + " request code: " + cmd.getCode());
            }

            if (!cmd.isOnewayRPC()) {
                final RemotingCommand response = RemotingCommand.createResponseCommand(RemotingSysResponseCode.SYSTEM_BUSY,
                    "[OVERLOAD]system busy, start flow control for a while");
                response.setOpaque(opaque);
                ctx.writeAndFlush(response);
            }
        }
    } else {
        String error = " request type " + cmd.getCode() + " not supported";
        final RemotingCommand response =
            RemotingCommand.createResponseCommand(RemotingSysResponseCode.REQUEST_CODE_NOT_SUPPORTED, error);
        response.setOpaque(opaque);
        ctx.writeAndFlush(response);
        log.error(RemotingHelper.parseChannelRemoteAddr(ctx.channel()) + error);
    }
}

特殊说明:

pair执行服务的获取,当前的processorTable没有事件处理,只能使用默认的,也是我们第二步初始化的defaultRequestProcessor

事件的处理是异步线程处理,最终包装成RequestTask

然后使用pair的线程池去执行该异步线程,线程内部将执行结果执行会写ctx的netty中

4,我们接着看处理事件的设计,仔细看没有高深,就是判断

public class DefaultRequestProcessor implements NettyRequestProcessor {
    private static InternalLogger log = InternalLoggerFactory.getLogger(LoggerName.NAMESRV_LOGGER_NAME);

    protected final NamesrvController namesrvController;

    public DefaultRequestProcessor(NamesrvController namesrvController) {
        this.namesrvController = namesrvController;
    }

    @Override
    public RemotingCommand processRequest(ChannelHandlerContext ctx,
        RemotingCommand request) throws RemotingCommandException {

        if (ctx != null) {
            log.debug("receive request, {} {} {}",
                request.getCode(),
                RemotingHelper.parseChannelRemoteAddr(ctx.channel()),
                request);
        }


        switch (request.getCode()) {
            //kv的操作事件处理
            case RequestCode.PUT_KV_CONFIG:
                return this.putKVConfig(ctx, request);
            case RequestCode.GET_KV_CONFIG:
                return this.getKVConfig(ctx, request);
            case RequestCode.DELETE_KV_CONFIG:
                return this.deleteKVConfig(ctx, request);

            //查询数据的版本信息
            case RequestCode.QUERY_DATA_VERSION:
                return queryBrokerTopicConfig(ctx, request);

            //注册broker及消除broker的操作
            case RequestCode.REGISTER_BROKER:
                Version brokerVersion = MQVersion.value2Version(request.getVersion());
                if (brokerVersion.ordinal() >= MQVersion.Version.V3_0_11.ordinal()) {
                    return this.registerBrokerWithFilterServer(ctx, request);
                } else {
                    return this.registerBroker(ctx, request);
                }
            case RequestCode.UNREGISTER_BROKER:
                return this.unregisterBroker(ctx, request);

            //获得topic及broker及offset的信息
            case RequestCode.GET_ROUTEINTO_BY_TOPIC:
                return this.getRouteInfoByTopic(ctx, request);
            case RequestCode.GET_BROKER_CLUSTER_INFO:
                return this.getBrokerClusterInfo(ctx, request);
            case RequestCode.WIPE_WRITE_PERM_OF_BROKER:
                return this.wipeWritePermOfBroker(ctx, request);

            //获得topic的操作
            case RequestCode.GET_ALL_TOPIC_LIST_FROM_NAMESERVER:
                return getAllTopicListFromNameserver(ctx, request);
            case RequestCode.DELETE_TOPIC_IN_NAMESRV:
                return deleteTopicInNamesrv(ctx, request);

            //获得kvlist
            case RequestCode.GET_KVLIST_BY_NAMESPACE:
                return this.getKVListByNamespace(ctx, request);

            //获得topic的相关信息
            case RequestCode.GET_TOPICS_BY_CLUSTER:
                return this.getTopicsByCluster(ctx, request);
            case RequestCode.GET_SYSTEM_TOPIC_LIST_FROM_NS:
                return this.getSystemTopicListFromNs(ctx, request);
            case RequestCode.GET_UNIT_TOPIC_LIST:
                return this.getUnitTopicList(ctx, request);
            case RequestCode.GET_HAS_UNIT_SUB_TOPIC_LIST:
                return this.getHasUnitSubTopicList(ctx, request);
            case RequestCode.GET_HAS_UNIT_SUB_UNUNIT_TOPIC_LIST:
                return this.getHasUnitSubUnUnitTopicList(ctx, request);

            //对config的操作
            case RequestCode.UPDATE_NAMESRV_CONFIG:
                return this.updateConfig(ctx, request);
            case RequestCode.GET_NAMESRV_CONFIG:
                return this.getConfig(ctx, request);
            default:
                break;
        }
        return null;
    }

转载于:https://my.oschina.net/wangshuaixin/blog/3055064

评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
