一键配置 PostgreSQL 主备流复制
本文介绍了一个使用 gtk+ 工具 zenity 编写的脚本，用于简化 PostgreSQL 主备节点之间的流复制配置过程。用户只需通过图形界面输入相关信息即可完成配置。
最近看了个gtk+工具zenity，顺便写了个图形化配置pg流复制的脚本。
使用方法：
注：该脚本可以在主节点、备节点或另外一台相同的机器上运行，但需要首先设置ssh免密码登录认证，保证 脚本节点--》主节点（root） 脚本节点--》备节点（root） 主节点（root）--》备节点（root）免密码可登录，配置过程略。
启动脚本程序：
$ chmod +x stream.sh
$ ./stream.sh执行之后出现如下对话框：

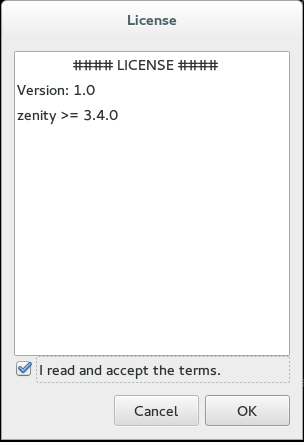

勾选同意，点击“OK”
在下面对话框中填写上主备节点的相关信息，包括IP、数据库管理员用户、数据库端口号、数据目录、数据库软件安装地址：
填写完成后点击“OK”

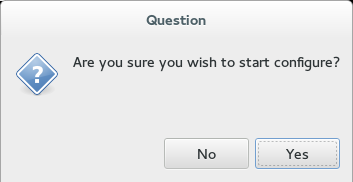

点击“Yes”开始配置双机流复制
点击“OK”完成配置，此时双机流复制环境已经配置成功，接着就可以测试同步性了。
脚本代码：
#!/bin/sh
function license(){
cat <<EOF >LICENSE
#### LICENSE ####
Version: 1.0
zenity >= 3.4.0
EOF
zenity --text-info \
--title="License" \
--filename=LICENSE \
--checkbox="I read and accept the terms."
case $? in
0)
conninfo
#echo "Start installation!"
# next step
;;
1)
#echo "Stop installation!"
zenity --info --text="Stop installation\!"
;;
-1)
#echo "An unexpected error has occurred."
zenity --error --text="An unexpected error has occurred\!"
;;
esac
}
function conninfo(){
INFO=`zenity --forms --width=400 --title="NODE'S INFORMATION" \
--text="Enter information about nodes." \
--add-entry="Master IP:" \
--add-entry="Master DBUser:" \
--add-entry="Master PORT:" \
--add-entry="Master DATA:" \
--add-entry="Master INSTALL:" \
--add-entry="Slave IP:" \
--add-entry="Slave DBUser:" \
--add-entry="Slave PORT:" \
--add-entry="Slave DATA:" \
--add-entry="Slave INSTALL:" `
case $? in
0)
IP_M=`echo "$INFO" | cut -d "|" -f1`
IP_S=`echo "$INFO" | cut -d "|" -f6`
USER_M=`echo "$INFO" | cut -d "|" -f2`
USER_S=`echo "$INFO" | cut -d "|" -f7`
PORT_M=`echo "$INFO" | cut -d "|" -f3`
PORT_S=`echo "$INFO" | cut -d "|" -f8`
DATA_M=`echo "$INFO" | cut -d "|" -f4`
DATA_S=`echo "$INFO" | cut -d "|" -f9`
INSTALL_M=`echo "$INFO" | cut -d "|" -f5`
INSTALL_S=`echo "$INFO" | cut -d "|" -f10`
# test ssh
ssh -o ConnectTimeout=3 root@$IP_M date &>/dev/null
if [ $? -ne 0 ];then
zenity --error --text="Can't connect to Master\!"
exit
fi
ssh -o ConnectTimeout=3 root@$IP_S date &>/dev/null
if [ $? -ne 0 ];then
zenity --error --text="Can't connect to Slave\!"
exit
fi
ssh -o ConnectTimeout=3 root@$IP_M "ssh -o ConnectTimeout=3 root@$IP_S date" &>/dev/null
if [ $? -ne 0 ];then
zenity --error --text="Can't connect to Slave from Master\!"
exit
fi
# test directory
ssh -o ConnectTimeout=3 root@$IP_M "test -d $DATA_M"
if [ $? -ne 0 ];then
zenity --error --text="Data dir dosen't exists on Master\!"
exit
fi
ssh -o ConnectTimeout=3 root@$IP_S "test -d $DATA_S"
if [ $? -ne 0 ];then
zenity --error --text="Data dir dosen't exists on Slave\!"
exit
fi
# start configure
zenity --question --text="Are you sure you wish to start configure?"
if [ $? -eq 0 ];then
startconf
else
zenity --error --text="Stop installation\!"
exit
fi
;;
1)
zenity --info --text="Stop installation\!"
;;
-1)
zenity --error --text="An unexpected error has occurred\!"
;;
esac
}
function startconf(){
(
config_post
echo "10" ; sleep 1
echo "# Configuring pg_hba.conf..." ; sleep 1
config_hba
echo "20" ; sleep 1
echo "# Restarting master..." ; sleep 1
restart_m
echo "30" ; sleep 1
echo "# Copying data from master to slave... " ; sleep 1
copy_data
echo "80" ; sleep 1
echo "# Configuring recovery.conf..." ; sleep 1
config_reco
echo "90" ; sleep 1
echo "# Starting slave..." ; sleep 1
start_s
echo "100" ; sleep 1
echo "# Complete." ; sleep 1
) |

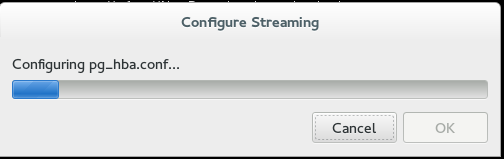

zenity --progress --width=500 \
--title="Configure Streaming" \
--text="Configuring postgresql.conf..." \
--percentage=0
}
function config_post(){
ssh -o ConnectTimeout=3 root@$IP_M "test -f $DATA_M/postgresql.conf"
if [ $? -ne 0 ];then
zenity --error --text="$DATA_M/postgresql.conf dosen't exists on Master\!"
exit
fi
ssh root@$IP_M "sed -i '/listen_addresses =/c listen_addresses = '\''*'\''' $DATA_M/postgresql.conf"
ssh root@$IP_M "sed -i '/port =/c port = $PORT_M' $DATA_M/postgresql.conf"
ssh root@$IP_M "sed -i '/wal_level =/c wal_level = hot_standby' $DATA_M/postgresql.conf"
ssh root@$IP_M "sed -i '/max_wal_senders =/c max_wal_senders = 1' $DATA_M/postgresql.conf"
ssh root@$IP_M "sed -i '/wal_keep_segments =/c wal_keep_segments = 50' $DATA_M/postgresql.conf"
ssh root@$IP_M "sed -i '/hot_standby =/c hot_standby = on' $DATA_M/postgresql.conf"
}
function config_hba(){
ssh -o ConnectTimeout=3 root@$IP_M "test -f $DATA_M/pg_hba.conf"
if [ $? -ne 0 ];then
zenity --error --text="$DATA_M/pg_hba.conf dosen't exists on Master\!"
exit
fi
ssh root@$IP_M "echo 'host replication all $IP_S/32 trust' >>$DATA_M/pg_hba.conf"
ssh root@$IP_M "sed -i 's/ md5/trust/g' $DATA_M/pg_hba.conf"
}
function restart_m(){
ssh -o ConnectTimeout=3 root@$IP_M "su - $USER_M -c 'LD_LIBRARY_PATH=$INSTALL_M/lib $INSTALL_M/bin/pg_ctl -w stop -D $DATA_M -m f' &>/dev/null"
ssh -o ConnectTimeout=3 root@$IP_M "su - $USER_M -c 'LD_LIBRARY_PATH=$INSTALL_M/lib $INSTALL_M/bin/pg_ctl -w start -D $DATA_M' &>/dev/null"
}
function copy_data(){
ssh -o ConnectTimeout=3 root@$IP_S "su - $USER_S -c 'LD_LIBRARY_PATH=$INSTALL_S/lib $INSTALL_S/bin/pg_ctl -w stop -D $DATA_S -m f' &>/dev/null"
ssh -o ConnectTimeout=3 root@$IP_S "rm -rf $DATA_S/*"
ssh -o ConnectTimeout=3 root@$IP_M "LD_LIBRARY_PATH=$INSTALL_M/lib $INSTALL_M/bin/psql -U $USER_M -p $PORT_M -c 'select pg_start_backup('basebak')' &>/dev/null"
ssh -o ConnectTimeout=3 root@$IP_M "scp -r $DATA_M/* root@$IP_S:$DATA_S/ &>/dev/null"
ssh -o ConnectTimeout=3 root@$IP_M "LD_LIBRARY_PATH=$INSTALL_M/lib $INSTALL_M/bin/psql -U $USER_M -p $PORT_M -c 'select pg_stop_backup()' &>/dev/null"
}
function config_reco(){
ssh -o ConnectTimeout=3 root@$IP_S "cat <<EOF >$DATA_S/recovery.conf
standby_mode = 'on'
primary_conninfo = 'host=$IP_M user=$USER_M port=$PORT_M'
EOF"
}
function start_s(){
ssh -o ConnectTimeout=3 root@$IP_S "chown -R $USER_S $DATA_S"
ssh -o ConnectTimeout=3 root@$IP_S "su - $USER_S -c 'LD_LIBRARY_PATH=$INSTALL_S/lib $INSTALL_S/bin/pg_ctl -w start -D $DATA_S' &>/dev/null"
}
license
#conninfo
