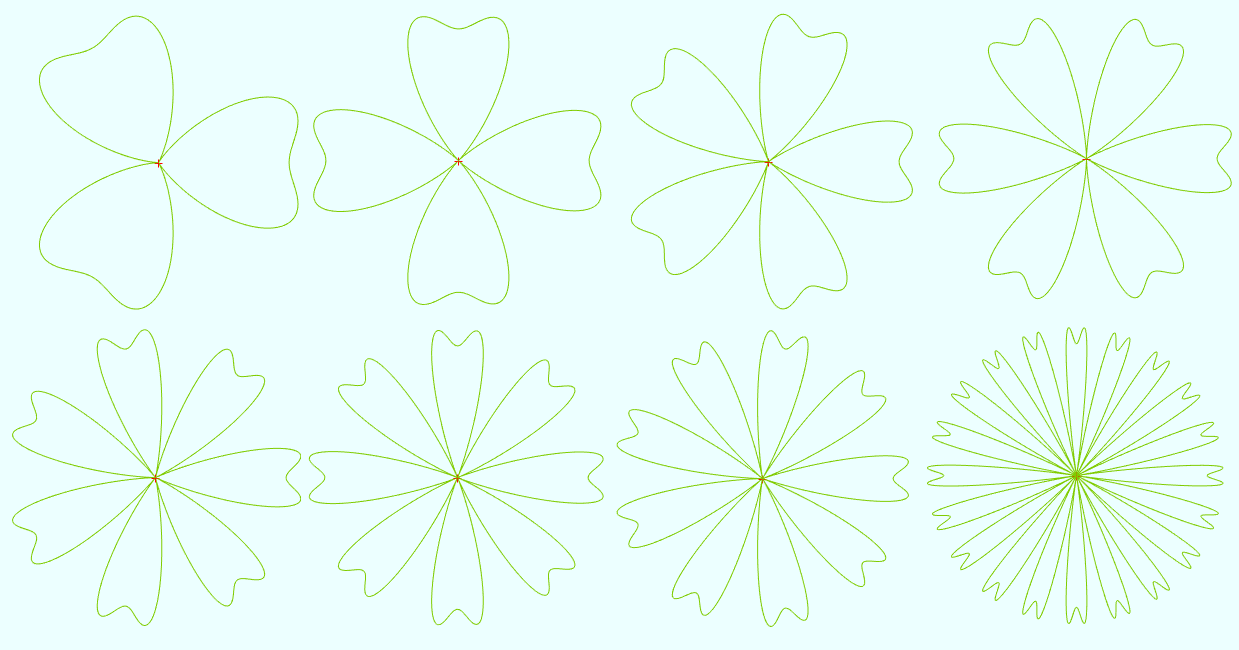

有N个叶子的草

相关软件参见:数学图形可视化工具,使用自己定义语法的脚本代码生成数学图形.该软件免费开源.QQ交流群: 367752815

vertices = 1000
t = from 0 to (2*PI)
r = 10
n = rand_int2(3, 10)
p = 1 + cos(n*t) + sin(n*t)^2
x = p*cos(t)
y = p*sin(t)

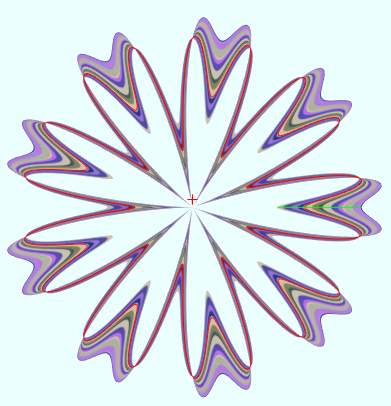

N叶草面_1

vertices = D1:512 D2:100

u = from 0 to (PI*2) D1
v = from 0.0 to 1.0 D2

r = 10
n = rand_int2(3, 10)
p = 1 + v*cos(n*u) + sin(n*u)^2

x = p*cos(u)
y = p*sin(u)

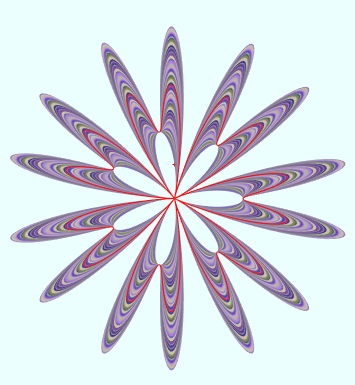

N叶草面_2

vertices = D1:512 D2:100

u = from 0 to (PI*2) D1
v = from 0.0 to 4.0 D2

r = 10
n = rand_int2(3, 10)
p = 1 + cos(n*u) + sin(n*u)^2*v

x = p*cos(u)
y = p*sin(u)
