本文用Postman工具演示通过REST控制Cnario Playr

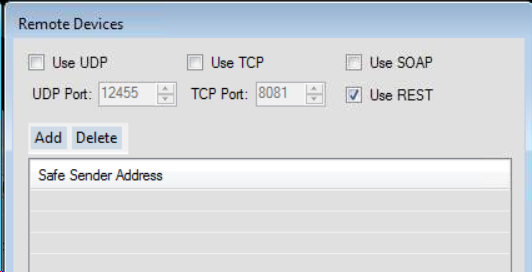

注意：Player的REST通信默认关闭，使用前需要从Setting>>Remote devices打开Use REST:

命令类型：

1. 获取设备列表：（命令方式 GET ）

URL格式：

http://{IP}:8080/cnario/REST/GetDeviceList

示例URL：

http://192.168.1.187:8080/cnario/REST/GetDeviceList

返回值：

{
    "GetDeviceListResult": {
        "Devices": [
            "CanvasController",
            "CanvasControllerDeviceMSI",
            "LogicalNames",
            "Realtek Digital Output (Realtek",
            "SAMSUNG-0 (NVIDIA High Definiti",
            "SAMSUNG-4 (NVIDIA High Definiti",
            "SAMSUNG-8 (NVIDIA High Definiti",
            "SchedulerDevice",
            "SneakerNetDevice",
            "SparesManager",
            "SurfaceDevice_Surface:MSI",
            "SystemDevice",
            "Welcome"
        ],
        "ServiceStatus": "Success"
    }
}

2. 获取设备Pin列表：（命令方式 GET ）

URL格式：

http://{IP}:8080/cnario/REST/GetDevice?devicename={deviceName}

示例URL：

http://192.168.1.187:8080/cnario/REST/GetDevice?devicename=SystemDevice

返回值：(部分)

{
    "GetDeviceResult": {
        "Device": {
            "DeviceName": "SystemDevice",
            "DevicePins": [
                {
                    "Description": "Total Available Ram",
                    "MajorGrouping": "System Information",
                    "MinorGrouping": "General Information",
                    "PinName": "Total Physical Memory",
                    "PinType": "Info",
                    "PinValue": [
                        "17104302080"
                    ],
                    "SetDefinition": [],
                    "ValidValueRange": null,
                    "ValueType": "vtDecimal"
                },

                {
                    "Description": "Date",
                    "MajorGrouping": "System Information",
                    "MinorGrouping": "General Information",
                    "PinName": "Date",
                    "PinType": "Info",
                    "PinValue": [
                        "22/9/2018"
                    ],
                    "SetDefinition": [],
                    "ValidValueRange": null,
                    "ValueType": "vtString"
                },
                {
                    "Description": "Time",
                    "MajorGrouping": "System Information",
                    "MinorGrouping": "General Information",
                    "PinName": "Time",
                    "PinType": "Info",
                    "PinValue": [
                        "16:38:58"
                    ],
                    "SetDefinition": [],
                    "ValidValueRange": null,
                    "ValueType": "vtString"
                },
                ...
                ...

            ]
        },
        "ServiceStatus": "Success"
    }
}

3. 获取设备Pin值：（命令方式 GET ）

URL格式：

http://{IP}:8080//Cnario/REST/GetPinValue?deviceName={deviceName}&pinName={pinName}

示例URL：

http://192.168.1.187:8080/cnario/REST/GetPinValue?deviceName=SystemDevice&pinName=Time

返回值：

{
    "GetPinValueResult": {
        "PinValue": [
            "16:47:37"
        ],
        "ServiceStatus": "Success"
    }
}

4. Pin赋值：（命令方式 GET ）

URL格式：

http://{IP}:8080//Cnario/REST/SetPin?deviceName={deviceName}&pinName={pinName}&pinValue={pinValue}

示例URL：

http://192.168.1.187:8080/cnario/REST/SetPin?deviceName=CanvasControllerDeviceMSI&pinName=Operation&pinValue=Stop

返回值：

{
"SetPinResult": {
"ServiceStatus": "Success"
}
}

5. 同时为多个Pin赋值：（命令方式 GET ）

URL格式：

http://{IP}:8080//Cnario/REST/SetPins{"setPinsParams":[{"DeviceName":<name of the device>,"PinName":<Name of the pin>,"PinValue":<the new value>},{…},{…}]}
