BizTalk-Get to know functoid.

Summary: This article is intended to give you a general idea about what’s functoid in BizTalk. Functoid is no more than a piece of .Net code whichn can perform a complete function.

1. Get Reflector ready before we get started. It can help us to disassemble DLLs and executables, get it from http://www.aisto.com/roeder/dotnet
2. Prepare functoids assembly, once you have BizTalk installed, Microsoft.BizTalk.BaseFunctoids.dll can be found on your machine.

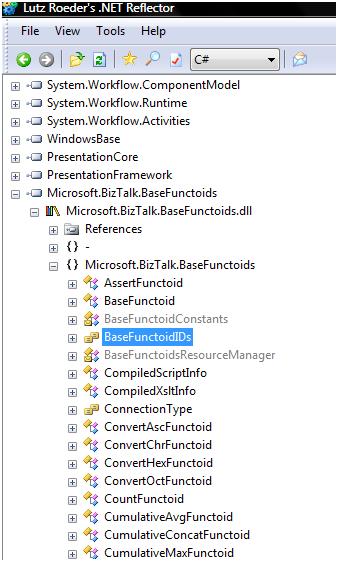

3. Open Microsoft.BizTalk.BaseFunctoids.dll in Reflector and expand this DLL you can find many classes/enumerations such as AssertFunctoid, BaseFunctoid, etc. Take a look at the following screenshot for reference.

4. Every functoid is a class. Just right click on one class you want and select Disassemble. Sorry, I choose BaseFunctoidIDs here, it is an enumeration type. Basically it contains all the functoids coming with BizTalk 2006 R2. (I use BizTalk 2006 R2, I cannot guarantee you can get the same result if you are working with other versions).

BaseFunctoidIDs
 1[ComVisible(true)]
 2public enum BaseFunctoidIDs
 3{
 4    Assert = 0x2c3,
 5    ConvertAsc = 0x7e,
 6    ConvertChr = 0x7f,
 7    ConvertHex = 0x80,
 8    ConvertOct = 0x81,
 9    Count = 0x142,
10    CumulativeAvg = 0x145,
11    CumulativeConcat = 0x148,
12    CumulativeMax = 0x147,
13    CumulativeMin = 0x146,
14    CumulativeSum = 0x144,
15    DateAddDays = 0x7a,
16    DateCurrentDate = 0x7b,
17    DateCurrentDateTime = 0x7d,
18    DateCurrentTime = 0x7c,
19    DBErrorExtract = 0x23f,
20    DBLookup = 0x20c,
21    DBValueExtract = 0x23e,
22    ExistenceLooping = 0x321,
23    Index = 0x143,
24    IsNil = 0x2c2,
25    Iteration = 0x1da,
26    KeyMatch = 800,
27    LogicalAnd = 0x141,
28    LogicalEq = 0x13b,
29    LogicalExistence = 0x2bd,
30    LogicalGt = 0x137,
31    LogicalGte = 0x138,
32    LogicalIsDate = 0x13e,
33    LogicalIsNumeric = 0x13f,
34    LogicalIsString = 0x13d,
35    LogicalLt = 0x139,
36    LogicalLte = 0x13a,
37    LogicalNe = 0x13c,
38    LogicalNot = 0x2c1,
39    LogicalOr = 320,
40    Looping = 0x1a8,
41    MassCopy = 0x322,
42    MathAbs = 0x6f,
43    MathAdd = 0x76,
44    MathDivide = 0x79,
45    MathInt = 0x70,
46    MathMax = 0x71,
47    MathMin = 0x72,
48    MathMod = 0x73,
49    MathMultiply = 120,
50    MathRound = 0x74,
51    MathSqrt = 0x75,
52    MathSubtract = 0x77,
53    NilValue = 0x178,
54    SciArcTan = 130,
55    SciCos = 0x83,
56    SciExp = 0x86,
57    SciExp10 = 0x88,
58    SciLog = 0x87,
59    SciLog10 = 0x89,
60    SciLogn = 0x8b,
61    SciPow = 0x8a,
62    SciSin = 0x84,
63    SciTan = 0x85,
64    Scripter = 260,
65    StringConcatenate = 0x6b,
66    StringFind = 0x65,
67    StringLeft = 0x66,
68    StringLowerCase = 0x67,
69    StringRight = 0x68,
70    StringSize = 0x69,
71    StringSubstring = 0x6a,
72    StringTrimLeft = 0x6c,
73    StringTrimRight = 0x6d,
74    StringUpperCase = 110,
75    TableExtractor = 0x2c0,
76    TableLooping = 0x2bf,
77    ValueMapping = 0x177,
78    ValueMappingFlattening = 0x176,
79    XPath = 0x2be
80}
81
82
83

5. Now I am choosing BaseFunctoid. It is a little big; every specific functoid will inherit from this abstract class.

BaseFunctoid
  1public abstract class BaseFunctoid
  2{
  3    // Fields
  4    private Bitmap myBitmap;
  5    private Bitmap myBitmap16;
  6    private FunctoidCategory myCategory;
  7    private string myDescription;
  8    private string myExternalAssembly;
  9    private string myExternalAssemblyPartialName;
 10    private string myExternalAssemblyPath;
 11    private string myExternalClassName;
 12    private string[] myExternalFunctionNames = new string[3];
 13    private bool myHasSideEffects = true;
 14    private bool myHasVariableInputs = false;
 15    private int myID;
 16    private InlineGlobalHelperFunction myInlineGlobalHelperFunctions = InlineGlobalHelperFunction.None;
 17    private IList myInputConnectionTypeList = new ArrayList();
 18    private Hashtable myMapScriptInfoCache = new Hashtable();
 19    private int myMaxParams = -1;
 20    private int myMinParams = -1;
 21    private string myName;
 22    private ConnectionType myOutputConnectionType;
 23    private IDictionary myResMgrDict = new Hashtable();
 24    private string myResourceAssemblyName;
 25    private Hashtable myScriptBuffers = new Hashtable();
 26    private Hashtable myScriptGlobalsBuffers = new Hashtable();
 27    private Hashtable mySupportedScriptTypes = new Hashtable();
 28    private string myTooltip;
 29
 30    // Methods
 31    protected BaseFunctoid()
 32    {
 33    }
 34
 35    protected void AddInputConnectionType(ConnectionType connType)
 36    {
 37        this.myInputConnectionTypeList.Add(connType);
 38    }
 39
 40    public void AddScriptTypeSupport(ScriptType scriptType)
 41    {
 42        if (!this.mySupportedScriptTypes.ContainsKey(scriptType))
 43        {
 44            this.mySupportedScriptTypes[scriptType] = true;
 45        }
 46        this.ClearScriptInfoCache(scriptType);
 47    }
 48
 49    protected string BuildDynamicScriptHeader(string functionName, string returnType, string paramType, int numParams)
 50    {
 51        StringBuilder builder = new StringBuilder();
 52        builder.Append("public ");
 53        builder.Append(returnType);
 54        builder.Append(" ");
 55        builder.Append(functionName);
 56        builder.Append("(");
 57        for (int i = 0; i < numParams; i++)
 58        {
 59            if (i > 0)
 60            {
 61                builder.Append(", ");
 62            }
 63            builder.Append(paramType);
 64            builder.Append(" param");
 65            builder.Append(i.ToString(CultureInfo.InvariantCulture));
 66        }
 67        builder.Append(")\n");
 68        return builder.ToString();
 69    }
 70
 71    private void ClearScriptInfoCache(ScriptType scriptType)
 72    {
 73        if (this.myMapScriptInfoCache.ContainsKey(scriptType))
 74        {
 75            this.myMapScriptInfoCache.Remove(scriptType);
 76        }
 77    }
 78
 79    public static BaseFunctoid CreateScripterClone(BaseFunctoid functoidOrig)
 80    {
 81        if (functoidOrig == null)
 82        {
 83            throw new ArgumentNullException("functoidOrig");
 84        }
 85        BaseFunctoid functoid = new ScripterFunctoid();
 86        functoid.myResourceAssemblyName = functoidOrig.myResourceAssemblyName;
 87        functoid.myID = functoidOrig.myID;
 88        functoid.myName = functoidOrig.myName;
 89        functoid.myTooltip = functoidOrig.myTooltip;
 90        functoid.myDescription = functoidOrig.myDescription;
 91        functoid.myCategory = functoidOrig.myCategory;
 92        functoid.myBitmap = functoidOrig.myBitmap;
 93        functoid.myBitmap16 = functoidOrig.myBitmap16;
 94        functoid.myCategory = functoidOrig.myCategory;
 95        functoid.myMinParams = functoidOrig.myMinParams;
 96        functoid.myMaxParams = functoidOrig.myMaxParams;
 97        functoid.myOutputConnectionType = functoidOrig.myOutputConnectionType;
 98        functoid.myInputConnectionTypeList = functoidOrig.myInputConnectionTypeList;
 99        functoid.myHasVariableInputs = functoidOrig.myHasVariableInputs;
100        functoid.myResMgrDict = functoidOrig.myResMgrDict;
101        functoid.myInlineGlobalHelperFunctions = functoidOrig.myInlineGlobalHelperFunctions;
102        return functoid;
103    }
104
105    public ScriptType GetBestSupportedScriptType(ArrayList listScriptTypePrecedence)
106    {
107        if (listScriptTypePrecedence != null)
108        {
109            foreach (ScriptTypePrecedenceNode node in listScriptTypePrecedence)
110            {
111                if (((node != null) && node.Enabled) && this.mySupportedScriptTypes.ContainsKey(node.ScriptType))
112                {
113                    return node.ScriptType;
114                }
115            }
116        }
117        return ScriptType.None;
118    }
119
120    protected string GetExternalFunctionName(int functionNumber)
121    {
122        if ((functionNumber < 0) || (functionNumber >= this.myExternalFunctionNames.Length))
123        {
124            throw new ArgumentOutOfRangeException("functionNumber", BaseFunctoidsResourceManager.GetResourceString("IDS_INVALID_FUNCTOID_FUNCTION_NUMBER"));
125        }
126        return this.myExternalFunctionNames[functionNumber];
127    }
128
129    public string GetFunctionName(ScriptType scriptType)
130    {
131        return this.GetFunctionName(scriptType, 0);
132    }
133
134    public string GetFunctionName(ScriptType scriptType, int functionNumber)
135    {
136        if (!IsValidScriptType(scriptType))
137        {
138            throw new ArgumentOutOfRangeException("scriptType", BaseFunctoidsResourceManager.GetResourceString("IDS_INVALID_SCRIPT_TYPE"));
139        }
140        if (!this.IsValidFunctionNumber(functionNumber))
141        {
142            throw new ArgumentOutOfRangeException("functionNumber", BaseFunctoidsResourceManager.GetResourceString("IDS_INVALID_FUNCTOID_FUNCTION_NUMBER"));
143        }
144        if (functionNumber == 0)
145        {
146            return this.UpdateScriptInfoCache(scriptType).MethodName;
147        }
148        switch (scriptType)
149        {
150            case ScriptType.ExternalAssembly:
151                return this.GetExternalFunctionName(functionNumber);
152
153            case ScriptType.Xslt:
154                return "";
155        }
156        return this.GetScriptingLanguageFunctionName(scriptType, functionNumber);
157    }
158
159    public static string GetInlineGlobalHelperScriptBuffer(ScriptType scriptType, InlineGlobalHelperFunction functions)
160    {
161        switch (scriptType)
162        {
163            case ScriptType.VbNet:
164                return GetInlineGlobalHelperScriptBufferVbNet(functions);
165
166            case ScriptType.CSharp:
167                return GetInlineGlobalHelperScriptBufferCSharp(functions);
168
169            case ScriptType.JScript:
170                return GetInlineGlobalHelperScriptBufferJScript(functions);
171        }
172        return "";
173    }
174
175    private static string GetInlineGlobalHelperScriptBufferCSharp(InlineGlobalHelperFunction functions)
176    {
177        StringBuilder builder = new StringBuilder();
178        if (InlineGlobalHelperFunction.IsNumeric == (functions & InlineGlobalHelperFunction.IsNumeric))
179        {
180            builder.Append("public bool IsNumeric(string val)\n");
181            builder.Append("{\n");
182            builder.Append("\tif (val == null)\n");
183            builder.Append("\t{\n");
184            builder.Append("\t\treturn false;\n");
185            builder.Append("\t}\n");
186            builder.Append("\tdouble d = 0;\n");
187            builder.Append("\treturn Double.TryParse(val, System.Globalization.NumberStyles.AllowThousands | System.Globalization.NumberStyles.Float, System.Globalization.CultureInfo.InvariantCulture, out d);\n");
188            builder.Append("}\n\n");
189            builder.Append("public bool IsNumeric(string val, ref double d)\n");
190            builder.Append("{\n");
191            builder.Append("\tif (val == null)\n");
192            builder.Append("\t{\n");
193            builder.Append("\t\treturn false;\n");
194            builder.Append("\t}\n");
195            builder.Append("\treturn Double.TryParse(val, System.Globalization.NumberStyles.AllowThousands | System.Globalization.NumberStyles.Float, System.Globalization.CultureInfo.InvariantCulture, out d);\n");
196            builder.Append("}\n\n");
197        }
198        if (InlineGlobalHelperFunction.IsDate == (functions & InlineGlobalHelperFunction.IsDate))
199        {
200            builder.Append("public bool IsDate(string val)\n");
201            builder.Append("{\n");
202            builder.Append("\tbool retval = true;\n");
203            builder.Append("\ttry\n");
204            builder.Append("\t{\n");
205            builder.Append("\t\tDateTime dt = Convert.ToDateTime(val, System.Globalization.CultureInfo.InvariantCulture);\n");
206            builder.Append("\t}\n");
207            builder.Append("\tcatch (Exception)\n");
208            builder.Append("\t{\n");
209            builder.Append("\t\tretval = false;\n");
210            builder.Append("\t}\n");
211            builder.Append("\treturn retval;\n");
212            builder.Append("}\n\n");
213        }
214        if (InlineGlobalHelperFunction.ValToBool == (functions & InlineGlobalHelperFunction.ValToBool))
215        {
216            builder.Append("public bool ValToBool(string val)\n");
217            builder.Append("{\n");
218            builder.Append("\tif (val != null)\n");
219            builder.Append("\t{\n");
220            builder.Append("\t\tif (string.Compare(val, bool.TrueString, StringComparison.OrdinalIgnoreCase) == 0)\n");
221            builder.Append("\t\t{\n");
222            builder.Append("\t\t\treturn true;\n");
223            builder.Append("\t\t}\n");
224            builder.Append("\t\tif (string.Compare(val, bool.FalseString, StringComparison.OrdinalIgnoreCase) == 0)\n");
225            builder.Append("\t\t{\n");
226            builder.Append("\t\t\treturn false;\n");
227            builder.Append("\t\t}\n");
228            builder.Append("\t\tval = val.Trim();\n");
229            builder.Append("\t\tif (string.Compare(val, bool.TrueString, StringComparison.OrdinalIgnoreCase) == 0)\n");
230            builder.Append("\t\t{\n");
231            builder.Append("\t\t\treturn true;\n");
232            builder.Append("\t\t}\n");
233            builder.Append("\t\tif (string.Compare(val, bool.FalseString, StringComparison.OrdinalIgnoreCase) == 0)\n");
234            builder.Append("\t\t{\n");
235            builder.Append("\t\t\treturn false;\n");
236            builder.Append("\t\t}\n");
237            builder.Append("\t\tdouble d = 0;\n");
238            builder.Append("\t\tif (IsNumeric(val, ref d))\n");
239            builder.Append("\t\t{\n");
240            builder.Append("\t\t\treturn (d > 0);\n");
241            builder.Append("\t\t}\n");
242            builder.Append("\t}\n");
243            builder.Append("\treturn false;\n");
244            builder.Append("}\n\n");
245        }
246        return builder.ToString();
247    }
248
249    private static string GetInlineGlobalHelperScriptBufferJScript(InlineGlobalHelperFunction functions)
250    {
251        return "";
252    }
253
254    private static string GetInlineGlobalHelperScriptBufferVbNet(InlineGlobalHelperFunction functions)
255    {
256        return "";
257    }
258
259    protected virtual string GetInlineScriptBuffer(ScriptType scriptType, int numParams, int functionNumber)
260    {
261        if (this.myScriptBuffers.ContainsKey(scriptType))
262        {
263            string[] strArray = (string[]) this.myScriptBuffers[scriptType];
264            return strArray[functionNumber];
265        }
266        return "";
267    }
268
269    public ConnectionType GetInputConnectionType(int param)
270    {
271        ConnectionType all = ConnectionType.All;
272        if (param < this.myInputConnectionTypeList.Count)
273        {
274            all = (ConnectionType) this.myInputConnectionTypeList[param];
275        }
276        return all;
277    }
278
279    public int GetMaxParams(ScriptType scriptType)
280    {
281        int count = 0;
282        if (this.myMaxParams == -1)
283        {
284            int scriptmin = 0;
285            int scriptmax = 0;
286            if (this.GetMinMaxScriptParams(scriptType, out scriptmin, out scriptmax))
287            {
288                return scriptmax;
289            }
290            if (this.HasVariableInputs)
291            {
292                return 100;
293            }
294            if (this.myInputConnectionTypeList.Count > 0)
295            {
296                count = this.myInputConnectionTypeList.Count;
297            }
298            return count;
299        }
300        return this.myMaxParams;
301    }
302
303    private bool GetMinMaxScriptParams(ScriptType scriptType, out int scriptmin, out int scriptmax)
304    {
305        scriptmin = 0;
306        scriptmax = 0;
307        if (this.mySupportedScriptTypes.Count == 0)
308        {
309            return false;
310        }
311        if ((scriptType != ScriptType.None) && (ScriptType.Xslt != scriptType))
312        {
313            ScriptInfo info = this.UpdateScriptInfoCache(scriptType);
314            scriptmin = info.Min;
315            scriptmax = info.Max;
316        }
317        return true;
318    }
319
320    public int GetMinParams(ScriptType scriptType)
321    {
322        int count = 0;
323        if (this.myMinParams == -1)
324        {
325            int scriptmin = 0;
326            int scriptmax = 0;
327            if (this.GetMinMaxScriptParams(scriptType, out scriptmin, out scriptmax))
328            {
329                return scriptmin;
330            }
331            if (this.myInputConnectionTypeList.Count > 0)
332            {
333                count = this.myInputConnectionTypeList.Count;
334            }
335            return count;
336        }
337        return this.myMinParams;
338    }
339
340    protected ResourceManager GetResourceManager(string resourceAssemblyName)
341    {
342        if (string.IsNullOrEmpty(resourceAssemblyName))
343        {
344            return null;
345        }
346        ResourceManager manager = null;
347        try
348        {
349            manager = (ResourceManager) this.myResMgrDict[resourceAssemblyName];
350        }
351        catch (Exception)
352        {
353        }
354        return manager;
355    }
356
357    public string GetScriptBuffer(ScriptType scriptType)
358    {
359        return this.GetScriptBuffer(scriptType, 0);
360    }
361
362    public string GetScriptBuffer(ScriptType scriptType, int numParams)
363    {
364        return this.GetScriptBuffer(scriptType, numParams, 0);
365    }
366
367    public string GetScriptBuffer(ScriptType scriptType, int numParams, int functionNumber)
368    {
369        return this.GetInlineScriptBuffer(scriptType, numParams, functionNumber);
370    }
371
372    public string GetScriptGlobalBuffer(ScriptType scriptType)
373    {
374        if (this.myScriptGlobalsBuffers.ContainsKey(scriptType))
375        {
376            return (string) this.myScriptGlobalsBuffers[scriptType];
377        }
378        return null;
379    }
380
381    private string GetScriptingLanguageFunctionName(ScriptType scriptType, int functionNumber)
382    {
383        string str;
384        int num;
385        new InlineScriptCompiler().GetMethodInfo(scriptType, this.GetScriptBuffer(scriptType, 0, functionNumber), this.GetScriptGlobalBuffer(scriptType), this.RequiredGlobalHelperFunctions, out str, out num);
386        return str;
387    }
388
389    public static bool IsDate(string val)
390    {
391        DateTime time;
392        if (string.IsNullOrEmpty(val))
393        {
394            return false;
395        }
396        return DateTime.TryParse(val, CultureInfo.InvariantCulture, DateTimeStyles.None, out time);
397    }
398
399    public static bool IsNumeric(string val)
400    {
401        if (string.IsNullOrEmpty(val))
402        {
403            return false;
404        }
405        double result = 0.0;
406        return double.TryParse(val, NumberStyles.Float | NumberStyles.AllowThousands, CultureInfo.InvariantCulture, out result);
407    }
408
409    public static bool IsNumeric(string val, ref double d)
410    {
411        d = 0.0;
412        if (string.IsNullOrEmpty(val))
413        {
414            return false;
415        }
416        return double.TryParse(val, NumberStyles.Float | NumberStyles.AllowThousands, CultureInfo.InvariantCulture, out d);
417    }
418
419    public bool IsSupportedScriptType(ScriptType scriptType)
420    {
421        return this.mySupportedScriptTypes.ContainsKey(scriptType);
422    }
423
424    private bool IsValidFunctionNumber(int functionNumber)
425    {
426        int num = 0;
427        int num2 = 0;
428        if (FunctoidCategory.DatabaseLookup == this.Category)
429        {
430            num2 = 1;
431        }
432        else if (FunctoidCategory.Cumulative == this.Category)
433        {
434            num2 = 2;
435        }
436        return ((num <= functionNumber) && (functionNumber <= num2));
437    }
438
439    public static bool IsValidScriptType(ScriptType scriptType)
440    {
441        if ((((scriptType != ScriptType.None) && (ScriptType.ExternalAssembly != scriptType)) && ((ScriptType.Xslt != scriptType) && (ScriptType.XsltCallTemplate != scriptType))) && (((ScriptType.VbNet != scriptType) && (ScriptType.CSharp != scriptType)) && (ScriptType.JScript != scriptType)))
442        {
443            return (ScriptType.JSharp == scriptType);
444        }
445        return true;
446    }
447
448    protected Bitmap LoadBitmap(string resourceAssemblyName, string resourceID)
449    {
450        ResourceManager resourceManager = this.GetResourceManager(resourceAssemblyName);
451        if (resourceManager != null)
452        {
453            return (resourceManager.GetObject(resourceID, Thread.CurrentThread.CurrentUICulture) as Bitmap);
454        }
455        return null;
456    }
457
458    protected string LoadString(string resourceAssemblyName, string resourceID)
459    {
460        ResourceManager resourceManager = this.GetResourceManager(resourceAssemblyName);
461        if (resourceManager != null)
462        {
463            return resourceManager.GetString(resourceID, Thread.CurrentThread.CurrentUICulture);
464        }
465        return null;
466    }
467
468    public void RemoveScriptTypeSupport(ScriptType scriptType)
469    {
470        if (this.mySupportedScriptTypes.ContainsKey(scriptType))
471        {
472            this.mySupportedScriptTypes.Remove(scriptType);
473        }
474    }
475
476    protected void SetBitmap(string resourceID)
477    {
478        this.myBitmap = this.LoadBitmap(this.myResourceAssemblyName, resourceID);
479        try
480        {
481            this.myBitmap16 = this.LoadBitmap(this.myResourceAssemblyName, resourceID + "_16");
482        }
483        catch (Exception)
484        {
485            this.myBitmap16 = this.myBitmap;
486        }
487    }
488
489    protected void SetDescription(string resourceID)
490    {
491        this.Description = this.LoadString(this.myResourceAssemblyName, resourceID);
492    }
493
494    public void SetExternalFunctionName(string assemblyName, string className, string functionName)
495    {
496        this.AddScriptTypeSupport(ScriptType.ExternalAssembly);
497        this.ExternalAssembly = assemblyName;
498        this.ExternalClassName = className;
499        this.myExternalFunctionNames[0] = functionName;
500    }
501
502    public void SetExternalFunctionName(string assemblyPartialName, string assemblyName, string className, string functionName)
503    {
504        this.ExternalAssemblyPartialName = assemblyPartialName;
505        this.SetExternalFunctionName(assemblyName, className, functionName);
506    }
507
508    public void SetExternalFunctionName2(string functionName2)
509    {
510        this.myExternalFunctionNames[1] = functionName2;
511    }
512
513    public void SetExternalFunctionName3(string functionName3)
514    {
515        this.myExternalFunctionNames[2] = functionName3;
516    }
517
518    public void SetExternalFunctionNameWithAsmPath(string assemblyName, string assemblyPath, string className, string functionName)
519    {
520        this.AddScriptTypeSupport(ScriptType.ExternalAssembly);
521        this.ExternalAssembly = assemblyName;
522        this.ExternalAssemblyPath = assemblyPath;
523        this.ExternalClassName = className;
524        this.myExternalFunctionNames[0] = functionName;
525    }
526
527    public void SetMaxParams(int maxParams)
528    {
529        this.myMaxParams = maxParams;
530    }
531
532    public void SetMinParams(int minParams)
533    {
534        this.myMinParams = minParams;
535    }
536
537    protected void SetName(string resourceID)
538    {
539        this.Name = this.LoadString(this.myResourceAssemblyName, resourceID);
540    }
541
542    public void SetScriptBuffer(ScriptType scriptType, string scriptBuffer)
543    {
544        this.SetScriptBuffer(scriptType, scriptBuffer, 0);
545    }
546
547    public void SetScriptBuffer(ScriptType scriptType, string scriptBuffer, int functionNumber)
548    {
549        string[] strArray = null;
550        if (this.myScriptBuffers.ContainsKey(scriptType))
551        {
552            strArray = (string[]) this.myScriptBuffers[scriptType];
553        }
554        else
555        {
556            strArray = new string[3];
557            this.myScriptBuffers[scriptType] = strArray;
558        }
559        strArray[functionNumber] = scriptBuffer;
560        this.AddScriptTypeSupport(scriptType);
561    }
562
563    public void SetScriptGlobalBuffer(ScriptType scriptType, string scriptGlobalsBuffer)
564    {
565        if (this.myScriptGlobalsBuffers.ContainsKey(scriptType))
566        {
567            this.myScriptGlobalsBuffers.Remove(scriptType);
568        }
569        this.myScriptGlobalsBuffers.Add(scriptType, scriptGlobalsBuffer);
570    }
571
572    protected void SetTooltip(string resourceID)
573    {
574        this.Tooltip = this.LoadString(this.myResourceAssemblyName, resourceID);
575    }
576
577    protected void SetupResourceAssembly(string resAsmName, Assembly resAssembly)
578    {
579        this.myResourceAssemblyName = resAsmName;
580        ResourceManager manager = null;
581        try
582        {
583            manager = (ResourceManager) this.myResMgrDict[this.myResourceAssemblyName];
584        }
585        catch (Exception)
586        {
587        }
588        if (manager == null)
589        {
590            try
591            {
592                manager = new ResourceManager(this.myResourceAssemblyName, resAssembly);
593                manager.GetObject("__xx__xx__xx__xx__", Thread.CurrentThread.CurrentUICulture);
594            }
595            catch (Exception)
596            {
597                manager = null;
598            }
599            if (manager != null)
600            {
601                this.myResMgrDict[this.myResourceAssemblyName] = manager;
602            }
603        }
604    }
605
606    private ScriptInfo UpdateScriptInfoCache(ScriptType scriptType)
607    {
608        int min = 0;
609        int max = 0;
610        string methodName = "";
611        ScriptInfo info = null;
612        if (this.myMapScriptInfoCache.ContainsKey(scriptType))
613        {
614            return (ScriptInfo) this.myMapScriptInfoCache[scriptType];
615        }
616        if (ScriptType.ExternalAssembly == scriptType)
617        {
618            methodName = this.GetExternalFunctionName(0);
619            if (this.myMinParams != -1)
620            {
621                min = this.myMinParams;
622            }
623            else if (this.myInputConnectionTypeList.Count > 0)
624            {
625                min = this.myInputConnectionTypeList.Count;
626            }
627            if (this.myMaxParams != -1)
628            {
629                max = this.myMaxParams;
630            }
631            else if (this.HasVariableInputs)
632            {
633                max = 100;
634            }
635            else
636            {
637                max = (this.myInputConnectionTypeList.Count > 0) ? this.myInputConnectionTypeList.Count : 100;
638            }
639        }
640        else if (((ScriptType.CSharp == scriptType) || (ScriptType.VbNet == scriptType)) || (((ScriptType.JScript == scriptType) || (ScriptType.JSharp == scriptType)) || (ScriptType.XsltCallTemplate == scriptType)))
641        {
642            int num3;
643            new InlineScriptCompiler().GetMethodInfo(scriptType, this.GetScriptBuffer(scriptType), this.GetScriptGlobalBuffer(scriptType), this.RequiredGlobalHelperFunctions, out methodName, out num3);
644            min = num3;
645            max = num3;
646            if ((max == 0) && this.HasVariableInputs)
647            {
648                max = 100;
649            }
650        }
651        else
652        {
653            min = 0;
654            max = 0;
655            methodName = "";
656        }
657        info = new ScriptInfo(min, max, methodName);
658        this.myMapScriptInfoCache[scriptType] = info;
659        return info;
660    }
661
662    // Properties
663    public FunctoidCategory Category
664    {
665        get
666        {
667            return this.myCategory;
668        }
669        set
670        {
671            this.myCategory = value;
672        }
673    }
674
675    public string Description
676    {
677        get
678        {
679            return this.myDescription;
680        }
681        set
682        {
683            this.myDescription = value;
684        }
685    }
686
687    public string ExternalAssembly
688    {
689        get
690        {
691            return this.myExternalAssembly;
692        }
693        set
694        {
695            this.myExternalAssembly = value;
696        }
697    }
698
699    public string ExternalAssemblyPartialName
700    {
701        get
702        {
703            return this.myExternalAssemblyPartialName;
704        }
705        set
706        {
707            this.myExternalAssemblyPartialName = value;
708        }
709    }
710
711    public string ExternalAssemblyPath
712    {
713        get
714        {
715            return this.myExternalAssemblyPath;
716        }
717        set
718        {
719            this.myExternalAssemblyPath = value;
720        }
721    }
722
723    public string ExternalClassName
724    {
725        get
726        {
727            return this.myExternalClassName;
728        }
729        set
730        {
731            this.myExternalClassName = value;
732        }
733    }
734
735    public bool HasSideEffects
736    {
737        get
738        {
739            return this.myHasSideEffects;
740        }
741        set
742        {
743            this.myHasSideEffects = value;
744        }
745    }
746
747    public bool HasVariableInputs
748    {
749        get
750        {
751            return this.myHasVariableInputs;
752        }
753        set
754        {
755            this.myHasVariableInputs = value;
756        }
757    }
758
759    public int ID
760    {
761        get
762        {
763            return this.myID;
764        }
765        set
766        {
767            this.myID = value;
768        }
769    }
770
771    public Bitmap Image
772    {
773        get
774        {
775            return this.myBitmap;
776        }
777    }
778
779    public Bitmap Image16
780    {
781        get
782        {
783            return this.myBitmap16;
784        }
785    }
786
787    public string Name
788    {
789        get
790        {
791            return this.myName;
792        }
793        set
794        {
795            this.myName = value;
796        }
797    }
798
799    public ConnectionType OutputConnectionType
800    {
801        get
802        {
803            return this.myOutputConnectionType;
804        }
805        set
806        {
807            this.myOutputConnectionType = value;
808        }
809    }
810
811    public InlineGlobalHelperFunction RequiredGlobalHelperFunctions
812    {
813        get
814        {
815            return this.myInlineGlobalHelperFunctions;
816        }
817        set
818        {
819            this.myInlineGlobalHelperFunctions = value;
820        }
821    }
822
823    public string Tooltip
824    {
825        get
826        {
827            return this.myTooltip;
828        }
829        set
830        {
831            this.myTooltip = value;
832        }
833    }
834}
835
836
837Collapse Methods
838
839

6. Not every property/ function we should pay attention to, we will talk about that in another session.
7. Now let’s take a look at StringLeft functoid. Pay special attention to GetCSharpBuffer method, it uses StringBuilder to create a c# function like this:

StringLeft
 1public string StringLeft(string str, string count)
 2{
 3        string retval = "";
 4        double d = 0;
 5        if (str != null && IsNumeric(count, ref d))
 6        {
 7                int i = (int) d;
 8                if (i > 0)
 9                {
10                        if (i <= str.Length)
11                        {
12                                retval = str.Substring(0, i);
13                        }
14                        else
15                        {
16                                retval = str;
17                        }
18                }
19        }
20        return retval;
21}

This function is gonna be used in physical map.

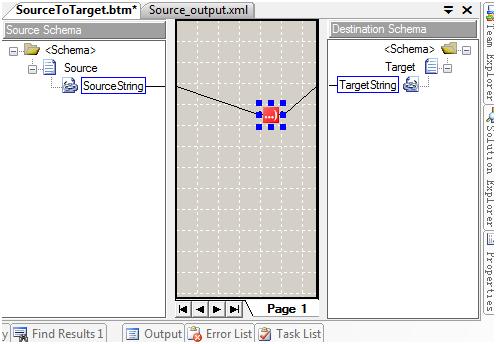

8. Create a map to use this functoid.

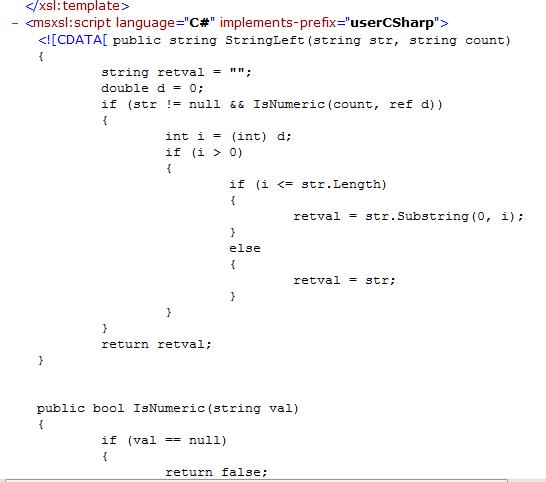

Right click on the map file (SourcetoTarget.btm) and select Validate map。Please remember, you can get the actual xsl file which will do the transform. From the output window the automatically generated xsl file can be found, open it. In this xsl file you can clearly find the StringLeft function mentioned above and its referenced function(s), IsNumeric in this case.


The idea is when a functoid is put onto the surface of map, it will generate a function in xsl file, xsl can call this code at run time to do transfrom.

转载于:https://www.cnblogs.com/netboy/archive/2008/05/08/1189043.html
