本文介绍如何在SpringBoot项目中集成RabbitMQ并实现消息发送的回调处理。通过自定义配置，实现消息发送确认机制，确保消息传递的可靠性。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

为什么80%的码农都做不了架构师？>>>

参看此文档此需要先看https://my.oschina.net/sdlvzg/blog/1523360搭建环境

本文档主要介绍Spring Boot 集成 RabbitMQ CallBack，也就是带callback的消息发送

增加回调处理，这里不再使用application.properties默认配置的方式，会在程序中显示的使用文件中的配置信息。

生产者项目：

消息生产者类

package org.morecare.callback;


import java.util.UUID;

import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.amqp.rabbit.support.CorrelationData;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

@Component
public class Send  implements RabbitTemplate.ConfirmCallback {

    private RabbitTemplate rabbitTemplate;

    /**
     * 构造方法注入
     */
    @Autowired
    public Send(RabbitTemplate rabbitTemplatecallback) {
        this.rabbitTemplate = rabbitTemplatecallback;
        rabbitTemplate.setConfirmCallback(this); //rabbitTemplate如果为单例的话，那回调就是最后设置的内容
    }

    /**
     *	发送消息
     */
    public void sendMsg(String content) {
        CorrelationData correlationId = new CorrelationData(UUID.randomUUID().toString());
        System.out.println("content:"+content);
        System.out.println("correlationId:"+correlationId);
        rabbitTemplate.convertAndSend("spring-boot-exchange", "spring-boot-routingKey", content, correlationId);
    }


    /**
     * 回调
     */
    public void confirm(CorrelationData correlationData, boolean ack, String cause) {
        System.out.println(" 回调id:" + correlationData);
        if (ack) {
            System.out.println("消息成功消费");
        } else {
            System.out.println("消息消费失败:" + cause);
        }
    }

}

生产者RabbitMq配置

package org.morecare;
import org.springframework.amqp.rabbit.connection.CachingConnectionFactory;
import org.springframework.amqp.rabbit.connection.ConnectionFactory;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.config.ConfigurableBeanFactory;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Scope;

@Configuration
public class RabbitmqCallBackConfig {

    @Bean
    public ConnectionFactory connectionFactory() {
        CachingConnectionFactory connectionFactory = new CachingConnectionFactory();
        connectionFactory.setAddresses("127.0.0.1:5672");
        connectionFactory.setUsername("guest");
        connectionFactory.setPassword("guest");
        connectionFactory.setVirtualHost("/");
        connectionFactory.setPublisherConfirms(true); //必须要设置
        return connectionFactory;
    }

    @Bean
    @Scope(ConfigurableBeanFactory.SCOPE_PROTOTYPE)
    //必须是prototype类型
    public RabbitTemplate rabbitTemplatecallback() {
        RabbitTemplate template = new RabbitTemplate(connectionFactory());
        return template;
    }
}

生产者测试类

package org.morecare.controller;

import org.morecare.callback.Send;
import org.morecare.hello.HelloSender1;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class RabbitTest {
    @Autowired
    private HelloSender1 helloSender1;

    @Autowired   private Send send;
    //单生产者-单消费者
    @GetMapping("/hello")
    public void hello() {
        helloSender1.send();
    }

    //fanout exchange类型rabbitmq测试
    @GetMapping("/send")
    public void send() {
           send.sendMsg("lvgang");
    }
}

消费者项目：

消息消费者：

package org.morecare.callback;

import org.springframework.amqp.rabbit.annotation.RabbitHandler;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;

@Component
@RabbitListener(queues = "spring-boot-queue")
public class Receiver {

    @RabbitHandler
    public void process(String msg) {
        System.out.println("Receiver  : " + msg);
    }

}

消费者配置

package org.morecare;

import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.DirectExchange;
import org.springframework.amqp.core.Queue;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class RabbitmqCallBackConfig {


    /**
     * 针对消费者配置
     * 1. 设置交换机类型
     * 2. 将队列绑定到交换机
        FanoutExchange: 将消息分发到所有的绑定队列，无routingkey的概念
        HeadersExchange ：通过添加属性key-value匹配
        DirectExchange:按照routingkey分发到指定队列
        TopicExchange:多关键字匹配
     */
    @Bean
    public DirectExchange defaultExchange() {
        return new DirectExchange("spring-boot-exchange");
    }

    @Bean
    public Queue queue() {
        return new Queue("spring-boot-queue", true); //队列持久

    }

    @Bean
    public Binding binding() {
        return BindingBuilder.bind(queue()).to(defaultExchange()).with("spring-boot-routingKey");
    }



}

测试

通过工程启动类启动两个或工程,执行工程启动类中的Main就可以。

启动完成之后，通过浏览器访问以下地址：http://localhost:8081/send，然后去看Eclipse的控制台

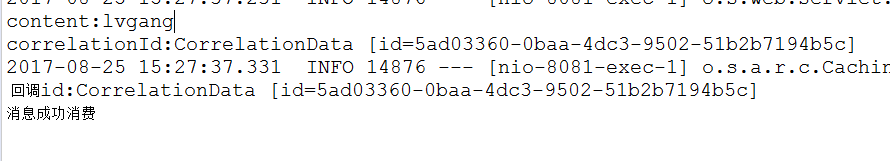

消息发送端控制台会打印以下信息
