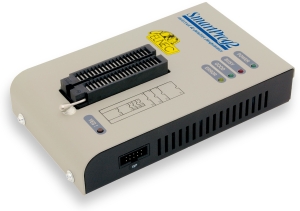

SmartProg2 Universal, ISP capable programmer

weixin_33726318

于 2013-07-13 21:49:00 发布

阅读量123

点赞数

SmartProg2是一款先进的编程器，具备40个强大的TTL驱动器，提供高精度信号传输。它能进行设备插入测试、接触检查，并在极限电压下进行编程验证，确保数据持久保留。支持多种编程适配器，适用于各种封装的设备。

40 powerful TTL pindrivers provide H/L/pull_up/pull_down and read capability for each pin of socket.
Advanced pindrivers incorporate high-quality high-speed circuitry to deliver signals without overshoot
or ground bounce for all supported devices.
Pin drivers operate down to 1.8V so you'll be ready to program the full range of today's advanced low-voltage devices.
The programmer performs device insertion test (wrong device position in socket) and contact check
(poor contact pin-to-socket) before it programs each device. These capabilities, supported bysignature-byte check help prevent chip damage due to operator error.
SmartProg2 programmer performs programming verification at the marginal level of supply voltage, which, obviously, improves programming yield, and guarantees long data retention.
Various programming adapters are available to handle device in PLCC, SOIC, SSOP, TSOP, TSSOP, TQFP, QFN (MLF) and other packages

40-pin DIL ZIF (Zero Insertion Force) socket accepts both 300/600 mil devices up to 40-pins
pindriver: 40 TTL pindrivers, specialized GND/VCC/VPP pindriver
FPGA based TTL driver provides H, L, CLK, pull-up, pull-down on all pindriver pins; level H selectable from 1.8V up to 5V
continuity test: each pin is tested before every programming operation

10-pin male type with missinsertion lock
5 TTL pindrivers, provides H, L, CLK, pull-up, pull-down; level H selectable from 1.8V up to 5V to handle all (low-voltage including) devices.
1x VCCP voltage (range 2V..7V/100mA) (*1) and 1x VPP voltage (range 2V..25V/50mA)
programmed chip voltage (VCCP) with both source/sink capability and voltage sense
