本文介绍了Spring Boot Admin的监控配置细节，包括如何通过Slack进行通知设置、调度配置及报警逻辑实现。针对状态变化的通知机制，特别是对于DOWN和OFFLINE状态的应用监控与提醒进行了详细说明。

##slack配置

spring.boot.admin:
  notify:
    slack:
      enabled: true
      ignore-changes: #empty, nothing to ignore
      webhook-url: https://hooks.slack.com/services/xxxxxxx
      channel: general
      username: spring cloud admin
      message: "*#{application.name}* (#{application.id}) is *#{to.status}*"

##调度配置

@Configuration
@EnableScheduling
public class NotifierConfiguration {

    @Autowired
    private Notifier notifier;

    @Bean
    @Primary
    public RemindingNotifier remindingNotifier() {
        RemindingNotifier remindingNotifier = new RemindingNotifier(notifier);
        //时间窗口,每次报警的间隔,即这个时间窗口内不重复报警
        remindingNotifier.setReminderPeriod(TimeUnit.SECONDS.toMillis(10));
        return remindingNotifier;
    }

    @Scheduled(fixedRate = 5_000L) //每5秒调度一次
    public void remind() {
        System.out.println("remind....");
        remindingNotifier().sendReminders();
    }
}

###时间窗口 ~/.m2/repository/de/codecentric/spring-boot-admin-server/1.4.6/spring-boot-admin-server-1.4.6-sources.jar!/de/codecentric/boot/admin/notify/RemindingNotifier.java

	public void sendReminders() {
		long now = System.currentTimeMillis();
		for (Reminder reminder : new ArrayList<>(reminders.values())) {
			if (now - reminder.getLastNotification() > reminderPeriod) {
				reminder.setLastNotification(now);
				delegate.notify(reminder.getEvent());
			}
		}
	}

###是否该报警的判断

	private String[] reminderStatuses = { "DOWN", "OFFLINE" };

	@Override
	public void doNotify(ClientApplicationEvent event) {
		delegate.notify(event);
		if (shouldEndReminder(event)) {
			reminders.remove(event.getApplication().getId());
		} else if (shouldStartReminder(event)) {
			reminders.putIfAbsent(event.getApplication().getId(), new Reminder(event));
		}
	}

	public void sendReminders() {
		long now = System.currentTimeMillis();
		for (Reminder reminder : new ArrayList<>(reminders.values())) {
			if (now - reminder.getLastNotification() > reminderPeriod) {
				reminder.setLastNotification(now);
				delegate.notify(reminder.getEvent());
			}
		}
	}

	protected boolean shouldStartReminder(ClientApplicationEvent event) {
		if (event instanceof ClientApplicationStatusChangedEvent) {
			return Arrays.binarySearch(reminderStatuses,
					event.getApplication().getStatusInfo().getStatus()) >= 0;
		}
		return false;
	}

	protected boolean shouldEndReminder(ClientApplicationEvent event) {
		if (event instanceof ClientApplicationDeregisteredEvent) {
			return true;
		}
		if (event instanceof ClientApplicationStatusChangedEvent) {
			return Arrays.binarySearch(reminderStatuses,
					event.getApplication().getStatusInfo().getStatus()) < 0;
		}
		return false;
	}

状态在{"DOWN", "OFFLINE"}的，就加入到reminders中，不在的话，从reminders中移除。在调度期间，如果status变为up了，会先报警，然后再判断是否应该删除该事件。

###notifier

delegate.notify(event); 这里的delegate为SlackNotifier

public class SlackNotifier extends AbstractStatusChangeNotifier {
   //...
}

继承了AbstractStatusChangeNotifier

public abstract class AbstractStatusChangeNotifier extends AbstractEventNotifier {

	/**
	 * List of changes to ignore. Must be in Format OLD:NEW, for any status use * as wildcard, e.g.
	 * *:UP or OFFLINE:*
	 */
	private String[] ignoreChanges = { "UNKNOWN:UP" };

	@Override
	protected boolean shouldNotify(ClientApplicationEvent event) {
		if (event instanceof ClientApplicationStatusChangedEvent) {
			ClientApplicationStatusChangedEvent statusChange = (ClientApplicationStatusChangedEvent) event;
			String from = statusChange.getFrom().getStatus();
			String to = statusChange.getTo().getStatus();
			return Arrays.binarySearch(ignoreChanges, from + ":" + to) < 0
					&& Arrays.binarySearch(ignoreChanges, "*:" + to) < 0
					&& Arrays.binarySearch(ignoreChanges, from + ":*") < 0;
		}
		return false;
	}

	public void setIgnoreChanges(String[] ignoreChanges) {
		String[] copy = Arrays.copyOf(ignoreChanges, ignoreChanges.length);
		Arrays.sort(copy);
		this.ignoreChanges = copy;
	}

}

这里对ignore的逻辑进行了判断，不满足条件的不会调用doNotify

public void notify(ClientApplicationEvent event) {
		if (enabled && shouldNotify(event)) {
			try {
				doNotify(event);
			} catch (Exception ex) {
				getLogger().error("Couldn't notify for event {} ", event, ex);
			}
		}
	}

doNotify才是真正的发送slack

	@Override
	protected void doNotify(ClientApplicationEvent event) throws Exception {
		restTemplate.postForEntity(webhookUrl, createMessage(event), Void.class);
	}

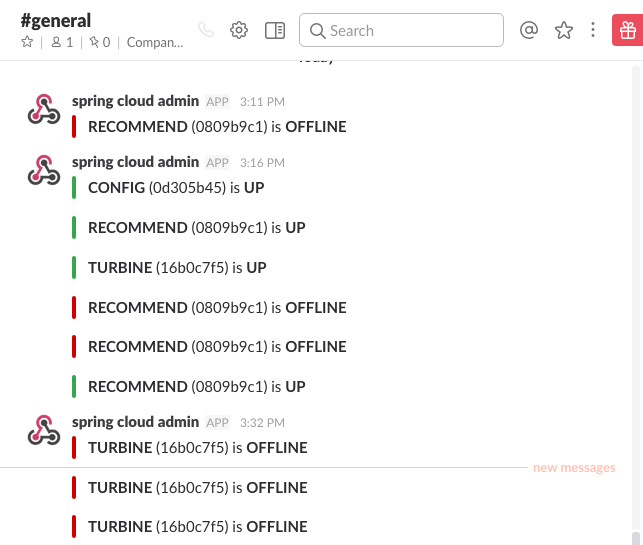

实例

输入图片说明
