本文介绍了一种使用TextSwitcher和ImageSwitcher组件实现滑动屏幕切换文本和图片的方法。通过监听触摸事件，当用户左右滑动时，可以实现前后内容的切换，并配合淡入淡出动画提升用户体验。

2019独角兽企业重金招聘Python工程师标准>>>

$4P{L]4%U_%%UX_C_6LE1FTD$

TextSwitcher

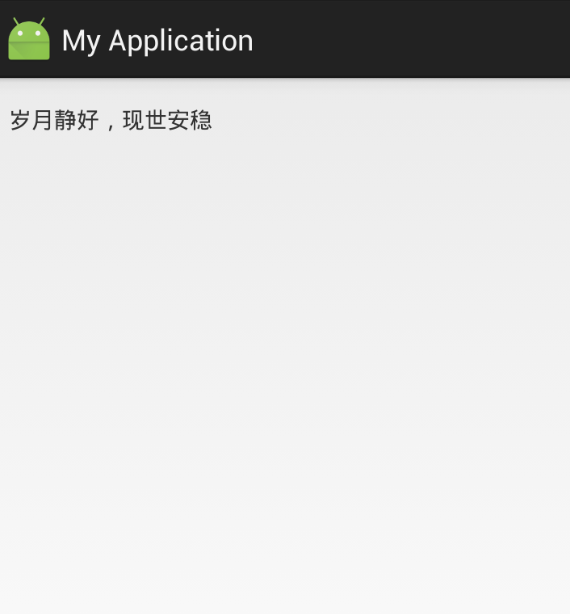

滑动屏幕，左滑或者右滑

代码：

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:paddingBottom="@dimen/activity_vertical_margin"
    android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    tools:context="com.example.administrator.myapplication.MainActivity2">

    <TextSwitcher
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:id="@+id/textSwitcher"
        android:layout_alignParentTop="true"
        android:layout_alignParentLeft="true"
        android:layout_alignParentStart="true" />
</RelativeLayout>

package com.example.administrator.myapplication;

import android.support.v7.app.ActionBarActivity;
import android.os.Bundle;
import android.view.MotionEvent;
import android.view.View;
import android.widget.TextSwitcher;
import android.widget.TextView;
import android.widget.ViewSwitcher;

public class MainActivity2 extends ActionBarActivity implements ViewSwitcher.ViewFactory,View.OnTouchListener {

    private TextSwitcher textSwitcher;
    private String[] texts={"岁月是一把无情的杀猪刀","岁月静好，现世安稳","我有钱我任性"};
    private int index; //默认为0
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main2);
        textSwitcher= (TextSwitcher) findViewById(R.id.textSwitcher);
        textSwitcher.setOnTouchListener(this);
        textSwitcher.setFactory(this);
    }

    @Override
    public View makeView() {

        TextView tv=new TextView(this);
   tv.setText(texts[index]);
        return tv;
    }

    float startX=0.0f;
    float endX=0.0f;
    @Override
    public boolean onTouch(View v, MotionEvent event) {
        int action=event.getAction();//获取当前的事件动作
        System.out.println("action="+action);//sout

        if(action==MotionEvent.ACTION_DOWN)
        {
            startX=event.getX();
            return true;
        }
        if(action==MotionEvent.ACTION_UP)
        {
            endX=event.getX();
            if(startX-endX>20)//下一张
            {
                index=(index+1<texts.length?++index:0);
                textSwitcher.setInAnimation(this,android.R.anim.fade_in);
                textSwitcher.setOutAnimation(this, android.R.anim.fade_out);

                //  imageSwitcher.setImageResource(images[index]);
            }
            else if(endX-startX>20){     //上一张
                index=(index-1>=0?--index:texts.length-1);
                // imageSwitcher.setImageResource(images[index]);
                textSwitcher.setInAnimation(this,android.R.anim.fade_in);
                textSwitcher.setOutAnimation(this,android.R.anim.fade_out);

            }
            System.out.println("index"+index);
            textSwitcher.setText(texts[index]);

        }

        return true;
    }
    }

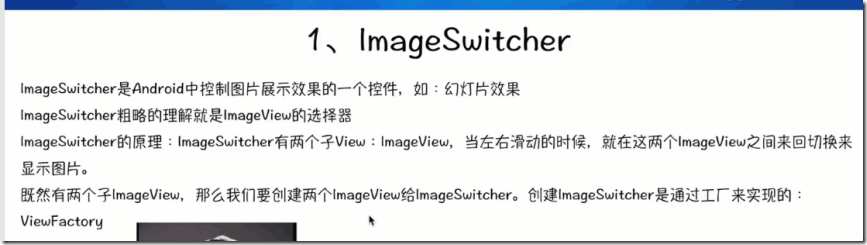

ImageSwitcher

滑动后

代码：

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:paddingBottom="@dimen/activity_vertical_margin"
    android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    tools:context="com.example.administrator.myapplication.MainActivity">

    <ImageSwitcher
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/imageSwitcher"
        android:layout_alignParentTop="true"
        android:layout_alignParentLeft="true"
        android:layout_alignParentStart="true" />


</RelativeLayout>

package com.example.administrator.myapplication;

import android.app.Activity;
import android.os.Bundle;
import android.view.MotionEvent;
import android.view.View;
import android.widget.ImageSwitcher;
import android.widget.ImageView;
import android.widget.TextView;
import android.widget.ViewSwitcher;

public class MainActivity extends Activity implements ViewSwitcher.ViewFactory,View.OnTouchListener{

    private ImageSwitcher imageSwitcher;

    private int[] images={R.mipmap.pic11,R.mipmap.pic13,R.mipmap.pic15,R.mipmap.pic6};
    private String[] texts={"岁月是一把无情的杀猪刀","岁月静好，现世安稳","我有钱我任性","当你老了"};
    private int index;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        imageSwitcher=(ImageSwitcher)findViewById(R.id.imageSwitcher);

        imageSwitcher.setOnTouchListener(this);
        imageSwitcher.setFactory(this);

    }

    @Override
    public View makeView() {
        ImageView iv=new ImageView(this);
        iv.setImageResource(images[0]);
        TextView tv=new TextView(this);
        tv.setText(texts[index]);
        return iv;

    }


    float startX=0.0f;
    float endX=0.0f;
    // 触屏事件
    @Override
    public boolean onTouch(View v, MotionEvent event) {
   int action=event.getAction();//获取当前的事件动作
System.out.println("action="+action);//sout

        if(action==MotionEvent.ACTION_DOWN)
        {
            startX=event.getX();
            return true;
        }
        if(action==MotionEvent.ACTION_UP)
        {
            endX=event.getX();
            if(startX-endX>20)//下一张
            {
                index=(index+1<images.length?++index:0);
                imageSwitcher.setInAnimation(this,android.R.anim.fade_in);
                imageSwitcher.setOutAnimation(this, android.R.anim.fade_out);

              //  imageSwitcher.setImageResource(images[index]);
            }
            else if(endX-startX>20){     //上一张
                index=(index-1>=0?--index:images.length-1);
               // imageSwitcher.setImageResource(images[index]);
                imageSwitcher.setInAnimation(this,android.R.anim.fade_in);
                imageSwitcher.setOutAnimation(this,android.R.anim.fade_out);

            }
            System.out.println("index"+index);
            imageSwitcher.setImageResource(images[index]);

        }

        return true;
    }
}
