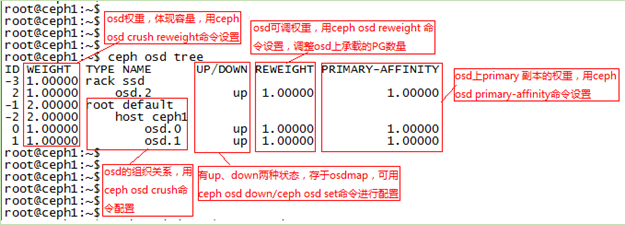

ceph osd tree
list weight, status and logic structure of all osd
ceph osd df
list weight, space usage and pg amount of all osd

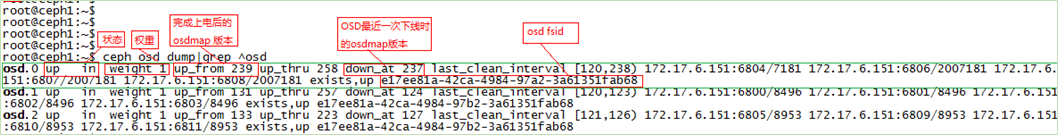

**ceph osd dump|grep ^osd **
query osd info from osdmap

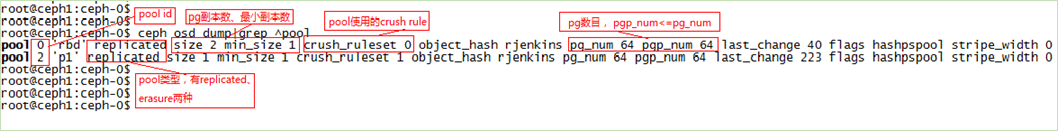

**ceph osd dump|grep ^pool **
query pool info from osdmap

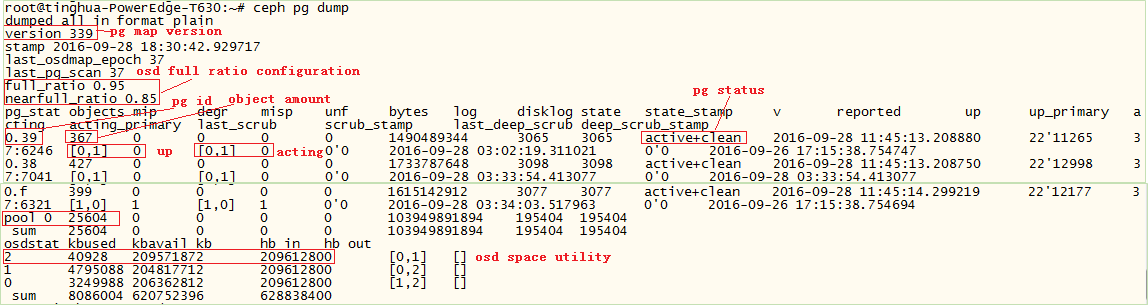

ceph pg dump list content of pg map
ceph pg map <pg_id> find up and acting osd set of a pg
root@node3:~$ ceph pg map 0.ff
osdmap e12 pg 0.ff (0.ff) -> up [0] acting [0]

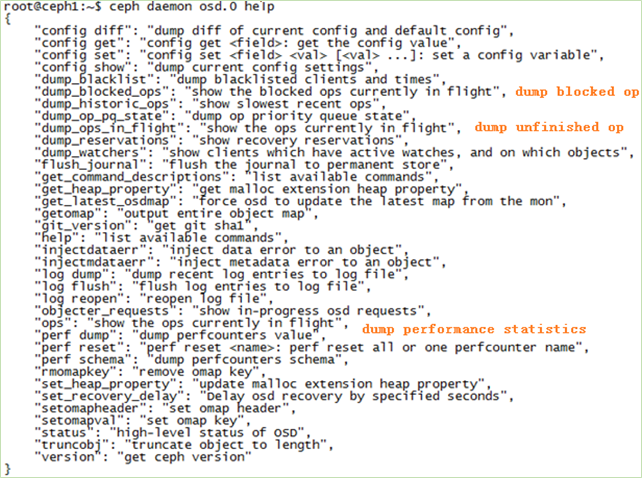

ceph daemon osd.<index> help
Ceph-osd debug command from admin socket

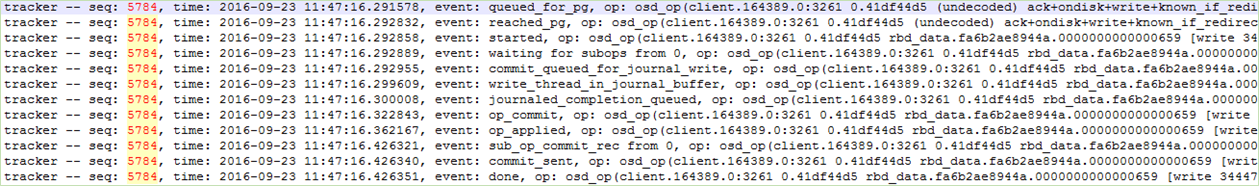

osd_enable_op_tracker=true
debug_optracker=5/5
**ceph daemon osd.0 perf dump **
dump performan statistics
"op_w": 2073643, // osd执行的写操作总数
"op_w_in_bytes": 8493641728, // osd写过的数据总长度
"op_w_rlat": { // 4899.396228711秒 / 2073643 = 0.002362699秒 (osd从收到消息到写操作执行完成且可读的平均处理时间)
"avgcount": 2073643,
"sum": 4899.396228711
},
"op_w_latency": {
"avgcount": ,2073643 // 4903.004405663秒 / 2073643 = 0.002364439秒 (osd从收到消息到写操作执行完成平均处理时间)
"sum": 4903.004405663
},
"op_w_process_latency": { // 4793.747818290秒 / 2073643 = 0.002311751秒 （osd从写操作进入pg队列后到完成的处理时间）
"avgcount": 2073643,
"sum": 4793.747818290
},
"op_w_prepare_latency": { // 535.981493596秒 / 2073643 = 0.000258473秒 （op在pg队列中的滞留时间）
"avgcount": 2073643,
"sum": 535.981493596
},

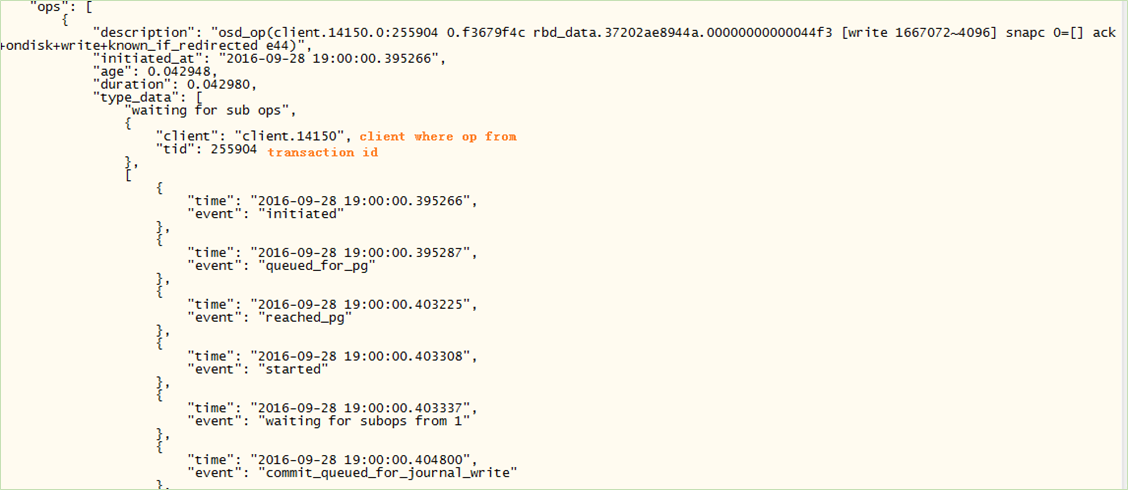

ceph daemon osd.0 ops dump inflight ops
**ceph pg 0.c5 query **
query pg peering infomation
{
"state": "remapped+peering", //PG状态
"snap_trimq": "[]",
"epoch": 21,
"up": [ //up!=acting 所以状态为remapped
0,
2
],
"acting": [ //acting primary为osd.0, 在osd.0和osd.1上有pg 0.c5的副本
0,
1
],
"info": { //osd.0上pg 0.c 的信息
"pgid": "0.c5",
"last_update": "0'0", //pg log最新记录编号
"last_complete": "0'0", //pg log各副本数据一致
"log_tail": "0'0", //pg log最老记录编号
"last_user_version": 0,
"last_backfill": "MAX",
"last_backfill_bitwise": 0,
"purged_snaps": "[]",
"history": {
"epoch_created": 1,
"last_epoch_started": 10,
"last_epoch_clean": 10, //epoch 10时，pg 0.c5状态为clean
"last_epoch_split": 0,
"last_epoch_marked_full": 0,
"same_up_since": 15,
"same_interval_since": 15, // epoch 15后，pg 0.c5的up/acting没有再变化
"same_primary_since": 9,
"last_scrub": "0'0",
"last_scrub_stamp": "2016-09-09 11:51:18.563399",
"last_deep_scrub": "0'0",
"last_deep_scrub_stamp": "2016-09-09 11:51:18.563399",
"last_clean_scrub_stamp": "2016-09-09 11:51:18.563399"
},
"stats": {
"version": "0'0",
"reported_seq": "14",
"reported_epoch": "16",
"state": "remapped+peering",
"last_fresh": "2016-09-09 11:52:06.425706",
"last_change": "2016-09-09 11:52:05.351546",
"last_active": "2016-09-09 11:51:53.364638",
"last_peered": "2016-09-09 11:51:53.364638",
"last_clean": "2016-09-09 11:51:18.563399",
"last_became_active": "2016-09-09 11:51:53.364312",
"last_became_peered": "2016-09-09 11:51:53.364312",
"last_unstale": "2016-09-09 11:52:06.425706",
"last_undegraded": "2016-09-09 11:52:06.425706",
"last_fullsized": "2016-09-09 11:52:06.425706",
"mapping_epoch": 15,
"log_start": "0'0",
"ondisk_log_start": "0'0",
"created": 1,
"last_epoch_clean": 10,
"parent": "0.0",
"parent_split_bits": 0,
"last_scrub": "0'0",
"last_scrub_stamp": "2016-09-09 11:51:18.563399",
"last_deep_scrub": "0'0",
"last_deep_scrub_stamp": "2016-09-09 11:51:18.563399",
"last_clean_scrub_stamp": "2016-09-09 11:51:18.563399",
"log_size": 0,
"ondisk_log_size": 0,
"stats_invalid": false,
"dirty_stats_invalid": false,
"omap_stats_invalid": false,
"hitset_stats_invalid": false,
"hitset_bytes_stats_invalid": false,
"pin_stats_invalid": false,
"stat_sum": {
"num_bytes": 0,
"num_objects": 0,
"num_object_clones": 0,
"num_object_copies": 0,
"num_objects_missing_on_primary": 0,
"num_objects_missing": 0,
"num_objects_degraded": 0,
"num_objects_misplaced": 0,
"num_objects_unfound": 0,
"num_objects_dirty": 0,
"num_whiteouts": 0,
"num_read": 0,
"num_read_kb": 0,
"num_write": 0,
"num_write_kb": 0,
"num_scrub_errors": 0,
"num_shallow_scrub_errors": 0,
"num_deep_scrub_errors": 0,
"num_objects_recovered": 0,
"num_bytes_recovered": 0,
"num_keys_recovered": 0,
"num_objects_omap": 0,
"num_objects_hit_set_archive": 0,
"num_bytes_hit_set_archive": 0,
"num_flush": 0,
"num_flush_kb": 0,
"num_evict": 0,
"num_evict_kb": 0,
"num_promote": 0,
"num_flush_mode_high": 0,
"num_flush_mode_low": 0,
"num_evict_mode_some": 0,
"num_evict_mode_full": 0,
"num_objects_pinned": 0
},
"up": [
0,
2
],
"acting": [
0,
1
],
"blocked_by": [
1
],
"up_primary": 0,
"acting_primary": 0
},
"empty": 1,
"dne": 0,
"incomplete": 0,
"last_epoch_started": 10,
"hit_set_history": {
"current_last_update": "0'0",
"history": []
}
},
"peer_info": [
{
"peer": "2", //osd.2上pg 0.c 的信息
"pgid": "0.c5",
"last_update": "0'0",
"last_complete": "0'0",
"log_tail": "0'0",
"last_user_version": 0,
"last_backfill": "MAX",
"last_backfill_bitwise": 0,
"purged_snaps": "[]",
"history": {
"epoch_created": 0,
"last_epoch_started": 0,
"last_epoch_clean": 0,
"last_epoch_split": 0,
"last_epoch_marked_full": 0,
"same_up_since": 0,
"same_interval_since": 0,
"same_primary_since": 0,
"last_scrub": "0'0",
"last_scrub_stamp": "0.000000",
"last_deep_scrub": "0'0",
"last_deep_scrub_stamp": "0.000000",
"last_clean_scrub_stamp": "0.000000"
},
"stats": {
"version": "0'0",
"reported_seq": "0",
"reported_epoch": "0",
"state": "inactive",
"last_fresh": "0.000000",
"last_change": "0.000000",
"last_active": "0.000000",
"last_peered": "0.000000",
"last_clean": "0.000000",
"last_became_active": "0.000000",
"last_became_peered": "0.000000",
"last_unstale": "0.000000",
"last_undegraded": "0.000000",
"last_fullsized": "0.000000",
"mapping_epoch": 0,
"log_start": "0'0",
"ondisk_log_start": "0'0",
"created": 0,
"last_epoch_clean": 0,
"parent": "0.0",
"parent_split_bits": 0,
"last_scrub": "0'0",
"last_scrub_stamp": "0.000000",
"last_deep_scrub": "0'0",
"last_deep_scrub_stamp": "0.000000",
"last_clean_scrub_stamp": "0.000000",
"log_size": 0,
"ondisk_log_size": 0,
"stats_invalid": false,
"dirty_stats_invalid": false,
"omap_stats_invalid": false,
"hitset_stats_invalid": false,
"hitset_bytes_stats_invalid": false,
"pin_stats_invalid": false,
"stat_sum": {
"num_bytes": 0,
"num_objects": 0,
"num_object_clones": 0,
"num_object_copies": 0,
"num_objects_missing_on_primary": 0,
"num_objects_missing": 0,
"num_objects_degraded": 0,
"num_objects_misplaced": 0,
"num_objects_unfound": 0,
"num_objects_dirty": 0,
"num_whiteouts": 0,
"num_read": 0,
"num_read_kb": 0,
"num_write": 0,
"num_write_kb": 0,
"num_scrub_errors": 0,
"num_shallow_scrub_errors": 0,
"num_deep_scrub_errors": 0,
"num_objects_recovered": 0,
"num_bytes_recovered": 0,
"num_keys_recovered": 0,
"num_objects_omap": 0,
"num_objects_hit_set_archive": 0,
"num_bytes_hit_set_archive": 0,
"num_flush": 0,
"num_flush_kb": 0,
"num_evict": 0,
"num_evict_kb": 0,
"num_promote": 0,
"num_flush_mode_high": 0,
"num_flush_mode_low": 0,
"num_evict_mode_some": 0,
"num_evict_mode_full": 0,
"num_objects_pinned": 0
},
"up": [],
"acting": [],
"blocked_by": [],
"up_primary": -1,
"acting_primary": -1
},
"empty": 1,
"dne": 1,
"incomplete": 0,
"last_epoch_started": 0,
"hit_set_history": {
"current_last_update": "0'0",
"history": []
}
}
],
"recovery_state": [
{
"name": "Started\/Primary\/Peering\/GetInfo",
"enter_time": "2016-09-09 11:52:05.351102",
"requested_info_from": [
{
"osd": "1" //peering被osd.1阻塞，没有向primary osd返回pg info
}
]
},
{
"name": "Started\/Primary\/Peering",
"enter_time": "2016-09-09 11:52:05.351054",
"past_intervals": [
{
"first": 9,
"last": 11,
"maybe_went_rw": 1,
"up": [
0
],
"acting": [
0
],
"primary": 0,
"up_primary": 0
},
{
"first": 12,
"last": 13,
"maybe_went_rw": 1,
"up": [
0,
1
],
"acting": [
0
],
"primary": 0,
"up_primary": 0
},
{
"first": 14,
"last": 14,
"maybe_went_rw": 0,
"up": [
0,
1
],
"acting": [
0,
1
],
"primary": 0,
"up_primary": 0
}
],
"probing_osds": [ //peering过程中需要比较pg info的osd
"0",
"1",
"2"
],
"down_osds_we_would_probe": [],
"peering_blocked_by": []
},
{
"name": "Started",
"enter_time": "2016-09-09 11:52:05.350750"
}
],
ceph osd reweight 1 0.5
Before reweight:
root@node3:~$ ceph osd tree
ID WEIGHT TYPE NAME UP/DOWN REWEIGHT PRIMARY-AFFINITY
-1 2.00000 root default
-2 2.00000 host node3
0 1.00000 osd.0 up 1.00000 1.00000
1 1.00000 osd.1 up 1.00000 1.00000
root@node3:~$ ceph osd df
ID WEIGHT REWEIGHT SIZE USE AVAIL %USE VAR PGS
0 1.00000 1.00000 2098M 1025M 1072M 48.86 1.00 133
1 1.00000 1.00000 2098M 1025M 1072M 48.86 1.00 123
After reweight:
root@node3:~$ ceph osd tree
ID WEIGHT TYPE NAME UP/DOWN REWEIGHT PRIMARY-AFFINITY
-1 2.00000 root default
-2 2.00000 host node3
0 1.00000 osd.0 up 1.00000 1.00000
1 1.00000 osd.1 up 0.50000 1.00000
root@node3:~$ ceph osd df
ID WEIGHT REWEIGHT SIZE USE AVAIL %USE VAR PGS
0 1.00000 1.00000 2098M 1025M 1072M 48.86 1.00 202
1 1.00000 0.50000 2098M 1025M 1072M 48.86 1.00 54
ceph daemon osd.1 config show
list all configurable parameters
{
"name": "osd.1",
"cluster": "ceph",
"debug_none": "0\/5",
"debug_lockdep": "0\/1",
"debug_context": "0\/1",
"debug_crush": "1\/1",
"debug_mds": "1\/5",
"debug_mds_balancer": "1\/5",
"debug_mds_locker": "1\/5",
"debug_mds_log": "1\/5",
......
ceph daemon osd.1 config show | grep backfills lookup the value of backfills
root@node3:src(develop)$ ceph daemon osd.1 config show | grep backfills
"osd_max_backfills": "1",
ceph daemon osd.1 config set osd_max_backfills 2
modify a configurable var value of one osd
root@node3:src(develop)$ ceph daemon osd.1 config show | grep backfills
"osd_max_backfills": "2",
ceph daemon <path-to-asok> config show
show configs
root@node3:src(develop)$ ceph daemon /var/run/ceph/ceph-osd.0.asok config show | grep backfills
"osd_max_backfills": "2",
ceph tell osd. injectargs "--osd_max_backfills=2"*
batch modify osds
root@node3:src(develop)$ ceph daemon osd.1 config show | grep backfills
"osd_max_backfills": "2",
root@node3:src(develop)$ ceph daemon osd.0 config show | grep backfills
"osd_max_backfills": "2",
ceph pg map 0.4
root@node3:src(develop)$ ./ceph pg map 0.4
osdmap e11 pg 0.4 (0.4) -> up [0,2,1] acting [0,2,1]
ceph osd map <pool> <objectName>
例子如下：
root@node3:src(develop)$ rados -p testpool put testobject /etc/hosts
root@node3:src(develop)$ rados -p testpool ls
testobject
root@node3:src(develop)$ ceph osd map testpool testobject
osdmap e71 pool 'testpool' (6) object 'testobject' -> pg 6.98824931 (6.31) -> up ([5, 4 ,6], p5) acting ([5,4,6], p5)
