CISCO路由器ISIS和BGP混合组网实例<?xml:namespace prefix = o ns = "urn:schemas-microsoft-com:office:office" />

本实例共有5台7200路由器，分别为R1、R2、R3、R4、R5，R1、R2和R3组成AS100自治域，R5为AS10自治域，R4为AS20自治域，在AS100自治域内，启用了ISIS动态路由协议，R1为R3和R2的反射器，此例为典型的三家ISP互连的骨干路由器配置，在本例中，我们也可将AS10和AS20像AS100那样做得大一点，在内部也启用ISIS等态路由协议，OSPF的例子就不讲了，也ISIS很像。本实例的目的是三个自治域的所有IP地址都能互相PING通。
借此机会，感谢小凡的CISCO路由模拟器，本实例就是在它的帮助下完成的，我的电脑是PIII <?xml:namespace prefix = st1 ns = "urn:schemas-microsoft-com:office:smarttags" />1G，512M MEM，运行5台7200路由器很不错，就是在查看配置文件内容是有点慢。

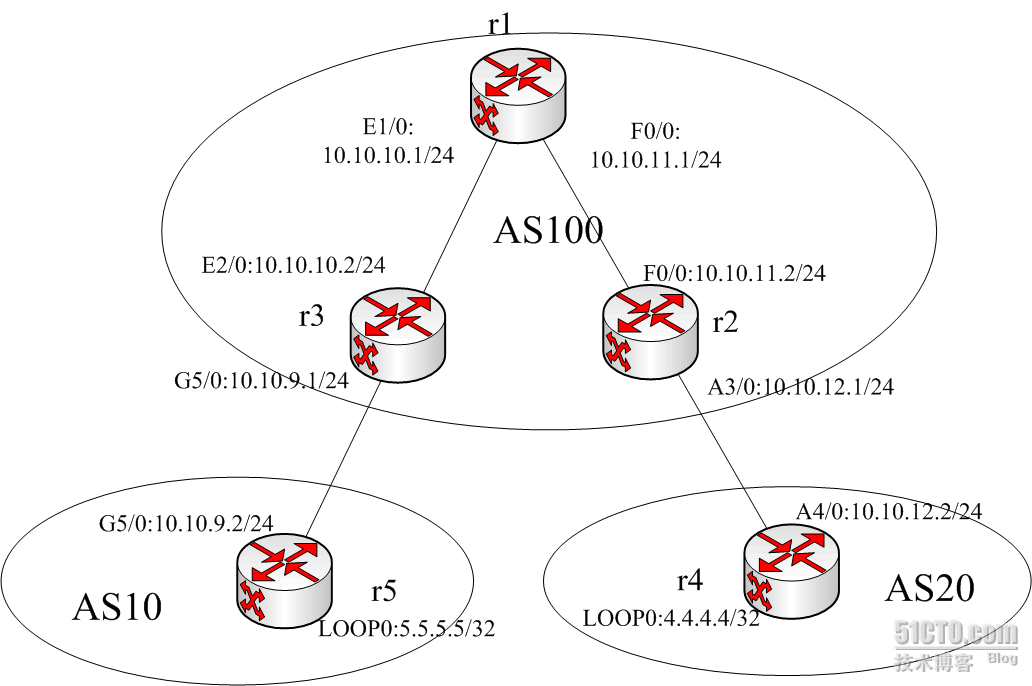

一、网络拓扑图
<?xml:namespace prefix = v ns = "urn:schemas-microsoft-com:vml" />
二、各路由器配置
1、  R1配置和测试



Current configuration : 2418 bytes
!
version 12.3
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname r1
!
boot-start-marker
boot-end-marker
!
!
no aaa new-model
ip subnet-zero
!
!
no ip domain lookup
!
ip cef
ip audit po max-events 100
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
interface Loopback0
 ip address 1.1.1.1 255.255.255.0
 ip router isis test
!
interface FastEthernet0/0
 ip address 10.10.11.1 255.255.255.0
 ip router isis test
 duplex full
!
interface Ethernet1/0
 ip address 10.10.10.1 255.255.255.0
 ip router isis test
 duplex full
!
interface Ethernet1/1
 no ip address
 shutdown
 duplex half
!
interface Ethernet1/2
 no ip address
 shutdown
 duplex half
!
interface Ethernet1/3
 no ip address
 shutdown
 duplex half
!
interface Serial2/0
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial2/1
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial2/2
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial2/3
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial3/0
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial3/1
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial3/2
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial3/3
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial3/4
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial3/5
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial3/6
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial3/7
 no ip address
 shutdown
 serial restart-delay 0
!
interface ATM4/0
 no ip address
 shutdown
 no atm ilmi-keepalive
!
interface GigabitEthernet5/0
 no ip address
 shutdown
 negotiation auto
!
router isis test
 net 49.0001.0010.0100.1001.00
!
!
router bgp 100
 no synchronization
 bgp log-neighbor-changes
 neighbor 10.10.10.2 remote-as 100
 neighbor 10.10.10.2 route-reflector-client
 neighbor 10.10.10.2 next-hop-self
 neighbor 10.10.11.2 remote-as 100
 neighbor 10.10.11.2 route-reflector-client
 neighbor 10.10.11.2 next-hop-self
 no auto-summary
!
ip classless
no ip http server
no ip http secure-server
!
!
!
!
!
!
!
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 logging synchronous
 stopbits 1
line aux 0
 stopbits 1
line vty 0 4
 login
!
!
end



r1#      show ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2

       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route



Gateway of last resort is not set



     1.0.0.0/24 is subnetted, 1 subnets
C       1.1.1.0 is directly connected, Loopback0
     2.0.0.0/24 is subnetted, 1 subnets
i L1    2.2.2.0 [115/20] via 10.10.11.2, FastEthernet0/0, test
     3.0.0.0/24 is subnetted, 1 subnets
i L1    3.3.3.0 [115/20] via 10.10.10.2, Ethernet1/0, test
     4.0.0.0/24 is subnetted, 1 subnets
B       4.4.4.0 [200/0] via 10.10.11.2, 00:43:27
     5.0.0.0/24 is subnetted, 1 subnets
B       5.5.5.0 [200/0] via 10.10.10.2, 00:43:44
     6.0.0.0/24 is subnetted, 1 subnets
B       6.6.6.0 [200/0] via 10.10.11.2, 00:41:48
     7.0.0.0/24 is subnetted, 1 subnets
B       7.7.7.0 [200/0] via 10.10.10.2, 00:41:18
     10.0.0.0/24 is subnetted, 4 subnets
B       10.10.9.0 [200/0] via 10.10.10.2, 00:43:44
C       10.10.10.0 is directly connected, Ethernet1/0
C       10.10.11.0 is directly connected, FastEthernet0/0
B       10.10.12.0 [200/0] via 10.10.11.2, 00:43:27
r1#  ping 5.5.5.5



Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 5.5.5.5, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 648/685/764 ms
r1#ping 4.4.4.4



Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 4.4.4.4, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 336/388/476 ms
r1#ping 3.3.3.3



Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 3.3.3.3, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 72/235/388 ms
r1#ping 2.2.2.2



Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 2.2.2.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 96/239/476 ms
r1#ping 1.1.1.1



Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 1.1.1.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/3/4 ms
2、  R2配置和测试



r2#
r2#show run
Building configuration...



Current configuration : 1938 bytes
!
version 12.3
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname r2
!
boot-start-marker
boot-end-marker
!
!
no aaa new-model
ip subnet-zero
!
!
no ip domain lookup
!
ip cef
ip audit po max-events 100
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
interface Loopback0
 ip address 2.2.2.2 255.255.255.0
 ip router isis test
!
interface FastEthernet0/0
 ip address 10.10.11.2 255.255.255.0
 ip router isis test
 duplex full
!
interface Ethernet1/0
 no ip address
 shutdown
 duplex half
!
interface Ethernet1/1
 no ip address
 shutdown
 duplex half
!
interface Ethernet1/2
 no ip address
 shutdown
 duplex half
!
interface Ethernet1/3
 no ip address
 shutdown
 duplex half
!
interface Serial2/0
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial2/1
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial2/2
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial2/3
 no ip address
 shutdown
 serial restart-delay 0
!
interface ATM3/0
 no ip address
 atm sonet stm-1
 no atm ilmi-keepalive
!
interface ATM3/0.1 point-to-point
 ip address 10.10.12.1 255.255.255.0
 atm pvc 1 3 32 aal5snap oam 10
!
interface GigabitEthernet4/0
 no ip address
 shutdown
 negotiation auto
!
interface FastEthernet5/0
 no ip address
 shutdown
 duplex auto
 speed auto
!
interface FastEthernet5/1
 no ip address
 shutdown
 duplex auto
 speed auto
!
router isis test
 net 49.0001.0020.0200.2002.00
!
router bgp 100
 no synchronization
 bgp log-neighbor-changes
 redistribute isis test level-1-2
 neighbor 10.10.11.1 remote-as 100
 neighbor 10.10.11.1 next-hop-self
 neighbor 10.10.12.2 remote-as 20
 neighbor 10.10.12.2 next-hop-self
 no auto-summary
!
ip classless
no ip http server
no ip http secure-server
!
!
!
!
!
!
!
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 logging synchronous
 stopbits 1
line aux 0
 stopbits 1
line vty 0 4
 login
!
!
end



r2#   show ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2

       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route



Gateway of last resort is 10.10.11.1 to network 0.0.0.0



     1.0.0.0/24 is subnetted, 1 subnets
i L1    1.1.1.0 [115/20] via 10.10.11.1, FastEthernet0/0
     2.0.0.0/24 is subnetted, 1 subnets
C       2.2.2.0 is directly connected, Loopback0
     3.0.0.0/24 is subnetted, 1 subnets
i L1    3.3.3.0 [115/30] via 10.10.11.1, FastEthernet0/0

     4.0.0.0/24 is subnetted, 1 subnets

B       4.4.4.0 [20/0] via 10.10.12.2, 00:43:02

     5.0.0.0/24 is subnetted, 1 subnets
B       5.5.5.0 [200/0] via 10.10.10.2, 00:43:18
     6.0.0.0/24 is subnetted, 1 subnets
B       6.6.6.0 [20/0] via 10.10.12.2, 00:41:32
     7.0.0.0/24 is subnetted, 1 subnets
B       7.7.7.0 [200/0] via 10.10.10.2, 00:41:02
     10.0.0.0/24 is subnetted, 4 subnets
B       10.10.9.0 [200/0] via 10.10.10.2, 00:43:18
i L1    10.10.10.0 [115/20] via 10.10.11.1, FastEthernet0/0
C       10.10.11.0 is directly connected, FastEthernet0/0
C       10.10.12.0 is directly connected, ATM3/0.1
i*L1 0.0.0.0/0 [115/10] via 10.10.11.1, FastEthernet0/0
r2#  ping 1.1.1.1



Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 1.1.1.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 60/252/416 ms
r2#ping 3.3.3.3



Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 3.3.3.3, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 64/280/392 ms
r2#ping 4.4.4.4



Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 4.4.4.4, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 112/270/368 ms
r2#ping 5.5.5.5



Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 5.5.5.5, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 384/420/492 ms
3、  R3配置和测试



r3#
r3#show run
Building configuration...



Current configuration : 1835 bytes
!
version 12.3
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname r3
!
boot-start-marker
boot-end-marker
!
!
no aaa new-model
ip subnet-zero
!
!
no ip domain lookup
!
ip cef
ip audit po max-events 100
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
interface Loopback0
 ip address 3.3.3.3 255.255.255.0
 ip router isis test
!
interface FastEthernet0/0
 no ip address
 shutdown
 duplex half
!
interface FastEthernet1/0
 no ip address
 shutdown
 duplex auto
 speed auto
!
interface FastEthernet1/1
 no ip address
 shutdown
 duplex auto
 speed auto
!
interface Ethernet2/0
 ip address 10.10.10.2 255.255.255.0
 ip router isis test
 duplex full
!
interface Ethernet2/1
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/2
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/3
 no ip address
 shutdown
 duplex half
!
interface Serial3/0
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial3/1
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial3/2
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial3/3
 no ip address
 shutdown
 serial restart-delay 0
!
interface ATM4/0
 no ip address
 shutdown
 no atm ilmi-keepalive
!
interface GigabitEthernet5/0
 ip address 10.10.9.1 255.255.255.0
 negotiation auto
!
router isis test
 net 49.0001.0030.0300.3003.00
!
router bgp 100
 no synchronization
 bgp log-neighbor-changes
 redistribute isis test level-1-2
 neighbor 10.10.9.2 remote-as 10
 neighbor 10.10.9.2 next-hop-self
 neighbor 10.10.10.1 remote-as 100
 neighbor 10.10.10.1 next-hop-self
 no auto-summary
!
ip classless
no ip http server
no ip http secure-server
!
!
!
!
!
!
!
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 logging synchronous
 stopbits 1
line aux 0
 stopbits 1
line vty 0 4
 login
!
!
end



r3#  show ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2

       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route



Gateway of last resort is 10.10.10.1 to network 0.0.0.0



     1.0.0.0/24 is subnetted, 1 subnets
i L1    1.1.1.0 [115/20] via 10.10.10.1, Ethernet2/0
     2.0.0.0/24 is subnetted, 1 subnets
i L1    2.2.2.0 [115/30] via 10.10.10.1, Ethernet2/0
     3.0.0.0/24 is subnetted, 1 subnets
C       3.3.3.0 is directly connected, Loopback0
     4.0.0.0/24 is subnetted, 1 subnets
B       4.4.4.0 [200/0] via 10.10.11.2, 00:44:30
     5.0.0.0/24 is subnetted, 1 subnets
B       5.5.5.0 [20/0] via 10.10.9.2, 00:44:48
     6.0.0.0/24 is subnetted, 1 subnets
B       6.6.6.0 [200/0] via 10.10.11.2, 00:42:50
     7.0.0.0/24 is subnetted, 1 subnets
B       7.7.7.0 [20/0] via 10.10.9.2, 00:42:21
     10.0.0.0/24 is subnetted, 4 subnets
C       10.10.9.0 is directly connected, GigabitEthernet5/0
C       10.10.10.0 is directly connected, Ethernet2/0
i L1    10.10.11.0 [115/20] via 10.10.10.1, Ethernet2/0
B       10.10.12.0 [200/0] via 10.10.11.2, 00:44:30
i*L1 0.0.0.0/0 [115/10] via 10.10.10.1, Ethernet2/0
r3# ping 1.1.1.1



Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 1.1.1.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 72/229/380 ms
r3#ping 2.2.2.2



Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 2.2.2.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 136/363/496 ms
r3#ping 4.4.4.4



Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 4.4.4.4, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 312/440/528 ms
r3#ping 5.5.5.5



Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 5.5.5.5, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 4/195/396 ms
4、  R4配置和测试



r4#
r4#
r4#show run
Building configuration...



Current configuration : 1829 bytes
!
version 12.3
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname r4
!
boot-start-marker
boot-end-marker
!
!
no aaa new-model
ip subnet-zero
!
!
no ip domain lookup
!
ip cef
ip audit po max-events 100
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
interface Loopback0
 ip address 4.4.4.4 255.255.255.0
!
interface Loopback1
 ip address 6.6.6.6 255.255.255.0
!
interface FastEthernet0/0
 no ip address
 shutdown
 duplex half
!
interface FastEthernet1/0
 no ip address
 shutdown
 duplex auto
 speed auto
!
interface FastEthernet1/1
 no ip address
 shutdown
 duplex auto
 speed auto
!
interface Ethernet2/0
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/1
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/2
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/3
 no ip address
 shutdown
 duplex half
!
interface Serial3/0
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial3/1
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial3/2
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial3/3
 no ip address
 shutdown
 serial restart-delay 0
!
interface ATM4/0
 no ip address
 atm sonet stm-1
 no atm ilmi-keepalive
!
interface ATM4/0.1 point-to-point
 ip address 10.10.12.2 255.255.255.0
 atm pvc 1 3 32 aal5snap oam 10
!
interface GigabitEthernet5/0
 no ip address
 shutdown
 negotiation auto
!
router isis test
!
router bgp 20
 no synchronization
 bgp log-neighbor-changes
neighbor 10.10.12.1 remote-as 100
 neighbor 10.10.12.1 next-hop-self
 no auto-summary
!
ip classless
no ip http server
no ip http secure-server
!
!
!
!
!
!
!
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 logging synchronous
 stopbits 1
line aux 0
 stopbits 1
line vty 0 4
 login
!
!
end



r4#   show ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2

       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route



Gateway of last resort is not set



     1.0.0.0/24 is subnetted, 1 subnets
B       1.1.1.0 [20/20] via 10.10.12.1, 00:23:22
     2.0.0.0/24 is subnetted, 1 subnets
B       2.2.2.0 [20/0] via 10.10.12.1, 00:19:44
     3.0.0.0/24 is subnetted, 1 subnets
B       3.3.3.0 [20/30] via 10.10.12.1, 00:23:22
     4.0.0.0/24 is subnetted, 1 subnets
C       4.4.4.0 is directly connected, Loopback0
     5.0.0.0/24 is subnetted, 1 subnets
B       5.5.5.0 [20/0] via 10.10.12.1, 00:45:03
     6.0.0.0/24 is subnetted, 1 subnets
C       6.6.6.0 is directly connected, Loopback1
     7.0.0.0/24 is subnetted, 1 subnets
B       7.7.7.0 [20/0] via 10.10.12.1, 00:42:53
     10.0.0.0/24 is subnetted, 4 subnets
B       10.10.9.0 [20/0] via 10.10.12.1, 00:45:04
B       10.10.10.0 [20/20] via 10.10.12.1, 00:23:22
B       10.10.11.0 [20/0] via 10.10.12.1, 00:19:44
C       10.10.12.0 is directly connected, ATM4/0.1
r4#  ping 1.1.1.1



Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 1.1.1.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 192/316/404 ms
r4#ping 2.2.2.2



Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 2.2.2.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 72/305/456 ms
r4#ping 3.3.3.3



Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 3.3.3.3, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 380/455/572 ms
r4#ping 5.5.5.5



Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 5.5.5.5, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 464/593/704 ms
5、  R5配置和测试



r5#
r5#show run
Building configuration...



Current configuration : 2180 bytes
!
version 12.3
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname r5
!
boot-start-marker
boot-end-marker
!
!
no aaa new-model
ip subnet-zero
!
!
no ip domain lookup
!
ip cef
ip audit po max-events 100
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
interface Loopback0
 ip address 5.5.5.5 255.255.255.0
!
interface Loopback1
 ip address 7.7.7.7 255.255.255.0
!
interface FastEthernet0/0
 no ip address
 shutdown
 duplex half
!
interface FastEthernet1/0
 no ip address
 shutdown
 duplex auto
 speed auto
!
interface FastEthernet1/1
 no ip address
 shutdown
 duplex auto
 speed auto
!
interface Ethernet2/0
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/1
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/2
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/3
 no ip address
 shutdown
 duplex half
!
interface Serial3/0
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial3/1
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial3/2
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial3/3
 no ip address
 shutdown
 serial restart-delay 0
!
interface Ethernet4/0
 no ip address
 shutdown
 duplex half
!
interface Ethernet4/1
 no ip address
 shutdown
 duplex half
!
interface Ethernet4/2
 no ip address
 shutdown
 duplex half
!
interface Ethernet4/3
 no ip address
 shutdown
 duplex half
!
interface Ethernet4/4
 no ip address
 shutdown
 duplex half
!
interface Ethernet4/5
 no ip address
 shutdown
 duplex half
!
interface Ethernet4/6
 no ip address
 shutdown
 duplex half
!
interface Ethernet4/7
 no ip address
 shutdown
 duplex half
!
interface GigabitEthernet5/0
 ip address 10.10.9.2 255.255.255.0
 negotiation auto
!
router bgp 10
 no synchronization
 bgp log-neighbor-changes
 redistribute connected
 neighbor 10.10.9.1 remote-as 100
 neighbor 10.10.9.1 update-source Loopback0
 neighbor 10.10.9.1 next-hop-self
 no auto-summary
!
ip classless
no ip http server
no ip http secure-server
!
!
!
!
!
!
!
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 logging synchronous
 stopbits 1
line aux 0
 stopbits 1
line vty 0 4
 login
!
!
end



r5#  show ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2

       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route



Gateway of last resort is not set



     1.0.0.0/24 is subnetted, 1 subnets
B       1.1.1.0 [20/20] via 10.10.9.1, 00:19:48
     2.0.0.0/24 is subnetted, 1 subnets
B       2.2.2.0 [20/30] via 10.10.9.1, 00:19:48
     3.0.0.0/24 is subnetted, 1 subnets
B       3.3.3.0 [20/0] via 10.10.9.1, 00:23:17
     4.0.0.0/24 is subnetted, 1 subnets
B       4.4.4.0 [20/0] via 10.10.9.1, 00:44:50
     5.0.0.0/24 is subnetted, 1 subnets
C       5.5.5.0 is directly connected, Loopback0
     6.0.0.0/24 is subnetted, 1 subnets
B       6.6.6.0 [20/0] via 10.10.9.1, 00:43:18
     7.0.0.0/24 is subnetted, 1 subnets
C       7.7.7.0 is directly connected, Loopback1
     10.0.0.0/24 is subnetted, 4 subnets
C       10.10.9.0 is directly connected, GigabitEthernet5/0
B       10.10.10.0 [20/0] via 10.10.9.1, 00:23:17

B       10.10.11.0 [20/20] via 10.10.9.1, 00:19:49

B       10.10.12.0 [20/0] via 10.10.9.1, 00:44:50

r5#   ping 1.1.1.1



Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 1.1.1.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 148/288/460 ms
r5#ping 2.2.2.2



Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 2.2.2.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 364/440/548 ms
r5#ping 3.3.3.3



Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 3.3.3.3, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 12/212/396 ms
r5#ping 4.4.4.4



Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 4.4.4.4, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 480/580/764 ms
