android audiorecord 简单 使用,Android AudioRecord 的使用

AudioRecord

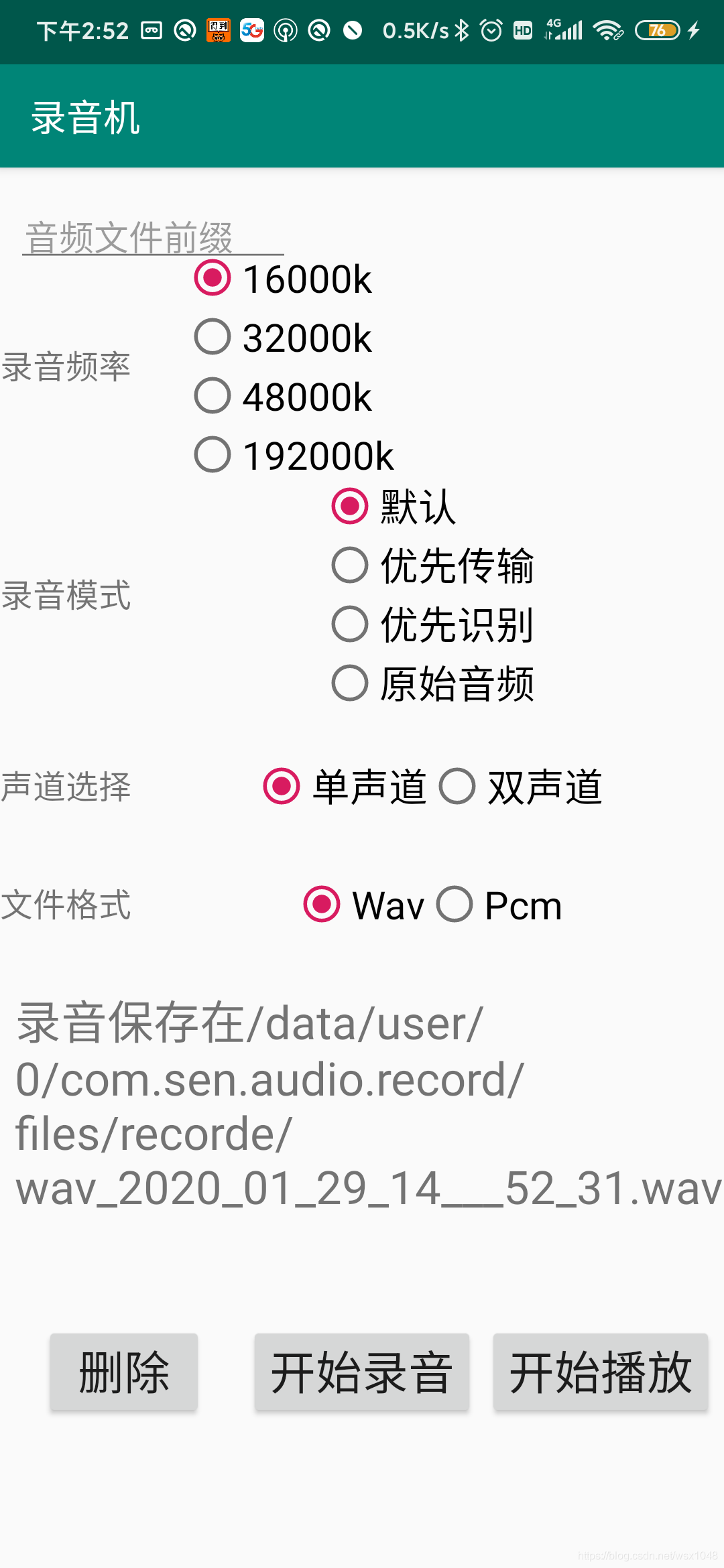

本工程实现pcm多配置(采样率、文件格式可选)的录音和播放工具，可用户音频的录制。

工程代码:https://github.com/worson/AudioRecord.git

录音参数

在安卓应用中，使用AudioRecord可实现更灵活的录音配置，AudioRecord录制的是原始的pcm数据。

AudioRecord的构造方法如下：

AudioRecord(int audioSource, int sampleRateInHz, int channelConfig, int audioFormat, int bufferSizeInBytes)

audioSource: 音频录制的音原，具体如下

MediaRecorder.AudioSource.CAMCORDER

设定录音来源于同方向的相机麦克风相同，若相机无内置相机或无法识别，则使用预设的麦克风

MediaRecorder.AudioSource.DEFAULT 默认音频源

MediaRecorder.AudioSource.MIC

设定录音来源为主麦克风。

MediaRecorder.AudioSource.VOICE_CALL

设定录音来源为语音拨出的语音与对方说话的声音

MediaRecorder.AudioSource.VOICE_COMMUNICATION

摄像头旁边的麦克风

MediaRecorder.AudioSource.VOICE_DOWNLINK

下行声音

MediaRecorder.AudioSource.VOICE_RECOGNITION

语音识别

MediaRecorder.AudioSource.VOICE_UPLINK

上行声音

sampleRateInHz:音频采样率，即可每秒中采集多少个音频数据

channelConfig: 录音通道，单通道为 AudioFormat.CHANNEL_CONFIGURATION_MONO，双通道为AudioFormat.CHANNEL_CONFIGURATION_STEREO

audioFormat: 音频每个采样点的位数，即音频的精度，通道选用AudioFormat.ENCODING_PCM_16BIT即pcm 16位即可

bufferSizeInBytes: 音频数据写入缓冲区的总数，通过 AudioRecord.getMinBufferSize 获取最小的缓冲区。

关于音频数据量的计算

对于采样率为16k位深有16bit的录制参数，每秒钟的byte数为:16000*2=32000，即每分钟为:32000*60 byte/min= 1.875 MB/min的数据量

录音流程

创建录音机

public PcmRecorder(int audioSource, int sampleRate, int channelCnt, Context context, RecordListener listener) {

mListener = listener;

int channelConfig = channelCnt == 1 ? AudioFormat.CHANNEL_CONFIGURATION_MONO : AudioFormat.CHANNEL_CONFIGURATION_STEREO;

int minBufSize = AudioRecord.getMinBufferSize(sampleRate, channelConfig, AUDIO_FORMAT);

mBufSize = minBufSize;

int bufferSizeInBytes = minBufSize;

AILog.i(TAG, "PcmRecorder: bufferSizeInBytes " + bufferSizeInBytes);

mAudioRecord = new AudioRecord(audioSource, sampleRate, channelConfig, AUDIO_FORMAT, bufferSizeInBytes);

AILog.d(TAG, "state: " + mAudioRecord.getState());

}

开始录音

开始录音，并创建数据读取线程

public void start() {

AILog.d(TAG, "onStartRecord");

mAudioRecord.startRecording();

mRecording = true;

mRecordThread = new RecordThread("RecordThread");

mRecordThread.start();

if (mListener != null) {

mListener.onStartRecord();

} else {

AILog.w(TAG, "start: mListener is null");

}

}

读取音频数据

不断读取 Buffer 中声音数据，并回调上层应用处理

class RecordThread extends Thread {

public RecordThread(String name) {

super(name);

}

@Override

public void run() {

AILog.v(TAG, "thread run");

Process.setThreadPriority(Process.THREAD_PRIORITY_URGENT_AUDIO);

if (mAudioRecord.getState() == AudioRecord.STATE_UNINITIALIZED) {

AILog.d(TAG, "unInit");

return;

}

byte[] buffer = new byte[mBufSize];

while (!mStopFlag) {

int len = mAudioRecord.read(buffer, 0, buffer.length);

if (len != mBufSize) {

AILog.e(TAG, "record read error:" + len);

}

if (mListener != null) {

mListener.onRecordData(buffer);

continue;

}

}

AILog.v(TAG, "thread end");

}

}

停止录音

停止录音并释放相关资源

public void stop() {

AILog.d(TAG, "stopRecord");

mStopFlag = true;

mRecording = false;

try {

mRecordThread.join();

} catch (InterruptedException e) {

AILog.d(TAG, "InterruptedException " + e.getMessage());

} finally {

if (mListener != null) {

mListener.onStopRecord();

} else {

AILog.d(TAG, "stop: mListener is null");

}

mAudioRecord.stop();

mAudioRecord.release();

}

mListener = null;

}

上层应用调用

private void startRecord() {

AILog.i(TAG, "startRecord: ");

checkEnvirement();

if (rb_channel_dual.isChecked()) {

mRecorder = new PcmRecorder(getAudioSource(), getAudioFrequecy(), 2);

} else {

mRecorder = new PcmRecorder(getAudioSource(), getAudioFrequecy(), 1);

}

try {

mOutputStream = new FileOutputStream(mTempRecordFile);

mRecorder.setRecordListener(mRecordListener);

mRecorder.start();

tv_tips.setText("正在录音...");

bt_recorder.setText("结束录音");

bt_play.setVisibility(View.INVISIBLE);

bt_delete.setVisibility(View.INVISIBLE);

} catch (FileNotFoundException e) {

e.printStackTrace();

tv_tips.setText("录音启动失败...");

}

}

private RecordListener mRecordListener = new RecordListener() {

@Override

public void onStartRecord() {

AILog.i(TAG, "onStartRecord: ");

}

@Override

public void onRecordData(byte[] bytes) {

try {

mOutputStream.write(bytes);

} catch (IOException e) {

e.printStackTrace();

}

}

@Override

public void onStopRecord() {

AILog.i(TAG, "onStopRecord: ");

//保存文件

}

};
