办法总比困难多（不会或不想用WPF MVVM模式也可以搞工控自动化和上位机编程）...



正文

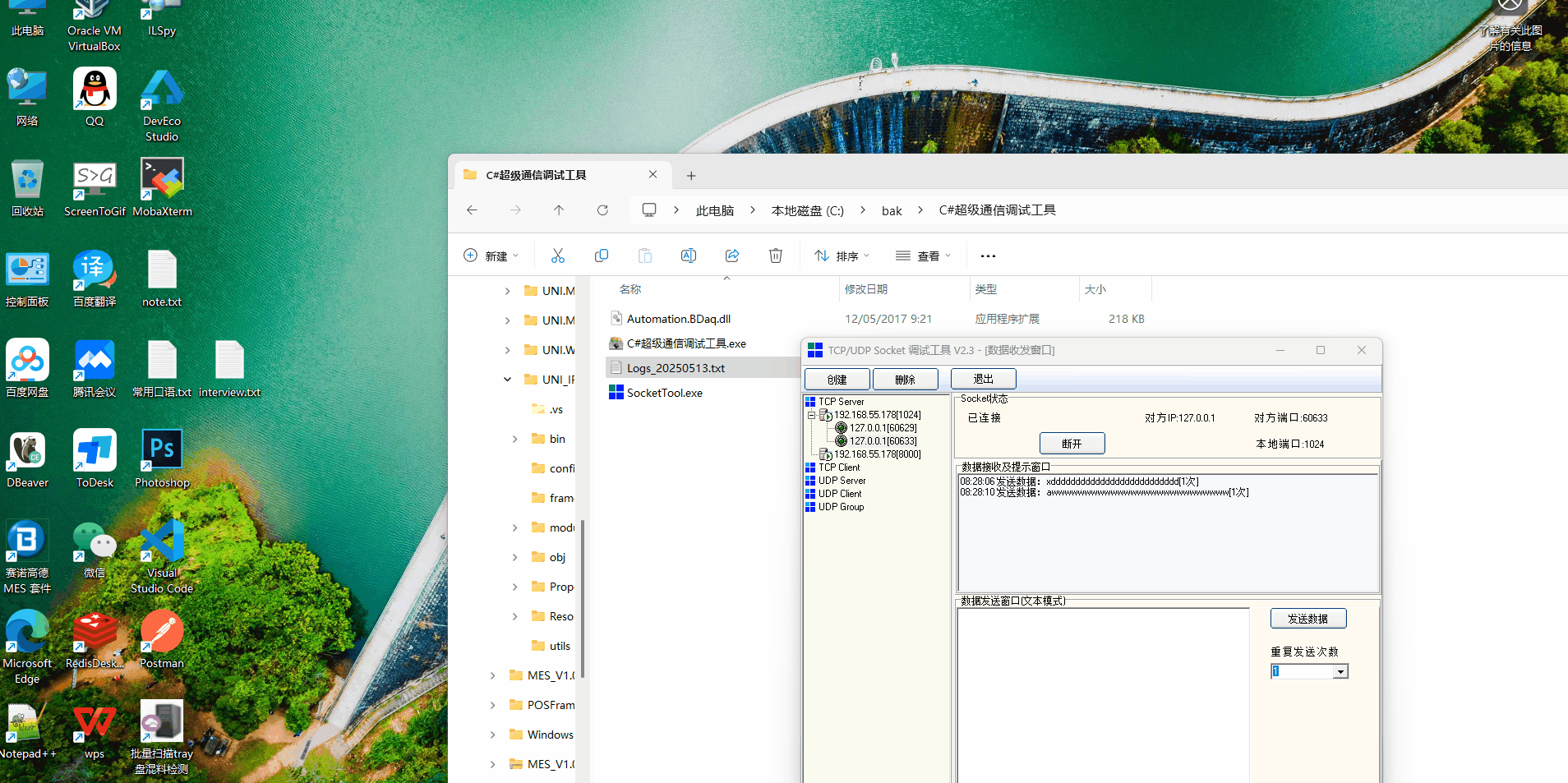

活到老就该学到老。但是难道我们不可以偷懒么，老技术指哪打哪，游刃有余，如果已经炉火纯青，那么解决问题又快又好它不香吗。本文拒绝讨论技术谁优秀谁该被鄙视。上图的流程是花2天时间搞好的，我不是得瑟有什么不得了的地方。我见很多人都在探讨MVVM，数据驱动业务多么的了不起，其实老技术Winform一样的能办到不信你问问DeepSeek让它给你一个示例代码。比如这样子的，点这里下载。如果只是这么简单的话，就没有写本文的必要了。

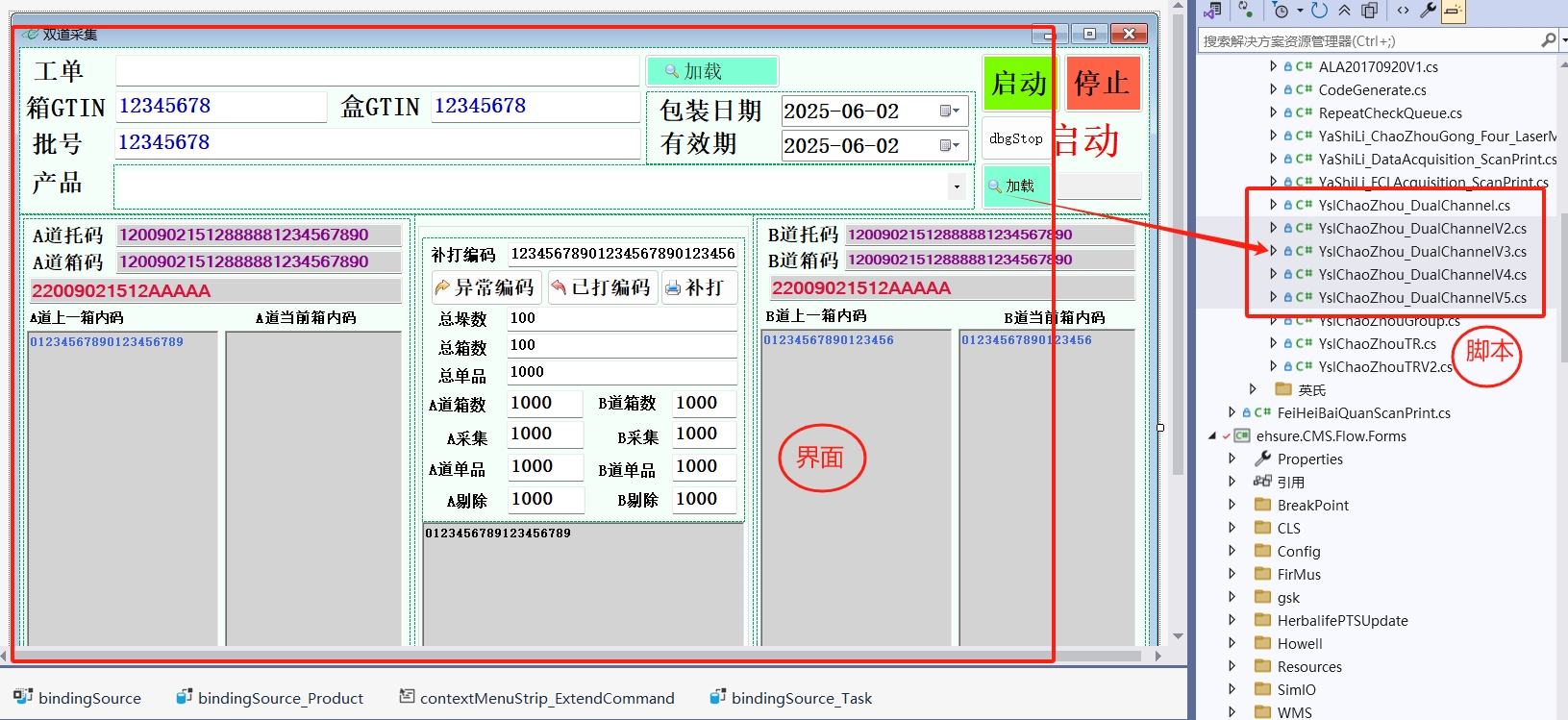

我们看看上图的场景，因为现场的实际方案没有最终确定，所以开发人员写了5个版本的代码来验证5种流程，但界面就1个，因为业务的数据是一样的。像这种情况我们这种解决方式是极好的。写代码的同事只需要初级程序员就可以担任。帮忙验证和测试是由高级程序员来担任。我贴一些源码来辅助说明一下是怎么实现的。

1.界面的基类：

?

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 334 335 336 337 338 339 340 341 342 343 344 345 346 347 348 349 350 351 352 353 354 355 356 357 358 359 360 361 362 363 364 365 366 367 368 369 370 371 372 373 374 375 376 377 378 379 380 381 382 383 384 385 386 387 388 389 390 391 392 393 394 395 396 397 398 399 400 401 402 403 404 405 406 407 408 409 410 411 412 413 414 415 416 417 418 419 420 421 422 423 424 425 426 427 428 429 430 431 432 433 434 435 436 437

using System; using System.Collections.Generic; using System.Threading; using System.Windows.Forms; using MES.Core; using EES.Common; using EES.Controls.Win; using EES.Common.Data; using System.ComponentModel; using System.Runtime.InteropServices; using System.Text; using System.Linq; using WinControls; using DataCool_MES.framework; using DataCool_MES.config; using DataCool_MES.utils; using System.Drawing;   namespace DataCool_MES {      public delegate void FeedInfoHandler( object sender, Exception ex, string message, MessageTipsLevel level);      /// <summary>      /// 业务窗体基类      /// </summary>      public partial class BaseModuleForm : DockBaseWorkForm      {          #region DllImport          [DllImport( "kernel32" )]          public static extern long WritePrivateProfileString( string section, string key, string val, string filepath);          [DllImport( "kernel32" )]          public static extern int GetPrivateProfileString( string section, string key, string def, StringBuilder retval, int size, string filePath);            [DllImport( "imm32.dll" )]          public static extern IntPtr ImmGetContext(IntPtr hwnd);          [DllImport( "imm32.dll" )]          public static extern bool ImmGetOpenStatus(IntPtr himc);          [DllImport( "imm32.dll" )]          public static extern bool ImmSetOpenStatus(IntPtr himc, bool b);          [DllImport( "imm32.dll" )]          public static extern bool ImmGetConversionStatus(IntPtr himc, ref int lpdw, ref int lpdw2);          [DllImport( "imm32.dll" )]          #endregion          public static extern int ImmSimulateHotKey(IntPtr hwnd, int lngHotkey);          private const int IME_CMODE_FULLSHAPE = 0x8;          private const int IME_CHOTKEY_SHAPE_TOGGLE = 0x11;          private SynchronizationContext sc;          protected string onceScanData = string .Empty;          private BarCodeHooK hook;          IModuleFlow coreFlowObj;          // 获取屏幕分辨率          private Rectangle primaryScreen;          private float scaleX;  // 基准分辨率宽度          private float scaleY;          [Browsable( false )]          public IModuleFlow CoreFlowObj          {              get { return coreFlowObj; }          }          [Browsable( false )]          /// <summary>          /// 日志记录处理异常信息显示处理对象          /// 此处用于各种日志和状态信息的记录，并进行对应的信息的显示          /// </summary>          internal virtual AlertLog Log          {              get              {                  return null ;              }          }                 protected event Action CursorBegin;          protected event Action CursorEnd;                          /// <summary>          /// 实例化脚本对象          /// </summary>          /// <returns></returns>          protected virtual IModuleFlow CreateModuleFlow()          {              return null ;          }          public BaseModuleForm()          {              DoubleBuffered = true ;              ImeMode = ImeMode.Off;              AutoScaleMode = AutoScaleMode.None;              InitializeComponent();              #region Cursor              CursorBegin = () =>              {                  Clear();                  Cursor = Cursors.WaitCursor;              };              CursorEnd = () =>              {                  Cursor = Cursors.Default;              };              #endregion              Load += BaseModuleForm_Load;              hook = new BarCodeHooK();              hook.BarCodeEvent += Hook_BarCodeEvent;              hook.Start();              FormClosed += BaseModuleForm_FormClosed;          }          private void BaseModuleForm_FormClosed( object sender, FormClosedEventArgs e)          {              try              {                  hook.Stop();                  hook.BarCodeEvent -= Hook_BarCodeEvent;                  hook = null ;              }              catch (Exception ex)              {                  FrameAppContext.GetInstance().AppLogger.Error(ex);              }          }            private void Hook_BarCodeEvent(BarCodeHooK.BarCodes barCode)          {              if (CoreFlowObj != null && FlowContext.Instance.WorkStatus == WorkStatus.Running && ! string .IsNullOrEmpty(barCode.BarCode))              {                  onceScanData = TrimSpecialChar(barCode.BarCode);                  CoreFlowObj.OnExecScanReceiving(onceScanData);              }          }          private void BaseModuleForm_Load( object sender, EventArgs e)          {              sc = SynchronizationContext.Current;              if (!DesignMode)              {                  Input = FlowContext.Instance;                  FlowContext.Instance.FlowCustomEvent += OnRaiseFlowCustomEvent;              }          }          private void OnRaiseFlowCustomEvent( object sender, TEventArgs<EventClass> e)          {              sc.Post( new SendOrPostCallback( delegate ( object obj)              {                  OnFlowCustomEvent((EventClass)obj);              }), e.Data);          }            protected virtual void OnFlowCustomEvent(EventClass ec)          {              if (ec.EventType == FlowViewCommand.ClearCurText)              {                  Clear();              }          }          /// <summary>          /// 获取当前窗体绑定的上下文对象          /// </summary>          /// <returns></returns>          public virtual BindingType GetBindingType()          {              Type type;              if (bindingSource.DataSource is Type)              {                  type = (Type)bindingSource.DataSource;              }              else              {                  if (bindingSource.DataSource != null )                  {                      type = bindingSource.DataSource.GetType();                  }                  else                  {                      type = null ;                  }              }              if (type == null )              {                  throw new Exception( "界面输入的数据源为空" );              }              BindingType bindingType = new BindingType();              Type type2;              if (type.GUID == typeof (DataCollection<>).GUID)              {                  type2 = type.GetGenericArguments()[0];                  bindingType.IsArray = true ;              }              else              {                  if (type.GUID == typeof (List<>).GUID)                  {                      type2 = type.GetGenericArguments()[0];                      bindingType.IsArray = true ;                  }                  else                  {                      type2 = type;                      bindingType.IsArray = false ;                  }              }              bindingType.Type = Factory.getRawType(type2);              return bindingType;          }            public virtual void Start()          {              if (coreFlowObj != null && FlowContext.Instance.WorkStatus == WorkStatus.Running)                  return ;              IModuleFlow core = null ;              try              {                  CursorBegin.Invoke();                  if (CoreFlowObj != null )                      throw new Exception( "正在作业，不能启动！" );                  core = CreateModuleFlow();                  if (core != null )                  {                      core.FeedInfo += OnFeedInfo;                      core.ExecBeginWork();                      coreFlowObj = core;                      FlowContext.Instance.WorkStatus = WorkStatus.Running;                  }                  ImeMode = ImeMode.NoControl;                  Log.SetLogFocus();              }              catch (Exception ex)              {                  FlowContext.Instance.WorkStatus = WorkStatus.NoAction;                  if (coreFlowObj != null )                  {                      coreFlowObj.FeedInfo -= OnFeedInfo;                      coreFlowObj = null ;                  }                  throw ex;              }              finally              {                  if (FlowContext.Instance.WorkStatus == WorkStatus.Running)                  {                      onceScanData = string .Empty;                  }                  CursorEnd.Invoke();              }          }            public virtual void Stop()          {              if (CoreFlowObj != null )              {                  try                  {                      var configObj = SerializerHelper.LoadFromXML<AppContentConfig>(FrameAppContext.GetInstance().RunTimeConfigPath + "\\AppContentConfig.Config" );                      if (configObj != null && ! string .IsNullOrEmpty(configObj.EntryModuleName) && configObj.EntryModuleName.Equals( "成品装箱作业" ))                      {                          using ( var dlgFrm = new FlowStopCheckForm())                          {                              var dlg = dlgFrm.ShowDialog();                              if (dlg == DialogResult.OK && !FlowContext.Instance.IsEndPacking)                              {                                  CoreFlowObj.ExecEndWork();                                  coreFlowObj = null ;                                  FlowContext.Instance.WorkStatus = WorkStatus.Stopped;                              }                              if (dlg == DialogResult.OK && FlowContext.Instance.IsEndPacking)                              {                                  CoreFlowObj.StopWorkCheck();                              }                          }                      }                      else                      {                          CoreFlowObj.ExecEndWork();                          coreFlowObj = null ;                          FlowContext.Instance.WorkStatus = WorkStatus.Stopped;                      }                  }                  catch (Exception ex)                  {                      Exception error = new Exception( "流程执行异常停止，" + ex.InnerException == null ? ex.Message : ex.InnerException.Message);                      FrameAppContext.GetInstance().AppLogger.Error(error);                  }                  finally                  {                      Clear();                      if (FlowContext.Instance.WorkStatus != WorkStatus.Running)                      {                          Log.Write( "作业已经停止！" , "" , MessageTipsLevel.Warning);                          FrameAppContext.GetInstance().AppLogger.Info( "作业已经停止！" );                          FlowContext.Instance.ResetContext();                      }                      Utility.GCFullCollect();                  }              }          }            public virtual void Pause()          {              coreFlowObj.ExecPauseWork();              coreFlowObj = null ;              FlowContext.Instance.WorkStatus = WorkStatus.Pauseing;              Clear();              Log.Write( "作业已经暂停！" , "" , MessageTipsLevel.Warning);          }            /// <summary>          /// 界面UI控件的绑定数据清理          /// 此处为虚函数，用于UI派生界面的具体绑定调用处理          /// </summary>          protected virtual void Clear()          {          }            /// <summary>          /// 异常信息消息处理队列的回调函数          /// 主要用于各种消息或异常信息的分类处理          /// </summary>          /// <param name="sender"></param>          /// <param name="ex">异常消息结构体</param>          /// <param name="message">异常消息</param>          /// <param name="level">异常消息级别</param>          protected void OnFeedInfo( object sender, Exception ex, string message, MessageTipsLevel level)          {              if (Log == null )              {                  throw new Exception( "AlertLog对象没有绑定或实例化！" );              }              if (ex != null )              {                  Log.Write( string .Format( "{0}:->" , DateTime.Now.ToString( "MM/dd HH:mm:ss" )), ex.Message, MessageTipsLevel.Error, true );              }              else              {                  Log.Write( string .Format( "{0}:->" , DateTime.Now.ToString( "MM/dd HH:mm:ss" )), message, level, true );              }          }          /// <summary>          /// 响应扫描枪输入          /// </summary>          /// <param name="msg"></param>          /// <param name="keyData"></param>          /// <returns></returns>          protected override bool ProcessCmdKey( ref Message msg, Keys keyData)          {              #region 快捷键              if (msg.Msg == 0x0100 && ContextMenuStrip != null )              {                  foreach (ToolStripMenuItem item in ContextMenuStrip.Items)                  {                      if (keyData == item.ShortcutKeys)                      {                          item.PerformClick();                      }                  }              }              #endregion              if (FlowContext.Instance.WorkStatus != WorkStatus.Running)                  return base .ProcessCmdKey( ref msg, keyData);              else                  return true ;          }          /// <summary>          /// 截取特殊字符          /// </summary>          /// <param name="inputString"></param>          /// <returns></returns>          protected virtual string TrimSpecialChar( string inputString)          {              return inputString.Replace( "\u0010" , "" );          }            /// <summary>          /// 动态绑定DataGridView的列          /// </summary>          /// <param name="t"></param>          /// <param name="dgv"></param>          protected virtual void BingGridColumn(Type t, DataGridView dgv)          {              dgv.Columns.Clear();              var props = t.GetProperties().Where(prop => prop.GetCustomAttributes( typeof (DisplayNameAttribute), false ).Any());              int col_width = dgv.Width / props.Count() - 8;              foreach ( var prop in props)              {                  DisplayNameAttribute attrib = (DisplayNameAttribute)prop.GetCustomAttributes( typeof (DisplayNameAttribute), false ).FirstOrDefault();                  if (prop.GetCustomAttributes( typeof (ProgressBarCellAttribute), false ).Any())                  {                      DataGridViewProgressBarColumn dc = new DataGridViewProgressBarColumn();                      dc.Name = "col" + prop.Name;                      dc.HeaderText = attrib.DisplayName;                      dc.DataPropertyName = prop.Name;                      dc.Width = col_width;                      dgv.Columns.Add(dc);                  }                  else                  {                      DataGridViewTextBoxColumn dc = new DataGridViewTextBoxColumn();                      dc.Name = "col" + prop.Name;                      dc.HeaderText = attrib.DisplayName;                      dc.DataPropertyName = prop.Name;                      dc.Width = col_width;                      dgv.Columns.Add(dc);                  }              }          }          /// <summary>          /// 窗体激活时设置输入法是半角          /// </summary>          /// <param name="e"></param>          protected override void OnActivated(EventArgs e)          {              base .OnActivated(e);              IntPtr HIme = ImmGetContext( this .Handle);              if (ImmGetOpenStatus(HIme)) //如果输入法处于打开状态              {                  int iMode = 0;                  int iSentence = 0;                  bool bSuccess = ImmGetConversionStatus(HIme, ref iMode, ref iSentence); //检索输入法资讯                  if (bSuccess)                  {                      if ((iMode & IME_CMODE_FULLSHAPE) > 0) //如果是全形                          ImmSimulateHotKey( this .Handle, IME_CHOTKEY_SHAPE_TOGGLE); //转换成半形                  }              }          }            /// <summary>          /// 缩放控件          /// </summary>          /// <param name="control"></param>          protected void ScaleControl(Control control)          {              control.Left = ( int )(control.Left * scaleX);              control.Top = ( int )(control.Top * scaleY);              control.Width = ( int )(control.Width * scaleX);              control.Height = ( int )(control.Height * scaleY);              foreach (Control child in control.Controls)              {                  ScaleControl(child);              }          }      } }

　　2、代码的基类

?

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158

using EES.Common; using System; using MES.Core;   namespace DataCool_MES {      /// <summary>      /// 脚本的基类      /// </summary>      public abstract class ModuleBaseFlow : IModuleFlow      {          /// <summary>          /// 传递消息的事件          /// </summary>          public event FeedInfoHandler FeedInfo;            protected FlowContext flowContext = FlowContext.Instance;          //是否是调试模式          protected bool debugMode = false ;          //是否显示过程明细信息          protected bool showDetail = false ;          /// <summary>          /// 采集到数据后发生          /// </summary>          /// <param name="data"></param>          public virtual void OnExecScanReceiving( string data)          {              FrameAppContext.GetInstance().AppLogger.Info(data);          }            /// <summary>          /// 触发消息传递          /// </summary>          /// <param name="sender"></param>          /// <param name="ex"></param>          /// <param name="message"></param>          /// <param name="level"></param>          protected virtual void OnFeedInfo( object sender, Exception ex, string message, MessageTipsLevel level)          {              FeedInfo?.Invoke(sender, ex, message, level);              if (ex != null )                  OnException(ex);          }          /// <summary>          /// 手动处理脚本触发的异常          /// </summary>          /// <param name="ex"></param>          protected virtual void OnException(Exception ex)          {          }          /// <summary>          /// 触发抛出异常          /// </summary>          /// <param name="sender"></param>          /// <param name="message"></param>          /// <param name="args"></param>          protected virtual void RaiseException( object sender, string message, params object [] args)          {              OnFeedInfo(sender, new Exception( string .Format(message, args)), message, MessageTipsLevel.Error);              if (!message.Contains( "由于目标计算机积极拒绝" ))                  throw new Exception(message);          }          /// <summary>          /// 触发消息提示          /// </summary>          /// <param name="sender"></param>          /// <param name="message"></param>          protected void RaiseInfo( object sender, string message)          {              OnFeedInfo(sender, null , message, MessageTipsLevel.Information);          }          /// <summary>          /// 触发警告信息          /// </summary>          /// <param name="sender"></param>          /// <param name="message"></param>          protected void RaiseWarning( object sender, string message)          {              OnFeedInfo(sender, null , message, MessageTipsLevel.Warning);          }            /// <summary>          /// 脚本触发界面自定义事件响应          /// </summary>          /// <param name="eventType"></param>          /// <param name="portKey"></param>          /// <param name="portName"></param>          /// <param name="data"></param>          public virtual void RaiseCustomEvent( string eventType, string portKey, string portName, object data)          {              try              {                  FlowContext.Instance.RaiseCustomEvent( this , eventType, portKey, portName, data);              }              catch (Exception ex)              {                  RaiseException( this , ex.Message);              }          }          /// <summary>          /// 执行开始作业          /// </summary>          public virtual void ExecBeginWork()          {              try              {                  BeforeWorkInit();              }              catch (Exception ex)              {                  throw ex;              }          }          /// <summary>          /// 执行结束作业          /// </summary>          public virtual void ExecEndWork()          {          }          /// <summary>          /// 执行暂停作业          /// </summary>          public virtual void ExecPauseWork()          {              try              {                  PauseWorkCache();              }              catch (Exception ex)              {                  throw ex;              }              finally              {                  FlowContext.Instance.ResetContext();              }          }          /// <summary>          /// 开始作业前初始化          /// </summary>          protected virtual void BeforeWorkInit()          {              RaiseInfo( this , "作业条件检查中..." );          }          /// <summary>          /// 结束作业时执行检查          /// </summary>          public virtual void StopWorkCheck()          {          }          /// <summary>          /// 暂停作业时缓存业务临时数据          /// </summary>          protected virtual void PauseWorkCache()          {          }      } }

　　3.业务窗体

?

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 334 335 336 337 338 339 340 341 342 343 344 345 346 347 348 349 350 351 352 353 354 355 356 357 358 359 360 361 362 363 364 365 366 367 368 369 370 371 372 373 374 375 376 377 378 379 380 381 382 383 384 385 386 387 388 389 390 391 392 393 394 395 396 397 398 399 400 401 402 403 404 405 406 407 408 409 410 411 412 413 414 415 416 417 418 419 420 421 422 423 424 425 426

using System; using System.Collections.Generic; using System.ComponentModel.Composition; using System.ComponentModel.Composition.Hosting; using System.Data; using System.Linq; using System.Reflection; using System.Text; using System.Threading; using System.Windows.Forms; using MES.Core; using MES.Services; using DataCool_MES.modules.dto; using MES.Services.ModuleFlowServices; using System.Net.Sockets; using System.IO; using WinControls;   namespace DataCool_MES.modules {      [FullScreenStyle( true )]      [View( "批量扫描tray盘混料检测" , EntryType.入口, "一次产品检验" , "包装作业" )]      public partial class BatchPackForm : BaseModuleForm      {          [Import]          protected IModuleFlowFormService ModuleFlowFormService { get ; set ; }          //已扫记录          private List<BatchScanLogDto> LogData = new List<BatchScanLogDto>();          private BatchScanLogDto currentBarcodeData = null ;          private WorkStationConfig config;          private TcpClient cameraClient;          private TcpClient transmitDeviceClient;          private byte [] buffer = new byte [2048];          public BatchPackForm()          {              DoubleBuffered = true ;              CheckForIllegalCrossThreadCalls = false ;              InitializeComponent();              config = SerializerHelper.LoadFromXML<WorkStationConfig>(AppDomain.CurrentDomain.BaseDirectory + "Config\\" + "WorkStationConfig.xml" );              if (config != null )              {                  FlowContext.Instance.TraySpecifications = config.TraySpecifications;              }              Load += BatchPackForm_Load;              FormClosed += BatchPackForm_FormClosed;          }          private void BatchPackForm_FormClosed( object sender, FormClosedEventArgs e)          {              if (transmitDeviceClient != null )              {                  try                  {                      transmitDeviceClient.Client?.Disconnect( false );                      transmitDeviceClient.Client?.Close();                      transmitDeviceClient?.Close();                      transmitDeviceClient = null ;                  }                  catch                  {                  }              }              Program.Quit();          }            AlertLog log;            internal override AlertLog Log          {              get              {                  if (log == null )                  {                      Interlocked.CompareExchange( ref log, new AlertLog(richTextBox1), null );                  }                  return log;              }          }            private void BatchPackForm_Load( object sender, EventArgs e)          {              var catalog = new AssemblyCatalog(Assembly.GetExecutingAssembly());              var container = new CompositionContainer(catalog);              container.ComposeParts( this , new FlowWorkService());              if (!System.Diagnostics.Debugger.IsAttached)              {                  btnStart.DataBindings.Add( new Binding( "Enabled" , FlowContext.Instance, "IsStoped" , false , DataSourceUpdateMode.OnPropertyChanged));                  btnStop.DataBindings.Add( new Binding( "Enabled" , FlowContext.Instance, "IsRunning" , false , DataSourceUpdateMode.OnPropertyChanged));              }                if (config != null && ! string .IsNullOrEmpty(config.TransmissionDeviceIP))              {                  try                  {                      transmitDeviceClient = new TcpClient();                      transmitDeviceClient.BeginConnect(config.TransmissionDeviceIP, config.TransmissionDevicePort, new AsyncCallback(ConnectCallback2), transmitDeviceClient);                    }                  catch (Exception ex)                  {                      FrameAppContext.GetInstance().AppLogger.Error(ex);                  }              }          }            protected override IModuleFlow CreateModuleFlow()          {              return new BatchScanWorkFlow(ModuleFlowFormService);          }          protected override void Clear()          {              richTextBox1.Text = "" ;          }          private void btnStart_Click( object sender, EventArgs e)          {              try              {                  Start();                  if (FlowContext.Instance.WorkStatus == WorkStatus.Running)                  {                      cameraClient = new TcpClient();                      cameraClient.BeginConnect(config.CameraIP, config.CameraPort, new AsyncCallback(ConnectCallback), cameraClient);                  }                  if (FlowContext.Instance.WorkStatus == WorkStatus.Running)                  {                      try                      {                          if (transmitDeviceClient != null )                          {                              var sm = transmitDeviceClient.GetStream();                              SendCommandToDevice(sm, "OK" );                          }                          else                          {                              Log.Write( "" , "没有和传动设备建立连接！！！" , MessageTipsLevel.Error);                          }                      }                      catch (Exception ex)                      {                          Log.Write( "" , "和传动设备通信失败！！！" + Environment.NewLine + ex.Message, MessageTipsLevel.Error);                      }                  }              }              catch (Exception ex)              {                  FrameAppContext.GetInstance().AppLogger.Error($ "{ex.Message}" );              }          }          void ConnectCallback(IAsyncResult ar)          {              TcpClient client = (TcpClient)ar.AsyncState;              try              {                  client.EndConnect(ar);                  NetworkStream stream = client.GetStream();                  if (stream != null )                  {                      buffer = new byte [2048];                      stream.BeginRead(buffer, 0, buffer.Length, new AsyncCallback(ReadCallback), stream);                  }              }              catch (Exception ex)              {                  log.Write( "" , ex.Message, MessageTipsLevel.Error);              }          }          void ReadCallback(IAsyncResult ar)          {              NetworkStream stream = (NetworkStream)ar.AsyncState;              if (FlowContext.Instance.WorkStatus != WorkStatus.Running)                  return ;              int bytesRead = stream.EndRead(ar);              string responseData = Encoding.ASCII.GetString(buffer, 0, bytesRead);              log.Write( "" , $ "Received: {Environment.NewLine}{responseData}" , MessageTipsLevel.Information);              FrameAppContext.GetInstance().AppLogger.Info(Environment.NewLine + responseData);              if (! string .IsNullOrEmpty(responseData) && responseData.IndexOf( "+" ) != -1)              {                  ScanLog(responseData);              }              buffer = new byte [2048];              stream.BeginRead(buffer, 0, buffer.Length, new AsyncCallback(ReadCallback), stream);          }          private void BtnStop_Click( object sender, EventArgs e)          {              try              {                  Stop();                  var config = SerializerHelper.LoadFromXML<WorkStationConfig>(AppDomain.CurrentDomain.BaseDirectory + "Config\\" + "WorkStationConfig.xml" );                  FlowContext.Instance.TraySpecifications = config.TraySpecifications;                  if (config != null && ! string .IsNullOrEmpty(config.TraySpecifications) &&                      config.TraySpecifications.IndexOf( "," ) == -1)                  {                      string [] cellData = config.TraySpecifications.Split( '*' );                      if (cellData.Length > 0)                      {                          FlowContext.Instance.TrayRowCount = Convert.ToInt32(cellData[1]);                          FlowContext.Instance.TrayCellCount = Convert.ToInt32(cellData[0]);                      }                  }                  if (cameraClient != null && FlowContext.Instance.WorkStatus != WorkStatus.Running)                  {                      cameraClient.Client?.Disconnect( false );                      cameraClient.Client?.Close();                      cameraClient?.Close();                      cameraClient = null ;                  }                  SendCommandToDevice(transmitDeviceClient.GetStream(), "NG" );              }              catch (Exception ex)              {                  FrameAppContext.GetInstance().AppLogger.Error($ "{ex.Message}" );              }          }          protected override void OnFlowCustomEvent(EventClass ec)          {              if (ec.EventType.Equals( "LoadData" ))              {                  DataAction(LoadData);              }              if (ec.EventType.Equals( "ExportResultData" ))              {                  DataAction(ExportLogToExcelFile);              }          }          /// <summary>          /// 从临时xml文件读取扫描历史记录          /// </summary>          private void SaveData()          {              if (!System.IO.Directory.Exists(AppDomain.CurrentDomain.BaseDirectory + "LocalData" ))              {                  System.IO.Directory.CreateDirectory(AppDomain.CurrentDomain.BaseDirectory + "LocalData" );              }              if (!System.IO.File.Exists(AppDomain.CurrentDomain.BaseDirectory + "LocalData\\" + DateTime.Now.ToString( "yyyyMMdd" ) + ".xml" ))              {                  SerializerHelper.SerializerToXML(AppDomain.CurrentDomain.BaseDirectory + "LocalData\\" + DateTime.Now.ToString( "yyyyMMdd" ) + ".xml" , LogData);              }              else              {                  System.IO.File.Delete(AppDomain.CurrentDomain.BaseDirectory + "LocalData\\" + DateTime.Now.ToString( "yyyyMMdd" ) + ".xml" );                  SerializerHelper.SerializerToXML(AppDomain.CurrentDomain.BaseDirectory + "LocalData\\" + DateTime.Now.ToString( "yyyyMMdd" ) + ".xml" , LogData);              }              FlowContext.Instance.L1Count = LogData.Count;              if (LogData.Count > 0)                  bindingSourceGrid.DataSource = LogData.OrderByDescending(t => t.ScanDatetime).ToList();          }          /// <summary>          /// 加载已有扫描记录          /// </summary>          private void LoadData()          {              if (!System.IO.Directory.Exists(AppDomain.CurrentDomain.BaseDirectory + "LocalData" ))              {                  System.IO.Directory.CreateDirectory(AppDomain.CurrentDomain.BaseDirectory + "LocalData" );              }              if (System.IO.File.Exists(AppDomain.CurrentDomain.BaseDirectory + "LocalData\\" + DateTime.Now.ToString( "yyyyMMdd" ) + ".xml" ))              {                  LogData = SerializerHelper.LoadFromXML<List<BatchScanLogDto>>(AppDomain.CurrentDomain.BaseDirectory + "LocalData\\" + DateTime.Now.ToString( "yyyyMMdd" ) + ".xml" );                  FlowContext.Instance.L1Count = LogData.Count;                  if (LogData.Count > 0)                      bindingSourceGrid.DataSource = LogData.OrderByDescending(t => t.ScanDatetime).ToList();                }          }          /// <summary>          /// 扫描到一组条码          /// </summary>          /// <param name="barcodeData"></param>          private void ScanLog( string barcodeData)          {              if (LogData.Any(t => t.BarcodeData == barcodeData))              {                  log.Write(DateTime.Now + "->:" , "重复扫描！" , MessageTipsLevel.Error);              }              else              {                  #region 传递收到的数据                  var entity = new BatchScanLogDto();                  entity.BarcodeData = barcodeData;                  entity.MaterialCode = FlowContext.Instance.MaterielCode;                  entity.ScanDatetime = DateTime.Now.ToString();                  entity.TraySpecifications = FlowContext.Instance.TraySpecifications;                  entity.ResourceText = barcodeData;                  currentBarcodeData = entity;                  #endregion                  //校验数据                  ThreeColorled1_Click(threeColorled1, new EventArgs());              }          }          private void ThreeColorled1_Click( object sender, EventArgs e)          {              //必须是符合业务场景的扫描数据              if (FlowContext.Instance.WorkStatus != WorkStatus.Running ||                  currentBarcodeData == null ||                  currentBarcodeData.BarcodeData.IndexOf( "+" ) == -1)                  return ;              #region 展示解析结果              BarcodeResultViewForm barcodeResultViewForm = new BarcodeResultViewForm(currentBarcodeData);              var diagResult = barcodeResultViewForm.ShowDialog();              if (diagResult == DialogResult.OK &&                  !LogData.Any(r => r.ResourceText == currentBarcodeData.ResourceText))              {                  threeColorled1.StatusCode = "1" ;                  log.Write( "" , "校验通过！" , MessageTipsLevel.Information);                  LogData.Add(barcodeResultViewForm.BarcodeData);                  DataAction(SaveData);                  FlowContext.Instance.L1Count = LogData.Count;                  SendCommandToDevice(transmitDeviceClient.GetStream(), "OK" );              }              else if (diagResult != DialogResult.OK &&                  !LogData.Any(r => r.ResourceText == currentBarcodeData.ResourceText))              {                  threeColorled1.StatusCode = "2" ;                  var sm = transmitDeviceClient.GetStream();                  SendCommandToDevice(sm, "NG" );                  log.Write( "" , $ "{Environment.NewLine}校验结果是有混料，不予通行！！！" , MessageTipsLevel.Warning);              }              #endregion          }          /// <summary>          /// 和传动设备建立Socket连接回调          /// </summary>          /// <param name="ar"></param>          void ConnectCallback2(IAsyncResult ar)          {              TcpClient client = (TcpClient)ar.AsyncState;              try              {                  client.EndConnect(ar);                  Log.Write( "" , "传动设备已准备就绪..." , MessageTipsLevel.Information);              }              catch (Exception ex)              {                  Log.Write( "" , "传动设备连接失败！" +ex.Message, MessageTipsLevel.Error);                  FrameAppContext.GetInstance().AppLogger.Error(ex);              }          }          /// <summary>          /// 给NetworkStream发送指令          /// </summary>          /// <param name="stream"></param>          /// <param name="cmd"></param>          private void SendCommandToDevice(NetworkStream stream, string cmd)          {              string command = cmd;              byte [] commandBuffer = ASCIIEncoding.ASCII.GetBytes(command);              stream.WriteAsync(commandBuffer, 0, commandBuffer.Length);          }          /// <summary>          /// 导出Excel文件(扫码原始记录)          /// </summary>          /// <param name="sender"></param>          /// <param name="e"></param>          private void BtnExport_Click( object sender, EventArgs e)          {              if (LogData.Count == 0)              {                  MessageTip.ShowError( "还没有通过检验的记录不能导出！" );              }              else              {                  ExportExcel exportExcel = new ExportExcel();                  string fileName = $ "{AppDomain.CurrentDomain.BaseDirectory + " LocalData "}\\{DateTime.Now.Date:yyyyMMdd}{FlowContext.Instance.MaterielCode}.xls" ;                  exportExcel.GridToExcel(fileName, this .dataGridView1);                  if (File.Exists(fileName))                  {                      MessageTip.ShowOk($ "Excel文件导出成功！" );                  }              }          }          /// <summary>          /// 导出Excel文件(MES要求的格式)          /// </summary>          private void ExportLogToExcelFile()          {              if (LogData.Count == 0)                  return ;              #region 临时表              var dt = new DataTable();              dt.Columns.Add( new DataColumn( "条码" , typeof ( string )));              foreach ( var logItem in LogData)              {                  string [] barcodeList = logItem.BarcodeData.Split( new char [] { ',' }, StringSplitOptions.RemoveEmptyEntries);                  foreach ( var barcode in barcodeList)                  {                      DataRow dr = dt.NewRow();                      dr[0] = barcode;                      dt.Rows.Add(dr);                  }              }              #endregion              try              {                  ExportExcel exportExcel = new ExportExcel();                  string fileName = $ "{AppDomain.CurrentDomain.BaseDirectory + " LocalData "}\\{DateTime.Now.Date:yyyyMMdd}{FlowContext.Instance.MaterielCode}(仅条码).xls" ;                  if (File.Exists(fileName))                      File.Delete(fileName);                  exportExcel.DataTableToExcel(fileName, dt);                  if (File.Exists(fileName))                  {                      MessageTip.ShowOk( "生产过程的全部条码已保存！" );                      string logMessage = $ "本次生产共计扫描条码{dt.Rows.Count}个，通过tray盘{LogData.Count}盘." ;                      log.Write( "" , logMessage, MessageTipsLevel.Information);                      FrameAppContext.GetInstance().AppLogger.Info(logMessage);                  }              }              catch (Exception ex)              {                  log.Write( "" , ex.Message, MessageTipsLevel.Error);              }              finally              {                  dt.Dispose();              }          }            private void button1_Click( object sender, EventArgs e)          {              Program.Quit();          }            private void richTextBox1_DoubleClick( object sender, EventArgs e)          {              Clear();          }      } }

　　4.流程代码

?

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152

using System; using System.ComponentModel.Composition; using System.IO; using System.Net; using System.Net.Sockets; using System.Text; using System.Windows.Forms; using MES.Core; using MES.Services;   namespace DataCool_MES.modules {      /// <summary>      /// 批量扫描作业流程      /// </summary>      public class BatchScanWorkFlow : ModuleBaseFlow      {          private TcpClient cameraClient;          protected IModuleFlowFormService ModuleFlowFormService { get ; set ; }          /// <summary>          /// 析构函数          /// </summary>          /// <param name="svr"></param>          public BatchScanWorkFlow(IModuleFlowFormService svr)          {              ModuleFlowFormService = svr;          }          /// <summary>          /// 和阅读器建立Socket连接回调          /// </summary>          /// <param name="ar"></param>          void ConnectCallback(IAsyncResult ar)          {              try              {                    TcpClient client = (TcpClient)ar.AsyncState;                  client?.EndConnect(ar);                  NetworkStream stream = client.GetStream();                  if (stream != null )                  {                      RaiseInfo( this , "读码器已准备就绪..." );                      if (client != null )                      {                          stream.Close();                          cameraClient?.Close();                      }                  }              }              catch (Exception ex)              {                  RaiseException( this , "读码器连接失败！！！错误码：" +ex.Message);              }                        }          /// <summary>          /// 给NetworkStream发送指令          /// </summary>          /// <param name="stream"></param>          /// <param name="cmd"></param>          private void SendCommandToDevice(NetworkStream stream, string cmd)          {              string command = cmd;              byte [] commandBuffer = ASCIIEncoding.ASCII.GetBytes(command);              stream.WriteAsync(commandBuffer, 0, commandBuffer.Length);          }          /// <summary>          /// 和传动设备建立Socket连接回调          /// </summary>          /// <param name="ar"></param>          void ConnectCallback2(IAsyncResult ar)          {              try              {                  TcpClient client = (TcpClient)ar.AsyncState;                  client?.EndConnect(ar);                  NetworkStream stream = client.GetStream();                  if (stream != null )                  {                      //发消息让皮带开始转动                      SendCommandToDevice(stream, "OK" );                  }              }              catch (Exception ex)              {                  RaiseException( this , "传动设备连接失败！！！错误码：" + ex.Message);              }          }          /// <summary>          /// 开始作业前准备工作          /// </summary>          protected override void BeforeWorkInit()          {              base .BeforeWorkInit();              if ( string .IsNullOrEmpty(FlowContext.Instance.TraySpecifications))              {                  RaiseException($ "{DateTime.Now}->:" , $ "必须设定容器的规格！" );              }              if ( string .IsNullOrEmpty(FlowContext.Instance.MaterielCodeHeader+FlowContext.Instance.MaterielCodeEnder))              {                  RaiseException($ "{DateTime.Now}->:" , $ "必须输入本次校验的物料代码！" );              }              flowContext.L1Count = 0;              RaiseCustomEvent( "LoadData" , "" , "" , "" );              var config = SerializerHelper.LoadFromXML<WorkStationConfig>(AppDomain.CurrentDomain.BaseDirectory + "Config\\" + "WorkStationConfig.xml" );              if (config != null && ! string .IsNullOrEmpty(config.CameraIP))              {                  try                  {                      cameraClient = new TcpClient();                      cameraClient.BeginConnect(config.CameraIP, config.CameraPort, new AsyncCallback(ConnectCallback), cameraClient);   }                  catch (Exception ex)                  {                      RaiseException( this , "" ,ex.Message);                  }              }              else              {                  RaiseException($ "{DateTime.Now}->:" , $ "必须设定阅读器的IP地址！" );              }              if (config != null && ! string .IsNullOrEmpty(config.TraySpecifications) && config.TraySpecifications.IndexOf( "," ) == -1)              {                  string [] cellData = config.TraySpecifications.Split( '*' );                  if (cellData.Length > 0)                  {                      flowContext.TrayRowCount = Convert.ToInt32(cellData[1]);                      flowContext.TrayCellCount = Convert.ToInt32(cellData[0]);                  }              }              FlowContext.Instance.MaterielCode= FlowContext.Instance.MaterielCodeHeader+FlowContext.Instance.MaterielCodeEnder;              RaiseInfo( this , "系统准备就绪..." );          }          /// <summary>          /// 扫描到一个条码          /// </summary>          /// <param name="data"></param>          public override void OnExecScanReceiving( string data)          {              RaiseCustomEvent( "ScanLog" , "" , "" , data);          }          /// <summary>          /// 结束本次作业          /// </summary>          public override void ExecEndWork()          {              base .ExecEndWork();              //导出扫描记录              RaiseCustomEvent( "ExportResultData" , "" , "" , "" );          }      } }

　　5.界面绑定代码

?

1 2 3 4

protected override IModuleFlow CreateModuleFlow() {      return new BatchScanWorkFlow(ModuleFlowFormService); }

　　

 界面和代码中间还有个上下文对象，也就是一个单例，貌似这样子：

?

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 334 335 336 337 338 339 340 341 342 343 344 345 346 347 348 349 350 351 352 353 354 355 356 357 358 359 360 361 362 363 364 365 366 367 368 369 370 371 372 373 374 375 376 377 378 379 380 381 382 383 384 385 386 387 388 389 390 391 392 393 394 395 396 397 398 399 400 401 402 403 404 405 406 407 408 409 410 411 412 413 414 415 416 417

using EES.Common; using MES.Core; using System; using System.ComponentModel;    namespace DataCool_MES {      /// <summary>      /// 工作流程上下文对象      /// </summary>      [Serializable]      public class FlowContext : SingletonProvider<FlowContext>, INotifyPropertyChanged      {          public System.Configuration.Configuration AppConfig { get ; set ; }          public event EventHandler<TEventArgs<EventClass>> FlowCustomEvent;          public event PropertyChangedEventHandler PropertyChanged;          private void OnPropertyChanged( string propertyName)          {              PropertyChanged?.Invoke( this , new PropertyChangedEventArgs(propertyName));          }            private WorkStatus workStatus;          /// <summary>          /// 工作流程运行状态          /// </summary>          public WorkStatus WorkStatus          {              get { return workStatus; }              set              {                  workStatus = value;                  OnPropertyChanged( "WorkStatus" );                  switch (value)                  {                      case WorkStatus.Running:                          IsRunning = true ;                          IsStoped = false ;                          WorkStatusName = "运行中..." ;                          break ;                      case WorkStatus.Pauseing:                          IsRunning = false ;                          IsStoped = true ;                          WorkStatusName = "暂停中..." ;                          break ;                      case WorkStatus.Stopped:                          IsRunning = false ;                          IsStoped = true ;                          WorkStatusName = "已经停止..." ;                          break ;                      default :                          IsRunning = false ;                          IsStoped = true ;                          WorkStatusName = "未启动" ;                          break ;                  }              }          }            private string workStation;          /// <summary>          /// 工位          /// </summary>          public string WorkStation          {              get { return workStation; }              set              {                  workStation = value;                  OnPropertyChanged( "WorkStation" );              }          }            private string _operator;          /// <summary>          /// 工位操作员          /// </summary>          public string Operator          {              get { return _operator; }              set { _operator = value; OnPropertyChanged( "Operator" ); }          }            private string lineNo;          /// <summary>          /// 线号          /// </summary>          public string LineNo          {              get { return lineNo; }              set { lineNo = value; OnPropertyChanged( "LineNo" ); }          }            private string _L1Code;          /// <summary>          /// PCBA条码          /// </summary>          public string L1Code          {              get { return _L1Code; }              set { _L1Code = value; OnPropertyChanged( "L1Code" ); }          }            private string _L2Code;          /// <summary>          /// 过程条码          /// </summary>          public string L2Code          {              get { return _L2Code; }              set { _L2Code = value; OnPropertyChanged( "L2Code" ); }          }            private string workStatusName;          /// <summary>          /// 状态状态描述信息          /// </summary>          public string WorkStatusName          {              get { return workStatusName; }              set { workStatusName = value; OnPropertyChanged( "WorkStatusName" ); }          }            private int _L1Count;          /// <summary>          /// 第一道工序计数          /// </summary>          public int L1Count          {              get { return _L1Count; }              set              {                  _L1Count = value;                  OnPropertyChanged( "L1Count" );              }          }            private int _L1CountEx = 0;          /// <summary>          /// 制令计数，可清零          /// </summary>          public int L1CountEx          {              get { return _L1CountEx; }              set              {                  _L1CountEx = value;                  OnPropertyChanged( "L1CountEx" );              }          }            private int _L2Count;          /// <summary>          /// 第二道工序计数          /// </summary>          public int L2Count          {              get { return _L2Count; }              set { _L2Count = value; OnPropertyChanged( "L2Count" ); }          }            private string _TraySpecifications;          /// <summary>          ///Tray Specifications          /// </summary>          public string TraySpecifications          {              get { return _TraySpecifications; }              set              {                  _TraySpecifications = value;                  OnPropertyChanged( "TraySpecifications" );              }          }            public int TrayCellCount          {              get ; set ;          }            public int TrayRowCount          {              get ; set ;          }            private string orderNo;          /// <summary>          /// 状态状态描述信息          /// </summary>          public string OrderNo          {              get { return orderNo; }              set              {                  orderNo = value;                  OnPropertyChanged( "OrderNo" );              }          }          private string _MaterielCode;          /// <summary>          /// 物料编码          /// </summary>          public string MaterielCode          {              get { return _MaterielCode; }              set { _MaterielCode = value; OnPropertyChanged( "MaterielCode" ); }          }            private string _MaterielCodeEnder;          /// <summary>          /// 物料编码          /// </summary>          public string MaterielCodeEnder          {              get { return _MaterielCodeEnder; }              set { _MaterielCodeEnder = value; OnPropertyChanged( "_MaterielCodeEnder" ); }          }          private string _MaterielCodeHeader;          /// <summary>          /// 物料编码          /// </summary>          public string MaterielCodeHeader          {              get { return _MaterielCodeHeader; }              set { _MaterielCodeHeader = value; OnPropertyChanged( "MaterielCodeHeader" ); }          }          private int progress;          /// <summary>          /// 本次扫描完成时的进度          /// </summary>          public int Progress          {              get { return progress; }              set { progress = value; OnPropertyChanged( "Progress" ); }          }            private bool isStoped = true ;          /// <summary>          /// WorkStatus是否已经停止          /// </summary>          public bool IsStoped          {              get { return isStoped; }              set { isStoped = value; OnPropertyChanged( "IsStoped" ); }          }            private bool isRunning = false ;          /// <summary>          /// WorkStatus是否正在运行          /// </summary>          public bool IsRunning          {              get { return isRunning; }              set { isRunning = value; OnPropertyChanged( "IsRunning" ); }          }            private string _Parameter1;          /// <summary>          /// 公用参数1          /// </summary>          public string Parameter1          {              get { return _Parameter1; }              set { _Parameter1 = value; OnPropertyChanged( "Parameter1" ); }          }            private string _Parameter2;          /// <summary>          /// 公用参数2          /// </summary>          public string Parameter2          {              get { return _Parameter2; }              set { _Parameter2 = value; OnPropertyChanged( "Parameter2" ); }          }            private string _Parameter3;          /// <summary>          /// 公用参数3          /// </summary>          public string Parameter3          {              get { return _Parameter3; }              set { _Parameter3 = value; OnPropertyChanged( "Parameter3" ); }          }            private string _Parameter4;          /// <summary>          /// 公用参数4          /// </summary>          public string Parameter4          {              get { return _Parameter4; }              set { _Parameter4 = value; OnPropertyChanged( "Parameter4" ); }          }            private string _Parameter5;          /// <summary>          /// 公用参数5          /// </summary>          public string Parameter5          {              get { return _Parameter5; }              set { _Parameter5 = value; OnPropertyChanged( "Parameter5" ); }          }            private string _Parameter6;          /// <summary>          /// 公用参数6          /// </summary>          public string Parameter6          {              get { return _Parameter6; }              set { _Parameter6 = value; OnPropertyChanged( "Parameter6" ); }          }            private string _Parameter7;          /// <summary>          /// 公用参数7          /// </summary>          public string Parameter7          {              get { return _Parameter7; }              set { _Parameter7 = value; OnPropertyChanged( "Parameter7" ); }          }            private string _Parameter8;          /// <summary>          /// 公用参数8          /// </summary>          public string Parameter8          {              get { return _Parameter8; }              set { _Parameter8 = value; OnPropertyChanged( "Parameter8" ); }          }            private string _Parameter9;          /// <summary>          /// 公用参数9          /// </summary>          public string Parameter9          {              get { return _Parameter9; }              set { _Parameter9 = value; OnPropertyChanged( "Parameter9" ); }          }            private int packagePCS;          /// <summary>          /// 二级包装，PCS数量          /// </summary>          public int PackagePCS_Count          {              get { return packagePCS; }              set { packagePCS = value; OnPropertyChanged( "PackagePCS_Count" ); }          }            private bool isEndPacking= false ;          /// <summary>          /// 是否是在装尾箱          /// </summary>          public bool IsEndPacking          {              get { return isEndPacking; }              set { isEndPacking= value; OnPropertyChanged( "IsEndPacking" ); }          }              private int _WorkEndNumber;          public int WorkEndNumber          {              get { return _WorkEndNumber; }              set              {                  _WorkEndNumber = value;                  OnPropertyChanged( "WorkEndNumber" );              }          }            public void RaiseCustomEvent( object sender, string eventType, string portKey, string portName, object data)          {              RaiseCustomEvent(sender, eventType, portKey, portName, data, null );          }            public void RaiseCustomEvent( object sender, string eventType, string portKey, string portName, object data,              object extend)          {              if (FlowCustomEvent != null )              {                  EventClass ec = new EventClass(sender, eventType, portKey, portName, data, extend);                  FlowCustomEvent( this , new TEventArgs<EventClass>(ec));              }          }          /// <summary>          /// 重置上下文          /// </summary>          public void ResetContext()          {              OrderNo = string .Empty;              MaterielCode = string .Empty;              Progress = 0;              L1Code = string .Empty;              L1Count = 0;              L2Code = "" ;              L2Count = 0;              L1CountEx = 0;              TraySpecifications = "" ;              Parameter1 = "" ;              Parameter2 = "" ;              Parameter3 = "" ;              Parameter4 = "" ;              Parameter5 = "" ;              Parameter6 = "" ;              Parameter7 = "" ;              Parameter8 = "" ;              Parameter9 = "" ;              IsEndPacking = false ;          }      } }

　　好了，我的言传就是这样。我的表达能力就只能到这样了。



原创作者: datacool 转载于: https://www.cnblogs.com/datacool/p/18906932
