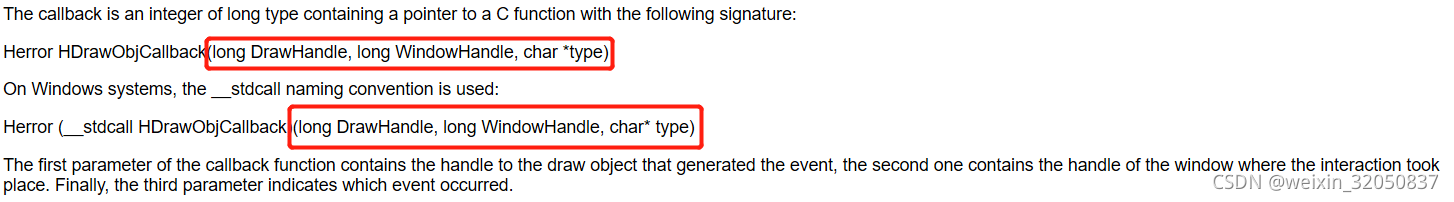

halcon19的HDrawingObject回调事件与halcon12稍微有不同，主要区别在于回调函数的数据类型与12的不一样，以C++为例，在halcon19的文档描述中的callback函数原型(long, long, char*)。
在这里插入图片描述

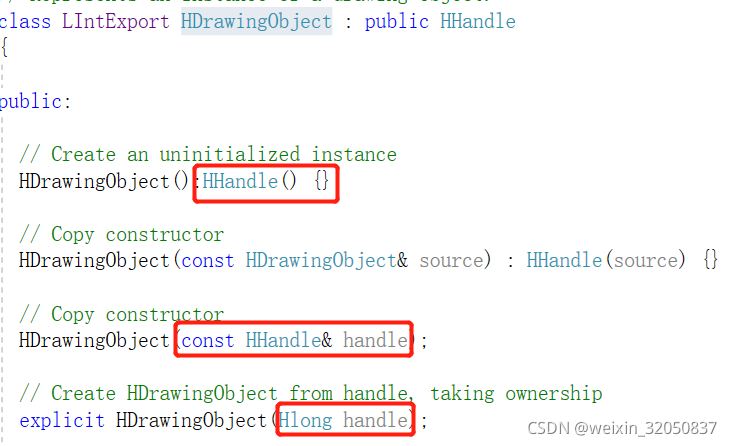

但是如果在c++中以这样的函数写，前两个参数的值获取不到，根据hdrawingobject.h中定义，handle的数据类型为Hlong，这与halcon12不同，因此尝试用(Hlong, Hlong, char*)的函数类型获取一下前两个参数的值。经过验证，完全正确。
在这里插入图片描述

例程

定义全局变量

 HObject ho_Image;
 HTuple hv_Width, hv_Height, hv_WindowHandle; //windowHandle最好为全局变量
 vector<Hlong> drawingObjectIndexs;
 vector<HDrawingObject> drawingObjects;

绘制矩形图形

 SetColor(hv_WindowHandle, "red");
 SetDraw(hv_WindowHandle, "margin");
 SetLineWidth(hv_WindowHandle, 3);
 HTuple Row1, Column1, Row2, Column2;
 DrawRectangle1(hv_WindowHandle, &Row1, &Column1, &Row2, &Column2);

 HDrawingObject rect = HDrawingObject(Row1, Column1, Row2, Column2);
 rect.SetDrawingObjectParams("color", "blue");
 attachDrawingObject(rect);//绑定图形到窗口并绑定回调函数

绑定回调函数

void attachDrawingObject(HDrawingObject draw){
 Hlong id = draw.GetHandle();
 selectDrawingObject = id;
 drawingObjectIndexs.push_back(id);
 drawingObjects.push_back(draw);

 draw.SetDrawingObjectCallback("on_select", (void*)CallBack_Select);
 draw.SetDrawingObjectCallback("on_drag", (void*)CallBack_Drag);
 AttachDrawingObjectToWindow(hv_WindowHandle, draw);
 AttachBackgroundToWindow(ho_Image, hv_WindowHandle);
}

回调函数实现

void CallBack_Select(Hlong id, Hlong WindowHandle, char* type) {
 selectDrawingObject = id;
 HDrawingObject obj = HDrawingObject(id);
 obj.SetDrawingObjectParams("color", "orange");
 HTuple left = obj.GetDrawingObjectParams("column1");
 HTuple top = obj.GetDrawingObjectParams("row1");
 HTuple right = obj.GetDrawingObjectParams("column2");
 HTuple bottom = obj.GetDrawingObjectParams("row2");
 cout << "left = " << (double)left << ", top = " << (double)top
   << ", right = " << (double)right << ", bottom = " << (double)bottom << endl;
}

void CallBack_Drag(Hlong id, Hlong WindowHandle, char* type) {
 selectDrawingObject = id;
 HDrawingObject obj = HDrawingObject(id);
 obj.SetDrawingObjectParams("color", "gray");
}
