本文介绍了如何使用Rally和Tempest对OpenStack环境进行性能测试和功能验证。Rally作为开源测试工具，通过Deployengine简化部署，Verification验证功能，Benchmarkengine进行性能测试。而Tempest是一个集成的OpenStack功能测试项目，包含多种服务的API测试用例。安装Rally，创建OpenStack部署，配置并运行Tempest测试，最后查看和分析测试结果，这些步骤详细说明了OpenStack测试过程。

Rally 基本介绍

Rally 是OpenStack社区推出开源测试工具，可用于对OpenStack各个组件进行性能测试。通过使用Rally组件，用户可完成OpenStack云计算平台的安装部署、功能验证、大规模负载测试(性能测试)、输出测试报告等一系列动作。

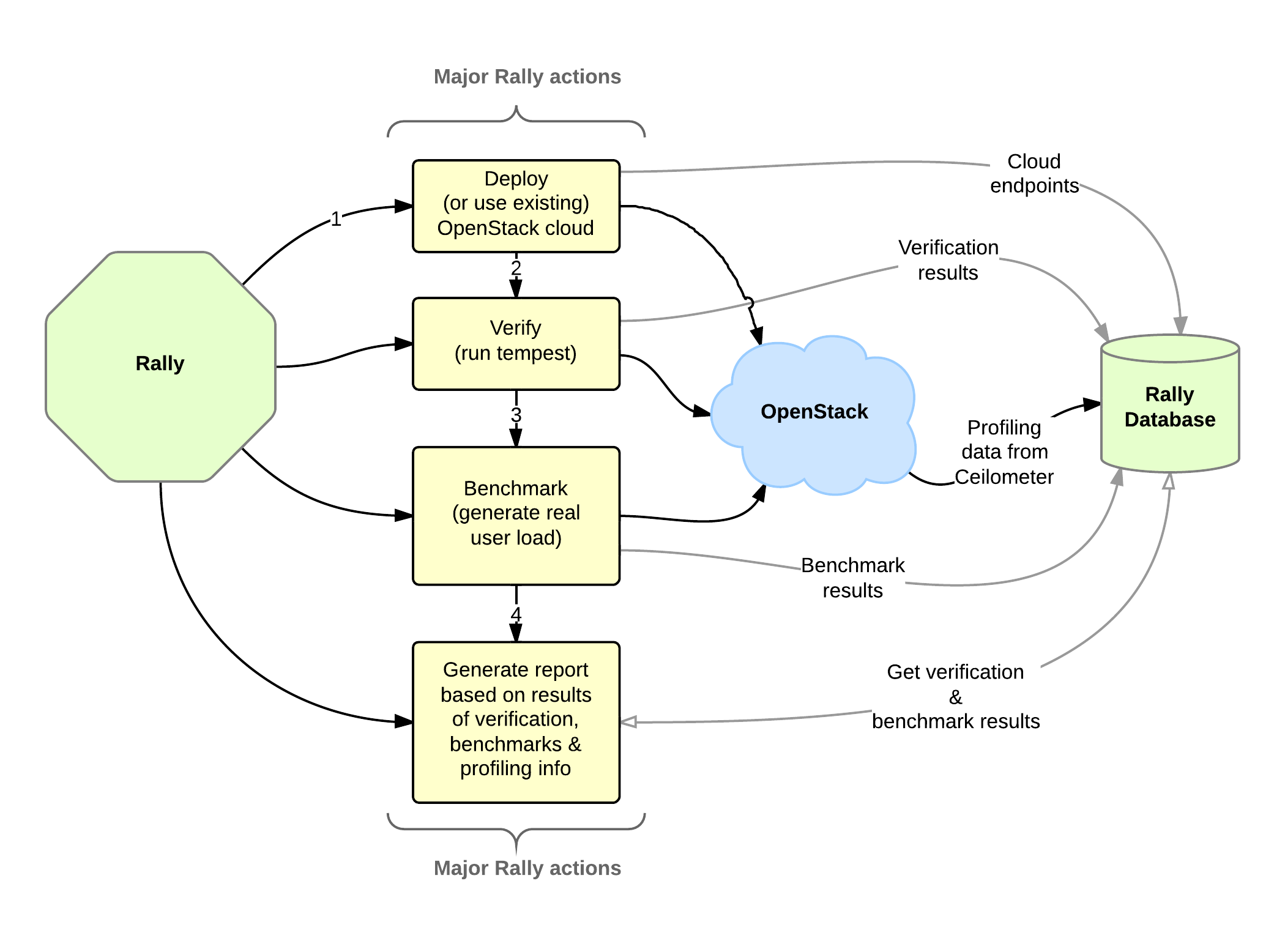

Rally 的概况和结构如下图所示：

Rally 主要包括三大部分：

Deploy engine：这不是一个真的部署工具，它只是一个插件形式的东西，它可以和其他部署工具(比如 DevStack，Fuel，Anvil 等)一起工作来简化和统一部署流程。

Verification：使用tempest验证已经部署的openstack云环境的功能。

Benchmark engine：性能测试

Tempest 基本介绍

Tempest 是一个旨在为云计算平台 OpenStack 提供集成功能测试的开源项目，包含了 Openstack 基本组件(nova, keystone, glance, neutron, cinder 等)的 API 测试用例与场景。它是基于 unittest2 和 nose 建立的，灵活且易于扩展及维护，使得 OpenStack 相关测试效率得到大幅度提升。

安装 Rally

安装依赖包

# yum install python-pip lsb_release gcc gmp-devel libffi-devel libxml2-devel libxslt-devel openssl-devel postgresql-devel python-devel RedHat-rpm-config

安装 rally 最简单的方法就是使用下面的安装脚本

wget -q -O- https://raw.githubusercontent.com/openstack/rally/master/install_rally.sh | bash

# or using curl:

curl https://raw.githubusercontent.com/openstack/rally/master/install_rally.sh | bash

如果用普通用户执行脚本，Rally 会在 ==~/rally/== 下创建一个新的虚拟环境并安装在这里，使用 sqlite作为数据库后端。如果使用 root 用户执行脚本，Rally 会安装在系统路径，更多的安装选项，可以参考安装页面。

Rally 配置

创建 openstack 环境变量文件，加入以下内容，注意修改用户名、密码、认证地址、region_name 等内容。

# vim admin-openrc

unset OS_SERVICE_TOKEN

export OS_USERNAME=admin

export OS_PASSWORD=admin

export OS_AUTH_URL=http://192.168.3.222:5000/v3

export OS_PROJECT_NAME=admin

export OS_USER_DOMAIN_NAME=default

export OS_PROJECT_DOMAIN_NAME=Default

export OS_IDENTITY_API_VERSION=3

export OS_REGION_NAME=RegionOne

加载环境变量

# . admin-openrc

注册一个 Openstack deployment，注册成功后，将会默认使用这个 deployment，同时在主目录下会有一个新的目录出现：.rally。

# rally deployment create --fromenv --name=openstack

2017-07-31 15:44:12.509 20293 INFO rally.deployment.engines.existing [-] Save deployment 'openstack' (uuid=3403b234-76ae-4afb-9d96-49ef2d872069) with 'openstack' platform.

+--------------------------------------+---------------------+-----------+------------------+--------+

+--------------------------------------+---------------------+-----------+------------------+--------+

+--------------------------------------+---------------------+-----------+------------------+--------+

Using deployment: 3403b234-76ae-4afb-9d96-49ef2d872069

~/.rally/openrc was updated

HINTS:

* To use standard OpenStack clients, set up your env by running:

source ~/.rally/openrc

OpenStack clients are now configured, e.g run:

openstack image list

检查一下刚注册的 deployment 是否存在。

# rally deployment list

+--------------------------------------+---------------------+-----------+------------------+--------+

+--------------------------------------+---------------------+-----------+------------------+--------+

+--------------------------------------+---------------------+-----------+------------------+--------+

检查 deployment 是否可行

# rally deployment check

--------------------------------------------------------------------------------

Platform openstack:

--------------------------------------------------------------------------------

Available services:

+-------------+----------------+-----------+

| Service | Service Type | Status |

+-------------+----------------+-----------+

| __unknown__ | alarming | Available |

| __unknown__ | compute_legacy | Available |

| __unknown__ | event | Available |

| __unknown__ | placement | Available |

| __unknown__ | volumev2 | Available |

| __unknown__ | volumev3 | Available |

| cinder | volume | Available |

| glance | image | Available |

| gnocchi | metric | Available |

| keystone | identity | Available |

| neutron | network | Available |

| nova | compute | Available |

+-------------+----------------+-----------+

通过 Tempest verifier 验证云环境

创建 Tempest verifier

# rally verify create-verifier --type tempest --name tempest-verifier

验证是否安装完成

# rally verify list-verifiers

+--------------------------------------+------------------+---------+-----------+---------------------+---------------------+-----------+---------+-------------+--------+

+--------------------------------------+------------------+---------+-----------+---------------------+---------------------+-----------+---------+-------------+--------+

+--------------------------------------+------------------+---------+-----------+---------------------+---------------------+-----------+---------+-------------+--------+

配置 Tempest verifier

执行以下命令为当前部署配置 Tempest verifier

# rally verify configure-verifier

2017-07-31 15:56:33.940 20338 INFO rally.api [-] Configuring verifier 'tempest-verifier' (UUID=4f4db99c-3930-442e-b592-bed5f428814e) for deployment 'openstack' (UUID=3403b234-76ae-4afb-9d96-49ef2d872069).

2017-07-31 15:56:35.945 20338 INFO rally.api [-] Verifier 'tempest-verifier' (UUID=4f4db99c-3930-442e-b592-bed5f428814e) has been successfully configured for deployment 'openstack' (UUID=3403b234-76ae-4afb-9d96-49ef2d872069)!

查看配置信息

# rally verify configure-verifier --show

[DEFAULT]

debug = True

use_stderr = False

log_file =

[auth]

use_dynamic_credentials = True

admin_username = admin

admin_password = admin

admin_project_name = admin

admin_domain_name = default

…………

[service_available]

cinder = True

glance = True

heat = False

ironic = False

neutron = True

nova = True

sahara = False

swift = False

[validation]

run_validation = True

image_ssh_user = cirros

connect_method = floating

[volume-feature-enabled]

bootable = True

开始验证

执行以下命令开始验证

# rally verify start

2017-07-31 16:02:14.679 20417 INFO rally.api [-] Starting verification (UUID=ddca5b4b-03a9-49e4-8c91-1d53943ad10b) for deployment 'openstack' (UUID=3403b234-76ae-4afb-9d96-49ef2d872069) by verifier 'tempest-verifier' (UUID=4f4db99c-3930-442e-b592-bed5f428814e).

2017-07-31 16:02:25.381 20417 INFO tempest-verifier [-] {0} tempest.api.compute.admin.test_agents.AgentsAdminTestJSON.test_create_agent ... success [0.752s]

2017-07-31 16:02:25.972 20417 INFO tempest-verifier [-] {0} tempest.api.compute.admin.test_agents.AgentsAdminTestJSON.test_delete_agent ... success [0.588s]

2017-07-31 16:02:26.458 20417 INFO tempest-verifier [-] {0} tempest.api.compute.admin.test_agents.AgentsAdminTestJSON.test_list_agents ... success [0.486s]

2017-07-31 16:02:27.335 20417 INFO tempest-verifier [-] {0} tempest.api.compute.admin.test_agents.AgentsAdminTestJSON.test_list_agents_with_filter ... success [0.877s]

2017-07-31 16:02:27.975 20417 INFO tempest-verifier [-] {0} tempest.api.compute.admin.test_agents.AgentsAdminTestJSON.test_update_agent ... success [0.639s]

2017-07-31 16:02:37.491 20417 INFO tempest-verifier [-] {0} tempest.api.compute.admin.test_availability_zone.AZAdminV2TestJSON.test_get_availability_zone_list ... success [0.498s]

2017-07-31 16:02:38.042 20417 INFO tempest-verifier [-] {0} tempest.api.compute.admin.test_availability_zone.AZAdminV2TestJSON.test_get_availability_zone_list_detail ... success [0.551s]

默认情况下，以上命令会为当前部署执行完整的 tempest测试。

可以使用 --pattern 选项只执行部分tempest测试

# rally verify start --pattern set=compute

2017-07-31 16:07:12.163 20459 INFO rally.api [-] Starting verification (UUID=4e36a2fb-5780-4db0-86bf-fe2b0ab92bf2) for deployment 'openstack' (UUID=3403b234-76ae-4afb-9d96-49ef2d872069) by verifier 'tempest-verifier' (UUID=4f4db99c-3930-442e-b592-bed5f428814e).

2017-07-31 16:07:17.189 20459 INFO tempest-verifier [-] {1} tempest.api.compute.admin.test_auto_allocate_network.AutoAllocateNetworkTest ... skip: The microversion range[2.37 - latest] of this test is out of the configuration range[None - None].

2017-07-31 16:07:21.786 20459 INFO tempest-verifier [-] {0} tempest.api.compute.admin.test_agents.AgentsAdminTestJSON.test_create_agent ... success [0.836s]

2017-07-31 16:07:23.170 20459 INFO tempest-verifier [-] {0} tempest.api.compute.admin.test_agents.AgentsAdminTestJSON.test_delete_agent ... success [1.382s]

2017-07-31 16:07:25.590 20459 INFO tempest-verifier [-] {0} tempest.api.compute.admin.test_agents.AgentsAdminTestJSON.test_list_agents ... success [2.422s]

2017-07-31 16:07:27.447 20459 INFO tempest-verifier [-] {0} tempest.api.compute.admin.test_agents.AgentsAdminTestJSON.test_list_agents_with_filter ... success [1.856s]

2017-07-31 16:07:28.135 20459 INFO tempest-verifier [-] {0} tempest.api.compute.admin.test_agents.AgentsAdminTestJSON.test_update_agent ... success [0.686s]

如 --pattern set=compute 选项，只会执行compute相关的测试。当前可供选择的测试内容有 full, smoke, compute, identity, image, network, object_storage, orchestration, volume, scenario

用户可以使用正则表达式运行某些的测试集

# rally verify start --pattern tempest.api.compute.admin.test_flavors.FlavorsAdminTestJSON

2017-07-31 16:25:55.659 20502 INFO rally.api [-] Starting verification (UUID=84fce1ca-304b-4663-bba5-185f24d013a1) for deployment 'openstack' (UUID=3403b234-76ae-4afb-9d96-49ef2d872069) by verifier 'tempest-verifier' (UUID=4f4db99c-3930-442e-b592-bed5f428814e).

2017-07-31 16:26:03.792 20502 INFO tempest-verifier [-] {0} tempest.api.compute.admin.test_flavors.FlavorsAdminTestJSON.test_create_flavor_using_string_ram ... success [0.683s]

2017-07-31 16:26:04.703 20502 INFO tempest-verifier [-] {0} tempest.api.compute.admin.test_flavors.FlavorsAdminTestJSON.test_create_flavor_verify_entry_in_list_details ... success [0.910s]

2017-07-31 16:26:05.478 20502 INFO tempest-verifier [-] {0} tempest.api.compute.admin.test_flavors.FlavorsAdminTestJSON.test_create_flavor_with_int_id ... success [0.774s]

2017-07-31 16:26:06.230 20502 INFO tempest-verifier [-] {0} tempest.api.compute.admin.test_flavors.FlavorsAdminTestJSON.test_create_flavor_with_none_id ... success [0.750s]

2017-07-31 16:26:06.906 20502 INFO tempest-verifier [-] {0} tempest.api.compute.admin.test_flavors.FlavorsAdminTestJSON.test_create_flavor_with_uuid_id ... success [0.677s]

2017-07-31 16:26:08.224 20502 INFO tempest-verifier [-] {0} tempest.api.compute.admin.test_flavors.FlavorsAdminTestJSON.test_create_list_flavor_without_extra_data ... success [1.317s]

2017-07-31 16:26:09.264 20502 INFO tempest-verifier [-] {0} tempest.api.compute.admin.test_flavors.FlavorsAdminTestJSON.test_create_server_with_non_public_flavor ... success [1.038s]

2017-07-31 16:26:13.144 20502 INFO tempest-verifier [-] {0} tempest.api.compute.admin.test_flavors.FlavorsAdminTestJSON.test_is_public_string_variations ... success [3.873s]

2017-07-31 16:26:14.477 20502 INFO tempest-verifier [-] {0} tempest.api.compute.admin.test_flavors.FlavorsAdminTestJSON.test_list_non_public_flavor ... success [1.336s]

2017-07-31 16:26:15.548 20502 INFO tempest-verifier [-] {0} tempest.api.compute.admin.test_flavors.FlavorsAdminTestJSON.test_list_public_flavor_with_other_user ... success [1.067s]

2017-07-31 16:26:22.767 20502 INFO rally.api [-] Verification (UUID=84fce1ca-304b-4663-bba5-185f24d013a1) has been successfully finished for deployment 'openstack' (UUID=3403b234-76ae-4afb-9d96-49ef2d872069)!

======

Totals

======

Ran: 10 tests in 14.768 sec.

- Success: 10

- Skipped: 0

- Expected failures: 0

- Unexpected success: 0

- Failures: 0

Using verification (UUID=84fce1ca-304b-4663-bba5-185f24d013a1) as the default verification for the future operations.

只会运行compute中和flavor相关的测试

以这种方式，可以从某个目录或类运行测试，甚至可以运行单个测试

# rally verify start --pattern tempest.api.compute.admin.test_flavors.FlavorsAdminTestJSON.test_create_flavor_using_string_ram

2017-07-31 16:30:28.586 20533 INFO rally.api [-] Starting verification (UUID=181d37bd-d9a7-46fa-9311-ffe09d81e84c) for deployment 'openstack' (UUID=3403b234-76ae-4afb-9d96-49ef2d872069) by verifier 'tempest-verifier' (UUID=4f4db99c-3930-442e-b592-bed5f428814e).

2017-07-31 16:30:36.781 20533 INFO tempest-verifier [-] {0} tempest.api.compute.admin.test_flavors.FlavorsAdminTestJSON.test_create_flavor_using_string_ram ... success [0.772s]

2017-07-31 16:30:42.064 20533 INFO rally.api [-] Verification (UUID=181d37bd-d9a7-46fa-9311-ffe09d81e84c) has been successfully finished for deployment 'openstack' (UUID=3403b234-76ae-4afb-9d96-49ef2d872069)!

======

Totals

======

Ran: 1 tests in 2.734 sec.

- Success: 1

- Skipped: 0

- Expected failures: 0

- Unexpected success: 0

- Failures: 0

Using verification (UUID=181d37bd-d9a7-46fa-9311-ffe09d81e84c) as the default verification for the future operations.

查看结果

我们可以报错结果为html、json等格式，一般保存为 html 格式，可以在浏览器中直观的查看

获得 verify id

# rally verify list

+--------------------------------------+------+------------------+-----------------+---------------------+---------------------+----------+----------+

+--------------------------------------+------+------------------+-----------------+---------------------+---------------------+----------+----------+

| db55c49c-9316-4353-94db-e0c777831157 | - | tempest-verifier | openstack | 2017-07-31T08:37:28 | 2017-07-31T14:40:46 | 6:03:18 | failed |

+--------------------------------------+------+------------------+-----------------+---------------------+---------------------+----------+----------+

如果进行了多次测试会有多条劫夺，可以根据时间来区分，每次测试结束的时候都会提示本次测试的UUID

导出为 html 文件

# rally verify report --uuid db55c49c-9316-4353-94db-e0c777831157 --type html --to export-name.html

在浏览器中查看

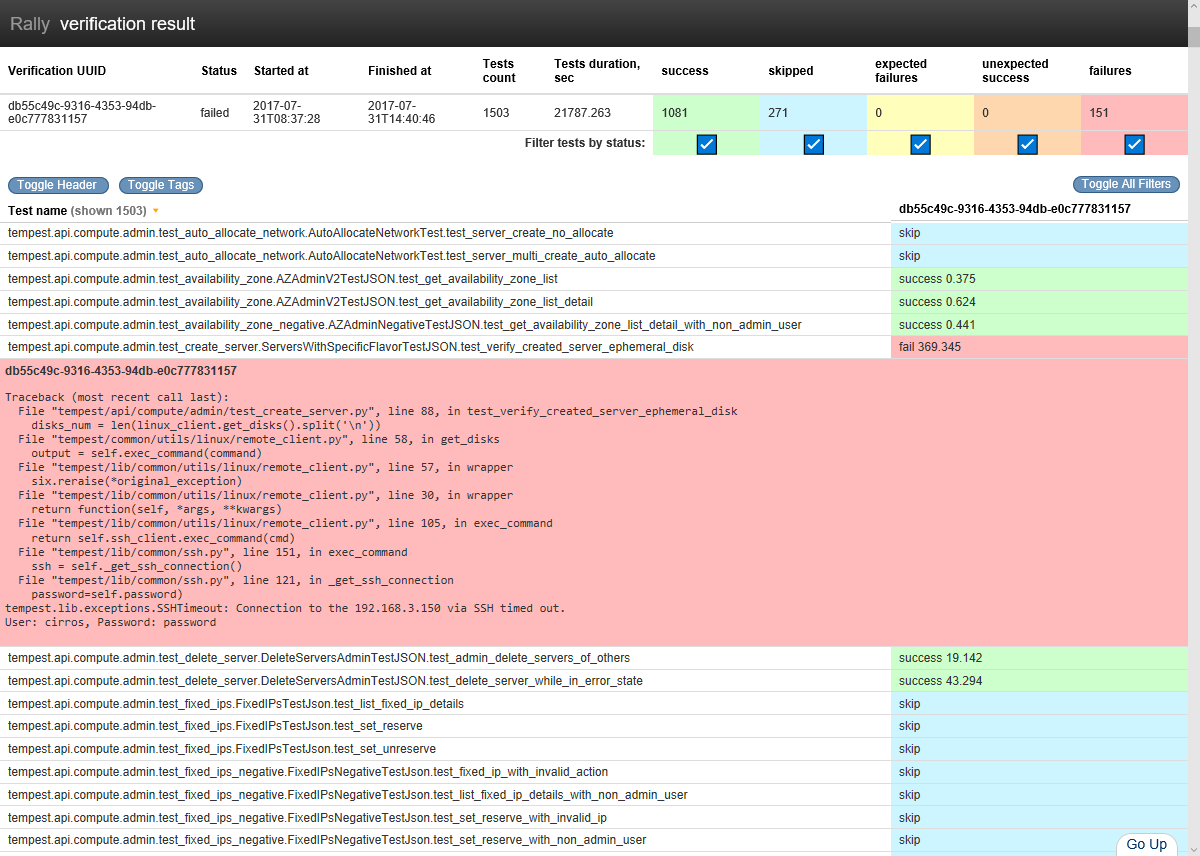

如图，可以显示所有的测试用例，错误的用例也会给出详细的错误信息
