均值漂移

import numpy as np
import pandas as pd
import matplotlib.pylab as plt
import matplotlib
from sklearn import datasets
matplotlib.rcParams['font.sans-serif'] = ['SimHei']
data=pd.read_csv('010-data_multivar.csv',header=None)
# print(data)

#拆分数据
dataset_X,dataset_y=data.iloc[:,:-1],data.iloc[:,-1]
dataset_X=dataset_X.values
dataset_y=dataset_y.values



#估算带宽
from sklearn.cluster import estimate_bandwidth,MeanShift
# 数据集，quantile：分位数，n_samples：使用的样本大小
bandwidth = estimate_bandwidth(dataset_X,quantile=0.05,n_samples=len(dataset_X))
print('带宽：{}'.format(bandwidth))



# 初始化聚类模型,带宽，网络化数据点（加速模型速度）
meanshift = MeanShift(bandwidth=bandwidth,bin_seeding=True)
meanshift.fit(dataset_X)

print(meanshift.cluster_centers_) # 获取所有质心坐标
print(meanshift.labels_) # 获取所有标签

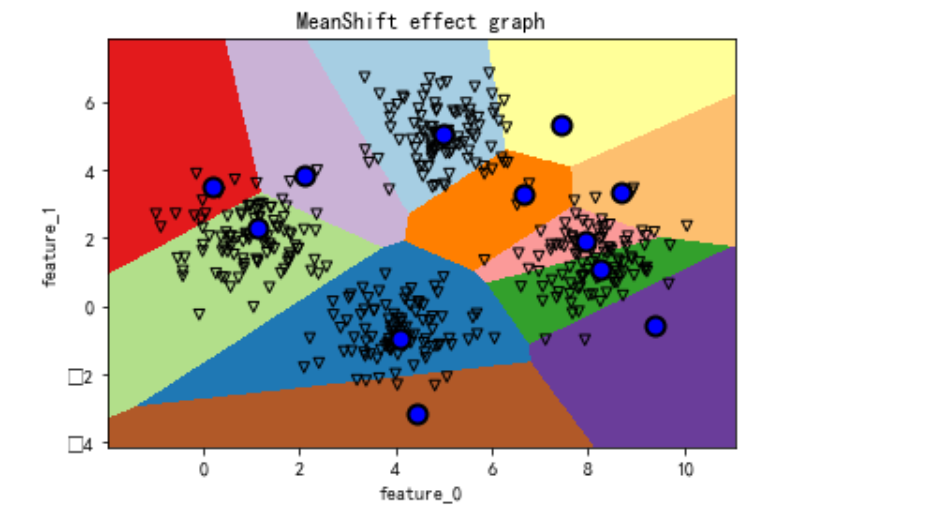

# 数据可视化
def visual_meanshift_effect(meanshift,dataset):
assert dataset.shape[1]==2,'only support dataset with 2 features'
X=dataset[:,0]
Y=dataset[:,1]
X_min,X_max=np.min(X)-1,np.max(X)+1
Y_min,Y_max=np.min(Y)-1,np.max(Y)+1
X_values,Y_values=np.meshgrid(np.arange(X_min,X_max,0.01),
np.arange(Y_min,Y_max,0.01))
# 预测网格点的标记
predict_labels=meanshift.predict(np.c_[X_values.ravel(),Y_values.ravel()])
predict_labels=predict_labels.reshape(X_values.shape)
plt.figure()
plt.imshow(predict_labels,interpolation='nearest',
extent=(X_values.min(),X_values.max(),
Y_values.min(),Y_values.max()),
cmap=plt.cm.Paired,
aspect='auto',
origin='lower')

# 将数据集绘制到图表中
plt.scatter(X,Y,marker='v',facecolors=None',edgecolors='k',s=30)

# 将中心点绘制到图中
centroids=meanshift.cluster_centers_
plt.scatter(centroids[:,0],centroids[:,1],marker='o',
s=100,linewidths=2,color='k',zorder=5,facecolors='b')
plt.title('MeanShift effect graph')
plt.xlim(X_min,X_max)
plt.ylim(Y_min,Y_max)
plt.xlabel('feature_0')
plt.ylabel('feature_1')
plt.show()

visual_meanshift_effect(meanshift,dataset_X)
