Mybatis上路_06-使用Java自动生成

目录[-]

• 1．编写Generator执行配置文件：
• 2．在MyEclipse中建空web项目：
• 3．编写并执行Java程序：
• 4．查看并修改生成的文件：
• 5．测试，使用生成的文件查询：
• 1）导入MyBatis的jar包：
• 2）创建MyBatis的xml配置文件：
• 3）Java测试代码：

1．编写Generator执行配置文件：

            generatorConfigation.xml。注意配置数据库驱动包的绝对路径。



?

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89

<? xml version = "1.0" encoding = "UTF-8" ?> <! DOCTYPE generatorConfiguration    PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"    "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">   < generatorConfiguration >      <!-- 数据库驱动包，使用绝对路径 -->      < classPathEntry location = "c:/mysql-connector-java-5.1.22-bin.jar" />         <!-- 环境配置 **************************************************          id="自定义的配置名称"          targetRuntime="MyBatis版本" -->      < context id = "MySqlTables" targetRuntime = "MyBatis3" >               <!-- 数据库  ===============================================              driverClass="驱动"              connectionURL="数据库url"              userId="用户"              password="密码" -->          < jdbcConnection              driverClass = "com.mysql.jdbc.Driver"              connectionURL = "jdbc:mysql://127.0.0.1:3306/db_mybatis"               userId = "root"              password = "root" >            </ jdbcConnection >            <!-- Java数据类型分离器，数据类型转换 =====================              property 属性                  name="强迫双精度"                  value="不" -->          < javaTypeResolver >              < property name = "forceBigDecimals" value = "false" />          </ javaTypeResolver >             <!-- Java模型生成器 =======================================              targetPackage="生成文件的目标路径"              targetProject="已存在的项目包"                  enableSubPackages-可以省略对应约束名,true-是的，可以省略tb_generator                  trimString-验证字符串，true-是的 -->          < javaModelGenerator                  targetPackage = "cn.cvu.test.model"                  targetProject = "src" >              < property name = "enableSubPackages" value = "false" />              < property name = "trimStrings" value = "true" />          </ javaModelGenerator >             <!-- sql映射文件生成器 =======================================              targetPackage="生成文件的目标路径"              targetProject="已存在的项目包"                  enableSubPackages-可以省略对应约束名,true-是的，可以省略tb_generator -->          < sqlMapGenerator                  targetPackage = "cn.cvu.test.xml"                  targetProject = "src" >              < property name = "enableSubPackages" value = "false" />          </ sqlMapGenerator >             <!-- java委托对象DAO生成器，接口 =============================              type=""              targetPackage="生成文件的目标路径"              targetProject="已存在的项目包"                  enableSubPackages-可以省略对应约束名,true-是的，可以省略tb_generator -->          < javaClientGenerator                  type = "XMLMAPPER"                  targetPackage = "cn.cvu.test.dao"                  targetProject = "src" >              < property name = "enableSubPackages" value = "false" />          </ javaClientGenerator >                   <!-- 表单，已存在，根据此表生成其它文件 =======================              tableName="已有的表单名称"              domainObjetctName="对应生成的文件名前缀" -->          < table tableName = "tb_generator" domainObjectName = "Eminem" >              <!-- useActualColumnNames-使用真实列名 ,                   true-嗯。如果false，则由columnOverride节点控制  -->              < property name = "useActualColumnNames" value = "true" />                           <!-- 标识列                  column="列名" sqlStatement="某种数据库语言" identity="作为主键" -->              < generatedKey column = "id" sqlStatement = "MySql" identity = "true" />                           <!-- 覆盖项，当property name="useActualColumnNames" value="true"时。                  column="被覆盖值的列名" property="用来覆盖的对应的java类的属性" -->              < columnOverride column = "name" property = "generName" />             </ table >               </ context >   </ generatorConfiguration >



2．在MyEclipse中建空web项目：

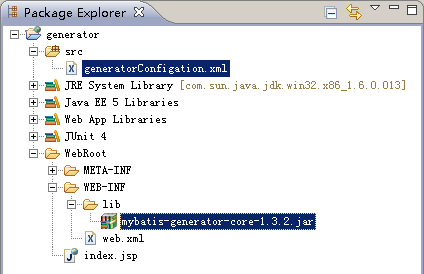

            将配置文件放到src里。加入generator的jar文件。



3．编写并执行Java程序：





?

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33

package cn.cvu.test.build;    import java.io.File; import java.util.ArrayList; import java.util.List; import org.junit.Test; import org.mybatis.generator.api.MyBatisGenerator; import org.mybatis.generator.config.Configuration; import org.mybatis.generator.config.xml.ConfigurationParser; import org.mybatis.generator.internal.DefaultShellCallback;    public class TestGenerateWithJava {         @Test      public void testBuild() throws Exception {                  // 信息缓存                  List<String> warnings = new ArrayList<String>();                  // 覆盖已有的重名文件                  boolean overwrite = true ;                  // 准备 配置文件                  File configFile = new File( "F:/myeclipse_workspace/generator/src/generatorConfigation.xml" );                  // 1.创建 配置解析器                  ConfigurationParser parser = new ConfigurationParser(warnings);                  // 2.获取 配置信息                  Configuration config = parser.parseConfiguration(configFile);                  // 3.创建 默认命令解释调回器                  DefaultShellCallback callback = new DefaultShellCallback(overwrite);                  // 4.创建 mybatis的生成器                  MyBatisGenerator myBatisGenerator = new MyBatisGenerator(config, callback, warnings);                  // 5.执行，关闭生成器          myBatisGenerator.generate( null );      } }



4．查看并修改生成的文件：

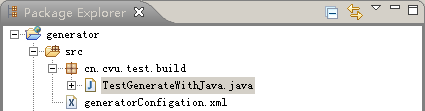

            选中src，按F5刷新，可以看到新文件已经创建：



            修改报错的EmineMapper.java文件，去除注解：





5．测试，使用生成的文件查询：

1）导入MyBatis的jar包：

                mybatis-3.2.2.jar
                mybatis-generator-core-1.3.2.jar
                mysql-connector-java-5.1.22-bin.jar

2）创建MyBatis的xml配置文件：

                上面我们注释掉了自动生成的注解代码，在src新建一个xml配置文件，mybatisConfigation.xml：



?

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

<? xml version = "1.0" encoding = "UTF-8" ?> <! DOCTYPE configuration     PUBLIC "-//mybatis.org//DTD Config 3.0//EN"      "http://mybatis.org/dtd/mybatis-3-config.dtd">   < configuration >      < environments default = "development" >          < environment id = "development" >              < transactionManager type = "JDBC" />              < dataSource type = "POOLED" >                  < property name = "driver" value = "com.mysql.jdbc.Driver" />                  < property name = "url" value = "jdbc:mysql://127.0.0.1:3306/db_mybatis" />                  < property name = "username" value = "root" />                  < property name = "password" value = "root" />              </ dataSource >          </ environment >      </ environments >        < mappers >          <!-- 引入MBG生成器创建的映射文件 -->          < mapper resource = "cn/cvu/test/xml/EminemMapper.xml" />      </ mappers > </ configuration >



3）Java测试代码：

                创建测试类cn.cvu.test.dotest.TestDoGeneratorWithJava ：







?

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39

package cn.cvu.test.dotest;   import java.io.Reader; import java.util.List; import org.apache.ibatis.io.Resources; import org.apache.ibatis.session.SqlSession; import org.apache.ibatis.session.SqlSessionFactoryBuilder; import org.junit.Test; import cn.cvu.test.dao.EminemMapper; import cn.cvu.test.model.Eminem; import cn.cvu.test.model.EminemExample; import cn.cvu.test.model.EminemExample.Criteria;   public class TestDoGeneratorWithJava {        @Test      public void testQuery() throws Exception {            // 创建SQL会话：          Reader reader = Resources.getResourceAsReader( "mybatisConfigation.xml" );          SqlSession session = new SqlSessionFactoryBuilder().build(reader).openSession();            // 创建查询实例：          EminemExample eminemExample = new EminemExample();            // 获取映射实体：          EminemMapper mapper = session.getMapper(EminemMapper. class );            // 利用实体通过实例查询全部条目          List<Eminem> eminems = mapper.selectByExample(eminemExample);          System.out.println( "ID \t\t name \t\t notes \n" );          for (Eminem eminem : eminems) {                  System.out.println(eminem.getId()+                                  "\t\t" +eminem.getGenerName()+                                  "\t\t" +eminem.getNotes());          }          session.close();      } }



- end
