本文详细介绍如何在阿里云上部署Hadoop集群，包括环境配置、软件安装、SSH免密设置、Hadoop配置等步骤，并通过WordCount程序验证集群运行正常。

1.简介

Hadoop是一个能够让用户轻松架构和使用的开源分布式计算框架，一种可靠、高效、可伸缩的方式进行数据处理。本文主要目的是向大家展示如何在阿里云上部署Hadoop集群.

2. 环境配置介绍

Ubuntu 14.04 LTS(1 Masters and 4 Slaves)

Hadoop 2.6.4

Java 1.8.0

MobaXterm_Personal(ubuntu连接工具，sftp客户端)

所有软件可以从我的云盘中获取链接: https://pan.baidu.com/s/1i5mTBEH 密码: xbf4

服务器分布

Name	Internal IP	EIP	External SSH
Master	192.168.77.4	139.224.10.176	50022
Slave1	192.168.77.1		50122
Slave2	192.168.77.2		50222
Slave3	192.168.77.3		50322
Slave4	192.168.77.5		50522

3.编辑配置文件

(1). 编辑主节点和子节点的hostname

on Master and each Slave, repeat following change:

sudo vi /etc/hostname

Master

Slave1

Slave2

Slave3

Slave4

sudo vi /etc/hosts

192.168.77.4 Master

192.168.77.1 Slave1

192.168.77.2 Slave2

192.168.77.3 Slave3

192.168.77.5 Slave4

(2). 安装Java8

Create java folder under opt: sudo mkdir /opt/java

Unzip the installer: sudo tar -xvf jdk-8u91-linux-x64.tar.gz

Edit /etc/profile: sudo vi /etc/profile

Make the java work: sudo source /etc/profile

Test if java works: java -version

(3). 在每个节点上安装SSH

Generate secret key using rsa method(in ~)：

ssh-keygen -t rsa -P ""

Press enter and it will generate files in /home/hadoop/.ssh：

Add id_rsa.pub to authorized_keys：cat .ssh/id_rsa.pub >> .ssh/authorized_keys

Generate secret key on each Slave：ssh-keygen -t rsa -P ""

Send authorized_keys of Master to each Slave：

scp ~/.ssh/authorized_keys hadoop@slave1:~/.ssh/

scp ~/.ssh/authorized_keys hadoop@slave2:~/.ssh/

scp ~/.ssh/authorized_keys hadoop@slave3:~/.ssh/

scp ~/.ssh/authorized_keys hadoop@slave4:~/.ssh/

Testing ssh trust： ssh hadoop@slave1

It works if no password enter needed anymore

(4).安装配置Hadoop 2.6.4

Install Hadoop

Create hadoop folder under opt: sudo mkdir /opt/hadoop

Unzip the installer: sudo tar -xvf hadoop-2.6.4.tar.gz

Configuring etc/hadoop/hadoop-env.sh:

sudo vi /opt/hadoop/hadoop-2.6.4/etc/hadoop/hadoop-env.sh

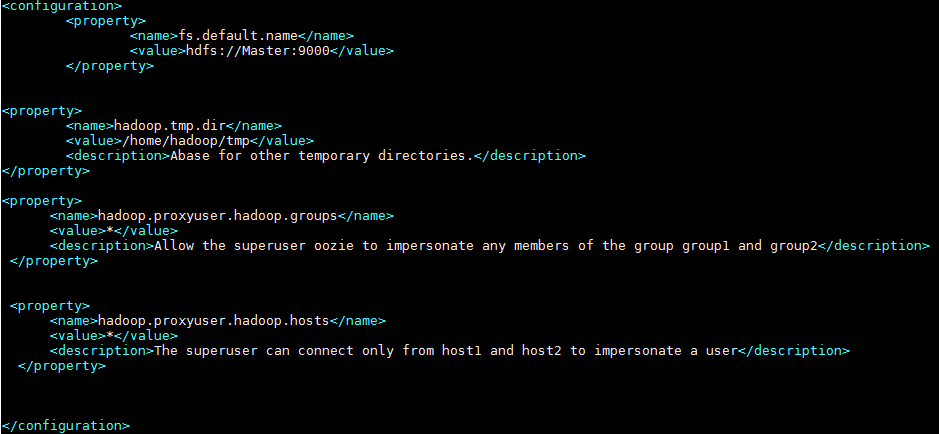

Configuring etc/hadoop/core-site.xml:

sudo vi /opt/hadoop/hadoop-2.6.4/etc/hadoop/core-site.xml

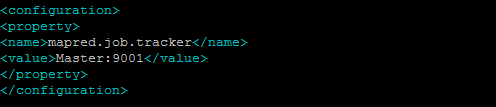

Configuring etc/hadoop/mapred-site.xml(if it didn't exist, rename file mapred-site.xml.template):

sudo vi /opt/hadoop/hadoop-2.6.4/etc/hadoop/mapred-site.xml

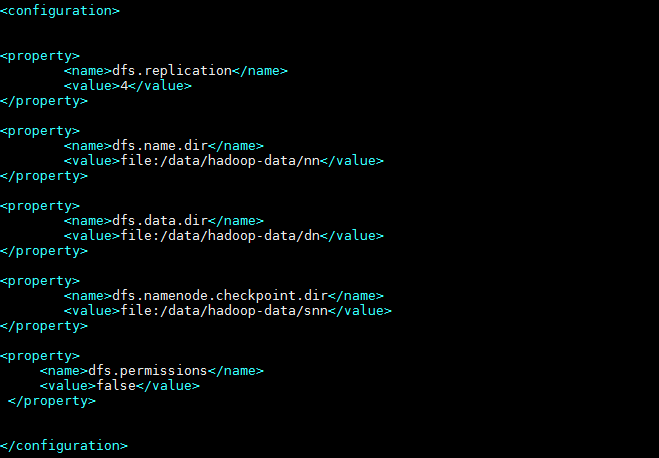

Configuring etc/hadoop/hdfs-site.xml

sudo vi /opt/hadoop/hadoop-2.6.4/etc/hadoop/hdfs-site.xml

Add Slave namenode to slaves file:

sudo vi /opt/hadoop/hadoop-2.6.4/etc/hadoop/slaves

Send hadoop to each Slave:

scp -r /opt/hadoop hadoop@Slave1:/home/hadoop

scp -r /opt/hadoop hadoop@Slave2:/home/hadoop

scp -r /opt/hadoop hadoop@Slave3:/home/hadoop

scp -r /opt/hadoop hadoop@Slave4:/home/hadoop

In each Slave, move to same location with Master and change owner:

sudo mv -r /home/hadoop /opt/

(5). 在/etc/profile中添加hadoop环境变量

sudo vi /etc/profile

source /etc/profile

(6).利用wordcount程序测试环境是否搭建成功

cd /opt/hadoop/hadoop-2.6.4/bin

./hdfs namenode -format # 格式化集群

cd /opt/hadoop/hadoop-2.6.4/sbin

./start-all.sh

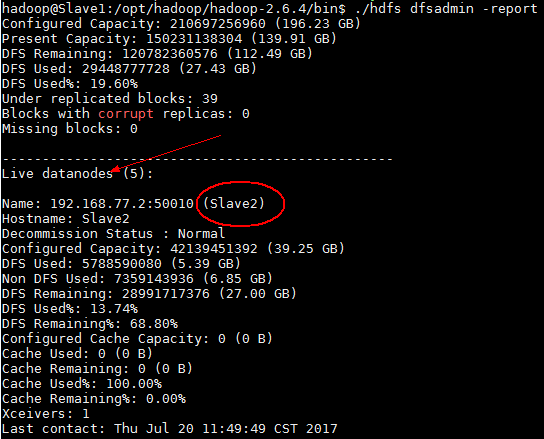

Check connection status in namenode:

cd /opt/hadoop/hadoop-2.6.4/bin

./hdfs dfsadmin -report

Create folder /input : hadoop dfs -mkdir /input

Send test file to hadoop：

hadoop dfs -put people.txt /input/

Run workcount demo：

hadoop jar /usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-examples-2.6.4.jar wordcount /input /output

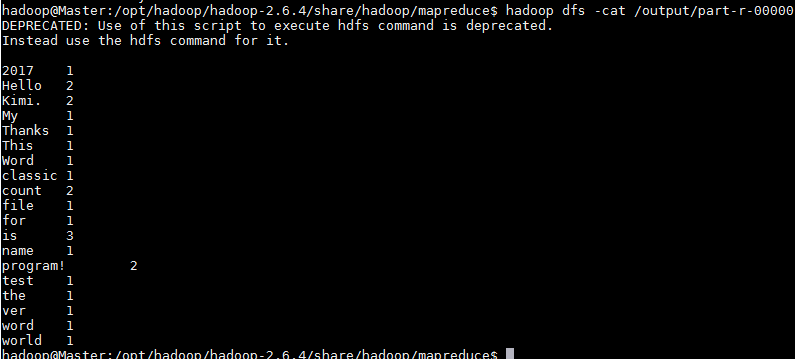

Check result

hadoop dfs -cat /output/part-r-00000
