系统中都需要表格,我见过最好的表格就是Datatables了,但中文文档有限,英文能力有限,就写一些简单用法

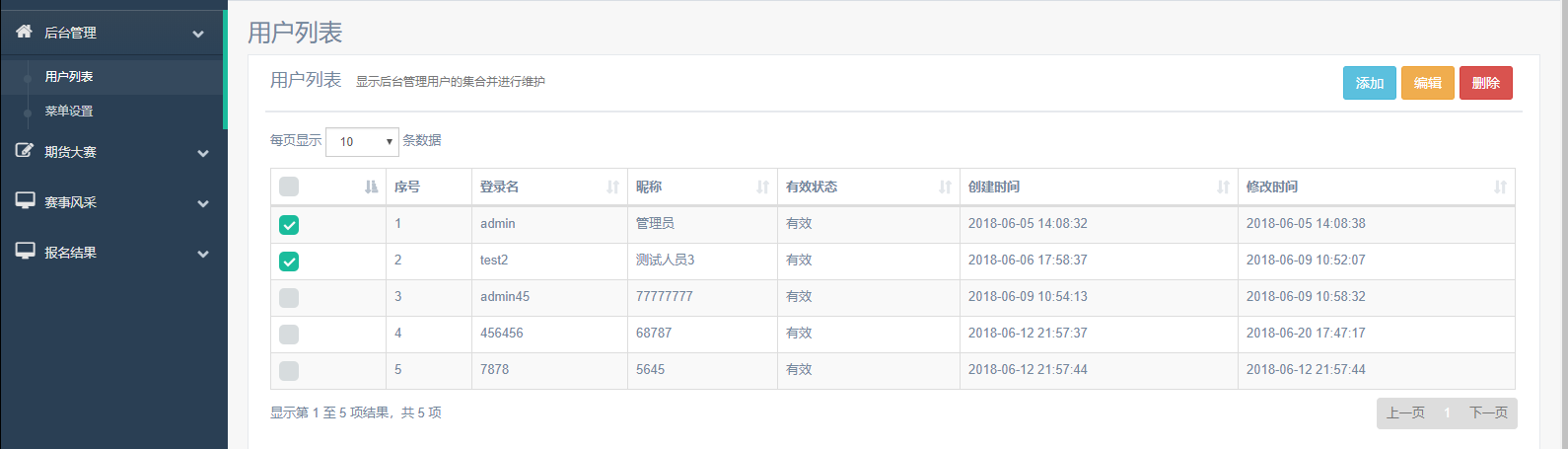

上图看效果先

要了分页和排序

基本用法

引入js和css

            bundles.Add(new ScriptBundle("~/bundles/datatablesJs").Include(
                "~/Content/vendors/datatables.net/js/jquery.dataTables.min.js",
                "~/Content/vendors/datatables.net-bs/js/dataTables.bootstrap.min.js",
                "~/Content/vendors/iCheck/icheck.min.js",
                "~/Scripts/datatables.helper.js"));

            bundles.Add(new StyleBundle("~/Content/vendors/datatables.net-bs/css/datatablesCss1").Include(
                "~/Content/vendors/datatables.net-bs/css/dataTables.bootstrap.min.css"));

            bundles.Add(new StyleBundle("~/Content/vendors/iCheck/skins/flat/datatablesCss2").Include(
                "~/Content/vendors/iCheck/skins/flat/green.css"));

html

                        <table id="usertable" class="table table-striped table-bordered">
                            <thead>
                                <tr>
                                    <th><input type="checkbox" id="check-all"></th>
                                    <th>序号</th>
                                    <th>登录名</th>
                                    <th>昵称</th>
                                    <th>有效状态</th>
                                    <th>创建时间</th>
                                    <th>修改时间</th>
                                </tr>
                            </thead>
                        </table>

var $datatable = $("#usertable");
var $btnadd = $("#btn_add");
var $btndel = $("#btn_del");
var $btnmodify = $("#btn_modify");
var $myaddmodal = $("#myAddModal");
var $mymodifymodal = $("#myModifyModal");
var $formadd = $("#form_add");
var $formmodify = $("#form_modify");
var $submitadd = $("#submit_add");
var $submitmodify = $("#submit_modify");
var $modifyId = $("#MId");

//---------------------datatables表格初始化----------------
var tbl = $datatable.DataTable({
    "ajax": {
        "url": "/Admin/Back/GetDatas",
        "data": function (data) {
            return JSON.stringify(data);
        }
    },
    "columns": [
        { "data": "Id" },
        { "data": null },
        { "data": "Account" },
        { "data": "NickName" },
        { "data": "IsEnabled" },
        { "data": "AddTime" },
        { "data": "LastTime" }
    ],
    'columnDefs': [
        {
            targets: [0],
            "render": function (data, type, full, meta) {
                return '<input type="checkbox" name="checklist"  value="' + data + '" />';
            },
            "bSortable": false
        },
        {
            targets: [1],
            "render": function (data, type, full, meta) {
                return meta.row + 1;
            },
            "bSortable": false
        },
        {
            targets: [4],
            "render": function (data, type, full, meta) {
                return get_enabled(data);
            }
        },
        {
            targets: [5, 6],
            "render": function (data, type, full, meta) {
                return moment(data).format("YYYY-MM-DD HH:mm:ss");
            }
        }
    ]
});

//tbl.order([6, 'desc']).draw();


//绘制表格事件
$datatable.on("draw.dt", function () {
    turn_on_icheck();
    check_all();
});

View Code

$datatable.DataTable就是表格的初始化

        "data": function (data) {
            return JSON.stringify(data);
        }

保证了传入的参数为json格式

'columnDefs': [
        {
            targets: [0],
            "render": function (data, type, full, meta) {
                return '<input type="checkbox" name="checklist"  value="' + data + '" />';
            },
            "bSortable": false
        },
        {
            targets: [1],
            "render": function (data, type, full, meta) {
                return meta.row + 1;
            },
            "bSortable": false
        }
    ]

columnDefs是列渲染
[0]代表第一列,代码将第一页渲染成了checkbox,将第二页渲染成了自增列(只是本页自增)
"bSortable": false 表示该列不排序

这样当然是不够的,因为我们没有看到datatables的配置项都在哪,是因为我把它封装了

$.extend($.fn.dataTable.defaults, {
    "processing": true,//加载中
    "ordering": true,  // 是否开启排序功能(默认开启)
    "order": [[0, "asc"]], // 设置默认排序的表格列[参数1是表格列的下标，从0开始]
    "serverSide": true,//服务器模式（★★★★★重要，本文主要介绍服务器模式）
    "searching": false,//datatables自带的搜索
    "ajax": {
        "type": "POST",//（★★★★★重要）
        "contentType": "application/json; charset=utf-8"
    },
    "language": {
        "processing": "加载中...",
        "lengthMenu": "每页显示 _MENU_ 条数据",
        "zeroRecords": "没有匹配结果",
        "info": "显示第 _START_ 至 _END_ 项结果，共 _TOTAL_ 项",
        "infoEmpty": "显示第 0 至 0 项结果，共 0 项",
        "infoFiltered": "(由 _MAX_ 项结果过滤)",
        "infoPostFix": "",
        "search": "搜索:",
        "url": "",
        "emptyTable": "没有匹配结果",
        "loadingRecords": "载入中...",
        "thousands": ",",
        "paginate": {
            "previous": "上一页",
            "next": "下一页"
        }
    }
});

function get_enabled(parameters) {
    if (parameters === 1) {
        return "有效";
    } else {
        return "已禁用";
    }
}

//渲染页面所有的checkbox为icheck
function turn_on_icheck() {
    $("input[type=checkbox]").iCheck({
        checkboxClass: "icheckbox_flat-green"
    });
}

//全选
function check_all() {
    var $checkboxAll = $("#check-all"),
        $checkbox = $("tbody").find("[type='checkbox']");

    $checkboxAll.on('ifClicked', function (event) {
        if (event.target.checked) {
            $checkbox.iCheck("uncheck");
        } else {
            $checkbox.iCheck("check");
        }
    });
}

View Code

这里我将checkbox渲染成了一个icheck,还有全选,这些都需要在绘制datatables事件中完成

//绘制表格事件
$datatable.on("draw.dt", function () {
    turn_on_icheck();
    check_all();
});

OK,前端搞定,看看后台吧

后台

        [HttpPost]
        public JsonResult GetDatas(DataTablesParameters query)
        {
            var totalCount = 0;
            var result = _bll.QueryPage(GetLamada(query.OrderBy), (int)query.OrderDir, query.Start, query.Length, ref totalCount).ToList();
            var viewResult = result.ToModelList();
            var resultJson = new DataTablesResult<UserViewModel>(query.Draw, totalCount, totalCount, viewResult);
            return Json(resultJson);
        }

可以看到,传入的参数也被我封装了,因为datatables会固定传入一些值

封装类DataTablesParameters

using System.Collections.Generic;
using System.Linq;

namespace FuturesContest.ViewModel.DataTables
{
    public class DataTablesParameters
    {
        /// <summary>
        ///     请求次数计数器
        /// </summary>
        public int Draw { get; set; }

        /// <summary>
        ///     第一条数据的起始位置
        /// </summary>
        public int Start { get; set; }

        /// <summary>
        ///     每页显示的数据条数
        /// </summary>
        public int Length { get; set; }

        /// <summary>
        ///     数据列
        /// </summary>
        public List<DataTablesColumns> Columns { get; set; }

        /// <summary>
        ///     排序
        /// </summary>
        public List<DataTablesOrder> Order { get; set; }

        /// <summary>
        ///     搜索
        /// </summary>
        public DataTablesSearch Search { get; set; }

        /// <summary>
        ///     排序字段
        /// </summary>
        public string OrderBy => Columns != null && Columns.Any() && Order != null && Order.Any()
            ? Columns[Order[0].Column].Data
            : string.Empty;

        /// <summary>
        ///     排序模式
        /// </summary>
        public DataTablesOrderDir OrderDir => Order != null && Order.Any()
            ? Order[0].Dir
            : DataTablesOrderDir.Desc;
    }

    /// <summary>
    ///     排序
    /// </summary>
    public class DataTablesOrder
    {
        /// <summary>
        ///     排序的列的索引
        /// </summary>
        public int Column { get; set; }

        /// <summary>
        ///     排序模式
        /// </summary>
        public DataTablesOrderDir Dir { get; set; }
    }

    /// <summary>
    ///     排序模式
    /// </summary>
    public enum DataTablesOrderDir
    {
        /// <summary>
        ///     正序
        /// </summary>
        Asc,

        /// <summary>
        ///     倒序
        /// </summary>
        Desc
    }

    /// <summary>
    ///     数据列
    /// </summary>
    public class DataTablesColumns
    {
        /// <summary>
        ///     数据源
        /// </summary>
        public string Data { get; set; }

        /// <summary>
        ///     名称
        /// </summary>
        public string Name { get; set; }

        /// <summary>
        ///     是否可以被搜索
        /// </summary>
        public bool Searchable { get; set; }

        /// <summary>
        ///     是否可以排序
        /// </summary>
        public bool Orderable { get; set; }

        /// <summary>
        ///     搜索
        /// </summary>
        public DataTablesSearch Search { get; set; }
    }

    /// <summary>
    ///     搜索
    /// </summary>
    public class DataTablesSearch
    {
        /// <summary>
        ///     全局的搜索条件的值
        /// </summary>
        public string Value { get; set; }

        /// <summary>
        ///     是否为正则表达式处理
        /// </summary>
        public bool Regex { get; set; }
    }



}

View Code

这里传入的orderby是一个字符串,我们的方法需要一个lamada,那么就需要一个笨方法,将string转换成lamada

其实这个方法应该放到bll层里

        private static Expression<Func<User, object>> GetLamada(string name)
        {
            Expression<Func<User, object>> func;
            switch (name)
            {
                case "Id":
                    func = m => m.Id;
                    break;
                case "Account":
                    func = m => m.Account;
                    break;
                case "NickName":
                    func = m => m.NickName;
                    break;
                case "IsEnabled":
                    func = m => m.IsEnabled;
                    break;
                case "AddTime":
                    func = m => m.AddTime;
                    break;
                case "LastTime":
                    func = m => m.LastTime;
                    break;
                default:
                    func = m => m.OrderId;
                    break;
            }

            return func;
        }

View Code

var viewResult = result.ToModelList();

这里用到了autoMapper,我感觉我用的不太对,就先不讲了

参数被封装,返回值也有固定的格式,当然也被封装

using System.Collections.Generic;

namespace FuturesContest.ViewModel.DataTables
{
    public class DataTablesResult<T>
    {
        public DataTablesResult(int drawParam, int recordsTotalParam, int recordsFilteredParam,
            IReadOnlyList<T> dataParam)
        {
            draw = drawParam;
            recordsTotal = recordsTotalParam;
            recordsFiltered = recordsFilteredParam;
            data = dataParam;
        }

        public DataTablesResult(string errorParam)
        {
            error = errorParam;
        }
        public int draw { get; set; }
        public int recordsTotal { get; set; }
        public int recordsFiltered { get; set; }
        public IReadOnlyList<T> data { get; set; }
        public string error { get; set; }
    }
}

View Code

            var resultJson = new DataTablesResult<UserViewModel>(query.Draw, totalCount, totalCount, viewResult);

接受返回的封装泛型,转换成json到前端

到这里,datatables的显示\排序\分页就都完成了
