设计模式（建造者模式）

建造者模式用于创建相对复杂，组成较多的对象。它包括几类角色：

• Product: 待被创建的对象，本例中是Table
• builder:创建对象方法的抽象，本例中是TableBuilder
• ConcreteBuilder:具体某个创建的实现，本例中是TableBuilderImpl
• Director:封装builder接口

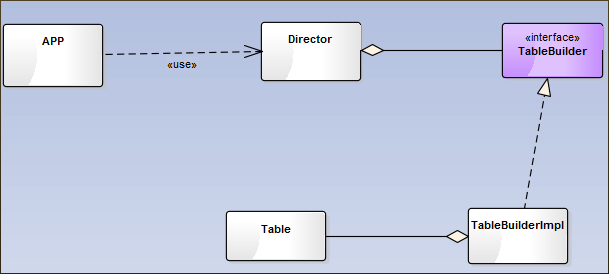

类图关系如下：

代码如下：

• Table

package com.example;

public class Table {
    private String head;
    private String content;
    private String footer;

    public String getHead() {
        return head;
    }
    public void setHead(String head) {
        this.head = head;
    }
    public String getContent() {
        return content;
    }
    public void setContent(String content) {
        this.content = content;
    }
    public String getFooter() {
        return footer;
    }
    public void setFooter(String footer) {
        this.footer = footer;
    }

    public String getTable(){
        return this.head + "_" + this.content + "_" + this.footer;
    }
}

• TableBuilder

public interface TableBuilder {
    public TableBuilder setTableHead(String head);
    public TableBuilder setTableContent(String content);
    public TableBuilder setTableFooter(String footer);
    public Table builder();
}

• TableBuilderImpl

package com.example;

public class TableBuilderImpl implements TableBuilder {

    private Table table;
    private static final String TYPE = "TYPE1";

    public TableBuilderImpl(){
        table = new Table();
    }

    @Override
    public TableBuilder setTableHead(String head) {
        table.setHead(TYPE + head);
        return this;
    }

    @Override
    public TableBuilder setTableContent(String content) {
        table.setContent(TYPE + content);
        return this;
    }

    @Override
    public TableBuilder setTableFooter(String footer) {
        table.setFooter(TYPE + footer);
        return this;
    }

    @Override
    public Table builder() {
        return table;
    }
}

• Director

public class Director {
    private TableBuilder builder;

    public Director(TableBuilder builder){
        this.builder = builder;
    }

    public Table Builder(){
        return builder.setTableHead("head")
                .setTableContent("content")
                .setTableFooter("footer")
                .builder();
    }
}

• APP

public class App {

    public static void main(String[] args) {
        Director direct = new Director(new TableBuilderImpl());
        Table table = direct.Builder();
        System.out.println(table.getTable());
    }
}
