　　【概述】几乎每个企业都有自己的核心东西或说是框架性的东西，框架的好处是将我们经常要使用的功能，控件等包装一个个
易于使用的单元，就算是初学者也极其容易上手，减少项目的开发成本。因此框架的重要性和好处是不言而喻的。在我的这个系列
(一点一滴打造我们自己的web开发框架系列 )当中，我将自己在开发过程中用到的一些东西陆续公布出来，和大家一起交流学习。

　　这次我们接着本框架系统的开发进展，将我们上一节开发的客户端进度条包装成一个服务器控件，方便以后的使用。上次我们开发
的进度条是通过setInterval来自动滚动进度条的，但是有时候比如我们要导入数据，我们知道总共要导入的数据，及当前我们正在导入
的数据，这时候我们可以手动来设置这个进度条的提示信息和进度条的前进。因此在上节的基础上，对ProgressBar.js稍微做了下扩展，
添加了两个属性：

this .TickCount = typeof (tickCount) == ' undefined ' ? 100 : tickCount;
this .StepManually = false ; // 是否手动设置前进

TickCount为步进的次数，在实际应用中可以指定为总共要导入的数据条数等。

并添加了响应的事件：

代码

step: function (currentStep) {
     var currentWidth = window.Progress._progrss.style.pixelWidth;
     if (currentStep < window.Progress.TickCount) {
        window.Progress._progrss.style.width = currentWidth + window.Progress._tickWidth + " px " ;
        window.Progress._innerDown.innerText = window.Progress.TipMessage;
        window.Progress._mark.style.display = " block " ;
    }
     else {
         if (window.Progress.CompleteEvent != null ) {
             if ( typeof window.Progress.CompleteEvent == ' function ' )
                window.Progress.CompleteEvent.call();
             else
                eval(window.Progress.CompleteEvent);
        }
    }
},

_getTickWidth: function () {
     var totalWidth = this ._inner.style.pixelWidth;
     var currentWidth = this ._progrss.style.pixelWidth;
     var tickWidth = this ._round((totalWidth - currentWidth) / this .TickCount, 0 );
     return tickWidth;
},

完善客户端事件后，我们将每个公开的属性包装成服务器控件的属性。然后在onPreRender事件中注册相应的初始化脚步：

代码

[ToolboxData( " <{0}:ProgressBar runat=server></{0}:ProgressBar> " )]
     public class ProgressBar:WebControl
    {
         /// <summary>
         /// 进度条存活时间
         /// </summary>
        [Bindable( true ), Browsable( true ), DefaultValue( 10 ), Description( " 进度条存活时间 " )]
         public int AliveSeconds
        {
             get
            {
                 if (ViewState[ this .ID + " _AliveSeconds " ] != null )
                     return ( int )ViewState[ this .ID + " _AliveSeconds " ];

                 return 10 ;
            }
             set
            {
                ViewState[ this .ID + " _AliveSeconds " ] = value;
            }
        }

         /// <summary>
         /// 每次滚动条的步长
         /// </summary>
        [Bindable( true ), Browsable( true ), DefaultValue( 2 ), Description( " 自动前进时要前进的步长 " )]
         public int TickWidth
        {
             get
            {
                 if (ViewState[ this .ID + " _TickWidth " ] != null )
                     return ( int )ViewState[ this .ID + " _TickWidth " ];

                 return 2 ;
            }
             set
            {
                ViewState[ this .ID + " _TickWidth " ] = value;
            }
        }
         /// <summary>
         /// 手动前进时要前进的步数
         /// </summary>
        [Bindable( true ), Browsable( true ), DefaultValue( 100 ), Description( " 手动前进时要前进的步数 " )]
         public int TickCount
        {
             get
            {
                 if (ViewState[ this .ID + " _TickCount " ] != null )
                     return ( int )ViewState[ this .ID + " _TickCount " ];

                 return 100 ;
            }
             set
            {
                ViewState[ this .ID + " _TickCount " ] = value;
            }
        }
         /// <summary>
         /// 是否手动来设置前进的值
         /// </summary>
        [Bindable( true ), Browsable( true ), DefaultValue( false ), Description( " 是否手动来设置前进的值 " )]
         public bool StepManually
        {
             get
            {
                 if (ViewState[ this .ID + " _StepManually " ] != null )
                     return ( bool )ViewState[ this .ID + " _StepManually " ];

                 return false ;
            }
             set
            {
                ViewState[ this .ID + " _StepManually " ] = value;
            }
        }
         /// <summary>
         /// 进度条100%时，要响应的客户端事件
         /// </summary>
        [Bindable( true ), Browsable( true ), DefaultValue( "" ), Description( " 进度条完成时要响应的客户端事件 " )]
         public string CompleteEvent
        {
             get
            {
                 if (ViewState[ this .ID + " _CompleteEvent " ] != null )
                     return ( string )ViewState[ this .ID + " _CompleteEvent " ];

                 return "" ;
            }
             set
            {
                ViewState[ this .ID + " _CompleteEvent " ] = value;
            }
        }
         /// <summary>
         /// 提示信息
         /// </summary>
        [Bindable( true ), Browsable( true ), DefaultValue( "" ), Description( " 进度条的提示信息 " )]
         public string TipMessage
        {
             get
            {
                 if (ViewState[ this .ID + " _TipMessage " ] != null )
                     return ( string )ViewState[ this .ID + " _TipMessage " ];

                 return " 数据正在加载中...... " ;
            }
             set
            {
                ViewState[ this .ID + " _TipMessage " ] = value;
            }
        }

         protected override void AddAttributesToRender(HtmlTextWriter writer)
        {
             base .AddAttributesToRender(writer);
            writer.AddStyleAttribute(HtmlTextWriterStyle.Display, " none " );
        }
         /// <summary>
         /// 呈现菜单
         /// </summary>
         /// <param name="writer"></param>
         protected override void OnPreRender(EventArgs e)
        {
             base .OnPreRender(e);

             this .Page.ClientScript.RegisterClientScriptResource( this .GetType(), " Hjp.WebDesigner.WebControls.ProgressBar.ProgressBar.js " );

            StringBuilder script = new StringBuilder();
            script.Append( " \nvar " + this .UniqueID + " = new ProgressBar();\n " );
             if ( this .StepManually)
            {
                script.Append( "" + this .UniqueID + " .StepManually= " + this .StepManually.ToString().ToLower() + " ;\n " );
                script.Append( "" + this .UniqueID + " .TickCount= " + this .TickCount + " ;\n " );
                script.Append( "" + this .UniqueID + " .CompleteEvent=\ "" + this.CompleteEvent + " \ " ;\n " );
            }
             else
            {
                script.Append( "" + this .UniqueID + " .AliveSeconds= " + this .AliveSeconds + " ;\n " );
                script.Append( "" + this .UniqueID + " .TickWidth= " + this .TickWidth + " ;\n " );
                script.Append( "" + this .UniqueID + " .CompleteEvent=\ "" + this.CompleteEvent + " \ " ;\n " );
                script.Append( "" + this .UniqueID + " .TipMessage=\ "" + this.TipMessage + " \ " ;\n " );
            }
             this .Page.ClientScript.RegisterClientScriptBlock( this .GetType(), this .UniqueID, script.ToString(), true );
        }
    }

客户端应用服务器控件：

< cc1:ProgressBar ID ="ProgressBar1" runat ="server"
    AliveSeconds ="5"
    TickWidth ="3"
    CompleteEvent ="hide"
    TipMessage ="loading..." />

代码下载：http://files.cnblogs.com/jackhuclan/progressbar.rar

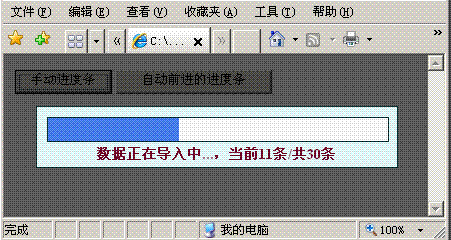

截图看看效果（还一张图看上一篇文章，或下载代码）：
