WP7 BingMap 通过关键字搜索地理位置



一、新建一个命名为SearchLocatin的 Windows Phone 应用程序。如下：



二、为应用程序添加GeocodeService的Web服务引用，添加流程如下：

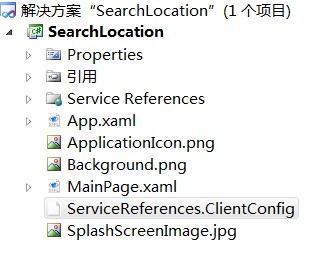

1、右键单击

2、选择添加服务引用，就会出现添加服务引用的对话框。如下：





3、在地址输入框，输入http://dev.virtualearth.net/webservices/v1/geocodeservice/GeocodeService.svc，然后单击“前往”。就会出现如下对话框：





4、把命名空间ServiceReference重命名为SearchService，最后点击确认，这样“为应用程序添加GeocodeService的Web服务引用”就完成？如下：

5、请注意，（4）的“？”其实序添加GeocodeService的Web服务引用还没完成！因为地点检索和反向地理坐标检索都只支持客户端异步调用，添加Web服务引用后，客户端配置文件（）会自动生成的配置有两个服务端点的地址配置，所以需要人为将“basicHttp”服务端点的地址配置删除，否则会出现异常。“basicHttp”删除前和删除后，如下：

（1）、“basicHttp”删除前：

<configuration>
    <system.serviceModel>
        <bindings>
            <basicHttpBinding>
                <binding name="BasicHttpBinding_IGeocodeService" maxBufferSize="2147483647"
                    maxReceivedMessageSize="2147483647">
                    <security mode="None" />
                </binding>
            </basicHttpBinding>
            <customBinding>
                <binding name="CustomBinding_IGeocodeService">
                    <binaryMessageEncoding />
                    <httpTransport maxReceivedMessageSize="2147483647" maxBufferSize="2147483647" />
                </binding>
            </customBinding>
        </bindings>
        <client>
            <endpoint address="http://dev.virtualearth.net/webservices/v1/geocodeservice/GeocodeService.svc"
                binding="basicHttpBinding" bindingConfiguration="BasicHttpBinding_IGeocodeService"
                contract="SearchService.IGeocodeService" name="BasicHttpBinding_IGeocodeService" />
            <endpoint address="http://dev.virtualearth.net/webservices/v1/geocodeservice/GeocodeService.svc/binaryHttp"
                binding="customBinding" bindingConfiguration="CustomBinding_IGeocodeService"
                contract="SearchService.IGeocodeService" name="CustomBinding_IGeocodeService" />
        </client>
    </system.serviceModel>
</configuration>

（2）、“basicHttp”删除后：

<configuration>
    <system.serviceModel>
        <bindings>
            <customBinding>
                <binding name="CustomBinding_IGeocodeService">
                    <binaryMessageEncoding />
                    <httpTransport maxReceivedMessageSize="2147483647" maxBufferSize="2147483647" />
                </binding>
            </customBinding>
        </bindings>
        <client>
            <endpoint address="http://dev.virtualearth.net/webservices/v1/geocodeservice/GeocodeService.svc/binaryHttp"
                binding="customBinding" bindingConfiguration="CustomBinding_IGeocodeService"
                contract="SearchService.IGeocodeService" name="CustomBinding_IGeocodeService" />
        </client>
    </system.serviceModel>
</configuration>

6、这样就真正完成了添加GeocodeService的Web服务引用了！



三、为Mainpage.xaml文件添加一个Map控件、一个Button按钮、一个TextBlock输入框和一个PushPin图钉。Mainpage.xaml文件如下：

  <!--ContentPanel - 在此处放置其他内容-->
        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
            <my:Map Height="480" HorizontalAlignment="Left" Margin="27,99,0,0" Name="map1" VerticalAlignment="Top" Width="407">
                <my:Pushpin Name="pushpinLocation" Background="Red" Content="A"/>
            </my:Map>
            <TextBox Height="72" HorizontalAlignment="Left" Margin="27,6,0,0" Name="textBox1"  VerticalAlignment="Top" Width="257" GotFocus="textBox1_GotFocus"/>
            <Button Content="Search" Height="72" HorizontalAlignment="Right" Margin="0,6,22,0" Name="btnSearch" VerticalAlignment="Top" Width="166" Click="btnSearch_Click" />

        </Grid>

四、为Mainpage.xaml。.cs文件如下：



 public partial class MainPage : PhoneApplicationPage

   {

   // 构造函数

    public MainPage()

     {

     InitializeComponent();

    }

        private void textBox1_GotFocus(object sender, RoutedEventArgs e)

      {

      this.textBox1.Text = "";

       this.pushpinLocation.Visibility = Visibility.Collapsed;

       }



     private void btnSearch_Click(object sender, RoutedEventArgs e)

     {

   this.pushpinLocation.Visibility = Visibility.Visible;

           this.MakeSearchRequest(this.textBox1.Text.Trim());

      }



        private void MakeSearchRequest(string keyWord)

     {

          try

    {

             GeocodeServiceClient client = new GeocodeServiceClient();

              client.GeocodeCompleted += new EventHandler<GeocodeCompletedEventArgs>(client_GeocodeCompleted);

                GeocodeRequest request = new GeocodeRequest();

                request.Credentials = new Credentials();

                request.Credentials.ApplicationId = "Ass18leJLz5UXGqXw1XqS3iJee4o-UwFsYOeDQUjyXC25UPYb4hYmsek0KpguMEK";

                request.Query = keyWord;

                client.GeocodeAsync(request);

            }

            catch (Exception ex)

            {

                Dispatcher.BeginInvoke(() => MessageBox.Show(ex.Message));

            }

      }

        void client_GeocodeCompleted(object sender, GeocodeCompletedEventArgs e)

        {

            try

            {

                GeocodeResponse response = e.Result;

                double latitude = response.Results[0].Locations[0].Latitude;

                double longitude = response.Results[0].Locations[0].Longitude;

                 this.map1.Center = new GeoCoordinate(latitude, longitude);

                this.pushpinLocation.Location = new GeoCoordinate(latitude, longitude);

                this.map1.ZoomLevel = 10;

            }

            catch (Exception ex)

            {

               Dispatcher.BeginInvoke(() => MessageBox.Show(ex.Message));

           }

         }

    }

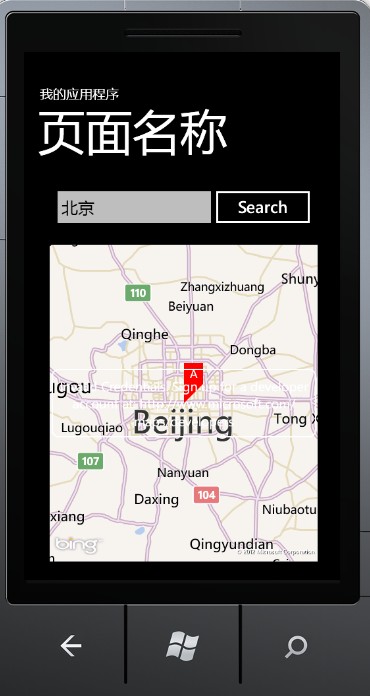

五、运行结果如下：

特别声明：本文借鉴http://www.cnblogs.com/beniao/archive/2010/02/08/1665291.html。

本人是第一次记录自己的学习心得和发现，不足之处，大叔们多多包涵！
