http://kivy.org/docs/api-kivy.uix.gridlayout.html?highlight=gridlayout#kivy.uix.gridlayout

It's so nice to try this one:

from kivy.app import App
from kivy.uix.gridlayout import GridLayout
from kivy.uix.label import Label
from kivy.uix.textinput import TextInput
from kivy.uix.button import Button

class LoginScreen(GridLayout):

    def __init__(self, **kwargs):
        super(LoginScreen, self).__init__(**kwargs)
        #self.cols = 3       # 3 columns
        self.rows = 3       # 3 rows
        self.add_widget(Label(text='User Name'))        #add widget label : content User Name
        self.username = TextInput(multiline=False)      # no multiline text input support
        self.add_widget(self.username)                  #add 'username' textinput
        self.add_widget(Label(text='Pass Word'))        #add widget label : content User Name
        self.password = TextInput(multiline=False, password=True)   #password auto-hidden
        self.add_widget(self.password)
        self.btn1 = Button(text='Login', fontsize=14)
        self.add_widget(self.btn1)



class MyApp(App):
    def build(self):
        return LoginScreen()


if __name__ == "__main__":
    MyApp().run()

I added a button down there.

And let's see what gonna happen later.

Change the self.rows , it inherits from the class "GridLayout"

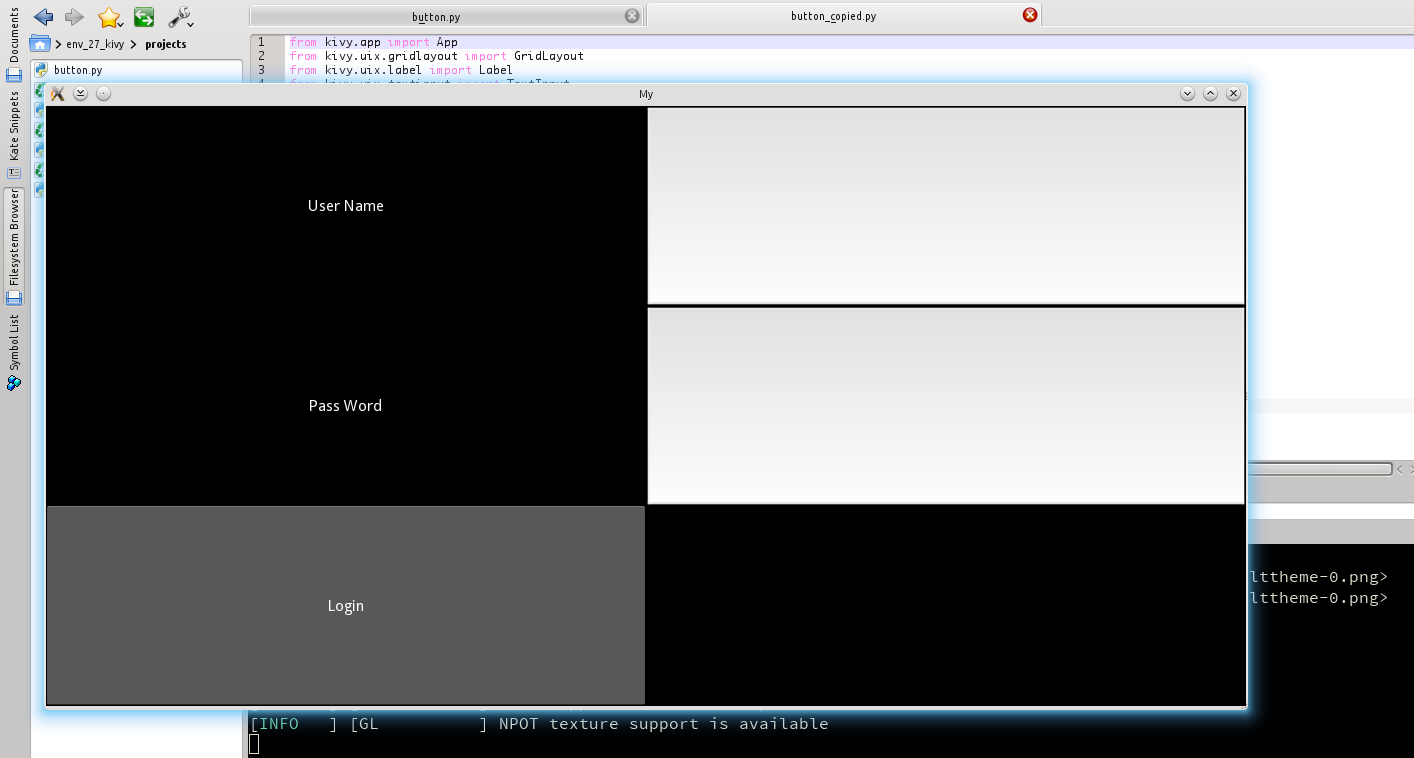

Let's see it would look like this:

now we see the login button down there :D

But we need event to be triggered when the "Login" button's pressed.
