201771010110孔维滢《面向对象程序设计（java）》第十三周学习总结

理论知识部分

1.监听器：监听器类必须实现与事件源相对应的接口，即必须提供接口中方法的实现。

                    监听器接口方法实现

                                class Mylistener implements ActionListener {  public void actionPerformed (ActionEvent event) {  …… } }

2.用匿名类、lambda表达式简化程序：

    例ButtonTest.java中，各按钮需要同样的处理：

                a.使用字符串构造按钮对象；

                b.把按钮添加到面板上；

                c.用对应的颜色构造一个动作监听器；

                d.注册动作监听器。

3.适配器类:

    当程序用户试图关闭一个框架窗口时，Jframe 对象就是WindowEvent的事件源。

    捕获窗口事件的监听器：

             WindowListener listener=…..; frame.addWindowListener(listener);

    注册事件监听器:

              可将一个Terminator对象注册为事件监听器：

                              WindowListener listener=new Terminator();

                              frame.addWindowListener(listener);

4.动作事件:

    Swing包提供了非常实用的机制来封装命令，并将它们连接到多个事件源，这就是Action接口。

    动作对象是一个封装下列内容的对象：

                           –命令的说明：一个文本字符串和一个可选图标;

                           –执行命令所需要的参数。

5.鼠标事件:

    鼠标事件 – MouseEvent

    鼠标监听器接口

                              – MouseListener

                              – MouseMotionListener

    鼠标监听器适配器

                              – MouseAdapter

                              – MouseMotionAdapter

实验部分：

    实验1：

测试程序1：

package button;

import java.awt.*;
import javax.swing.*;

/**
 * @version 1.34 2015-06-12
 * @author Cay Horstmann
 */
public class ButtonTest
{
   public static void main(String[] args)
   {
      EventQueue.invokeLater(() -> {
         JFrame frame = new ButtonFrame();//构建一个ButtonFrame类对象
         frame.setTitle("ButtonTest");//设置Title属性，确定框架标题栏中的文字
         frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);//设置默认关闭操作，退出并关闭
         frame.setVisible(true);//设置Visible属性，组件可见
      });
   }
}

　　

package button;

import java.awt.*;
import java.awt.event.*;
import javax.swing.*;

/**
 * A frame with a button panel
 */
public class ButtonFrame extends JFrame
{
   private JPanel buttonPanel;
   private static final int DEFAULT_WIDTH = 300;
   private static final int DEFAULT_HEIGHT = 200;

   public ButtonFrame()
   {
      setSize(DEFAULT_WIDTH, DEFAULT_HEIGHT);

      // 创建按钮
      JButton yellowButton = new JButton("Yellow");
      JButton blueButton = new JButton("Blue");
      JButton redButton = new JButton("Red");

      buttonPanel = new JPanel();

      // 添加按钮到面板
      buttonPanel.add(yellowButton);//调用add方法将按钮添加到面板
      buttonPanel.add(blueButton);
      buttonPanel.add(redButton);

      // 添加面板到框架
      add(buttonPanel);

      // 创建按钮事件
      ColorAction yellowAction = new ColorAction(Color.YELLOW);
      ColorAction blueAction = new ColorAction(Color.BLUE);
      ColorAction redAction = new ColorAction(Color.RED);

      // 将时间与按钮关联
      yellowButton.addActionListener(yellowAction);
      blueButton.addActionListener(blueAction);
      redButton.addActionListener(redAction);
   }

   /**
    * An action listener that sets the panel's background color.
    */
   private class ColorAction implements ActionListener//实现了ActionListener的接口类
   {
      private Color backgroundColor;

      public ColorAction(Color c)
      {
         backgroundColor = c;
      }

      public void actionPerformed(ActionEvent event)//actionListener方法接收一个ActionEvent对象参数
      {
         buttonPanel.setBackground(backgroundColor);
      }
   }
}

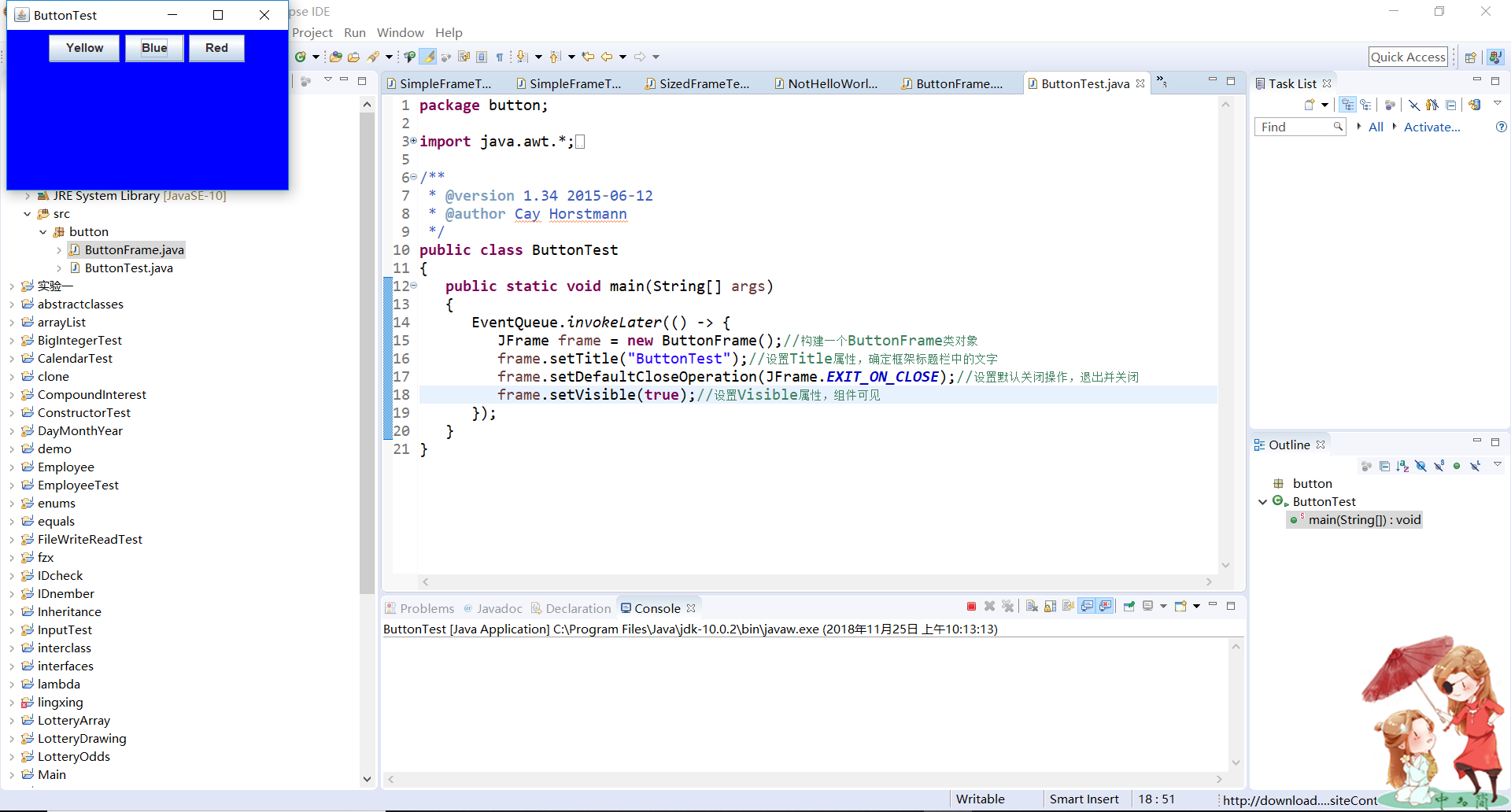

　　输出结果：

测试程序2：

package plaf;

import java.awt.*;
import javax.swing.*;

/**
 * @version 1.32 2015-06-12
 * @author Cay Horstmann
 */
public class PlafTest
{
   public static void main(String[] args)
   {
      EventQueue.invokeLater(() -> {
         JFrame frame = new PlafFrame();//构建一个PlafFrame类对象
         frame.setTitle("PlafTest");//设置Title属性，确定框架标题栏中的文字
         frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);//设置默认关闭操作，退出并关闭
         frame.setVisible(true);//设置Visible属性，组件可见
      });
   }
}

　　

package plaf;

import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.JPanel;
import javax.swing.SwingUtilities;
import javax.swing.UIManager;

/**
 * A frame with a button panel for changing look-and-feel
 */
public class PlafFrame extends JFrame
{
   private JPanel buttonPanel;

   public PlafFrame()
   {
      buttonPanel = new JPanel();

      UIManager.LookAndFeelInfo[] infos = UIManager.getInstalledLookAndFeels();//获得一个用于描述已安装的观感实现的对象数组
      for (UIManager.LookAndFeelInfo info : infos)
         makeButton(info.getName(), info.getClassName());//返回观感的显示名称，返回观感实现类的名称

      add(buttonPanel);
      pack();
   }

   /**
    * Makes a button to change the pluggable look-and-feel.
    * @param name the button name
    * @param className the name of the look-and-feel class
    */
   private void makeButton(String name, String className)
   {
	   // 添加按钮到面板

      JButton button = new JButton(name);
      buttonPanel.add(button);

      // 设置按钮事件

      button.addActionListener(event -> {
         // 按钮动作:切换到新的外观
         try
         {
            UIManager.setLookAndFeel(className);
            SwingUtilities.updateComponentTreeUI(this);
            pack();
         }
         catch (Exception e)
         {
            e.printStackTrace();
         }
      });
   }//使用辅助方法makeButton和匿名内部类指定按钮动作
}

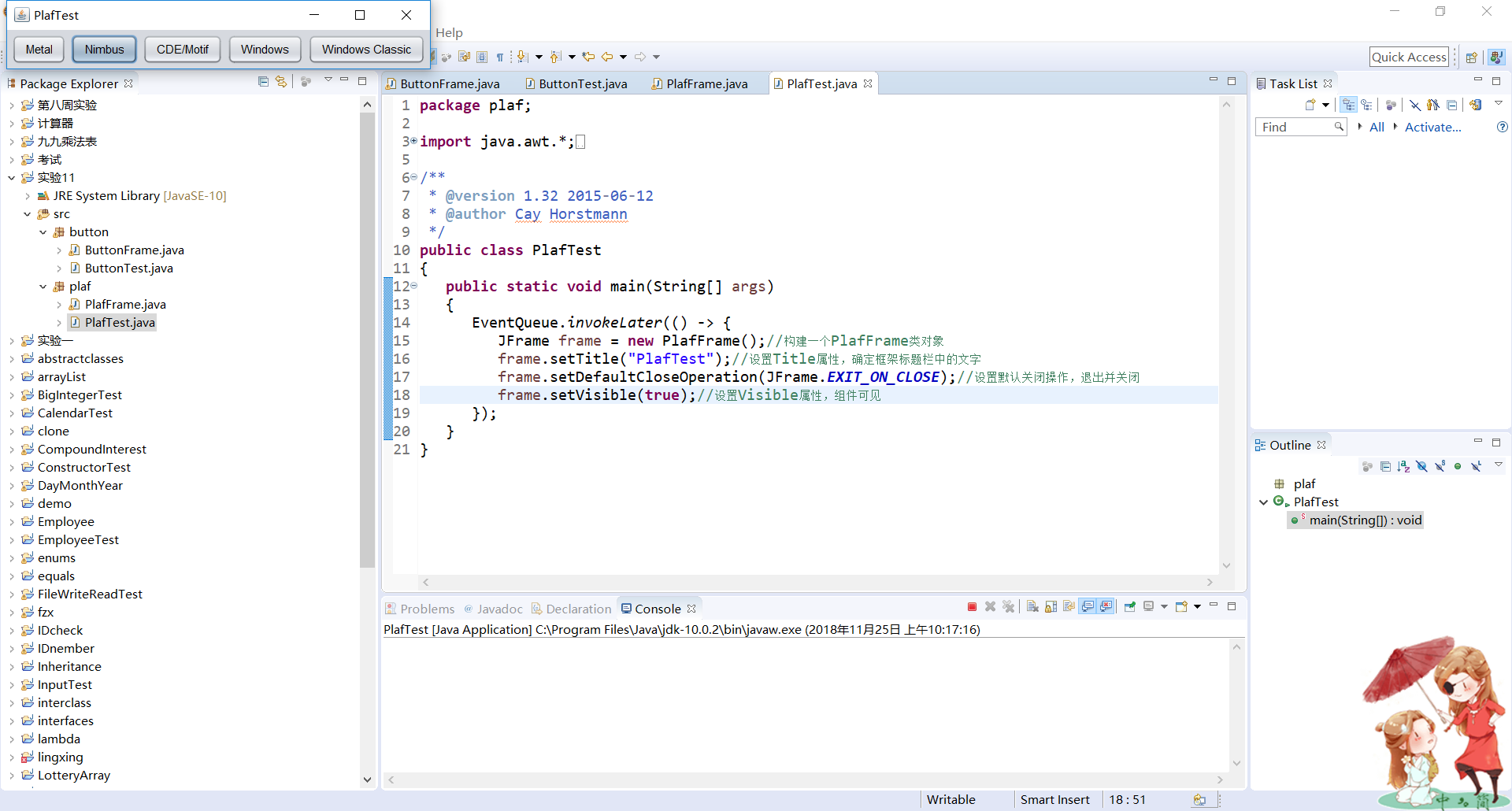

　输出结果：

测试程序3：

package action;

import java.awt.*;
import javax.swing.*;

/**
 * @version 1.34 2015-06-12
 * @author Cay Horstmann
 */
public class ActionTest
{
   public static void main(String[] args)
   {
      EventQueue.invokeLater(() -> {
         JFrame frame = new ActionFrame();//构建一个ActionFrame类对象
         frame.setTitle("ActionTest");//设置Title属性，确定框架标题栏中的文字
         frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);//设置默认关闭操作，退出并关闭
         frame.setVisible(true);//设置Visible属性，组件可见
      });
   }
}

　　

package action;

import java.awt.*;
import java.awt.event.*;
import javax.swing.*;

/**
 * A frame with a panel that demonstrates color change actions.
 */
public class ActionFrame extends JFrame
{
   private JPanel buttonPanel;
   private static final int DEFAULT_WIDTH = 300;
   private static final int DEFAULT_HEIGHT = 200;

   public ActionFrame()
   {
      setSize(DEFAULT_WIDTH, DEFAULT_HEIGHT);

      buttonPanel = new JPanel();

      // 定义操作
      Action yellowAction = new ColorAction("Yellow", new ImageIcon("yellow-ball.gif"),
            Color.YELLOW);
      Action blueAction = new ColorAction("Blue", new ImageIcon("blue-ball.gif"), Color.BLUE);
      Action redAction = new ColorAction("Red", new ImageIcon("red-ball.gif"), Color.RED);

      // 为这些操作添加按钮
      buttonPanel.add(new JButton(yellowAction));
      buttonPanel.add(new JButton(blueAction));
      buttonPanel.add(new JButton(redAction));

      // 将面板添加到框架
      add(buttonPanel);

      // 将Y、B和R键与名称关联起来
      InputMap imap = buttonPanel.getInputMap(JComponent.WHEN_ANCESTOR_OF_FOCUSED_COMPONENT);//获得将按键映射到动作键的输入映射
      imap.put(KeyStroke.getKeyStroke("ctrl Y"), "panel.yellow");//根据一个便于人们阅读的说明创建一个按钮（由空格分隔的字符串序列）
      imap.put(KeyStroke.getKeyStroke("ctrl B"), "panel.blue");
      imap.put(KeyStroke.getKeyStroke("ctrl R"), "panel.red");

      // 将名称与操作关联起来
      ActionMap amap = buttonPanel.getActionMap();//返回关联动作映射键和动作对象的映射
      amap.put("panel.yellow", yellowAction);
      amap.put("panel.blue", blueAction);
      amap.put("panel.red", redAction);
   }

   public class ColorAction extends AbstractAction
   {
      /**
       * Constructs a color action.
       * @param name the name to show on the button
       * @param icon the icon to display on the button
       * @param c the background color
       */
      public ColorAction(String name, Icon icon, Color c)
      {
         putValue(Action.NAME, name);//将名/值放置在动作对象内
         putValue(Action.SMALL_ICON, icon);
         putValue(Action.SHORT_DESCRIPTION, "Set panel color to " + name.toLowerCase());
         putValue("color", c);
      }

      public void actionPerformed(ActionEvent event)
      {
         Color c = (Color) getValue("color");//返回被存储的名对的值
         buttonPanel.setBackground(c);
      }
   }
}

　　输出结果：

测试程序4：

package mouse;

import java.awt.*;
import javax.swing.*;

/**
 * @version 1.34 2015-06-12
 * @author Cay Horstmann
 */
public class MouseTest
{
   public static void main(String[] args)
   {
      EventQueue.invokeLater(() -> {
         JFrame frame = new MouseFrame();//构建一个MouseFrame类对象
         frame.setTitle("MouseTest");//设置Title属性，确定框架标题栏中的文字
         frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);//设置默认关闭操作，退出并关闭
         frame.setVisible(true);//设置Visible属性，组件可见
      });
   }
}



package mouse;

import javax.swing.*;

/**
 * A frame containing a panel for testing mouse operations
 */
public class MouseFrame extends JFrame
{
   public MouseFrame()
   {
      add(new MouseComponent());
      pack();
   }
}

　　

package mouse;

import java.awt.*;
import java.awt.event.*;
import java.awt.geom.*;
import java.util.*;
import javax.swing.*;

/**
 * A component with mouse operations for adding and removing squares.
 */
public class MouseComponent extends JComponent
{
   private static final int DEFAULT_WIDTH = 300;
   private static final int DEFAULT_HEIGHT = 200;

   private static final int SIDELENGTH = 10;
   private ArrayList<Rectangle2D> squares;
   private Rectangle2D current; // 包含鼠标光标的正方形

   public MouseComponent()
   {
      squares = new ArrayList<>();
      current = null;

      addMouseListener(new MouseHandler());
      addMouseMotionListener(new MouseMotionHandler());
   }

   public Dimension getPreferredSize() { return new Dimension(DEFAULT_WIDTH, DEFAULT_HEIGHT); }

   public void paintComponent(Graphics g)
   {
      Graphics2D g2 = (Graphics2D) g;

      // 画出所有方块
      for (Rectangle2D r : squares)
         g2.draw(r);
   }

   /**
    * Finds the first square containing a point.
    * @param p a point
    * @return the first square that contains p
    */
   public Rectangle2D find(Point2D p)
   {
      for (Rectangle2D r : squares)
      {
         if (r.contains(p)) return r;
      }
      return null;
   }

   /**
    * Adds a square to the collection.
    * @param p the center of the square
    */
   public void add(Point2D p)
   {
      double x = p.getX();
      double y = p.getY();

      current = new Rectangle2D.Double(x - SIDELENGTH / 2, y - SIDELENGTH / 2, SIDELENGTH,
            SIDELENGTH);
      squares.add(current);
      repaint();
   }

   /**
    * Removes a square from the collection.
    * @param s the square to remove
    */
   public void remove(Rectangle2D s)
   {
      if (s == null) return;
      if (s == current) current = null;
      squares.remove(s);
      repaint();
   }

   private class MouseHandler extends MouseAdapter
   {
      public void mousePressed(MouseEvent event)
      {
         // 如果光标不在正方形内，则添加一个新的正方形
         current = find(event.getPoint());
         if (current == null) add(event.getPoint());
      }

      public void mouseClicked(MouseEvent event)
      {
         // 如果双击，则删除当前方块
         current = find(event.getPoint());
         if (current != null && event.getClickCount() >= 2) remove(current);
      }
   }

   private class MouseMotionHandler implements MouseMotionListener
   {
      public void mouseMoved(MouseEvent event)
      {
         // 如果鼠标指针在内部，则将其设置为十字线
         // 一个矩形

         if (find(event.getPoint()) == null) setCursor(Cursor.getDefaultCursor());
         else setCursor(Cursor.getPredefinedCursor(Cursor.CROSSHAIR_CURSOR));
      }

      public void mouseDragged(MouseEvent event)
      {
         if (current != null)
         {
            int x = event.getX();
            int y = event.getY();

            // 拖动当前矩形到(x, y)的中心
            current.setFrame(x - SIDELENGTH / 2, y - SIDELENGTH / 2, SIDELENGTH, SIDELENGTH);
            repaint();
         }
      }
   }
}

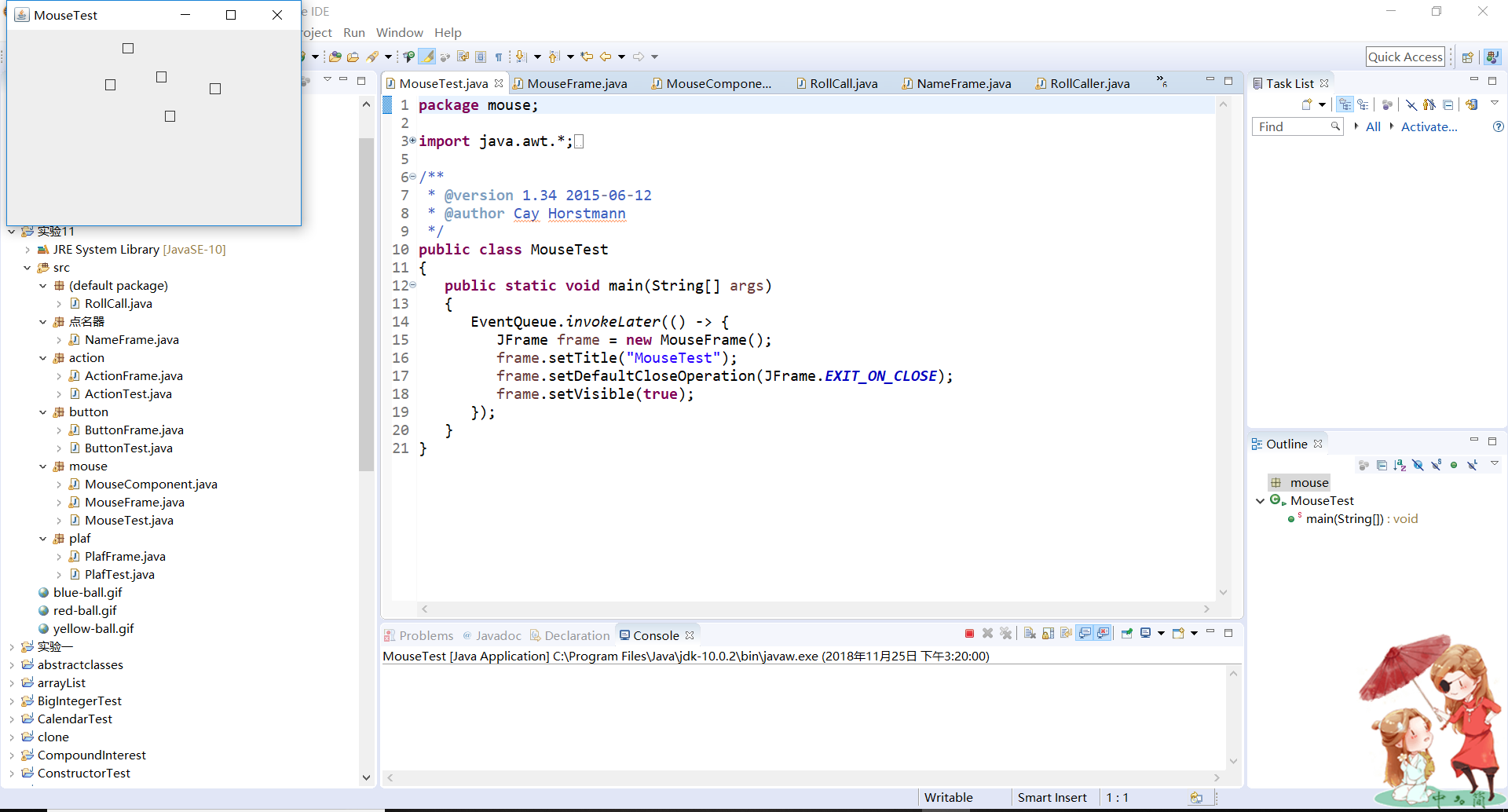

　输出结果：

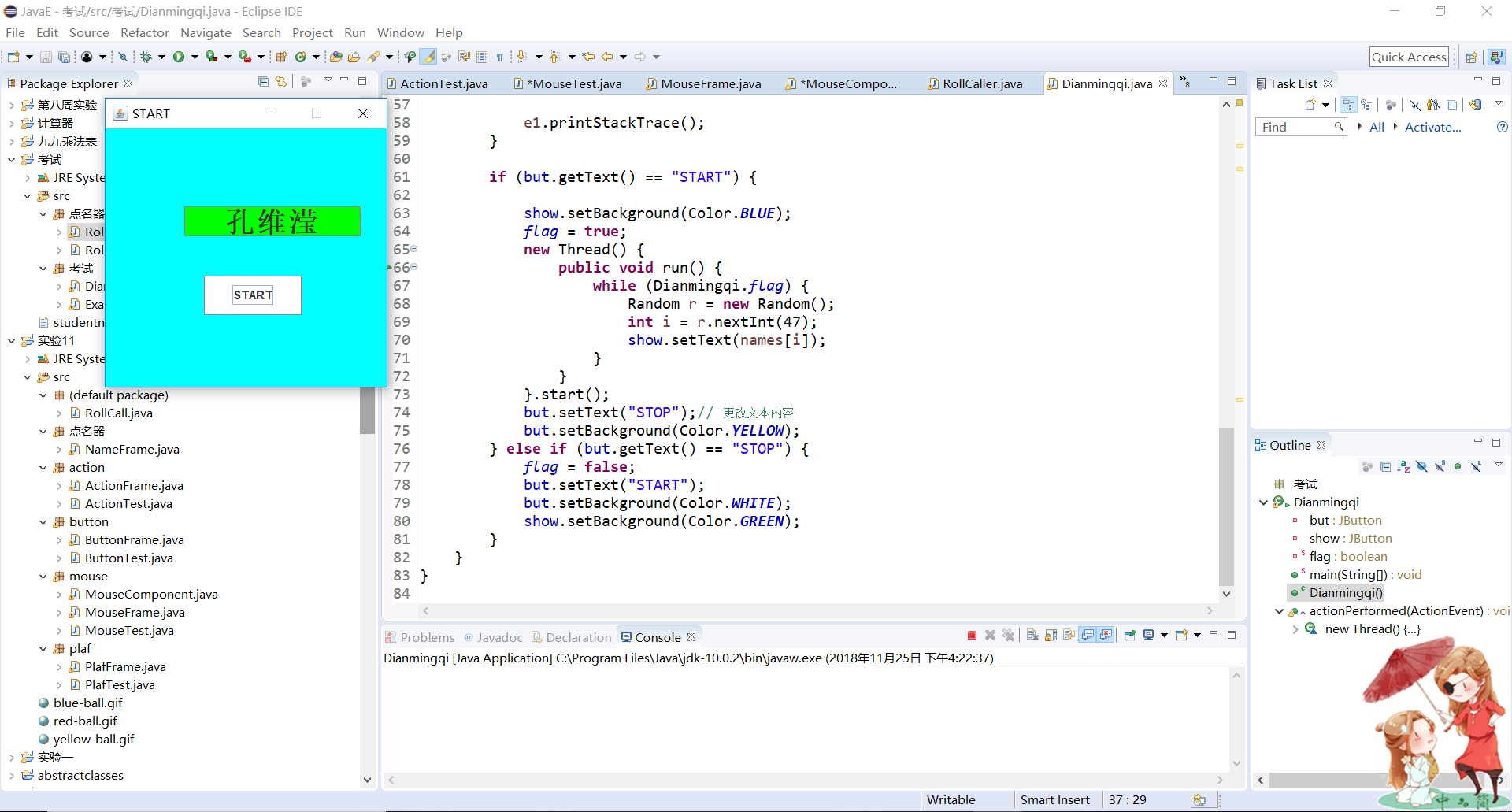

实验2：结对编程练习

结对编程伙伴：冯志霞

import java.util.*;
import java.awt.*;
import javax.swing.*;
import java.awt.event.*;
import java.awt.Frame;
import java.io.File;
import java.io.FileNotFoundException;

public class Dianmingqi extends JFrame implements ActionListener {
	private JButton but;

	private JButton show;
	private static boolean flag = true;

	public static void main(String arguments[]) {
		new Dianmingqi();

	}

	public Dianmingqi() {

		but = new JButton("START");
		but.setBounds(100, 150, 100, 40);

		show = new JButton("开始点名");
		show.setBounds(80, 80, 180, 30);
		show.setFont(new Font("宋体", Font.BOLD, 30));

		add(but);

		add(show);

		setLayout(null);// 布局管理器必须先初始化为空才能赋值
		setVisible(true);
		setResizable(false);
		setBounds(100, 100, 300, 300);
        //setBackground(Color.red);不起作用
		this.getContentPane().setBackground(Color.cyan);
		setTitle("START");
		setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

		but.addActionListener(this);
	}

	public void actionPerformed(ActionEvent e) {
		int i = 0;
		String names[] = new String[50];
		try {
			Scanner in = new Scanner(new File("studentnamelist.txt"));
			while (in.hasNextLine()) {
				names[i] = in.nextLine();
				i++;
			}
		} catch (FileNotFoundException e1) {

			e1.printStackTrace();
		}

		if (but.getText() == "START") {

			show.setBackground(Color.BLUE);
			flag = true;
			new Thread() {
				public void run() {
					while (Dianmingqi.flag) {
						Random r = new Random();
						int i = r.nextInt(47);
						show.setText(names[i]);
					}
				}
			}.start();
			but.setText("STOP");// 更改文本内容
			but.setBackground(Color.YELLOW);
		} else if (but.getText() == "STOP") {
			flag = false;
			but.setText("START");
			but.setBackground(Color.WHITE);
			show.setBackground(Color.GREEN);
		}
	}
}

　　

实验总结：

这个周的结对编程练习，由于对很多知识的不理解，无法完全实现编程题的内容，我深感自己的不足。对于代码中的一些方法还不是能够完全理解。

package 点名器;

import java.io.*;
import java.awt.*;
import java.awt.event.*;
import java.util.List;

import javax.swing.JFrame;

import java.util.ArrayList;

public class RollCaller extends JFrame{

    private String fileName="studentnamelist.txt";
    private File f;
    private FileReader fr;
    private BufferedReader br;
    private List<String> names=new ArrayList<String>();
    private String Name;
    private Label labelName;
    private Button button;

    public static void main(String[] args)
    {
        RollCaller rollcaller=new RollCaller();
        rollcaller.newFrame();
        rollcaller.read();
    }

    public void newFrame()
    {
        labelName=new Label("随机点名");
        button=new Button("START");

        this.setLocation(300,300);
        this.setResizable(true);//设置此窗体是否可由用户调整大小。
        this.setSize(1000,800);
        this.add(labelName,BorderLayout.NORTH);
        this.add(button,BorderLayout.CENTER);
        this.pack();
        this.setVisible(true);
        setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        button.addActionListener(new ButtonAction());
    }

    public void read()
    {
        try{
            f=new File(fileName);
            if(!f.exists()){
                f.createNewFile();
            }
            fr=new FileReader(f);
            br=new BufferedReader(fr);
            String str=br.readLine();
            while(str!=null){
                names.add(str);
                str=br.readLine();
            }
        }catch(Exception e){
            e.printStackTrace();
            }
    }

    public void name()
    {
        try{
            int index=(int)(Math.random()*names.size());
            Name=names.get(index);
            }catch(Exception e){
                e.printStackTrace();
                }
        }

    private class ButtonAction implements ActionListener{

        public void actionPerformed(ActionEvent e){
            name();
            labelName.setText(Name);
        }
    }
}

 这次的作业，我在网络中查询了很多，

 通过在网上查询，我查到了BufferedReader由Reader类扩展而来，提供文本读取。

 还有label对象是一个可在容器中放置文本的组件。一个标签只显示一行只读文本。文本可由应用程序更改，但是用户不能直接对其进行编辑。

 但是这个代码还存在着很多问题，对于很多知识我还需更多的掌握，不论是从程序的实用，还是外观，都还需更加深入的学习。

转载于:https://www.cnblogs.com/Weiron/p/10015941.html
