——可视化，是如此的充满魅力。

最近距离问题：平面中n（n>1)个点，求距离最近的两个点。

分析：设定集合 pts[n] , minLen=INT_MAX;

for i=0, to n

{

for j=i+1, to n //计算两点间的距离不需要重复计算，所以全部计算过的顶点需要排除

{

if minLen > Dis(pts[i],pts[j])

{

//求出了当前最近的连个点距离

}


   /// <summary>
   /// 最近点对距离计算
   /// </summary>
   class PointPairCompute
   {
       private int imgWidth;
       private int imgHeight;
       private int createCount;
       private List<Point> ptLst;
       private readonly int radius;

       public PointPairCompute(int width,int height,int count)
       {
           this.imgWidth = width;
           this.imgHeight = height;
           this.createCount = count;

           this.ptLst = new List<Point>();
           this.radius = 2;
       }


       /// <summary>
       /// 获取随机生成点的图片
       /// </summary>
       /// <returns>图片</returns>

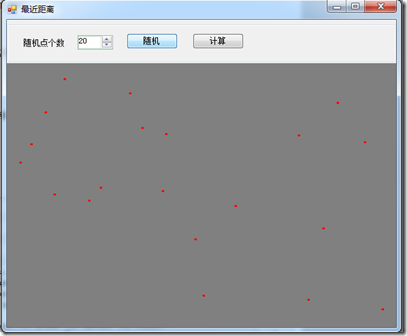

       public Image GetRandomImag()
       {
           //随机产生点
           RandomCratePtLst();
           //绘制图片
           Bitmap map = new Bitmap(this.imgWidth, this.imgHeight);
           Graphics gfx = Graphics.FromImage(map);
           gfx.Clear(Color.Gray);

           foreach (Point item in this.ptLst)
           {
               //map.SetPixel(item.X, item.Y, Color.Red);
               gfx.FillEllipse(Brushes.Red, item.X - radius, item.Y - radius, radius * 2, radius * 2);
           }

           gfx.Dispose();

           return map;
       }

       /// <summary>
       /// 获取点对最近距离结果图片
       /// </summary>
       /// <returns>结果图片</returns>

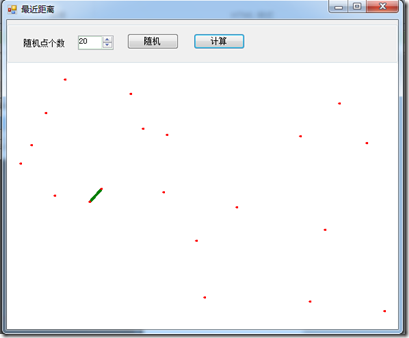

       public Image GetPointPariResult()
       {
           if (this.ptLst.Count <2)
           {
               return null;
           }

           int leftIndex = -1;
           int rightIndex = -1;
           ComputerPointPari(ref leftIndex, ref rightIndex);

           Bitmap map = new Bitmap(this.imgWidth, this.imgHeight);
           Graphics gfx = Graphics.FromImage(map);
           gfx.Clear(Color.White);
           Pen pen = new Pen(Color.Green, 4);
           gfx.DrawLine(pen, ptLst[leftIndex], ptLst[rightIndex]);

           foreach (Point item in this.ptLst)
           {
               //map.SetPixel(item.X, item.Y, Color.Red);
               gfx.FillEllipse(Brushes.Red, item.X - radius, item.Y - radius, radius * 2, radius * 2);
           }

           gfx.Dispose();
           return map;
       }

       //随机生成点
       private void RandomCratePtLst()
       {
           this.ptLst.Clear();

           Random rd = new Random();
           for (int i = 0; i < this.createCount; i++)
           {
               this.ptLst.Add(new Point(rd.Next(0, this.imgWidth), rd.Next(0, this.imgHeight)));
           }
       }

       //蛮力计算最短距离
       private void ComputerPointPari(ref int leftIndex, ref int rightIndex)
       {
           int minLen = Int32.MaxValue;

           for (int i = 0; i < this.ptLst.Count; ++i)
           {
               for (int j = i+1; j < this.ptLst.Count; j++)
               {
                   int tempLen = (ptLst[i].X - ptLst[j].X) * (ptLst[i].X - ptLst[j].X) +
                       (ptLst[i].Y - ptLst[j].Y) * (ptLst[i].Y - ptLst[j].Y);

                   if (minLen > tempLen)
                   {
                       minLen = tempLen;
                       leftIndex = i;
                       rightIndex = j;
                   }
               }
           }
       }
   }
