MFlood协议实现

最新推荐文章于 2017-12-05 11:52:38 发布

转载最新推荐文章于 2017-12-05 11:52:38 发布 · 189 阅读

0 ·

CC 4.0 BY-SA版权

原文链接：http://www.cnblogs.com/chenxt/archive/2011/11/08/2241145.html

　　本协议的实现是作为对NS2扩展的一个实例，将来如果要扩展其他的协议可以参考MFlood协议的实现过程，MFlood在NS2上的扩展已经成功实现，因此记录下扩展过程，对于有需要的人可以进行参考一下。NS2版本为NS2-2.34

在ns-2.34目录下创建mflood目录，该目录下包括mflood.h(协议类的定义)，mflood(协议的实现)，mflood-packet.h(包头结构定义)，mflood-seqtable.h(路由类定义)，seqtable.cc（路由实现）五个文件。

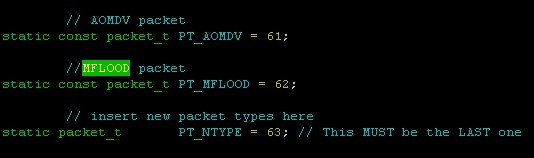

修改ns-2.34/common/packet.h文件，在文件的申明部分，有一些静态变量申明：static const packet_t PT......修改如下：

　　在p_info() {

　　　　　　}进行如此扩展。

　　3. 修改ns-2.34/tcl/lib/ns-lib.tcl文件

　另外再插入这么一段代码：

　　set前用tab键而不是空格，注意格式保持一致哦。

　　4.修改ns-2.34/tcl/lib/ns-packet.tcl文件

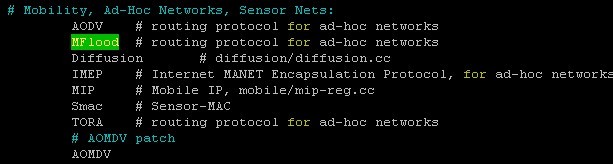

　　foreach prot {

　　}

　　5.修改ns-2.34/Makefile文件

　　OBJ_CC中增加一行：

　　注意：行末尾以空格加'\'符号结束。

　　6.代码实现

mflood.h

 1 //mflood.h
 2 #ifndef __mflood_h__
 3 #define __mflood_h__
 4
 5 #include <sys/types.h>
 6 #include <cmu-trace.h>
 7 #include <priqueue.h>
 8 #include "mflood/mflood-seqtable.h"
 9 #include <list>
10
11 #define NOW (Scheduler::instance().clock())
12
13 //Should be set by the user using best guess (conservative)
14 #define NETWORK_DIAMETER 30             //30 hops
15
16 //The followings are used for the forword() function. Controls pacing
17 #define FORWARD_DELAY 0.01              //random delay
18 #define NO_DELAY -1.0           //no delay
19
20 //The Routing Agent
21 class MFlood: public Agent {
22     friend class MFlood_RTEntry;
23 public:
24     MFlood(nsaddr_t id);
25     void recv(Packet *p, Handler *);
26 protected:
27     int command(int, const char *const *);
28     inline int initialized() {return 1 && target_;}
29     //Route Table Management
30     void rt_resolve(Packet *p);
31     //Packet TX Routines
32     void forward(MFlood_RTEntry *rt, Packet *p, double delay);
33     nsaddr_t index_;            //IP Address of this node
34
35
36 //Routing Table
37     MFlood_RTable rtable_;
38     //A mechanism for logging the contents of the routing
39     Trace *logtarget;
40     NsObject *uptarget_;
41     NsObject *port_dmux_;
42 private:
43     u_int32_t myseq_;
44 };
45 #endif

mflood.cc

  1 #include "mflood.h"
  2 #include "mflood-packet.h"
  3 #include <random.h>
  4 #include <cmu-trace.h>
  5 //New packet type
  6 int hdr_mflood::offset_;
  7 static class MFloodHeaderClass:public PacketHeaderClass {
  8     public:
  9         MFloodHeaderClass():PacketHeaderClass("PacketHeader/MFlood",
 10                         sizeof(hdr_mflood)){
 11                 bind_offset(&hdr_mflood::offset_);
 12         }
 13 } class_mfloodhdr;
 14
 15 //TCL Hooks
 16 static class MFloodclass:public TclClass {
 17     public:
 18         MFloodclass():TclClass("Agent/MFlood"){}
 19         TclObject* create(int argc, const char* const* argv){
 20             assert(argc == 5);
 21             return (new MFlood((nsaddr_t) atoi(argv[4])));              //PBO agrv[4] is index_
 22         }
 23 } class_rtProtoMFlood;
 24
 25 int MFlood::command(int argc, const char* const* argv){
 26     Tcl& tcl = Tcl::instance();
 27     if(argc == 2){
 28         if(strncasecmp(argv[1], "id", 2)== 0){
 29             tcl.resultf("%d", index_);
 30             return TCL_OK;
 31         }else if(strcmp(argv[1], "uptarget")== 0){
 32             if(uptarget_ != 0)
 33               tcl.result(uptarget_ -> name());
 34             return (TCL_OK);
 35         }
 36     }else if(argc == 3){
 37         if(strcmp(argv[1], "index_")== 0){
 38             index_ = atoi(argv[2]);
 39             return TCL_OK;
 40         }else if(strcmp(argv[1], "log-target")== 0 || strcmp(argv[1], "tracetarget")== 0) {
 41             logtarget = (Trace*)TclObject::lookup(argv[2]);
 42             if(logtarget == 0) return TCL_ERROR;
 43             return TCL_OK;
 44         }else if(strcmp(argv[1], "uptarget")== 0){
 45             if(*argv[2] == '0'){
 46                 target_ = 0;
 47                 return (TCL_OK);
 48             }
 49             uptarget_ = (NsObject*)TclObject::lookup(argv[2]);
 50             if(uptarget_ == 0){
 51                 tcl.resultf("no such object %s", argv[2]);
 52                 return (TCL_ERROR);
 53             }
 54             return (TCL_OK);
 55         }
 56         else if (strcasecmp(argv[1], "port-dmux")== 0)
 57         {
 58             TclObject *obj;
 59             port_dmux_ = (NsObject*)obj;
 60             return TCL_OK;
 61         }
 62     }
 63     return Agent::command(argc, argv);
 64 }
 65
 66 MFlood::MFlood(nsaddr_t id):Agent(PT_MFLOOD),port_dmux_(0){
 67     index_ = id;
 68     logtarget = 0;
 69     myseq_ = 0;
 70 }
 71 //Route Handling Functions
 72 void MFlood::rt_resolve(Packet *p){
 73     struct hdr_cmn *ch = HDR_CMN(p);
 74     struct hdr_ip *ih = HDR_IP(p);
 75     struct hdr_mflood *fh = HDR_MFLOOD(p);
 76     MFlood_RTEntry* rt;
 77     rt = rtable_.rt_lookup(ih->saddr());
 78     if(rt == NULL){
 79         rt = new MFlood_RTEntry(ih->saddr(), fh->seq_);
 80         LIST_INSERT_HEAD(&rtable_.rthead,rt,rt_link);
 81
 82         //printf("%.8f%d, no rt, so forward.rt_seq:%d, pkt seq:%d\n", NOW, index_.rt -> max_seqno, fh -> seq_);
 83         forward(rt,p,FORWARD_DELAY);
 84     }else if(rt->isNewSeq(fh->seq_)){
 85         forward(rt,p,FORWARD_DELAY);
 86         rt->addSeq(fh->seq_);
 87     }else {
 88         drop(p, "LOWSEQ");
 89     }
 90 }
 91
 92 //Packet Reception Routines
 93 void MFlood::recv(Packet *p, Handler*){
 94     struct hdr_cmn *ch = HDR_CMN(p);
 95     struct hdr_ip *ih = HDR_IP(p);
 96     struct hdr_mflood *fh = HDR_MFLOOD(p);
 97     assert(initialized());
 98
 99     if((ih->saddr() == index_) && (ch->num_forwards() == 0)){
100         //Must be a packet I'm originating...
101         ch->size() += IP_HDR_LEN;
102         ih->ttl_ = NETWORK_DIAMETER;
103         fh->seq_ = myseq_++;
104         forward((MFlood_RTEntry*)1,p,0);
105         return;
106     }else if(ih->saddr() == index_){
107         //I received a packet that I sent. Probably a routing loop.
108         drop(p,DROP_RTR_ROUTE_LOOP);
109         return;
110         }else {
111             //Packet I'm forwarding...
112             if (--ih->ttl_ == 0){
113             //Check the TTL. If it is zero,then discard.
114             drop(p,DROP_RTR_TTL);
115             return;
116             }
117         }
118     rt_resolve(p);
119 }
120
121 //Packet Transmission Routines
122 void MFlood::forward(MFlood_RTEntry* rt, Packet *p, double delay){
123     struct hdr_cmn *ch = HDR_CMN(p);
124     struct hdr_ip *ih = HDR_IP(p);
125     assert(ih->ttl_ > 0);
126     assert(rt != 0);
127     ch -> next_hop_ = -1;               //Broadcast address
128     ch -> addr_type() = NS_AF_INET;
129     ch -> direction() = hdr_cmn::DOWN;          //important: change the packet's direction
130     if (delay > 0.0){
131         Scheduler::instance().schedule(target_, p, Random::uniform(delay*2));
132     }else {
133         //Not a broadcast packet, no delay, send immediately
134         Scheduler::instance().schedule(target_, p, 0);
135     }
136 }

mfloos-packet.h

 1 #ifndef __mflood_packet_h__
 2 #define __mflood_packet_h__
 3
 4 #define HDR_MFLOOD(p)        ((struct hdr_mflood*)hdr_mflood::access(p))
 5
 6 /*
 7  * General MFlood Header
 8 */
 9  struct hdr_mflood {
10              u_int32_t seq_;
11             //Header access methods
12             static int offset_;        //required by PacketHeaderManager
13             inline static int& offset() {return offset_;}
14             inline static hdr_mflood* access(const Packet* p)
15             {
16                 return (hdr_mflood*) p -> access(offset_);
17                     }
18          };
19
20 #endif

mflood-seqtable.h

 1 #ifndef __mflood_seqtable_h__
 2 #define __mflood_seqtable_h__
 3 #include <assert.h>
 4 #include <sys/types.h>
 5 #include <config.h>
 6 #include <lib/bsd-list.h>
 7 #include <scheduler.h>
 8
 9 #define INFINITY 0xff
10 #define RTF_DOWN 0
11 #define RTF_UP 1
12 #define REM_SEQ_COUNT 1000
13 //Route Table Entry
14 class MFlood_RTEntry
15 {
16     friend class MFlood_RTable;
17     friend class MFlood;
18 public:
19     MFlood_RTEntry();
20     MFlood_RTEntry(nsaddr_t src, u_int32_t seq);
21     bool isNewSeq(u_int32_t seq);    //old false, new true
22     void addSeq(u_int32_t seq);        //add a seqno to seqno array(rt_seqnos)
23 protected:
24     LIST_ENTRY(MFlood_RTEntry) rt_link;
25     nsaddr_t     src_;
26     u_int32_t     rt_seqnos[REM_SEQ_COUNT];    //seqno array
27     u_int32_t     max_seqno;    //max seqno;
28     u_int32_t    min_seqno;    //min seqno;
29     u_int16_t     seq_it;        //seqno iterator
30 };
31
32 //The Routing Table
33 class MFlood_RTable
34 {
35     friend class MFlood;
36 public:
37     MFlood_RTable() {LIST_INIT(&rthead);}
38     void rt_delete(nsaddr_t id);
39     MFlood_RTEntry* rt_lookup(nsaddr_t id);
40     void rt_print();
41 private:
42     LIST_HEAD(, MFlood_RTEntry) rthead;
43 };
44
45 #endif

mflood-seqtable.cc

 1 #include "mflood-seqtable.h"
 2 //The Routing Table
 3 MFlood_RTEntry::MFlood_RTEntry()
 4 {
 5     src_ = 0;
 6     for (int i = 0; i < REM_SEQ_COUNT; ++i)
 7         {
 8             rt_seqnos[i] = 0xffffff;
 9             max_seqno = 0;
10             min_seqno = 0;
11             seq_it = 0;
12         }
13 };
14
15 //The Routing Table
16 MFlood_RTEntry::MFlood_RTEntry(nsaddr_t src, u_int32_t seq)
17 {
18     src_ = src;
19      for (int i = 0; i < REM_SEQ_COUNT; ++i)
20          {
21             rt_seqnos[i] = 0xffffff;
22             rt_seqnos[0] = seq;
23             max_seqno = seq;
24             min_seqno = 0;
25             seq_it = 1;
26         }
27 };
28
29 bool MFlood_RTEntry::isNewSeq(u_int32_t seq)
30 {
31     if (seq > max_seqno)
32             return true;
33     //discard old packet
34     if (seq < min_seqno)
35             return false;
36     for (int i = 0; i < REM_SEQ_COUNT; ++i)
37             if (seq == rt_seqnos[i])
38                     return false;
39             return true;
40 }
41
42 void MFlood_RTEntry::addSeq(u_int32_t seq)
43 {
44     u_int16_t min_it = 0;
45     if (seq < min_seqno)
46             return;
47     if (seq > max_seqno)
48             max_seqno = seq;
49     rt_seqnos[seq_it++] = seq;
50     seq_it %= REM_SEQ_COUNT;
51     min_seqno = 0xffffff;
52     //the value of min_seqno
53     for (int i = 0; i < REM_SEQ_COUNT; ++i)
54             if (min_seqno > rt_seqnos[i])
55                     min_seqno = rt_seqnos[i];
56         }
57
58 //The Routing Table
59 MFlood_RTEntry* MFlood_RTable::rt_lookup(nsaddr_t id)
60 {
61     MFlood_RTEntry *rt = rthead.lh_first;
62     for (; rt; rt = rt -> rt_link.le_next)
63     {
64         if (rt -> src_ == id)
65                 break;
66             }
67     return rt;
68 }
69
70 void MFlood_RTable::rt_delete(nsaddr_t id)
71 {
72     MFlood_RTEntry *rt = rt_lookup(id);
73     if (rt)
74     {
75         LIST_REMOVE(rt, rt_link);
76         delete rt;
77         }
78 }
79
80 void MFlood_RTable::rt_print()
81 {
82     MFlood_RTEntry *rt = rthead.lh_first;
83     for (; rt; rt = rt -> rt_link.le_next)
84     {
85         //printf("index: %d, seq: %d\n", rt -> src_, rt -> max_seqno);
86             }
87     return;
88 }

　　如有疑问，可以进行讨论。

转载于:https://www.cnblogs.com/chenxt/archive/2011/11/08/2241145.html
