解决echarts饼图不显示数据为0的数据

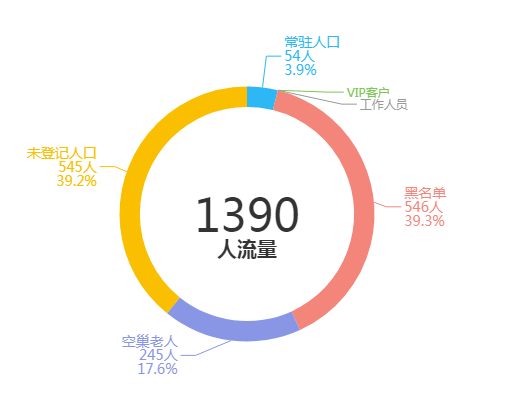

如图所示 饼图数据为0但是还是会显示lableline和lable

解决方法

var echartData = [{

value: data_arry[0]==0?null:data_arry[0],

name: '常驻人口'

}]

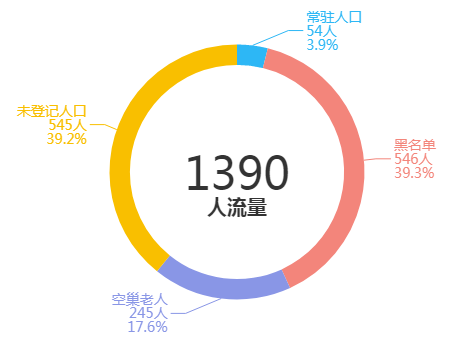

传数据时判断数据是否为0，如果为0的话 就填入null

• 饼图代码

  var scale = 1;
  var echartData = [{
  value: 54,
  name: '常驻人口'
  }, {
  value: null,
  name: 'VIP客户'
  }, {
  value: null,
  name : '工作人员'
  }, {
  value: 546,
  name: '黑名单'
  },
  {
  value: 245,
  name: '空巢老人'
  },{
  value: 545,
  name: '未登记人口'
  }, ];
  var rich = {

    total: {
        color: "#333333",
        fontSize: 45 * scale,
        align: 'center'
    },
    chart_text:{
        fontSize:14*scale,
    }

  }
  option = {
  backgroundColor: '#fff',
  title: {
  text: '人流量',
  left: 'center',
  top: '50%',
  padding: [24, 0],
  textStyle: {
  color: '#333333',
  fontSize: 20 * scale,
  align: 'center'
  }
  },
  legend: {
  selectedMode: false,
  formatter: function(name) {
  var total = 0; //各科正确率总和
  var averagePercent; //综合正确率
  echartData.forEach(function(value, index, array) {
  total += value.value;
  });
  return '{total|' + total + '}';
  },
  data: [echartData[0].name],
  left: 'center',
  top: 'center',
  icon: 'none',
  align: 'center',
  textStyle: {
  color: "#fff",
  fontSize: 16 * scale,
  rich: rich
  },
  },
  series: [{
  name: '人流量',
  type: 'pie',
  radius: ['42%', '50%'],
  hoverAnimation: true,
  color: ['#2DB7F5', '#7DC856','#999999', '#F3857B', '#8996E6', '#F9BF00' ],
  label: {
  normal: {
  formatter: function(params, ticket, callback) {
  var total = 0; //
  var percent = 0; //
  echartData.forEach(function(value, index, array) {
  total += value.value;
  });
  percent = ((params.value / total) * 100).toFixed(1);
  if(params.value==0)
  return null;
  else
  return '{chart_text|' + params.name + '}\n{chart_text|' + params.value + '人}\n{chart_text|' + percent + '%}';
  },
  rich:rich,
  },
  },
  data: echartData
  }]
  };

转载于:https://www.cnblogs.com/lancelee98/p/9824962.html
