Lidar Tools for ENVI

BCAL LiDAR Tools is open-source tools developed by Boise Center Aerospace Laboratory (BCAL). These tools can be used for processing, analyzing and visualizing LiDAR data. They are written in IDL programming language and is intended to be used as add-on in the ENVI remote sensing software package.

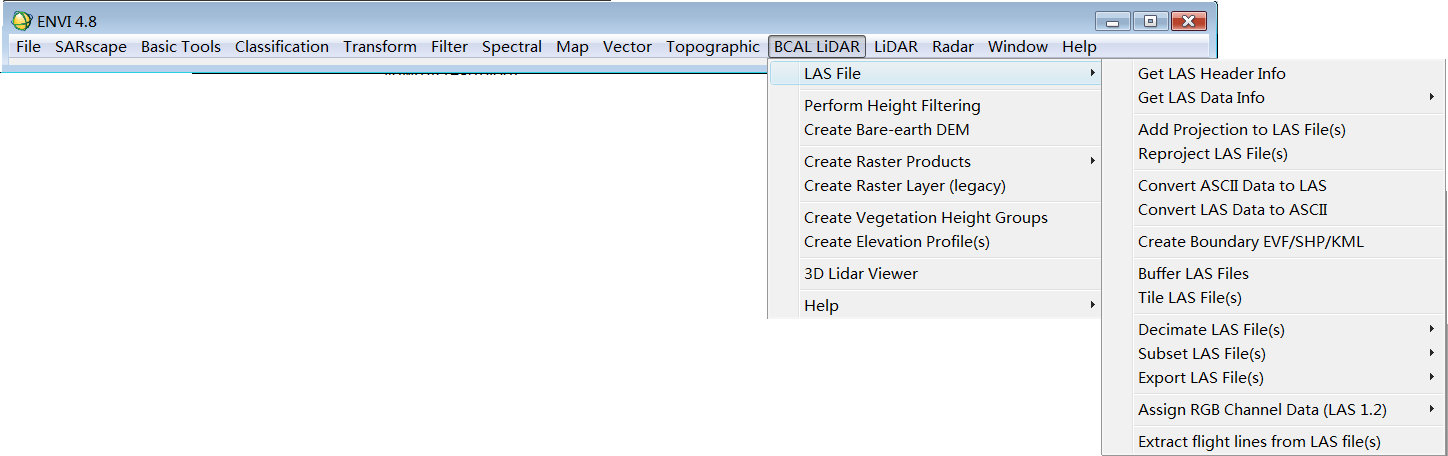

模块功能列表

LAS File Utilities	Process/Manipulate LAS files
- Get LAS Header Info	Displays header and projection information for an LAS file
- Get LAS Data Info	Displays descriptive data statistics for LAS file(s)
- Add Projection to LAS File(s)	Adds embedded projection information to LAS files
- Reproject LAS File(s)	Converts existing LAS files into a new map projection
- Convert Ascii Data to LAS	Converts text point data into LAS format lidar files
- Convert LAS Data to Ascii/Shapefile	Converts LAS format lidar files into delimited text or ESRI Shapefile point data
- Create Boundary EVF/SHP/KML	Creates an vector file (EVF, shape or KML) that shows the boundaries of the data
- Buffer LAS Files	Geographically buffers the data using neighboring files
- Tile LAS File(s)	Divides one or more files into multiple tiles
- Decimate LAS File(s)	Decimates the points the data file
- Subset LAS File(s)	Subset LAS files by coordinates or image/ROI
- - Subset via Coordinates	Subsets data files according to user coordinates
- - Subset via Image/ROI	Subsets data files using a reference image and/or regions of interest
- Export LAS File(s)	Export LiDAR returns by return number, number of returns, classes, elevation, intensity, and scan angle
- Assign RGB Channel Data	Assigns RGB channel data from multi-band images, elevation color, or vegetation height color, to LAS 1.2 files
- Extract Flight Lines	Extract flight lines from LAS file(s) using GPS time information
Perform Height Filtering	Performs vegetation filtering on the data
Create Bare-earth DEM	Creates bare-earth digital terrain model from height-filtered LAS file(s)
Create Raster Products	Create various topographic, intensity and vegetation raster products
- Create Topographic Products (Bare-earth)	Creates various raster topographic bare-earth products
- Create Topographic Products (All returns)	Creates various raster topographic products from all point data
- Create Vegetation Products	Creates various raster vegetation products
- Create Intensity Products	Creates various raster intensity products
- Prepare LAS file(s)	Add vegetation height information to the LAS file(s) from existing bare-earth digital terrain model
Rasterize Lidar Data (Legacy)	Converts raw point data into various raster products
Create Vegetation Height Groups	Separate input LAS file into user-specified vegetation height groups
Create Elevation Profile(s)	Creates one or more elevation profiles along a user-defined transect

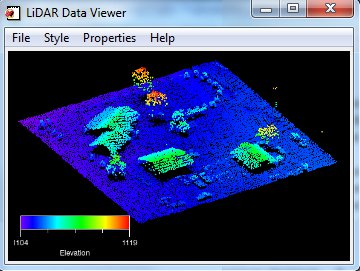

3D Lidar Viewer	An interactive viewer for displaying lidar point data

下载链接：http://bcal-lidar-tools.googlecode.com/files/LiDARTools-1.2.0.zip
