服务器与wp7的socket通信【转】 http://www.cnblogs.com/linzheng/archive/2011/06/21/2086456.html...

转载 于 2013-01-30 09:46:00 发布 · 58 阅读 · 0 ·
CC 4.0 BY-SA版权
原文链接：http://www.cnblogs.com/songtzu/archive/2013/01/30/2882444.html
文章标签：

#操作系统 #shell #运维

本文介绍如何利用WindowsPhone7的Socket编程接口实现客户端与服务器端的网络通信，通过一个小例子展示了如何使用WindowsPhone7客户端与Windows控制台程序作为服务器端进行消息的发送与接收。
  芒果更新的Windows Phone 7.1 版本的 API 提供了 Socket 编程的接口，这给Windows Phone 7的网络开发又添加了一把利器，对于Windows Phone 7上的聊天软件开发是一件非常happy的事情。下面用一个小例子来演示一下Windows Phone 7上的Socket编程。用Windows Phone 7上的客户端程序作为Socket客户端，Windows控制台程序作为服务器端，ip取你电脑本机的ip，端口号用8888，实现了Windows Phone 7客户端向服务器端发送消息和接收消息的功能。

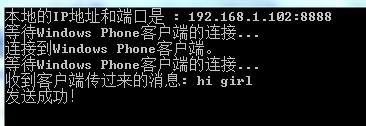

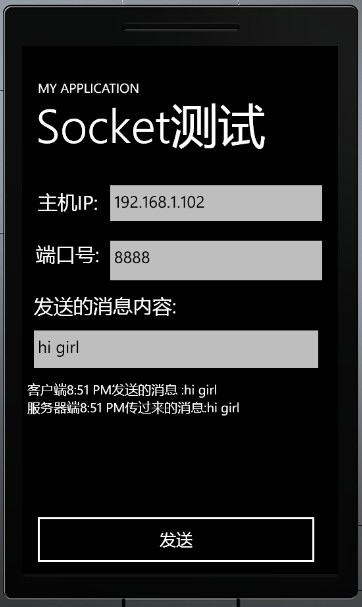

先来看看演示的效果
（1）       Windows Phone 7客户端客户端的实现。
MainPage.xaml
复制代码
<phone:PhoneApplicationPage
x:Class="SocketTest.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
    xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d" d:DesignWidth="480" d:DesignHeight="768"
    FontFamily="{StaticResource PhoneFontFamilyNormal}"
    FontSize="{StaticResource PhoneFontSizeNormal}"
    Foreground="{StaticResource PhoneForegroundBrush}"
    SupportedOrientations="Portrait" Orientation="Portrait"
    shell:SystemTray.IsVisible="True">

<Grid x:Name="LayoutRoot" Background="Transparent">
<Grid.RowDefinitions>
<RowDefinition Height="Auto"/>
<RowDefinition Height="*"/>
</Grid.RowDefinitions>

<StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
<TextBlock x:Name="ApplicationTitle" Text="MY APPLICATION" Style="{StaticResource PhoneTextNormalStyle}"/>
<TextBlock x:Name="PageTitle" Text="Socket测试" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
</StackPanel>

<Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">

<TextBlock FontSize="30" Text="主机IP:" Margin="12,23,0,540" HorizontalAlignment="Left" Width="99"/>
<TextBox x:Name="Host" InputScope="Digits" HorizontalAlignment="Stretch" Text="192.168.1.102" Margin="110,6,0,523"/>
<TextBlock FontSize="30" Text="端口号:" Margin="9,102,345,451"/>
<TextBox x:Name="Port" InputScope="Digits"
                       HorizontalAlignment="Stretch"
                       Text="8888" Margin="110,90,0,433"/>
<TextBlock  FontSize="30" Text="发送的消息内容:" Margin="6,180,157,374"/>
<TextBox x:Name="Message"
                         HorizontalAlignment="Stretch" Margin="-6,226,6,300"/>
<Button x:Name="SendButton"
                        Content="发送"
                        Click="SendButton_Click" Margin="0,509,12,6"/>
<ListBox Height="190" HorizontalAlignment="Left" Margin="-4,313,0,0" Name="listBox1" VerticalAlignment="Top" Width="460"/>
</Grid>
</Grid>

</phone:PhoneApplicationPage>
复制代码

cs页面
复制代码
using System;
using System.Net;
using System.Windows;
using Microsoft.Phone.Controls;
using System.Text;
using System.Net.Sockets;

namespace SocketTest
{
publicpartialclass MainPage : PhoneApplicationPage
    {
public MainPage()
        {
            InitializeComponent();
        }

privatevoid SendButton_Click(object sender, RoutedEventArgs e)
        {
// 判断是否已经输入了IP地址和端口
if (string.IsNullOrEmpty(Host.Text) ||string.IsNullOrEmpty(Port.Text))
            {
                MessageBox.Show("麻烦输入以下主机IP和端口号，谢谢！");
return;
            }
//主机IP地址
string host = Host.Text.Trim();
//端口号
int port = Convert.ToInt32(Port.Text.Trim());
//建立一个终结点对像
            DnsEndPoint hostEntry =new DnsEndPoint(host, port);
//创建一个Socket对象
            Socket sock =new Socket(AddressFamily.InterNetwork, SocketType.Stream, ProtocolType.Tcp);
//创建一个Socket异步事件参数
            SocketAsyncEventArgs socketEventArg =new SocketAsyncEventArgs();
//将消息内容转化为发送的byte[]格式
byte[] buffer = Encoding.UTF8.GetBytes(Message.Text);
//将发送内容的信息存放进Socket异步事件参数中
            socketEventArg.SetBuffer(buffer, 0, buffer.Length);
//注册Socket完成事件
            socketEventArg.Completed +=new EventHandler<SocketAsyncEventArgs>(SocketAsyncEventArgs_Completed);
//设置Socket异步事件参数的Socket远程终结点
            socketEventArg.RemoteEndPoint = hostEntry;
//将定义好的Socket对象赋值给Socket异步事件参数的运行实例属性
            socketEventArg.UserToken = sock;

try
            {
//运行Socket
                sock.ConnectAsync(socketEventArg);
            }
catch (SocketException ex)
            {
thrownew SocketException((int)ex.ErrorCode);
            }

        }

privatevoid SocketAsyncEventArgs_Completed(object sender, SocketAsyncEventArgs e)
        {
// 检查是否发送出错
if (e.SocketError != SocketError.Success)
            {
if (e.SocketError == SocketError.ConnectionAborted)
                {
                    Dispatcher.BeginInvoke(() => MessageBox.Show("连接超时请重试！ "
+ e.SocketError));
                }
elseif (e.SocketError == SocketError.ConnectionRefused)
                {
                    Dispatcher.BeginInvoke(() => MessageBox.Show("服务器端问启动"
+ e.SocketError));
                }
else
                {
                    Dispatcher.BeginInvoke(() => MessageBox.Show("出错了"
+ e.SocketError));
                }

//关闭连接清理资源
if (e.UserToken !=null)
                {
                    Socket sock = e.UserToken as Socket;
                    sock.Shutdown(SocketShutdown.Both);
                    sock.Close();
                }
return;

            }

//检查Socket的当前最后的一个操作
switch (e.LastOperation)
            {
//如果最后的一个操作是连接，那么下一步处理就是发送消息。
case SocketAsyncOperation.Connect:
if (e.UserToken !=null)
                    {
//获取运行中的Socket对象
                        Socket sock = e.UserToken as Socket;
//开始发送
bool completesAsynchronously = sock.SendAsync(e);
//检查socket发送是否被挂起，如果被挂起将继续进行处理
if (!completesAsynchronously)
                        {
                            SocketAsyncEventArgs_Completed(e.UserToken, e);
                        }
                    };
break;
//如果最后的一个操作是发送，那么显示刚才发送成功的消息，然后开始下一步处理就是接收消息。
case SocketAsyncOperation.Send:
//将已成功发送的消息内容绑定到listBox1控件中
                    Dispatcher.BeginInvoke(() =>
                        {
                            listBox1.Items.Add("客户端"+ DateTime.Now.ToShortTimeString() +"发送的消息 :"+ Message.Text);
                        }
                        );
if (e.UserToken !=null)
                    {
//获取运行中的Socket对象
                        Socket sock = e.UserToken as Socket;
//开始接收服务器端的消息
bool completesAsynchronously = sock.ReceiveAsync(e);
//检查socket发送是否被挂起，如果被挂起将继续进行处理
if (!completesAsynchronously)
                        {
                            SocketAsyncEventArgs_Completed(e.UserToken, e);
                        }
                    }
break;
//如果是最后的一个操作时接收，那么显示接收到的消息内容，并清理资源。
case SocketAsyncOperation.Receive:
if (e.UserToken !=null)
                    {
//获取接收到的消息，并转化为字符串
string dataFromServer = Encoding.UTF8.GetString(e.Buffer, 0, e.BytesTransferred);
//获取运行中的Socket对象
                        Socket sock = e.UserToken as Socket;
//将接收到的消息内容绑定到listBox1控件中
                        Dispatcher.BeginInvoke(() =>
                        {
                            listBox1.Items.Add("服务器端"+ DateTime.Now.ToShortTimeString() +"传过来的消息:"+ dataFromServer);
                        });
                    }
break;
            }
        }
    }
}
复制代码
（2）       Socket服务器端的实现，使用Windows的控制台程序。
复制代码
using System;
using System.Linq;
using System.Net;
using System.Net.Sockets;
using System.Text;
using System.Threading;

namespace SocketServer
{
staticclass Program
    {

privatestatic AutoResetEvent _flipFlop =new AutoResetEvent(false);

staticvoid Main(string[] args)
        {
//创建socket，使用的是TCP协议，如果用UDP协议，则要用SocketType.Dgram类型的Socket
            Socket listener =new Socket(AddressFamily.InterNetwork,
                SocketType.Stream,
                ProtocolType.Tcp);

//创建终结点EndPoint  取当前主机的ip
            IPHostEntry ipHostInfo = Dns.Resolve(Dns.GetHostName());
//把ip和端口转化为IPEndpoint实例,端口号取8888
            IPEndPoint localEP =new IPEndPoint(ipHostInfo.AddressList.First(), 8888);

            Console.WriteLine("本地的IP地址和端口是 : {0}", localEP);

try
            {
//绑定EndPoint对像（8888端口和ip地址）
                listener.Bind(localEP);
//开始监听
                listener.Listen(10);
//一直循环接收客户端的消息
while (true)
                {
                    Console.WriteLine("等待Windows Phone客户端的连接...");
//开始接收下一个连接
                    listener.BeginAccept(AcceptCallback, listener);
//开始线程等待
                    _flipFlop.WaitOne();
                }
            }
catch (Exception e)
            {
                Console.WriteLine(e.ToString());
            }

        }

///<summary>
/// 接收返回事件处理
///</summary>
///<param name="ar"></param>
privatestaticvoid AcceptCallback(IAsyncResult ar)
        {
            Socket listener = (Socket)ar.AsyncState;
            Socket socket = listener.EndAccept(ar);

            Console.WriteLine("连接到Windows Phone客户端。");

            _flipFlop.Set();

//开始接收，传递StateObject对象过去
            var state =new StateObject();
            state.Socket = socket;
            socket.BeginReceive(state.Buffer,
0,
                StateObject.BufferSize,
0,
                ReceiveCallback,
                state);
        }

privatestaticvoid ReceiveCallback(IAsyncResult ar)
        {
            StateObject state = (StateObject)ar.AsyncState;
            Socket socket = state.Socket;


// 读取客户端socket发送过来的数据
int read = socket.EndReceive(ar);

// 如果成功读取了客户端socket发送过来的数据
if (read >0)
            {
//获取客户端的消息，转化为字符串格式
string chunk = Encoding.UTF8.GetString(state.Buffer, 0, read);
                state.StringBuilder.Append(chunk);

if (state.StringBuilder.Length >0)
                {
string result = state.StringBuilder.ToString();
                    Console.WriteLine("收到客户端传过来的消息: {0}", result);
//发送数据信息给客户端
                    Send(socket, result);
                }
            }
        }


///<summary>
/// 返回客户端数据
///</summary>
///<param name="handler"></param>
///<param name="data"></param>
privatestaticvoid Send(Socket handler, String data)
        {

//将消息内容转化为发送的byte[]格式
byte[] byteData = Encoding.UTF8.GetBytes(data);

//发送消息到Windows Phone客户端
            handler.BeginSend(byteData, 0, byteData.Length, 0,
new AsyncCallback(SendCallback), handler);
        }

privatestaticvoid SendCallback(IAsyncResult ar)
        {
try
            {
                Socket handler = (Socket)ar.AsyncState;
// 完成发送消息到Windows Phone客户端
int bytesSent = handler.EndSend(ar);
if (bytesSent >0)
                {
                    Console.WriteLine("发送成功！");
                }
            }
catch (Exception e)
            {
                Console.WriteLine(e.ToString());
            }
        }
    }

publicclass StateObject
    {
public Socket Socket;
public StringBuilder StringBuilder =new StringBuilder();
publicconstint BufferSize =10;
publicbyte[] Buffer =newbyte[BufferSize];
publicint TotalSize;
    }
}

转载于:https://www.cnblogs.com/songtzu/archive/2013/01/30/2882444.html
