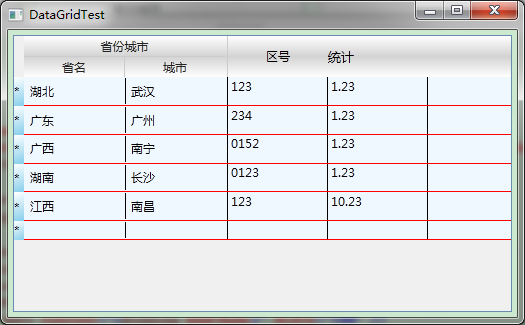

WPF中 DataGrid 列头合并，类似于报表设计。效果图如下↓

1.新建一个WPF项目WpfApplication1，新建一个窗体DataGridTest，前台代码如下：


        <Style x:Key="CityNumStyle" TargetType="DataGridColumnHeader">
            <Setter Property="Template">
                <Setter.Value>
                    <ControlTemplate>
                        <Grid x:Name="Root">

                            <ContentPresenter Content="区号" Grid.Row="2" VerticalAlignment="Center" HorizontalAlignment="Center" />
                        </Grid>
                    </ControlTemplate>
                </Setter.Value>
            </Setter>
        </Style>


                <Style TargetType="DataGridColumnHeader">
                    <Setter Property="Background">
                        <Setter.Value>
                            <LinearGradientBrush StartPoint="0,0" EndPoint="0,1">
                                <GradientStop Color="White" Offset="0"/>
                                <GradientStop Color="LightGray" Offset="0.5"/>
                                <GradientStop Color="White" Offset="1"/>
                            </LinearGradientBrush>
                        </Setter.Value>
                    </Setter>
                    <Setter Property="Foreground" Value="Black"/>
                    <Setter Property="FontSize" Value="13" />
                </Style>
            </DataGrid.ColumnHeaderStyle>
             <DataGrid.RowHeaderStyle>


                <Style TargetType="DataGridRowHeader">
                    <Setter Property="Content" Value="*"/>
                    <Setter Property="Width" Value="10"/>
                    <Setter Property="Background">
                        <Setter.Value>
                            <LinearGradientBrush StartPoint="0,0" EndPoint="1,1">
                                <GradientStop Color="White" Offset="0"/>
                                <GradientStop Color="SkyBlue" Offset="1"/>
                            </LinearGradientBrush>
                        </Setter.Value>
                    </Setter>
                    <Style.Triggers>
                        <Trigger Property="IsMouseOver" Value="True">
                            <Setter Property="ToolTip" Value="选中该行"/>
                        </Trigger>
                    </Style.Triggers>
                </Style>
            </DataGrid.RowHeaderStyle>
            <DataGrid.Columns>
                <DataGridTemplateColumn Header="sec" HeaderStyle="{StaticResource CityNameStyle}">
                    <DataGridTemplateColumn.CellTemplate>
                        <DataTemplate>
                            <StackPanel Orientation="Horizontal">
                                <Label Content="{Binding AddrName}" Width="100" />
                                <Rectangle Fill="#000" VerticalAlignment="Stretch" Margin="0" Width="1" />
                                <Label Content="{Binding CityName}" Width="100" />
                            </StackPanel>
                        </DataTemplate>
                    </DataGridTemplateColumn.CellTemplate>
                </DataGridTemplateColumn>
                <DataGridTextColumn HeaderStyle="{StaticResource CityNumStyle}" Binding="{Binding TelNum}" Width="100" />
                <DataGridTextColumn Header="统计" Binding="{Binding TotalSum}" Width="100" />
            </DataGrid.Columns>
        </DataGrid>
    </Grid>
    </Window>

2.后台CS文件代码如下：

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Shapes;

namespace WpfApplication1

{
    /// <summary>
    /// DataGridTest.xaml 的交互逻辑
    /// </summary>
    public partial class DataGridTest : Window
    {
        public DataGridTest()
        {
            InitializeComponent();
            this.dataGrid1.ItemsSource = CityInfo.GetInfo();
        }
    }

    //定义绑定DataGrid的实体和集合
    public class CityInfo
    {
        public string AddrName { get; set; }
        public string CityName { get; set; }
        public string TelNum { get; set; }
        public double TotalSum { get; set; }
        public static List<CityInfo> GetInfo()
        {
            return new List<CityInfo>()
            {
                new CityInfo() { AddrName="湖北", CityName = "武汉", TelNum="123", TotalSum = 1.23 },
                new CityInfo() { AddrName="广东", CityName = "广州", TelNum="234", TotalSum = 1.23 },
                new CityInfo() { AddrName="广西", CityName = "南宁", TelNum="0152", TotalSum = 1.23 },
                new CityInfo() { AddrName="湖南", CityName = "长沙", TelNum="0123", TotalSum = 1.23 },
                new CityInfo() { AddrName="江西", CityName = "南昌", TelNum="123", TotalSum = 10.23 }
            };
        }
    }
}
