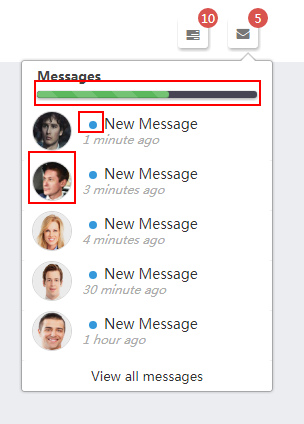

1.设计进度条、文字前面的圆点和图片

2.思路：

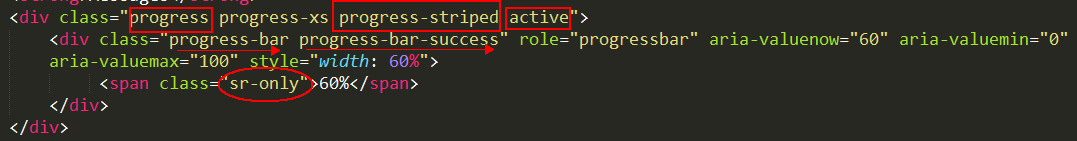

（1）设计进度条

（a）进度条有滚动效果，要加上类.active

（b）进度条的颜色通过类.progress-bar-success来写，可以写成.progress-bar-danger，或者.progress-bar-warning

（c）进度条有条纹，要加上类.progress-striped

（2）设计文字前面的圆点

（3）设计文字前面的图片

源码：

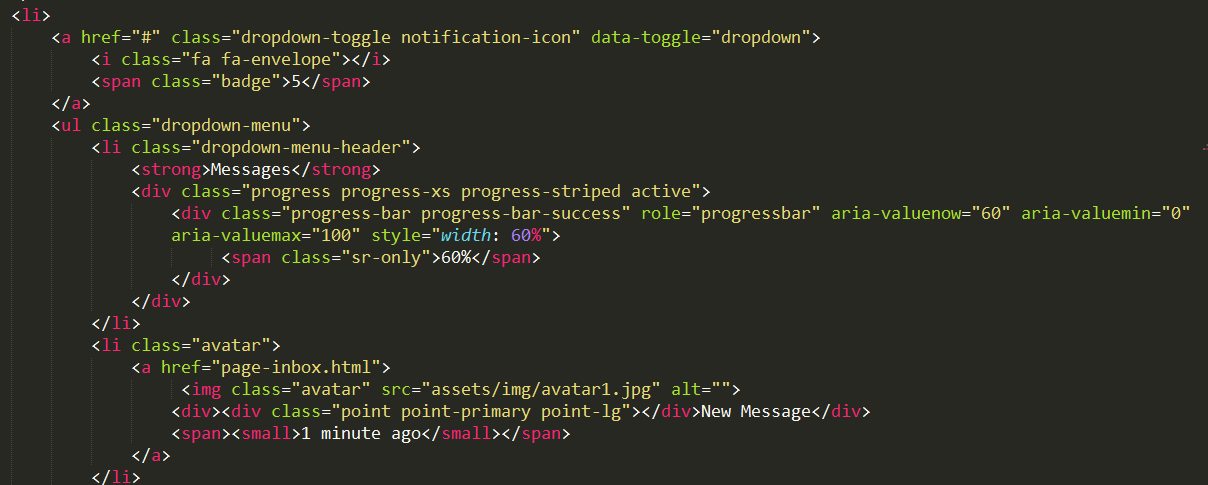

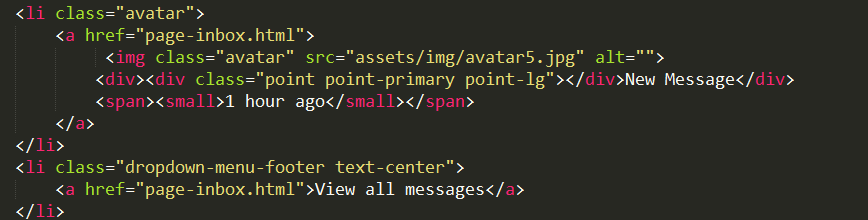

HTML:

<li>
           <a href="#" class="dropdown-toggle notification-icon" data-toggle="dropdown">
                   <i class="fa fa-envelope"></i>
                    <span class="badge">5</span>
             </a>
               <ul class="dropdown-menu">
                      <li class="dropdown-menu-header">
                             <strong>Messages</strong>
                             <div class="progress progress-xs progress-striped active">
                               <div class="progress-bar progress-bar-success" role="progressbar" aria-valuenow="60" aria-valuemin="0" aria-valuemax="100" style="width: 60%">
                                        <span class="sr-only">60%</span>
                                  </div>
                                </div>
                           </li>
                           <li class="avatar">
                                <a href="page-inbox.html">
                                    <img class="avatar" src="assets/img/avatar1.jpg" alt="">
                                    <div><div class="point point-primary point-lg"></div>New Message</div>
                                        <span><small>1 minute ago</small></span>
                                   </a>
                              </li>
                              <li class="avatar">
                                    <a href="page-inbox.html">
                                       <img class="avatar" src="assets/img/avatar2.jpg" alt="">
                                       <div><div class="point point-primary point-lg"></div>New Message</div>
                                        <span><small>3 minutes ago</small></span>
                                    </a>
                                </li>
                                <li class="avatar">
                                    <a href="page-inbox.html">
                                         <img class="avatar" src="assets/img/avatar3.jpg" alt="">
                                        <div><div class="point point-primary point-lg"></div>New Message</div>
                                        <span><small>4 minutes ago</small></span>
                                    </a>
                                </li>
                                <li class="avatar">
                                    <a href="page-inbox.html">
                                         <img class="avatar" src="assets/img/avatar4.jpg" alt="">
                                        <div><div class="point point-primary point-lg"></div>New Message</div>
                                        <span><small>30 minute ago</small></span>
                                    </a>
                                </li>
                                <li class="avatar">
                                    <a href="page-inbox.html">
                                         <img class="avatar" src="assets/img/avatar5.jpg" alt="">
                                        <div><div class="point point-primary point-lg"></div>New Message</div>
                                        <span><small>1 hour ago</small></span>
                                    </a>
                                </li>
                                <li class="dropdown-menu-footer text-center">
                                    <a href="page-inbox.html">View all messages</a>
                                </li>
                            </ul>
                        </li>

CSS：

/* progress
=================================================================== */
.progress {
    background: #474453;
    box-shadow: 0 1px 3px 0 rgba(0,0,0,0.4);
}
.progress-xs, .progress-xs .progress-bar {
    border-radius: 3px;
}
.progress-xs {
    height: 7px;
}
.navbar .notifications li .dropdown-menu li.avatar {
    min-width: 250px;
    height: 50px;
    padding: 0px 15px;
    border-bottom: 1px solid #eeeeee;
}
.navbar .notifications li .dropdown-menu li.avatar a {
    line-height: 50px;
    height: 50px;
    padding: 0px 15px;
}
.navbar .notifications li a img {
    width: 40px;
    border-radius: 0;
    -webkit-border-radius: 0;
    -moz-border-radius: 0;
    margin: 0 10px 0 0;
}
/*

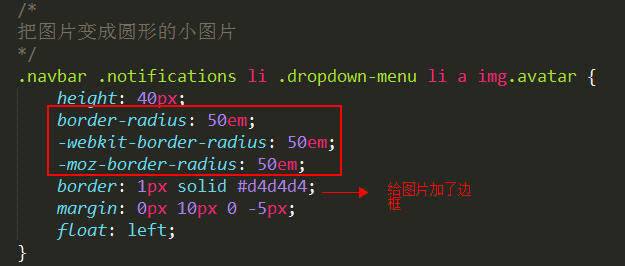

把图片变成圆形的小图片
*/
.navbar .notifications li .dropdown-menu li a img.avatar {
    height: 40px;
    border-radius: 50em;
    -webkit-border-radius: 50em;
    -moz-border-radius: 50em;
    border: 1px solid #d4d4d4;
    margin: 0px 10px 0 -5px;
    float: left;
}
/*

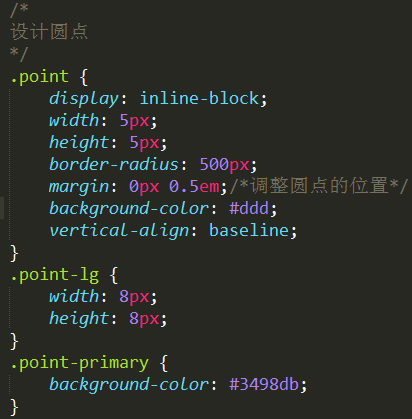

设计圆点
*/
.point {
    display: inline-block;
    width: 5px;
    height: 5px;
    border-radius: 500px;
    margin: 0px 0.5em;/*调整圆点的位置*/
    background-color: #ddd;
    vertical-align: baseline;
}
.point-lg {
    width: 8px;
    height: 8px;
}
.point-primary {
    background-color: #3498db;
}
.navbar .notifications li .dropdown-menu li a div {
    font-size: 14px;
    line-height: 25px;
    font-weight: 300;
}
.navbar .notifications li .dropdown-menu li a small {
    color: #ACACAC;
    display: block;
    line-height: 12px;
    font-size: 10px;
    margin-top: -3px;/*往上移*/
    font-style: italic;
}
.navbar .notifications li .dropdown-menu li.dropdown-menu-footer {
    border-radius: 4px;
    -webkit-border-radius: 4px;
    -moz-border-radius: 4px;
}
