IEDA 使用mybatis-generator插件自动生成代码及遇到的问题

最新推荐文章于 2024-06-20 20:31:36 发布

weixin_30521649

最新推荐文章于 2024-06-20 20:31:36 发布

阅读量313

点赞数

CC 4.0 BY-SA版权

文章标签： java 数据库

原文链接：http://www.cnblogs.com/qsymg/p/10364465.html

本文详细介绍了如何使用MyBatis Generator插件进行自动代码生成，包括pom.xml配置、generatorConfig.xml文件设置及maven命令的添加。通过配置数据库连接、实体类、Mapper接口和XML文件的生成路径，实现快速开发。

　一、pom配置

　　　　　　　　　　　　<plugin>
                    <groupId>org.mybatis.generator</groupId>
                    <artifactId>mybatis-generator-maven-plugin</artifactId>
                    <version>1.3.2</version>
                    <configuration>
                        <!--配置文件的位置-->
                        <configurationFile>src/main/resources/generatorConfig.xml</configurationFile>
                        <verbose>true</verbose>
                        <overwrite>true</overwrite>
                    </configuration>
                    <executions>
                        <execution>
                            <id>Generate MyBatis Artifacts</id>
                            <goals>
                                <goal>generate</goal>
                            </goals>
                        </execution>
                    </executions>
                    <dependencies>
                        <dependency>
                            <groupId>org.mybatis.generator</groupId>
                            <artifactId>mybatis-generator-core</artifactId>
                            <version>1.3.2</version>
                        </dependency>
                    </dependencies>
                </plugin>

二、在resources目录下创建generatorConfig.xml文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE generatorConfiguration PUBLIC
        "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd" >
<generatorConfiguration>

    <!-- 本地数据库驱动程序jar包的全路径 -->
    <classPathEntry location="E:\WebChat\target\webchat\file\jar\mysql-connector-java-5.1.25.jar"/>

    <context id="context" targetRuntime="MyBatis3">
        <commentGenerator>
            <property name="suppressAllComments" value="false"/>
            <property name="suppressDate" value="true"/>
        </commentGenerator>

        <!-- 数据库的相关配置 -->
        <jdbcConnection driverClass="com.mysql.jdbc.Driver"
                        connectionURL="jdbc:mysql://localhost:3306/test"
                        userId="root"
                        password="123"/>

        <javaTypeResolver>
            <property name="forceBigDecimals" value="false"/>
        </javaTypeResolver>

        <!-- 实体类生成的位置 -->
        <javaModelGenerator targetPackage="org.tuliu.landtransfer.model" targetProject="./src/main/java">
            <property name="enableSubPackages" value="false"/>
            <property name="trimStrings" value="true"/>
        </javaModelGenerator>

        <!-- *Mapper.xml 文件的位置 -->
        <sqlMapGenerator targetPackage="org.tuliu.landtransfer.mapper" targetProject="./src/main/java">
            <property name="enableSubPackages" value="false"/>
        </sqlMapGenerator>

        <!-- Mapper 接口文件的位置 -->
        <javaClientGenerator targetPackage="org.tuliu.landtransfer.mapper" targetProject="./src/main/java" type="XMLMAPPER">
            <property name="enableSubPackages" value="false"/>
        </javaClientGenerator>

        <!-- 相关表的配置 -->
        <table tableName="test01" enableCountByExample="false" enableDeleteByExample="false" enableSelectByExample="false"
               enableUpdateByExample="false"/>
    </context>
</generatorConfiguration>

　　　　主要配置几点，基本的mysql的jar包，数据库的连接配置，然后最主要的4个路径，实体类，mapper接口，mapper的sql，及表名。

三、添加maven命令

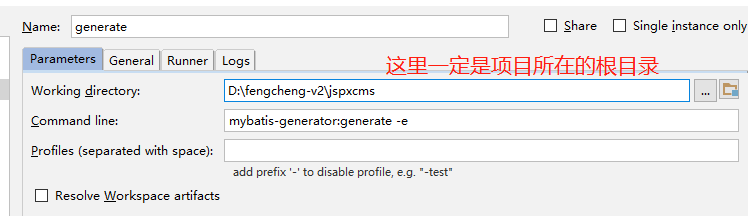

　　working dictionry为项目的所在位置

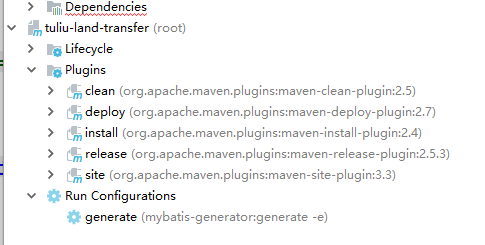

　　配置上述步骤后，在右侧的maven列表中会出现

运行generate命令即可自动生成代码。

　可能遇到的问题，如若出现

[ERROR] No plugin found for prefix 'mybatis-generator' in the current project and in the plugin groups [org.apache.maven.plugins, org.codehaus.mojo] available from the repositories [local (C:\Users\yamat\.m2\repository), central (http://repo.maven.apache.org/maven2)] -> [Help 1]
org.apache.maven.plugin.prefix.NoPluginFoundForPrefixException: No plugin found for prefix 'mybatis-generator' in the current project and in the plugin groups [org.apache.maven.plugins, org.codehaus.mojo] available from the repositories [local (C:\Users\yamat\.m2\repository), central (http://repo.maven.apache.org/maven2)]
at org.apache.maven.plugin.prefix.internal.DefaultPluginPrefixResolver.resolve(DefaultPluginPrefixResolver.java:93)
at org.apache.maven.lifecycle.internal.MojoDescriptorCreator.findPluginForPrefix(MojoDescriptorCreator.java:260)
at org.apache.maven.lifecycle.internal.MojoDescriptorCreator.getMojoDescriptor(MojoDescriptorCreator.java:220)
at org.apache.maven.lifecycle.internal.DefaultLifecycleExecutionPlanCalculator.calculateMojoExecutions(DefaultLifecycleExecutionPlanCalculator.java:188)
at org.apache.maven.lifecycle.internal.DefaultLifecycleExecutionPlanCalculator.calculateExecutionPlan(DefaultLifecycleExecutionPlanCalculator.java:118)
at org.apache.maven.lifecycle.internal.DefaultLifecycleExecutionPlanCalculator.calculateExecutionPlan(DefaultLifecycleExecutionPlanCalculator.java:135)
at org.apache.maven.lifecycle.internal.builder.BuilderCommon.resolveBuildPlan(BuilderCommon.java:97)
at org.apache.maven.lifecycle.internal.LifecycleModuleBuilder.buildProject(LifecycleModuleBuilder.java:101)
at org.apache.maven.lifecycle.internal.LifecycleModuleBuilder.buildProject(LifecycleModuleBuilder.java:76)
at org.apache.maven.lifecycle.internal.builder.singlethreaded.SingleThreadedBuilder.build(SingleThreadedBuilder.java:51)
at org.apache.maven.lifecycle.internal.LifecycleStarter.execute(LifecycleStarter.java:116)
at org.apache.maven.DefaultMaven.doExecute(DefaultMaven.java:361)
at org.apache.maven.DefaultMaven.execute(DefaultMaven.java:155)
at org.apache.maven.cli.MavenCli.execute(MavenCli.java:584)
at org.apache.maven.cli.MavenCli.doMain(MavenCli.java:213)
at org.apache.maven.cli.MavenCli.main(MavenCli.java:157)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at org.codehaus.plexus.classworlds.launcher.Launcher.launchEnhanced(Launcher.java:289)
at org.codehaus.plexus.classworlds.launcher.Launcher.launch(Launcher.java:229)
at org.codehaus.plexus.classworlds.launcher.Launcher.mainWithExitCode(Launcher.java:415)
at org.codehaus.plexus.classworlds.launcher.Launcher.main(Launcher.java:356)
at org.codehaus.classworlds.Launcher.main(Launcher.java:46)
