[Machine Learning]感知机(Perceptron)

感知机具体说明：见《统计学习方法第二章》。

实现(scikit-learn):

数据集

 1 import numpy as np
 2 import matplotlib.pyplot as plt
 3 from sklearn.linear_model import perceptron
 4
 5 # Data
 6 d = np.array([
 7     [2, 1, 2, 5, 7, 2, 3, 6, 1, 2, 5, 4, 6, 5],
 8     [2, 3, 3, 3, 3, 4, 4 ,4 , 5, 5, 5, 6, 6, 7]
 9     ])
10
11 # Labels
12 t = np.array([0, 0, 0, 1, 1, 0, 0, 1, 0, 0, 1, 1, 1, 1])
13
14 # plot the data
15 colormap = np.array(['r', 'k'])
16 plt.scatter(d[0], d[1], c = colormap[t], s = 40)
17 plt.show()

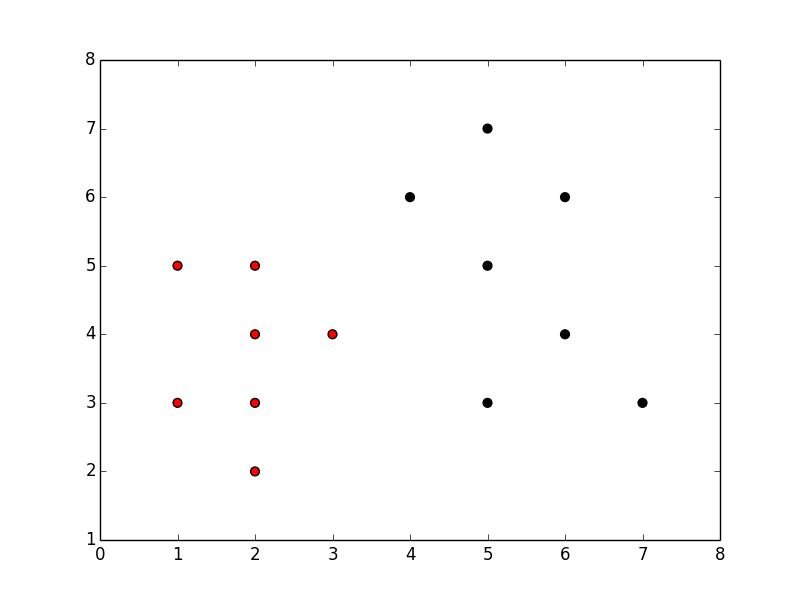

数据集表示：

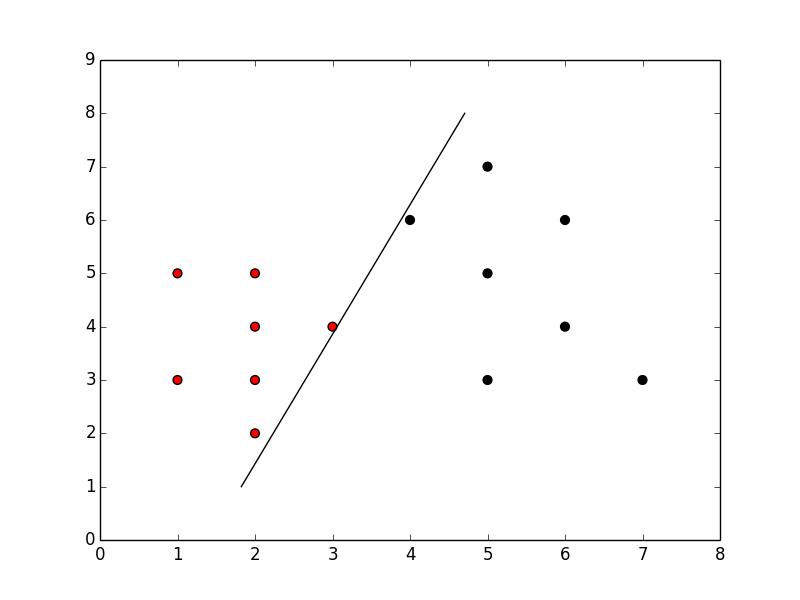

处理数据用坐标表示：

1 # rotate the data 180 degrees
2 d90 = np.rot90(d)
3 d90 = np.rot90(d90)
4 d90 = np.rot90(d90)

1 # # create the model
2 net = perceptron.Perceptron(n_iter = 100, verbose = 0, random_state = None, fit_intercept = True, eta0 = 0.002)
3 net.fit(d90, t)
4
5 # # print the results
6 print "Prediction" + str(net.predict(d90))
7 print "Actual    " + str(t)
8 print "Accuracy  " + str(net.score(d90, t) * 100) + "%"

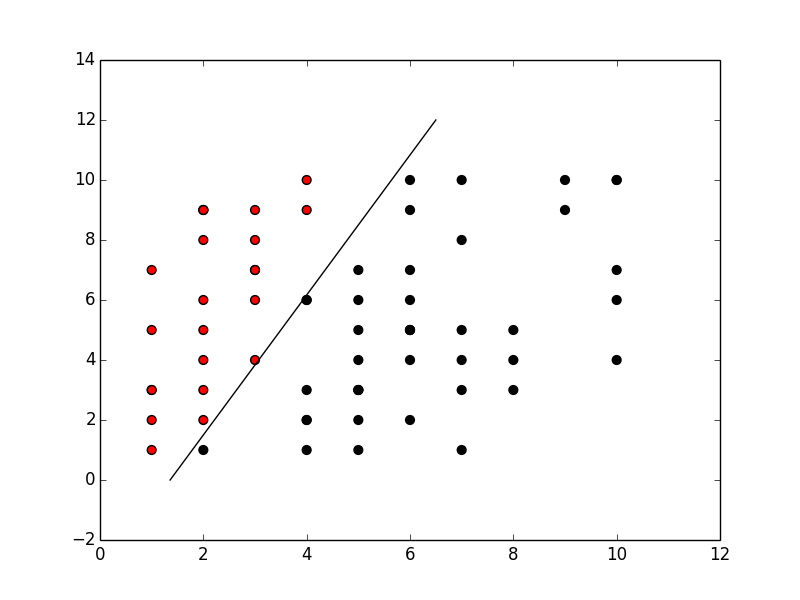

测试模型：

 1 nX = np.random.random_integers(10, size=(2, 50))
 2
 3 # Rotate it the same as the previous data
 4 nX90 = np.rot90(nX)
 5 nX90 = np.rot90(nX90)
 6 nX90 = np.rot90(nX90)
 7
 8 # # set predication as the predication results
 9 predication = net.predict(nX90)
10
11 # # Print to have a look
12 print predication
13 plt.scatter(nX[0], nX[1], c = colormap[predication], s = 40)
14
15 # now plot the hyperplane
16 ymin, ymax = plt.ylim()
17 # # cal
18 w = net.coef_[0]
19 a = -w[0] / w[1]
20 xx = np.linspace(ymin, ymax)
21 yy = a * xx - (net.intercept_[0])/ w[1]
22 plt.plot(yy, xx, 'k-')
23 plt.show()

C++描述：

 1 /**
 2  *  求两个向量的内积
 3  *
 4  *  @param lhs 向量1
 5  *  @param rhs 向量2
 6  *
 7  *  @return 内积
 8  */
 9 int product(const vector<int> &lhs, const vector<int> &rhs) {
10     int result = 0;
11     for (int i = 0; i < lhs.size() - 1; ++i) {
12         result += lhs[i] * rhs[i];
13     }
14
15     return result;
16 }
17
18 /**
19  *  感知机, 原始形式
20  *
21  *  @param dataSet 数据集
22  *
23  *  @return 返回结果(w, b)
24  */
25 vector<int> perceptron(const vector<vector<int>> &dataSet) {
26     if (dataSet.size() == 0) {
27         return vector<int>();
28     }
29
30     auto len = dataSet[0].size();
31     vector<int> w_b(len, 0);
32     int n = 1;
33     while (true) {
34         bool finished = true;
35         for (auto &ix : dataSet) {
36             int y = ix[len - 1];
37             if (y *  (product(ix, w_b) + w_b[len - 1]) <= 0) {
38                 for (auto j = 0; j < len - 1; ++j) {
39                     w_b[j] += n * y * ix[j];
40                 }
41                 w_b[len - 1] += n * y;
42                 finished = false;
43             }
44         }
45
46         if (finished) {
47             break;
48         }
49     }
50
51     return w_b;
52 }



 1 /**
 2  *  感知机，对偶形式
 3  *
 4  *  @param dataSet 数据集
 5  *
 6  *  @return 结果
 7  */
 8 vector<int> perceptron_s(const vector<vector<int>> &dataSet) {
 9     // 计算Gram矩阵
10     vector<vector<int>> gram;
11     for (auto &i :  dataSet) {
12         vector<int> tmp;
13         for (auto &j : dataSet) {
14             tmp.push_back(product(i, j));
15         }
16         gram.push_back(tmp);
17     }
18
19     vector<int> a(dataSet.size(), 0);
20     int b = 0;
21     int n = 0.8;
22
23     auto len = dataSet[0].size();
24     while (true) {
25         bool finished = true;
26         for (int i = 0; i < dataSet.size(); ++i) {
27             int sum = 0;
28             for (int j = 0; j < dataSet.size(); ++j) {
29                 int yj = dataSet[j][len - 1];
30                 sum += a[i] * gram[i][j] * yj;
31             }
32
33             int yi = dataSet[i][len - 1];
34             if (yi *(sum + b) <= 0) {
35                 a[i] += n;
36                 b += n * yi;
37                 finished = false;
38                 cout << a[0] << " " << a[1] << " " << a[2] << " " << b << endl;
39             }
40         }
41
42         if (finished) {
43             break;
44         }
45     }
46
47     vector<int> w_b;
48     for (int i = 0; i < dataSet.size(); ++i) {
49         int tmp = 0;
50         for (int j = 0; j < dataSet.size(); ++j) {
51             tmp += dataSet[i][j] * a[j];
52         }
53         w_b.push_back(tmp);
54     }
55
56     w_b.push_back(b);
57     return w_b;
58 }
