简单的SpringCloud 熔断Hystrix

转载于 2017-06-05 15:52:00 发布 · 81 阅读

0 ·

CC 4.0 BY-SA版权

原文链接：http://www.cnblogs.com/tietazhan/p/6945331.html

文章标签：

#java

本文介绍如何通过pom.xml配置Spring Cloud Hystrix Dashboard依赖，并展示如何启动Hystrix熔断监控界面。通过具体代码示例，指导读者完成环境搭建及监控页面访问。

pom配置

		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-hystrix-dashboard</artifactId>
			<version>1.3.1.RELEASE</version>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-actuator</artifactId>
		</dependency>

　　application.yml

spring:
  application:
    name: hystrix-dashboard
server:
  port: 8083

　　application启动类

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.hystrix.dashboard.EnableHystrixDashboard;

@EnableHystrixDashboard
@SpringBootApplication
public class Application {

	public static void main(String[] args) {
		SpringApplication.run(Application.class, args);
	}
}

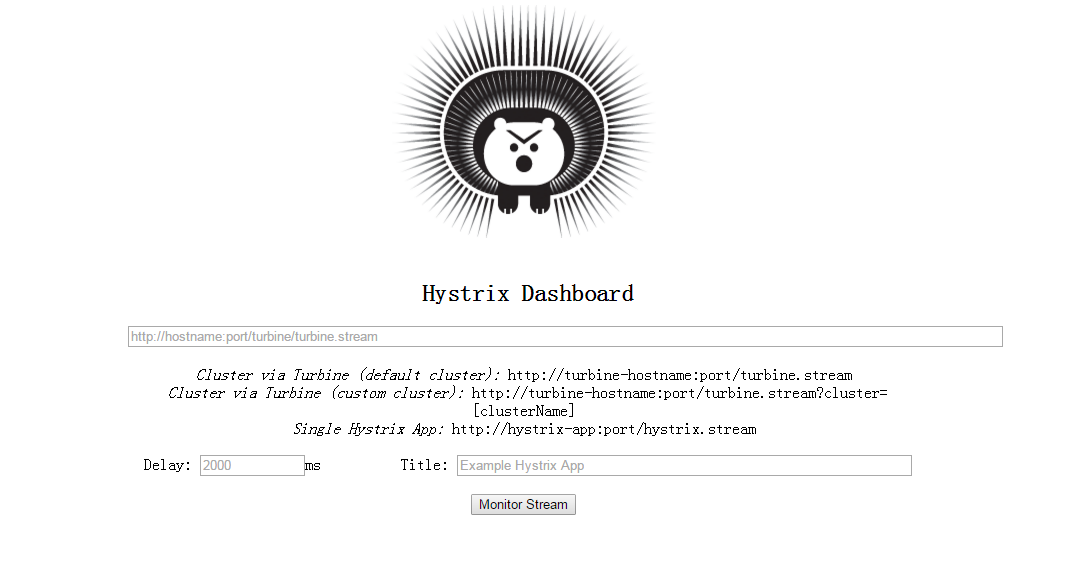

　　启动完成在浏览器输入 http://localhost:8083/hystrix.stream进入Hystrix熔断监控界面，如图：
