FlatBuffers、Protobuf及JSON对比测试
FlatBuffers相对于Protobuf的表现又如何呢？这里我们用数据说话，对比一下FlatBuffers格式、JSON格式与Protobuf的表现。测试同样用fastjson作为JSON的编码解码工具。
测试用的数据结构所有的数据结构，Protobuf相关的测试代码，及JSON的测试代码同在Android中使用Protocol Buffers 一文所述，FlatBuffers的测试代码如上面看到的 AddressBookFlatBuffers。
通过如下的这段代码来执行测试：
private class ProtoTestTask extends AsyncTask<Void, Void, Void> { private static final int BUFFER_LEN = 8192; private void compress(InputStream is, OutputStream os) throws Exception { GZIPOutputStream gos = new GZIPOutputStream(os); int count; byte data[] = new byte[BUFFER_LEN]; while ((count = is.read(data, 0, BUFFER_LEN)) != -1) { gos.write(data, 0, count); } gos.finish(); gos.close(); } private int getCompressedDataLength(byte[] data) { ByteArrayInputStream bais =new ByteArrayInputStream(data); ByteArrayOutputStream baos = new ByteArrayOutputStream();try { compress(bais, baos); } catch (Exception e) { } return baos.toByteArray().length; } private void dumpDataLengthInfo(byte[] protobufData, String jsonData, byte[] flatbufData) { int compressedProtobufLength = getCompressedDataLength(protobufData); int compressedJSONLength = getCompressedDataLength(jsonData.getBytes()); int compressedFlatbufLength = getCompressedDataLength(flatbufData); Log.i(TAG, String.format("%-120s", "Data length")); Log.i(TAG, String.format("%-20s%-20s%-20s%-20s%-20s%-20s", "Protobuf", "Protobuf (GZIP)", "JSON", "JSON (GZIP)", "Flatbuf", "Flatbuf (GZIP)")); Log.i(TAG, String.format("%-20s%-20s%-20s%-20s%-20s%-20s", String.valueOf(protobufData.length), compressedProtobufLength, String.valueOf(jsonData.getBytes().length), compressedJSONLength, String.valueOf(flatbufData.length), compressedFlatbufLength)); } private void doEncodeTest(String[] names, int times) { long startTime = System.nanoTime(); byte[] protobufData = AddressBookProtobuf.encodeTest(names, times); long protobufTime = System.nanoTime(); protobufTime = protobufTime - startTime; startTime = System.nanoTime(); String jsonData = AddressBookJson.encodeTest(names, times); long jsonTime = System.nanoTime(); jsonTime = jsonTime - startTime; startTime = System.nanoTime(); byte[] flatbufData = AddressBookFlatBuffers.encodeTest(names, times); long flatbufTime = System.nanoTime(); flatbufTime = flatbufTime - startTime; dumpDataLengthInfo(protobufData, jsonData, flatbufData); Log.i(TAG, String.format("%-20s%-20s%-20s%-20s", "Encode Times", String.valueOf(times), "Names Length", String.valueOf(names.length))); Log.i(TAG, String.format("%-20s%-20s%-20s%-20s%-20s%-20s", "ProtobufTime", String.valueOf(protobufTime), "JsonTime", String.valueOf(jsonTime), "FlatbufTime", String.valueOf(flatbufTime))); } private void doEncodeTest10(int times) { doEncodeTest(TestUtils.sTestNames10, times); } private void doEncodeTest50(int times) { doEncodeTest(TestUtils.sTestNames50, times); } private void doEncodeTest100(int times) { doEncodeTest(TestUtils.sTestNames100, times); } private void doEncodeTest(int times) { doEncodeTest10(times); doEncodeTest50(times); doEncodeTest100(times); } private void doDecodeTest(String[] names, int times) { byte[] protobufBytes = AddressBookProtobuf.encodeTest(names); ByteArrayInputStream bais = new ByteArrayInputStream(protobufBytes); long startTime = System.nanoTime(); AddressBookProtobuf.decodeTest(bais, times); long protobufTime = System.nanoTime(); protobufTime = protobufTime - startTime; String jsonStr = AddressBookJson.encodeTest(names); startTime = System.nanoTime(); AddressBookJson.decodeTest(jsonStr, times); long jsonTime = System.nanoTime(); jsonTime = jsonTime - startTime; byte[] flatbufData = AddressBookFlatBuffers.encodeTest(names); startTime = System.nanoTime(); AddressBookFlatBuffers.decodeTest(flatbufData, times); long flatbufTime = System.nanoTime(); flatbufTime = flatbufTime - startTime; Log.i(TAG, String.format("%-20s%-20s%-20s%-20s", "Decode Times", String.valueOf(times), "Names Length", String.valueOf(names.length))); Log.i(TAG, String.format("%-20s%-20s%-20s%-20s%-20s%-20s", "ProtobufTime", String.valueOf(protobufTime), "JsonTime", String.valueOf(jsonTime), "FlatbufTime", String.valueOf(flatbufTime))); } private void doDecodeTest10(int times) { doDecodeTest(TestUtils.sTestNames10, times); } private void doDecodeTest50(int times) { doDecodeTest(TestUtils.sTestNames50, times); } private void doDecodeTest100(int times) { doDecodeTest(TestUtils.sTestNames100, times); } private void doDecodeTest(int times) { doDecodeTest10(times); doDecodeTest50(times); doDecodeTest100(times); } @Override protected Void doInBackground(Void... params) { TestUtils.initTest(); doEncodeTest(5000); doDecodeTest(5000); return null; } @Override protected void onPostExecute(Void aVoid) { super.onPostExecute(aVoid); } }
这里我们执行3组编码测试及3组解码测试。对于编码测试，第一组的单个数据中包含10个Person，第二组的包含50个，第三组的包含100个，然后对每个数据分别执行5000次的编码操作。
对于解码测试，三组中单个数据同样包含10个Person、50个及100个，然后对每个数据分别执行5000次的解码码操作。
在Galaxy Nexus的Android 4.4.4 CM平台上执行上述测试，最终得到如下结果：
编码后数据长度对比 (Bytes)
| Person个数 | Protobuf | Protobuf（GZIP） | JSON | JSON（GZIP） | Flatbuf | Flatbuf（GZIP) |
|---|---|---|---|---|---|---|
| 10 | 860 | 288 | 1703 | 343 | 1532 | 513 |
| 50 | 4300 | 986 | 8463 | 1048 | 7452 | 1814 |
| 100 | 8600 | 1841 | 16913 | 1918 | 14852 | 3416 |
相同的数据，经过编码，在压缩前JSON的数据最长，FlatBuffers的数据长度与JSON的短大概10 ％，而Protobuf的数据长度则大概只有JSON的一半。而在用GZIP压缩后，Protobuf的数据长度与JSON的接近，FlatBuffers的数据长度则接近两者的两倍。
编码性能对比 (S)
| Person个数 | Protobuf | JSON | FlatBuffers |
|---|---|---|---|
| 10 | 6.000 | 8.952 | 12.464 |
| 50 | 26.847 | 45.782 | 56.752 |
| 100 | 50.602 | 73.688 | 108.426 |
编码性能Protobuf相对于JSON有较大幅度的提高，而FlatBuffers则有较大幅度的降低。
解码性能对比 (S)
| Person个数 | Protobuf | JSON | FlatBuffers |
|---|---|---|---|
| 10 | 0.255 | 10.766 | 0.014 |
| 50 | 0.245 | 51.134 | 0.014 |
| 100 | 0.323 | 101.070 | 0.006 |
解码性能方面，Protobuf相对于JSON，有着惊人的提升。Protobuf的解码时间几乎不随着数据长度的增长而有太大的增长，而JSON则随着数据长度的增加，解码所需要的时间也越来越长。而FlatBuffers则由于无需解码，在性能方面相对于前两者更有着非常大的提升。
FlatBuffers 编码原理
FlatBuffers的Java库只提供了如下的4个类：
./com/google/flatbuffers/Constants.java
./com/google/flatbuffers/FlatBufferBuilder.java
./com/google/flatbuffers/Struct.java
./com/google/flatbuffers/Table.java
Constants 类定义FlatBuffers中可用的基本原始数据类型的长度：
public class Constants {
// Java doesn't seem to have these.
/** The number of bytes in an `byte`. */
static final int SIZEOF_BYTE = 1;
/** The number of bytes in a `short`. */
static final int SIZEOF_SHORT = 2;
/** The number of bytes in an `int`. */
static final int SIZEOF_INT = 4;
/** The number of bytes in an `float`. */
static final int SIZEOF_FLOAT = 4;
/** The number of bytes in an `long`. */
static final int SIZEOF_LONG = 8;
/** The number of bytes in an `double`. */
static final int SIZEOF_DOUBLE = 8;
/** The number of bytes in a file identifier. */
static final int FILE_IDENTIFIER_LENGTH = 4;
}
FlatBufferBuilder 用于FlatBuffers编码，它会将我们的结构化数据序列化为字节数组。我们借助于 FlatBufferBuilder 在 ByteBuffer 中放置基本数据类型的数据、数组、字符串及对象。ByteBuffer 用于处理字节序，在序列化时，它将数据按适当的字节序进行序列化，在发序列化时，它将多个字节转换为适当的数据类型。在 .fbs 文件中定义的 table 和 struct，为它们生成的Java 类会继承 Table 和 Struct。
在反序列化时，输入的ByteBuffer数据被当作字节数组，Table提供了针对字节数组的操作，生成的Java类负责对这些数据进行解释。对于FlatBuffers编码的数据，无需进行解码，只需进行解释。在编译 .fbs 文件时，每个字段在这段数据中的位置将被确定。每个字段的类型及长度将被硬编码进生成的Java类。
Struct 类的代码也比较简洁：
package com.google.flatbuffers;
import java.nio.ByteBuffer;
/// @cond FLATBUFFERS_INTERNAL
/**
* All structs in the generated code derive from this class, and add their own accessors.
*/
public class Struct {
/** Used to hold the position of the `bb` buffer. */
protected int bb_pos;
/** The underlying ByteBuffer to hold the data of the Struct. */
protected ByteBuffer bb;
}

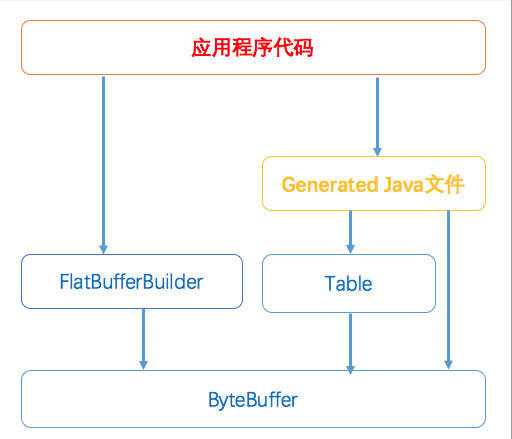

整体的结构如下图：
在序列化结构化数据时，我们首先需要创建一个 FlatBufferBuilder ，在这个对象的创建过程中会分配或从调用者那里获取 ByteBuffer，序列化的数据将保存在这个 ByteBuffer中：
/**
* Start with a buffer of size `initial_size`, then grow as required.
*
* @param initial_size The initial size of the internal buffer to use.
*/
public FlatBufferBuilder(int initial_size) {
if (initial_size <= 0) initial_size = 1;
space = initial_size;
bb = newByteBuffer(initial_size);
}
/**
* Start with a buffer of 1KiB, then grow as required.
*/
public FlatBufferBuilder() {
this(1024);
}
/**
* Alternative constructor allowing reuse of {@link ByteBuffer}s. The builder
* can still grow the buffer as necessary. User classes should make sure
* to call {@link #dataBuffer()} to obtain the resulting encoded message.
*
* @param existing_bb The byte buffer to reuse.
*/
public FlatBufferBuilder(ByteBuffer existing_bb) {
init(existing_bb);
}
/**
* Alternative initializer that allows reusing this object on an existing
* `ByteBuffer`. This method resets the builder's internal state, but keeps
* objects that have been allocated for temporary storage.
*
* @param existing_bb The byte buffer to reuse.
* @return Returns `this`.
*/
public FlatBufferBuilder init(ByteBuffer existing_bb){
bb = existing_bb;
bb.clear();
bb.order(ByteOrder.LITTLE_ENDIAN);
minalign = 1;
space = bb.capacity();
vtable_in_use = 0;
nested = false;
finished = false;
object_start = 0;
num_vtables = 0;
vector_num_elems = 0;
return this;
}
static ByteBuffer newByteBuffer(int capacity) {
ByteBuffer newbb = ByteBuffer.allocate(capacity);
newbb.order(ByteOrder.LITTLE_ENDIAN);
return newbb;
}
下面我们更详细地分析基本数据类型数据、数组及对象的序列化过程。ByteBuffer 为小尾端的。
FlatBuffers编码基本数据类型
FlatBuffer 的基本数据类型主要包括如下这些：
Boolean
Byte
Short
Int
Long
Float
Double
FlatBufferBuilder 提供了三组方法用于操作这些数据：
public void putBoolean(boolean x);
public void putByte (byte x);
public void putShort (short x);
public void putInt (int x);
public void putLong (long x);
public void putFloat (float x);
public void putDouble (double x);
public void addBoolean(boolean x);
public void addByte (byte x);
public void addShort (short x);
public void addInt (int x);
public void addLong (long x);
public void addFloat (float x);
public void addDouble (double x);
public void addBoolean(int o, boolean x, boolean d);
public void addByte(int o, byte x, int d);
public void addShort(int o, short x, int d);
public void addInt (int o, int x, int d);
public void addLong (int o, long x, long d);
public void addFloat (int o, float x, double d);
public void addDouble (int o, double x, double d);
putXXX 那一组，直接地将一个数据放入 ByteBuffer 中，它们的实现基本如下面这样：
public void putBoolean(boolean x) {
bb.put(space -= Constants.SIZEOF_BYTE, (byte) (x ? 1 : 0));
}
public void putByte(byte x) {
bb.put(space -= Constants.SIZEOF_BYTE, x);
}
public void putShort(short x) {
bb.putShort(space -= Constants.SIZEOF_SHORT, x);
}
Boolean值会被先转为byte类型再放入 ByteBuffer。另外一点值得注意的是，数据是从 ByteBuffer 的结尾处开始放置的，space用于记录最近放入的数据的位置及剩余的空间。
addXXX(XXX x) 那一组在放入数据之前会先做对齐处理，并在需要时扩展 ByteBuffer 的容量：
static ByteBuffer growByteBuffer(ByteBuffer bb) {
int old_buf_size = bb.capacity();
if ((old_buf_size & 0xC0000000) != 0) // Ensure we don't grow beyond what fits in an int.
throw new AssertionError("FlatBuffers: cannot grow buffer beyond 2 gigabytes.");
int new_buf_size = old_buf_size << 1;
bb.position(0);
ByteBuffer nbb = newByteBuffer(new_buf_size);
nbb.position(new_buf_size - old_buf_size);
nbb.put(bb);
return nbb;
}
public void pad(int byte_size) {
for (int i = 0; i < byte_size; i++) bb.put(--space, (byte) 0);
}
public void prep(int size, int additional_bytes) {
// Track the biggest thing we've ever aligned to.
if (size > minalign) minalign = size;
// Find the amount of alignment needed such that `size` is properly
// aligned after `additional_bytes`
int align_size = ((~(bb.capacity() - space + additional_bytes)) + 1) & (size - 1);
// Reallocate the buffer if needed.
while (space < align_size + size + additional_bytes) {
int old_buf_size = bb.capacity();
bb = growByteBuffer(bb);
space += bb.capacity() - old_buf_size;
}
pad(align_size);
}
public void addBoolean(boolean x) {
prep(Constants.SIZEOF_BYTE, 0);
putBoolean(x);
}
public void addInt(int x) {
prep(Constants.SIZEOF_INT, 0);
putInt(x);
}
对齐是数据存放的起始位置相对于ByteBuffer的结束位置的对齐，additional bytes被认为是不需要对齐的，且在必要的时候会在ByteBuffer可用空间的结尾处填充值为0的字节。在扩展 ByteBuffer 的空间时，老的ByteBuffer被放在新ByteBuffer的结尾处。
addXXX(int o, XXX x, YYY y) 这一组方法在放入数据之后，会将 vtable 中对应位置的值更新为最近放入的数据的offset。
public void addShort(int o, short x, int d) {
if (force_defaults || x != d) {
addShort(x);
slot(o);
}
}
public void slot(int voffset) {
vtable[voffset] = offset();
}
后面我们在分析编码对象时再来详细地了解vtable。
基本上，在我们的应用程序代码中不要直接调用这些方法，它们主要在构造对象时用于存储对象的基本数据类型字段。
