本文介绍如何在Windows窗体应用中实现无边框窗口的移动及添加窗体阴影效果。通过使用user32.dll中的API函数，可以轻松实现这些功能，提升用户体验。

//窗体移动API，先导入命名空间，在委托MouseDown事件
//移动前准备
[DllImport("user32.dll")]
public static extern bool ReleaseCapture();
[DllImport("user32.dll")]
public static extern bool SendMessage(IntPtr hwnd, int wMsg, int wParam,

int IParam);
public const int WM_SYSCOMMAND = 0x0112;
public const int SC_MOVE = 0xF010;
public const int HTCAPTION = 0x0002;
[DllImport("user32")]
private static extern int SendMessage(IntPtr hwnd, int wMsg, int wParam,

IntPtr lParam);
private const int WM_SETREDRAW = 0xB;

//窗体移动事件
private void Form1_MouseDown(object sender, MouseEventArgs e)
{
    if (this.WindowState == FormWindowState.Normal)
    {
        ReleaseCapture();
        SendMessage(this.Handle, WM_SYSCOMMAND, SC_MOVE +

HTCAPTION, 0);
    }
}

无边框窗体移动API

复制API代码到窗体代码结构函数下方，引用命名空间，委托MouseDown的事件（李献策lxc）

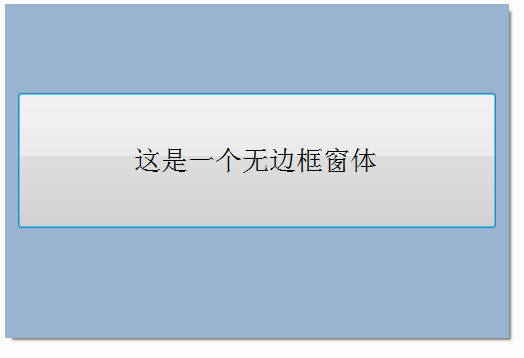

     //窗体阴影API，放在结构函数上方，修改结构函数即可
        const int CS_DropSHADOW = 0x20000;
        const int GCL_STYLE = (-26);
        [DllImport("user32.dll", CharSet = CharSet.Auto)]
        public static extern int SetClassLong(IntPtr hwnd, int nIndex, int dwNewLong);
        [DllImport("user32.dll", CharSet = CharSet.Auto)]
        public static extern int GetClassLong(IntPtr hwnd, int nIndex);


        public Form1()
        {
            InitializeComponent();
            SetClassLong(this.Handle, GCL_STYLE, GetClassLong(this.Handle, GCL_STYLE) | CS_DropSHADOW);
        }

窗体阴影API

复制API代码到结构函数上方，修改结构函数即可

API - 通用功能接口

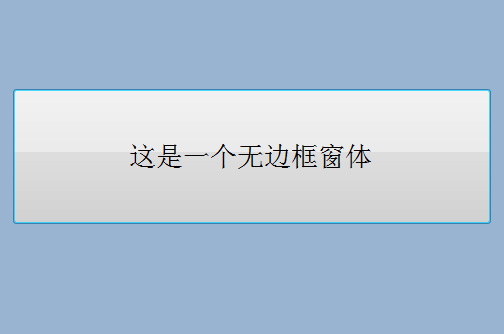

做一个如下无边框的窗体

一、无边框窗体移动

复制API代码到窗体代码结构函数下方，引用命名空间，委托MouseDown的事件

public Form1()
        {
            InitializeComponent();
        }

        //窗体移动API
        [DllImport("user32.dll")]
        public static extern bool ReleaseCapture();
        [DllImport("user32.dll")]
        public static extern bool SendMessage(IntPtr hwnd, int wMsg, int wParam, int IParam);
        public const int WM_SYSCOMMAND = 0x0112;
        public const int SC_MOVE = 0xF010;
        public const int HTCAPTION = 0x0002;
        [DllImport("user32")]
        private static extern int SendMessage(IntPtr hwnd, int wMsg, int wParam, IntPtr lParam);
        private const int WM_SETREDRAW = 0xB;

        private void Form1_MouseDown(object sender, MouseEventArgs e)
        {
            if (this.WindowState == FormWindowState.Normal)
            {
                ReleaseCapture();
                SendMessage(this.Handle, WM_SYSCOMMAND, SC_MOVE + HTCAPTION, 0);
            }
        }
